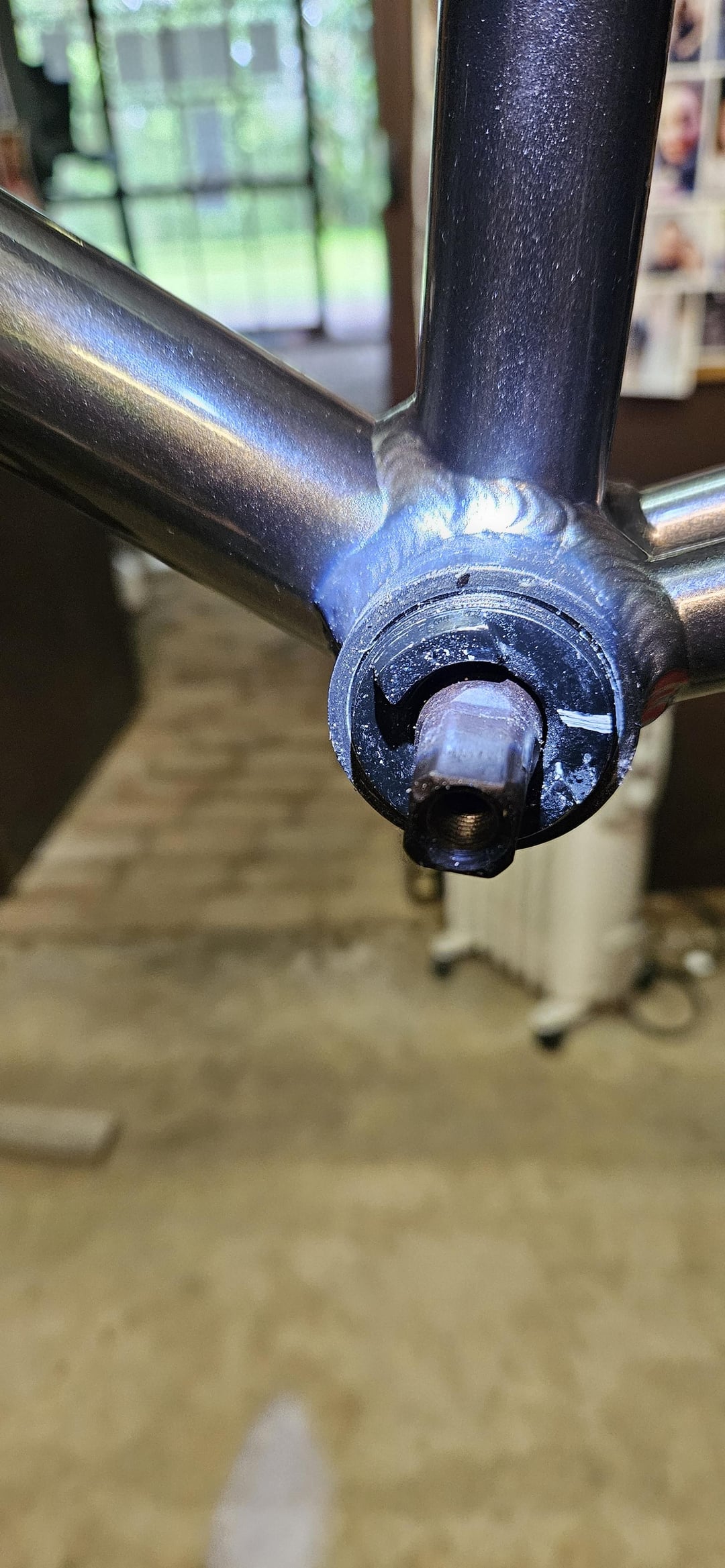

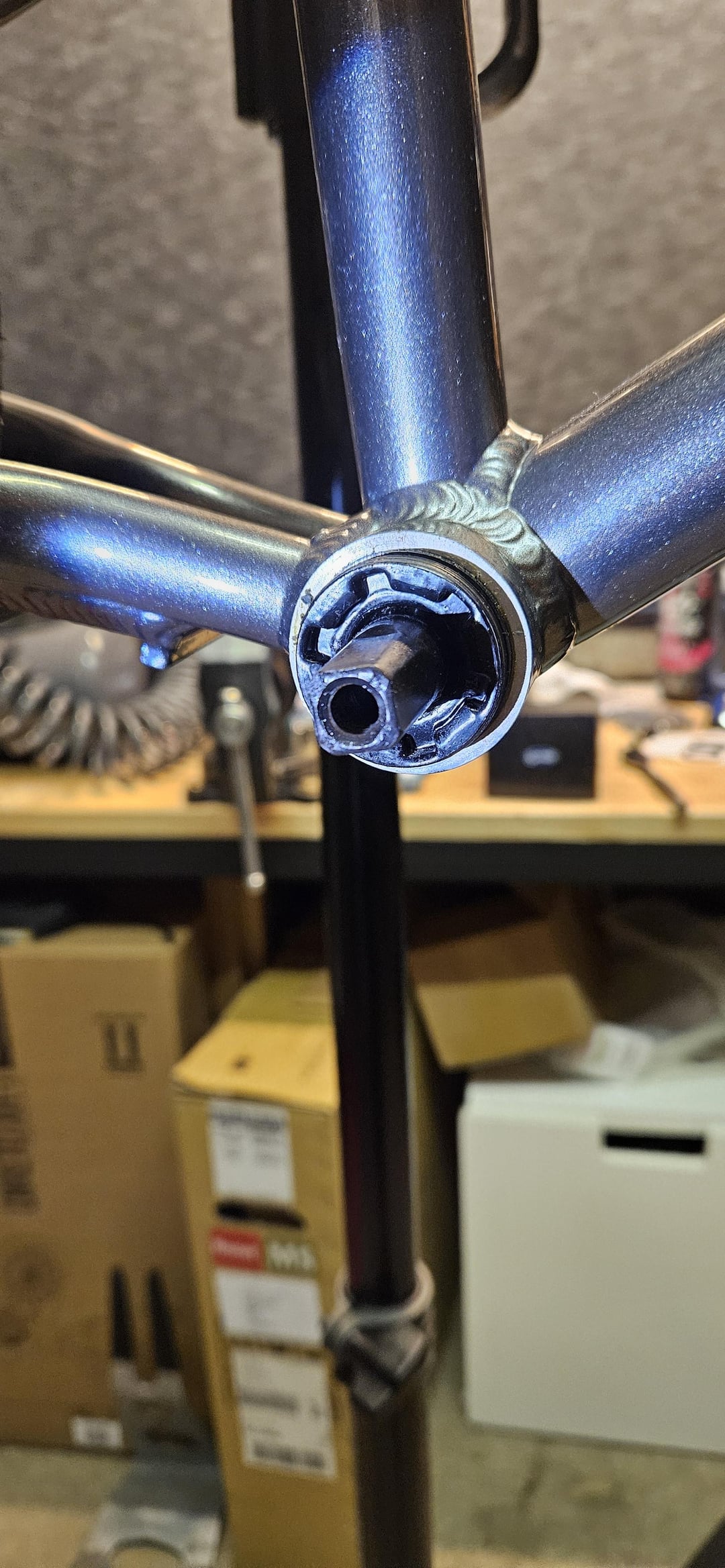

Trying to remove the bottom bracket off my kids bike (Giant Animator 16), thought it was going to be a standard square taper needing the 20 tooth tool but was met with 6 inside notches. The other side looks familiar enough, but I’ve never seen the 6 notch side!
by il_mascalzone
4 Comments
If it were me and I was replacing it, I’d use a large crescent wrench in the left side and a large flat head screwdriver on the right side.
[removed]
Loose bearing BB, it’s a specific fix cup that most 70’s english roadys used.
[this park tool](https://www.pushys.com.au/park-tool-hcw-11-adjustable-cup-wrench.html?gad_source=1&gclid=EAIaIQobChMIouqlzpToggMVtxB7Bx3_jgmzEAQYASABEgJnzfD_BwE&gclsrc=aw.ds), see that almost closed rectangle on one end, that’s the tool made for that fix cup shown on the second photo.
You can try just tapping it with a punch and hammer to screw it off, there’s also some DIY tricks. But I had a tight one once and went to several bike shops to find a mech with the specific tool.
Not sure how to do the other side sorry.
It may be simpler to just overhaul rather than replace. Are there lockings on either side?
