I bought a used 2025 model Al5 Gen4 few weeks back. Today I was trying to remove the rear thru axle and do some cleanup and lubrication but found myself puzzled what to do.

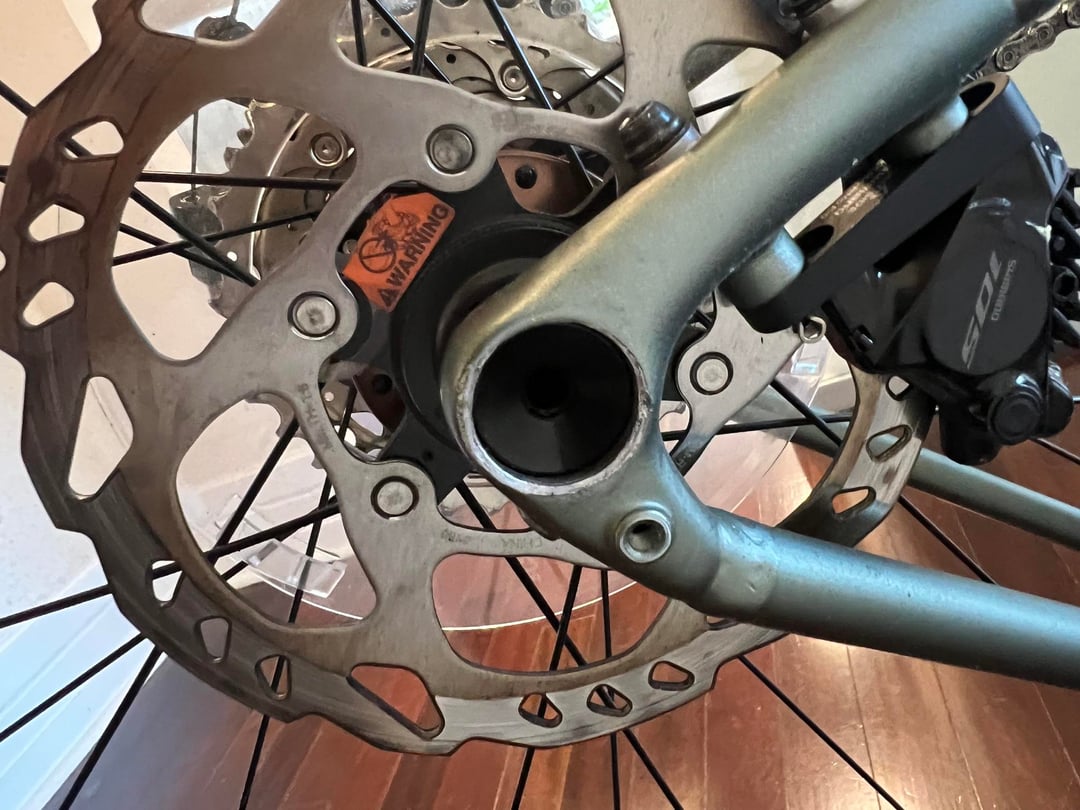

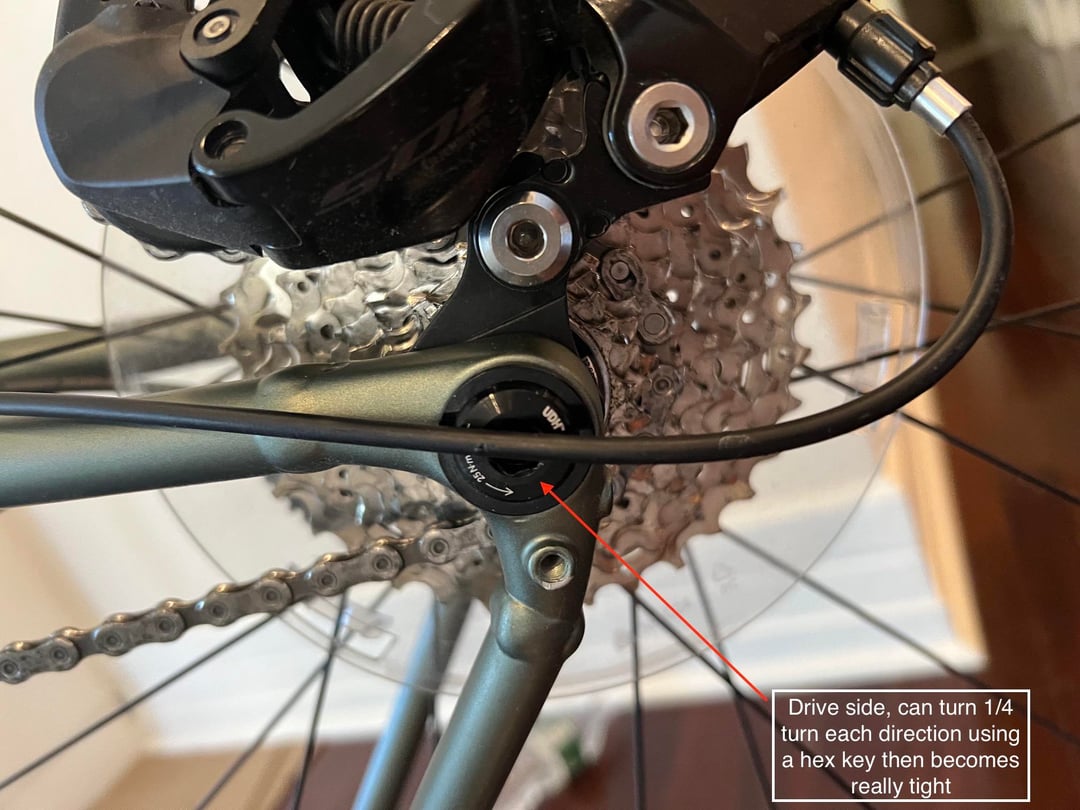

Basically, all instructions I read said use a hex key to remove from non-drive side. But my non drive side is just a round hole without hex head. There's a hex head on the drive side, I can plug in a hex key and turn maybe 1/4 turn each direction then it becomes very tight, I didn't force through in fear of breaking something.
Also, on the non-drive side, there were some scratches on the surrounding hole, like someone was trying to pry something. Can I get help about:
- Did the previous owner did something bad to the bike?
- How do I remove the rear axle with a hex key?
thanks,
by huyou007
1 Comment
The 6mm hex is on the non drive side, there is a rubber o-ring in the thru axle to help hold the tool in. You just need to wiggle the tool while inserting it in the axle
