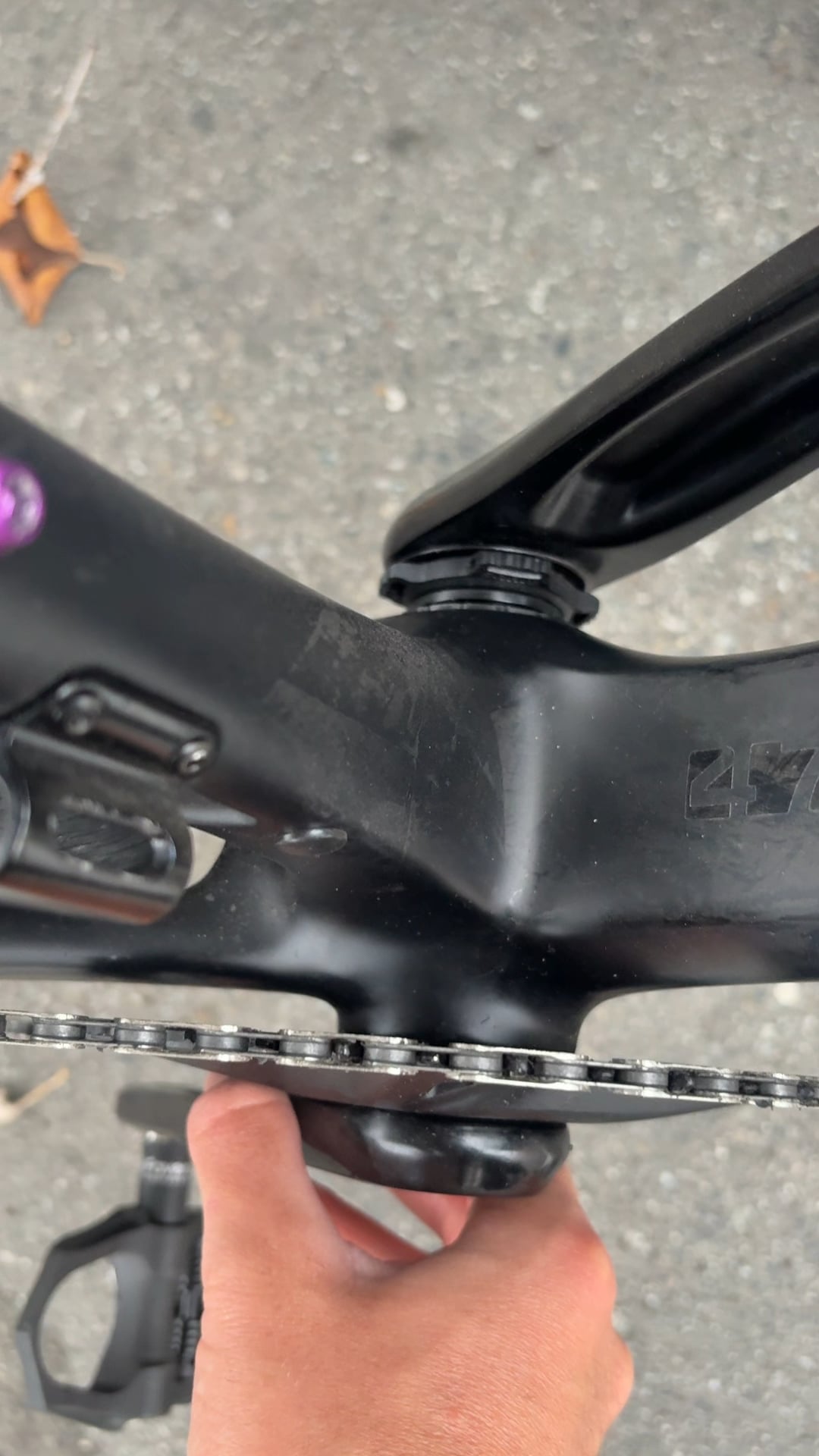

    HELP: New bike, SRAM Rival XLPR crankset has play back and forth. Solution?

    Share.
    View 12 Comments

    12 Comments

    1. biggles604 on

      There is a tensioning ring on the inside of the non drive crank that you can unscrew to take out the slack.
      If it’s too much, it might need a BB spacer

    2. johnboo89 on

      Usually a little play is the preload isn’t set. But this is a lot of play. Seems like spacers aren’t correct.

    3. Shot_Animator_8234 on

      Missing a spacer plus you need to wind the big nut in to have the correct tension.

    4. Remarkable_Bat_7897 on

      you should bring the bike to the seller and ask him to fix that.

    5. coiler_dh on

      On the non drive side you have a plastic nut to adjust the play. (It’s secured with a small imbus)

    6. OrmTheBearSlayer on

      Assuming you have the right number of spacers on the bottom bracket and the cranks are torqued to the correct spec then there is a preload collar on the none drive side crank arm. Slacken the grub screw on the preload collar then turn it until it just say takes any play out and the cranks still spin freely then tighten the grub screw to hold it in place.

      If there is too much play for the preload collar to take out then you’re probably missing a spacer on the bottom bracket.

    7. Ecstatic_Wishbone609 on

      This looks more than the preload on the non-drive side can fix. 99% needs an additional spacer or spacers. Since this is a new bike, seller needs to fix this. Bring it back to them.

    9. ReceptionBorn2390 on

      Since this is a new bike, take it to wherever you purchased it and have them adjust it. Many bikes need fine tuning after being ridden the first few times as parts might settle or it has been a while since they were set at the factory. If you purchased this from a bike shop, they should fix it for free. Do not pay anything.

    10. West_Wheel_5055 on

      XPLR uses a wide chainline. If you have a SRAM DUB bottom bracket, follow the guide for Road-Wide:

      [https://www.sram.com/globalassets/document-hierarchy/compatibility-map/road/dub-choose-a-road-bottom-bracket-compatibility-map.pdf](https://www.sram.com/globalassets/document-hierarchy/compatibility-map/road/dub-choose-a-road-bottom-bracket-compatibility-map.pdf)

      You need an extra 2.5mm outer spacer on the left and right. If you don’t have them, you can buy the kit:

      [https://www.performancebike.com/sram-dub-mountain-road-v3-bottom-bracket-spacer-kit-black-11.6418.002.002/p1281060](https://www.performancebike.com/sram-dub-mountain-road-v3-bottom-bracket-spacer-kit-black-11.6418.002.002/p1281060)

    12. tokarsky268 on

      That much play seems like a spacer issue. Thankfully SRAM is pretty good about specs, diagrams and spacers are cheap
