I got this bike in 2009; it was a city-leased bike that was being retired and I won it in a contest. Great bike to tool around town in locally, but put it away for a while.

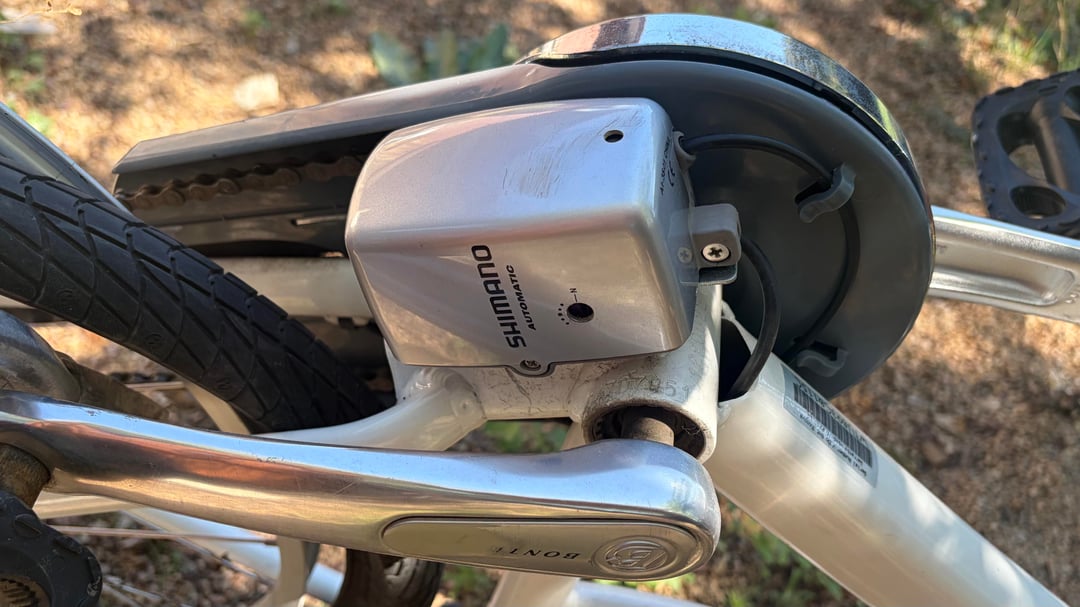

So it’s like a 2008/9 Coasting bike with Shimano shifter.

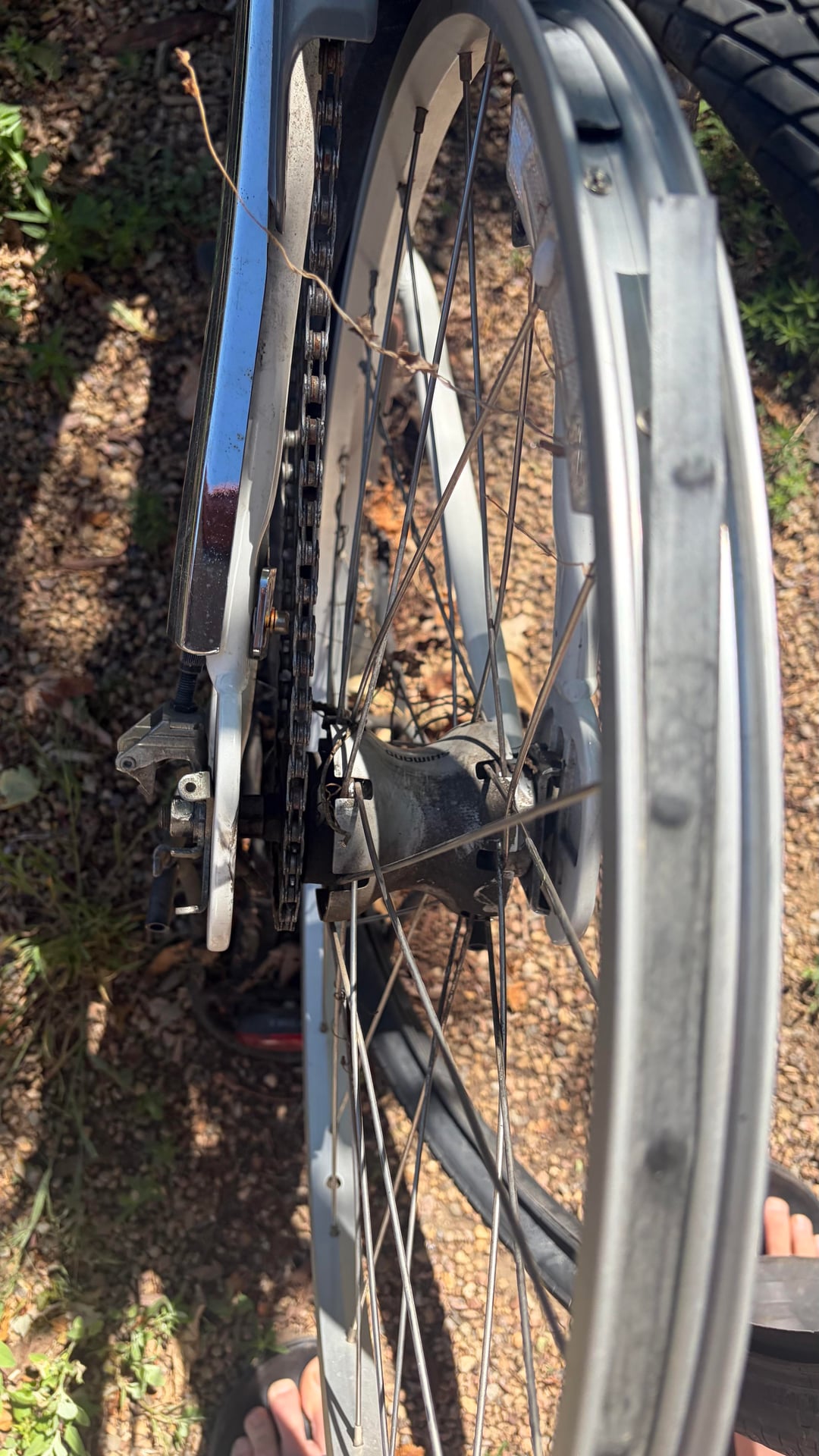

Does anyone have experience removing the rear wheel to replace the tire? I’m embarrassed to say this has been puzzling me for a couple years now.
by jeromevedder
1 Comment
This is the Shimano white paper on this Inter system:
https://si.shimano.com/en/pdfs/si/7CB0A/SI-7CB0A-000-ENG.pdf

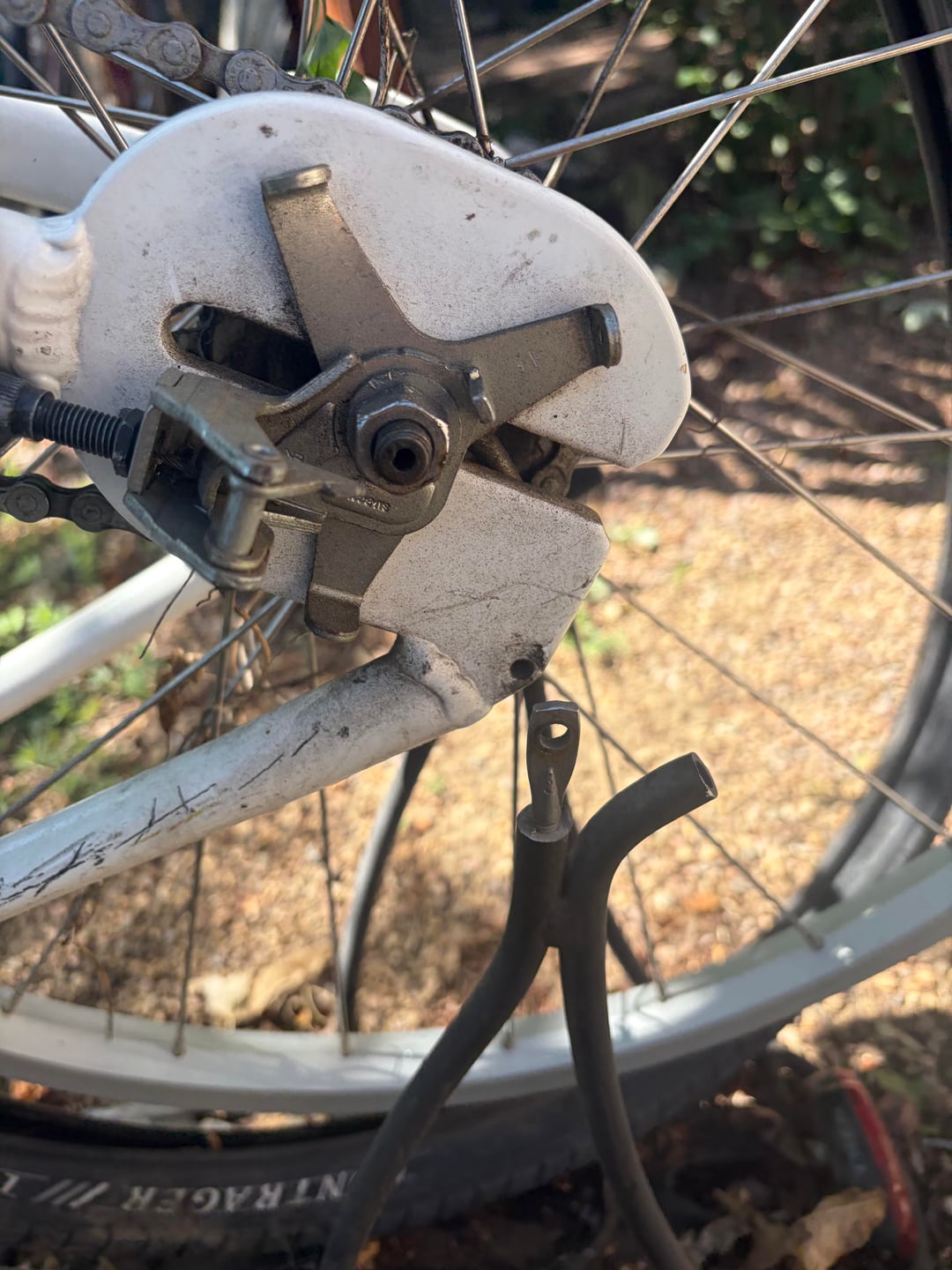

So you would need to remove the bell crank fixing nut and remove the bell crank.

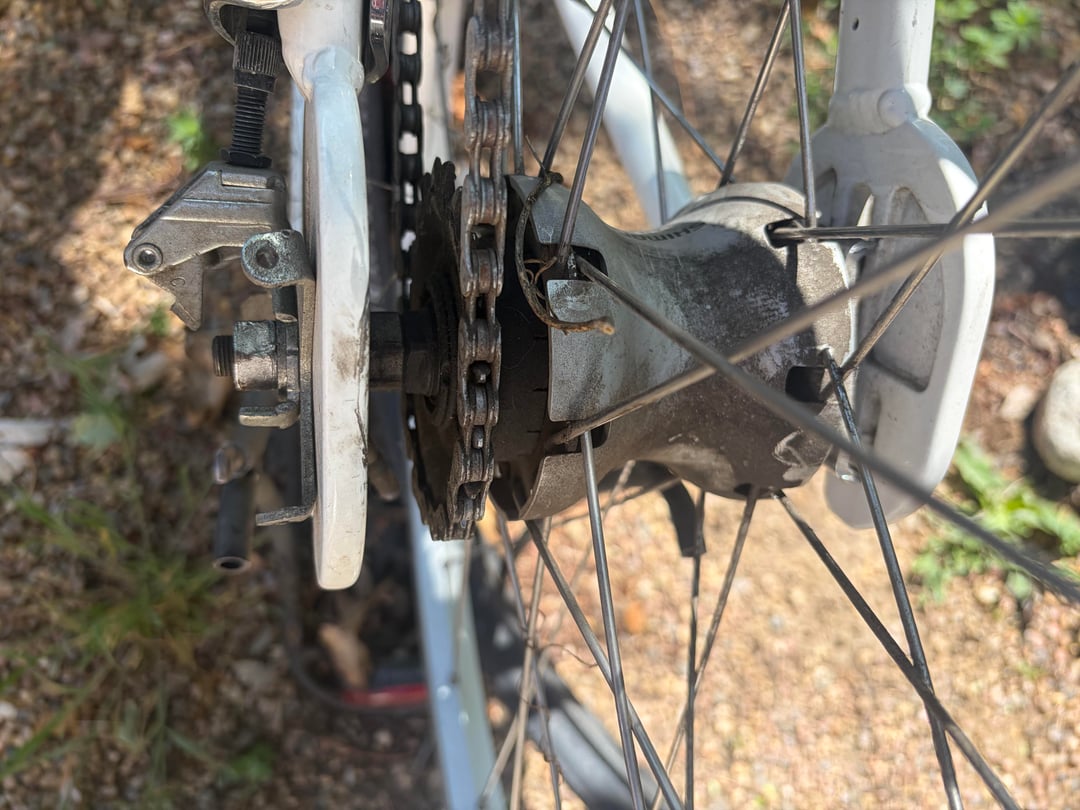

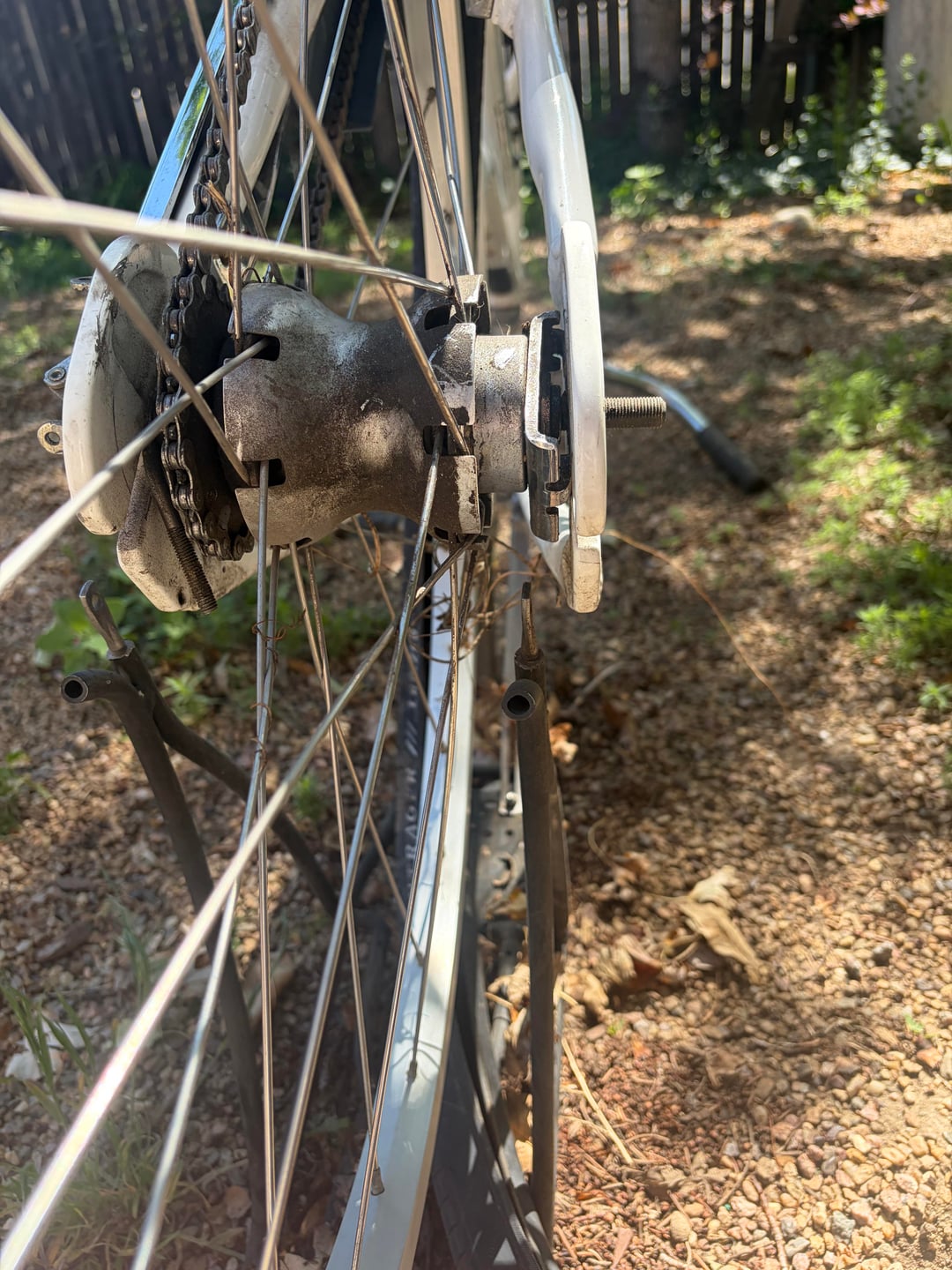

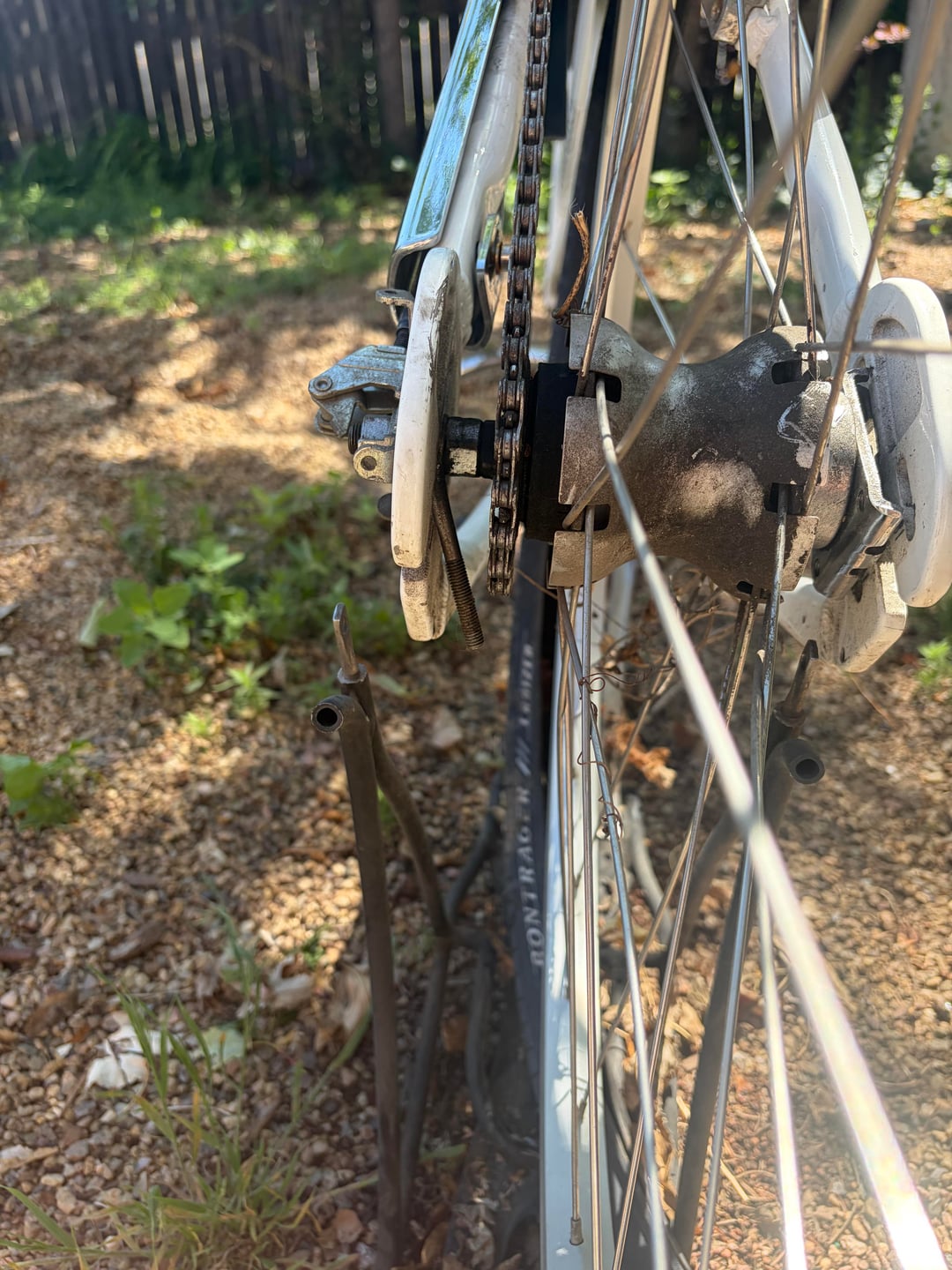

Not sure why it looks like your pushrod is wedged into your dropout but there are clearly issues going on in that rear end.
