I can’t but I bet the manufacturers website could based on model number. Google will as well and there’s also measuring from seal to crown on the stanchions
xargs2020 on
You can lookup the serial number on Fox’s website for all the details.
I’m guessing 130. I’ve had 120 and 140 on bikes before and this looks in between.
Do they even come in 130mm?
Tough_Course9431 on
Looks about 100mm
Double-Experience-66 on
50mm
Greedy_Pomegranate14 on
No, but I can give you 3 methods to find out yourself.
1. Search “fox serial number lookup” into google and click on one of the first results. Input the serial number (found on the back of your crown) into that website and you’ll see all kinds of specs.
2. Grab a tape measure or ruler and measure the length of the stancion. From the dust wiper to the crown. Round down to the nearest 10mm. For example, if it measures 155mm then you have 150mm travel.
3. Slide your oring all the way down to the dust wiper. Take all the air out of your shock and compress it by hand. Put all the air back in and ensure it’s fully extended. Measure how far the oring moved.
RalphiePseudonym on

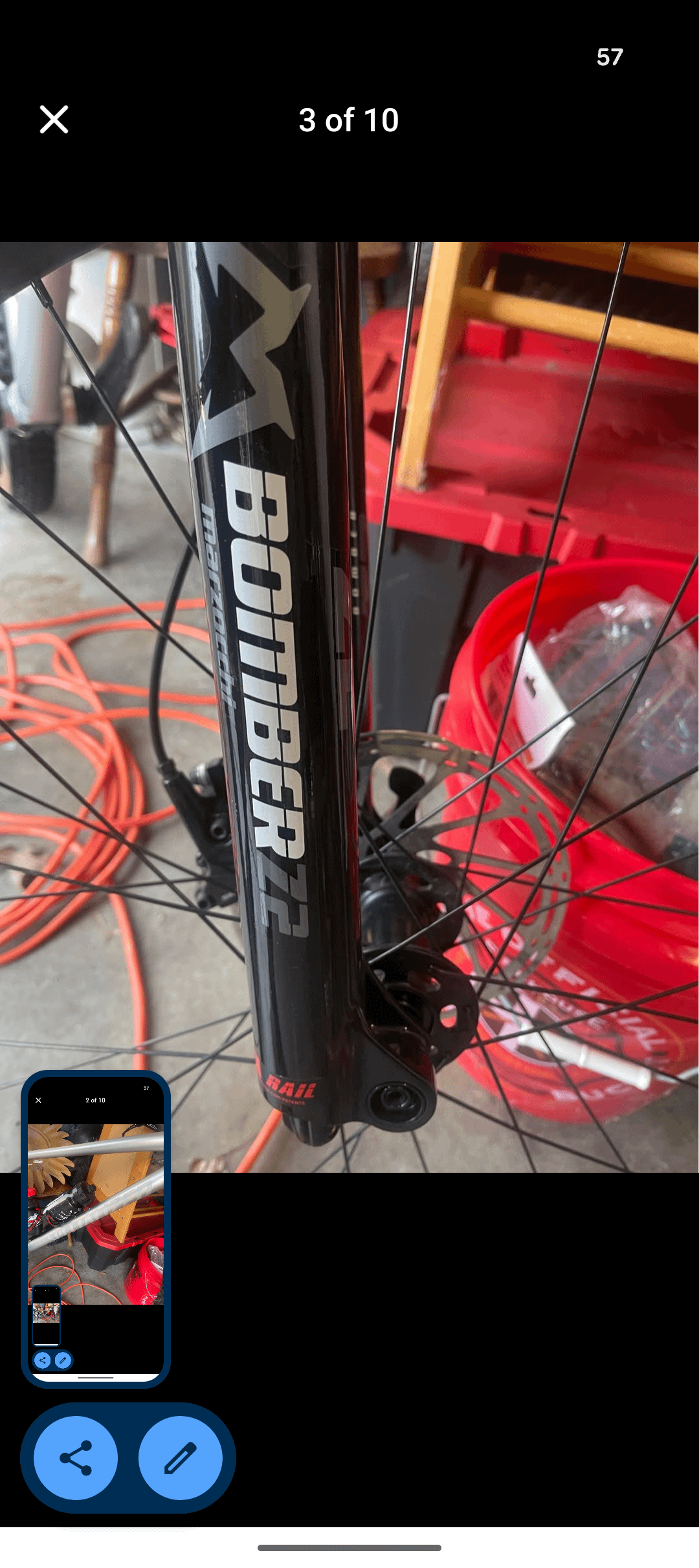

Bomber Z2 goes from 130 to 150 or something. You’re probably better off looking up the hole model.
NicHarvs on
I ratio’d the stantions length against the lower leg lengths and got a ratio of 0.3333
Then did the same against a photo of my Bomber Z2 140mm, the ratio was the same. If the fork is a 29″ then the travel is 140mm
Mudbutt101 on
Why doesn’t the owner know how much travel they have?
