Ortlieb Quick Rack XL – Initial thoughts from a first-time rack user

After installing the Ortlieb Quick Rack XL, I wanted to share some initial impressions for anyone considering one—especially MTB users.

My first impression was that the rack does not fully justify its premium price in terms of manufacturing quality.

The paint finish is uneven, and there are loose metal fragments rattling inside the tubing that cannot be removed through the existing openings. They appear to be leftover drilling debris or manufacturing residue.

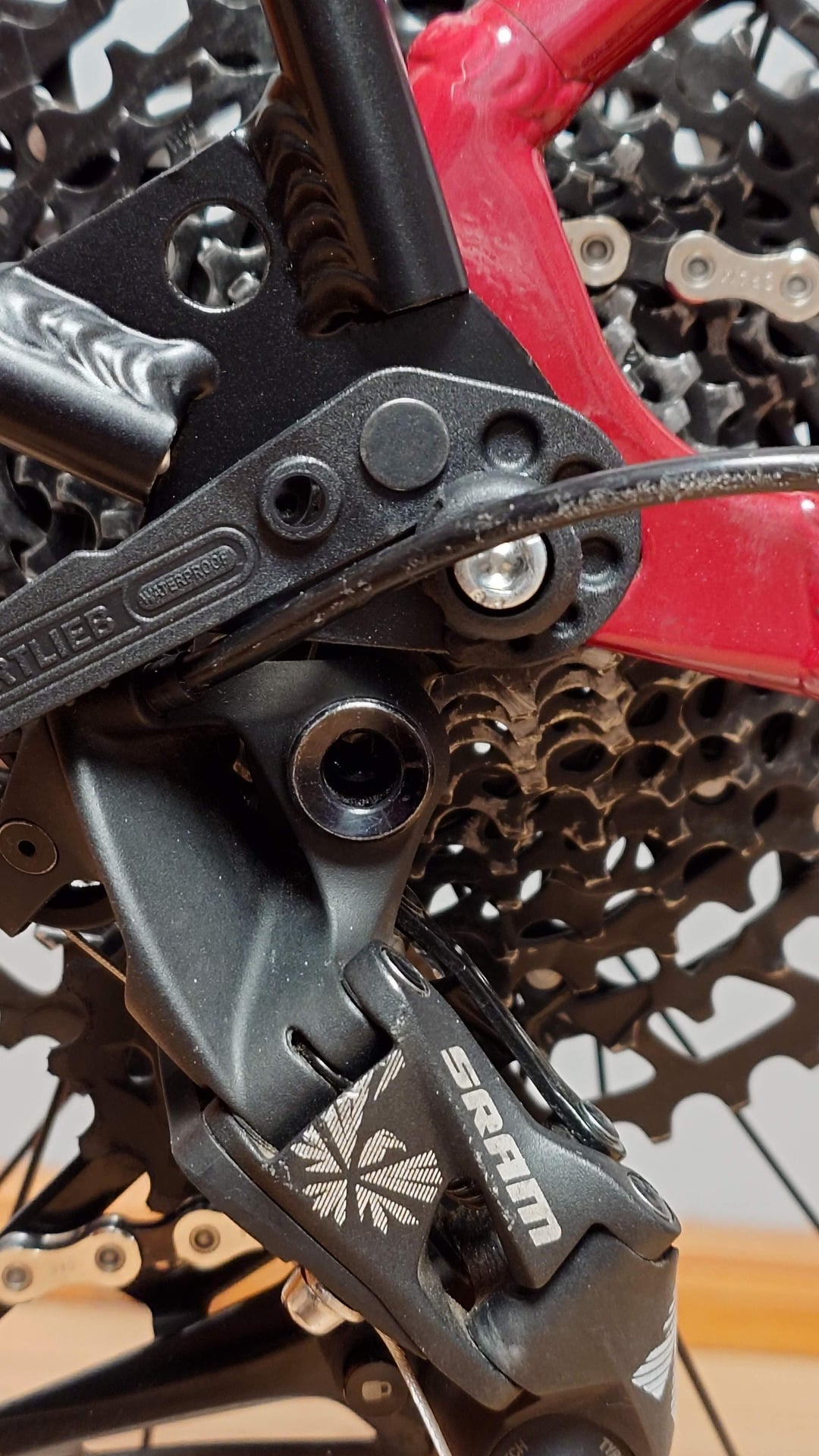

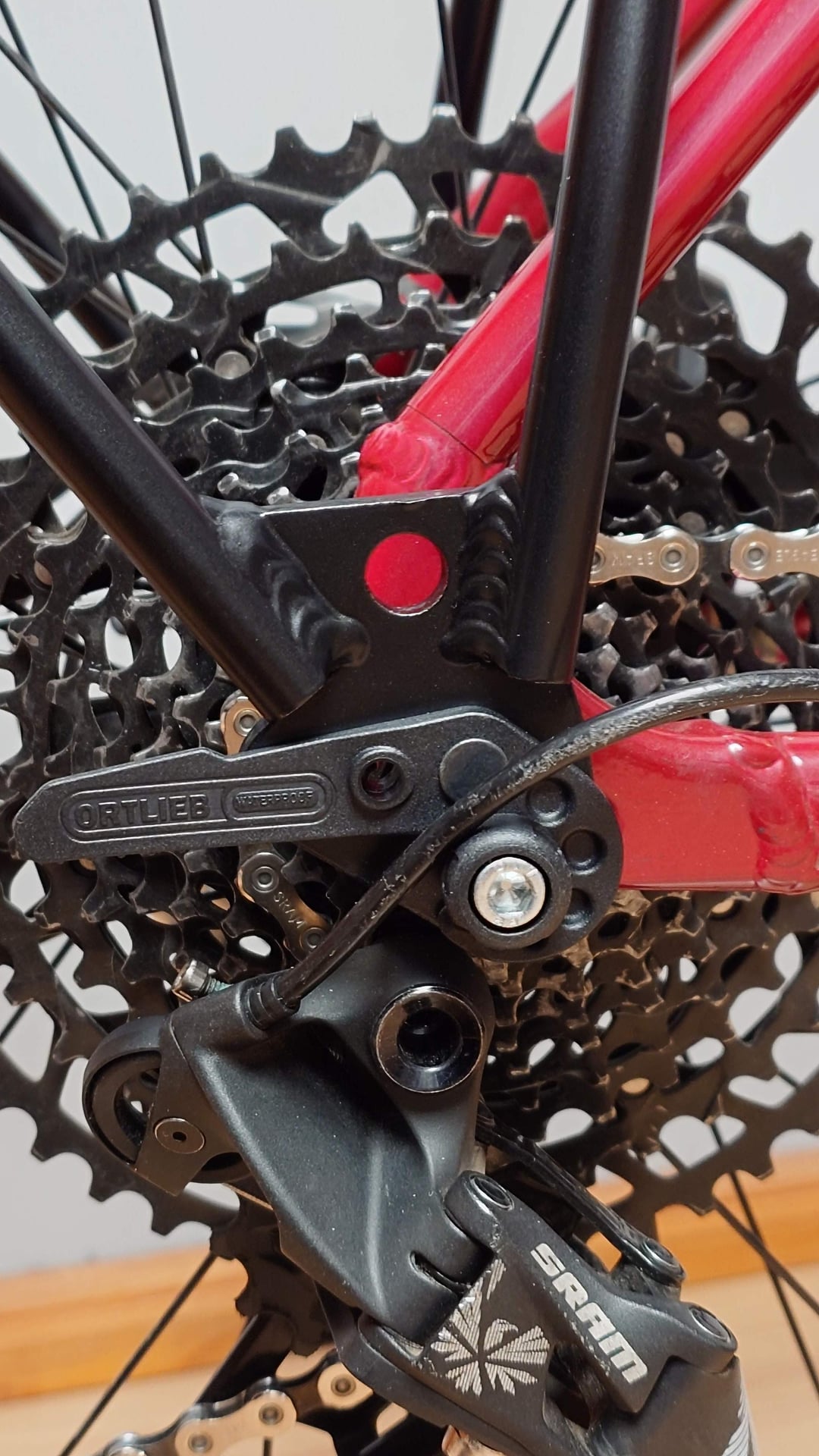

Installation was more frustrating than expected, and the hardest part by far was fitting the play in rod adapter.

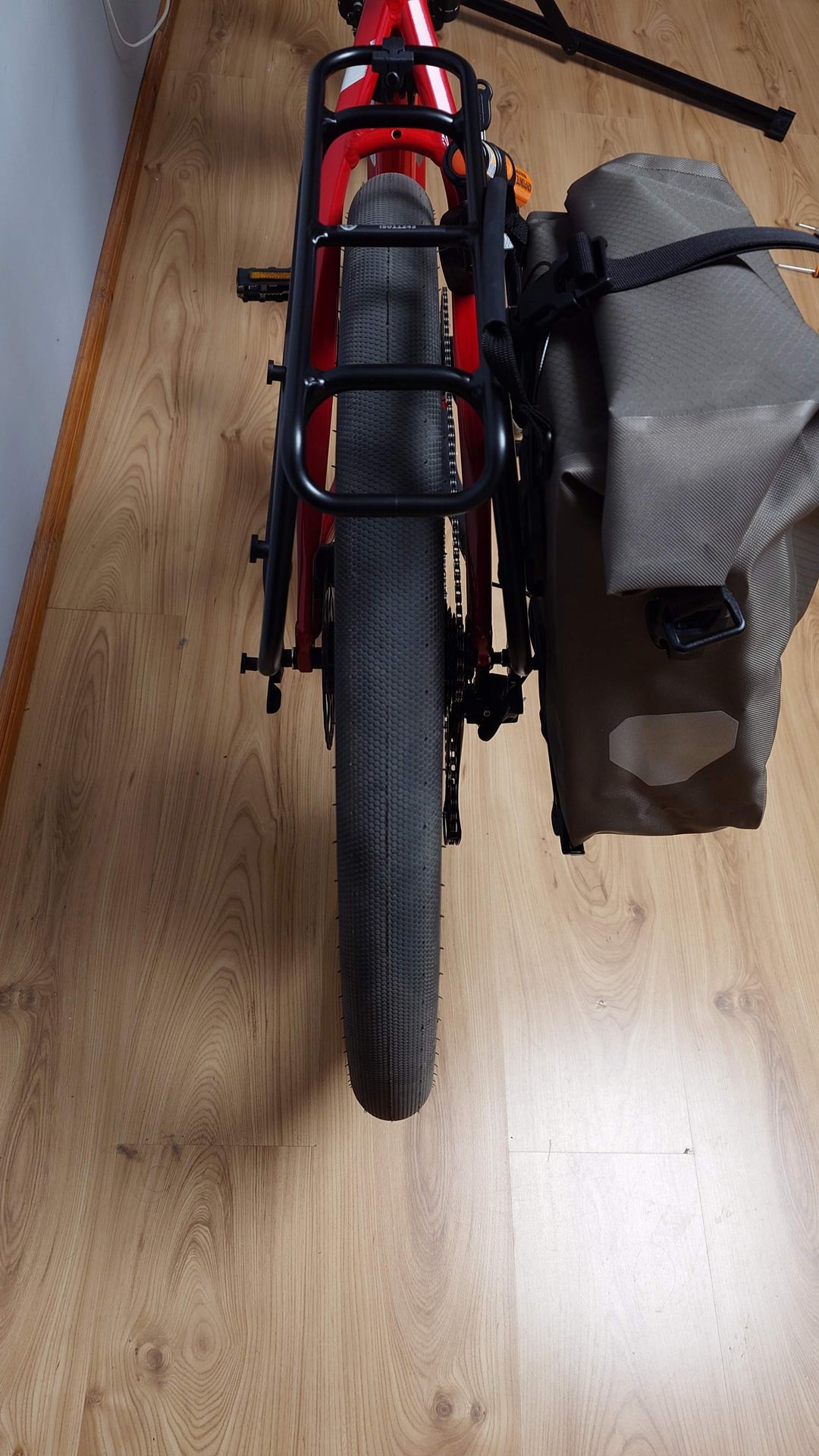

Once installed according to the instructions, I found it impossible to perfectly center the rack above the tire. Even a 1 mm offset at the lower mounting point translates into roughly 5 mm misalignment at the top of the rack.

What makes this worse is that the mandatory metal washers supplied by Ortlieb are approximately 1.45 mm thick, which already exceeds the adjustment precision needed for proper centering. This effectively prevents fine adjustment. Even after trying multiple mounting variations, I could not achieve equal spacing at the top.

Although Ortlieb specifies 2.5 Nm for the axle screws, I needed around 4 Nm to fully seat them and overcome the factory-applied blue threadlocker. Similar issue with the 1.5 Nm side screws.

Regarding fitment:

At first glance the rack tubing looks excessively bulky, but the tire clearance dimensions specified by Ortlieb do appear accurate in practice.

For anyone wondering whether they can use a smaller rack instead of the XL version: the critical factor is the mounting height of the rack.

• If you mount it at axle level, that is the lowest possible mounting point, and the upper narrowing of the rack may not provide enough tire clearance for a smaller model.
• If you mount it using frame eyelets or spacer/adapters higher up, then a smaller version may be possible because the rack sits higher where the frame/rack geometry widens.

Also important for MTB users:

Be careful with derailleur cables / housing. Depending on frame design, this rack may interfere with cable routing and may simply not fit some mountain bikes properly.

One safety concern I noticed:

If you disconnect the play in rod adapter and the rack falls backward unexpectedly, it can pinch or damage the derailleur cable/housing. In some frame layouts this could be an expensive mistake. You need to be careful when removing or reinstalling the rack.

Overall, I feel you are paying more for the clever mounting concept than for flawless execution.

I would still rate it 4/5.

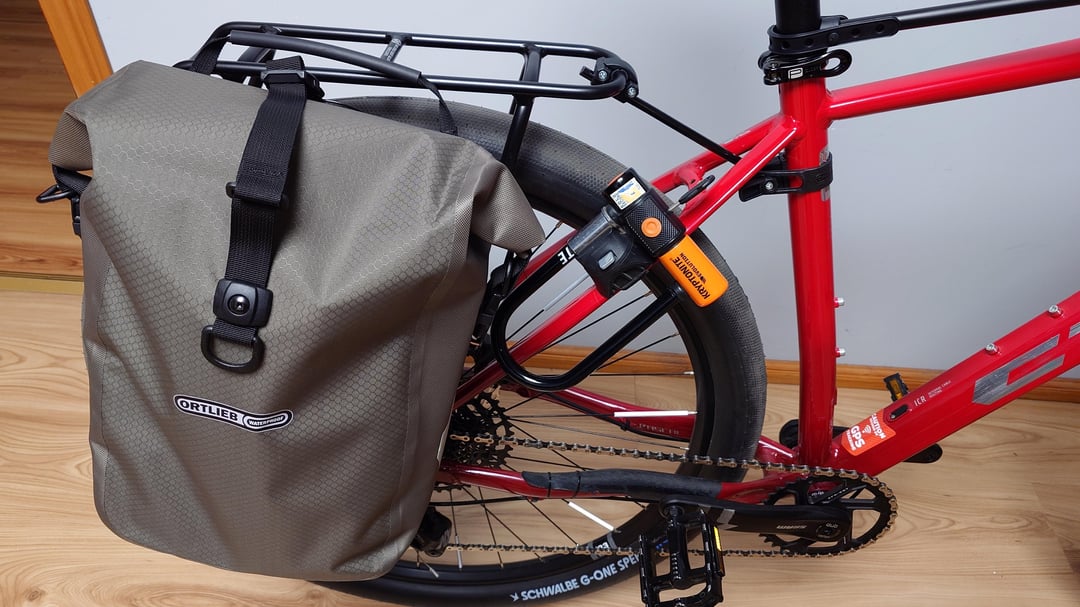

The pannier bag itself is excellent though—great material and color.

My only design criticism is that I would prefer the load position to sit lower and closer to the rear axle, since the current geometry shifts weight noticeably rearward and makes the front end feel lighter than ideal. It looks lower in the picture than it is (it would be nice if these parameters could be adjusted).
