    Bike Repair

    Chain Routing

    Share.
    View 21 Comments

    21 Comments

    1. Global-Wolverine1829 on

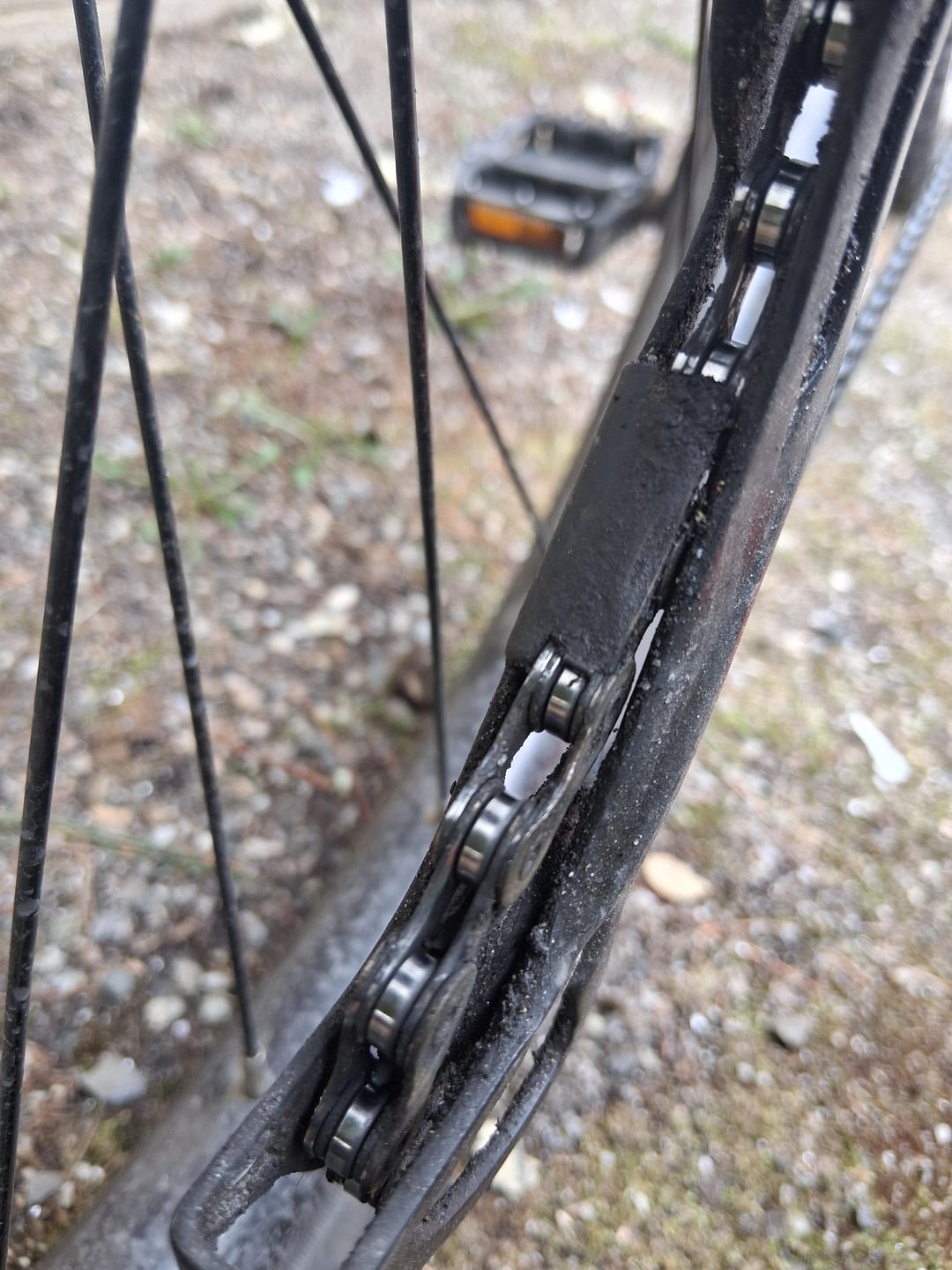

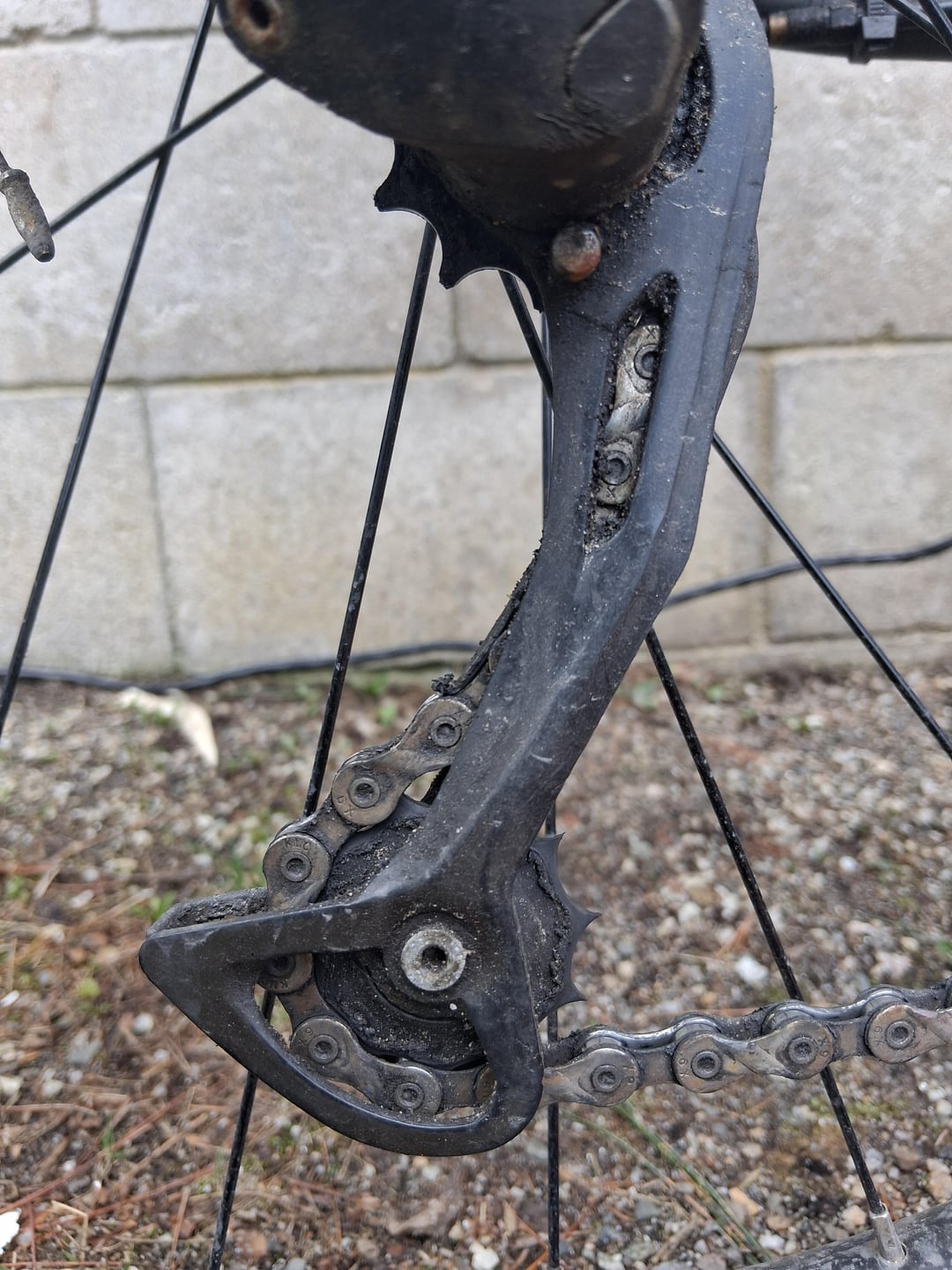

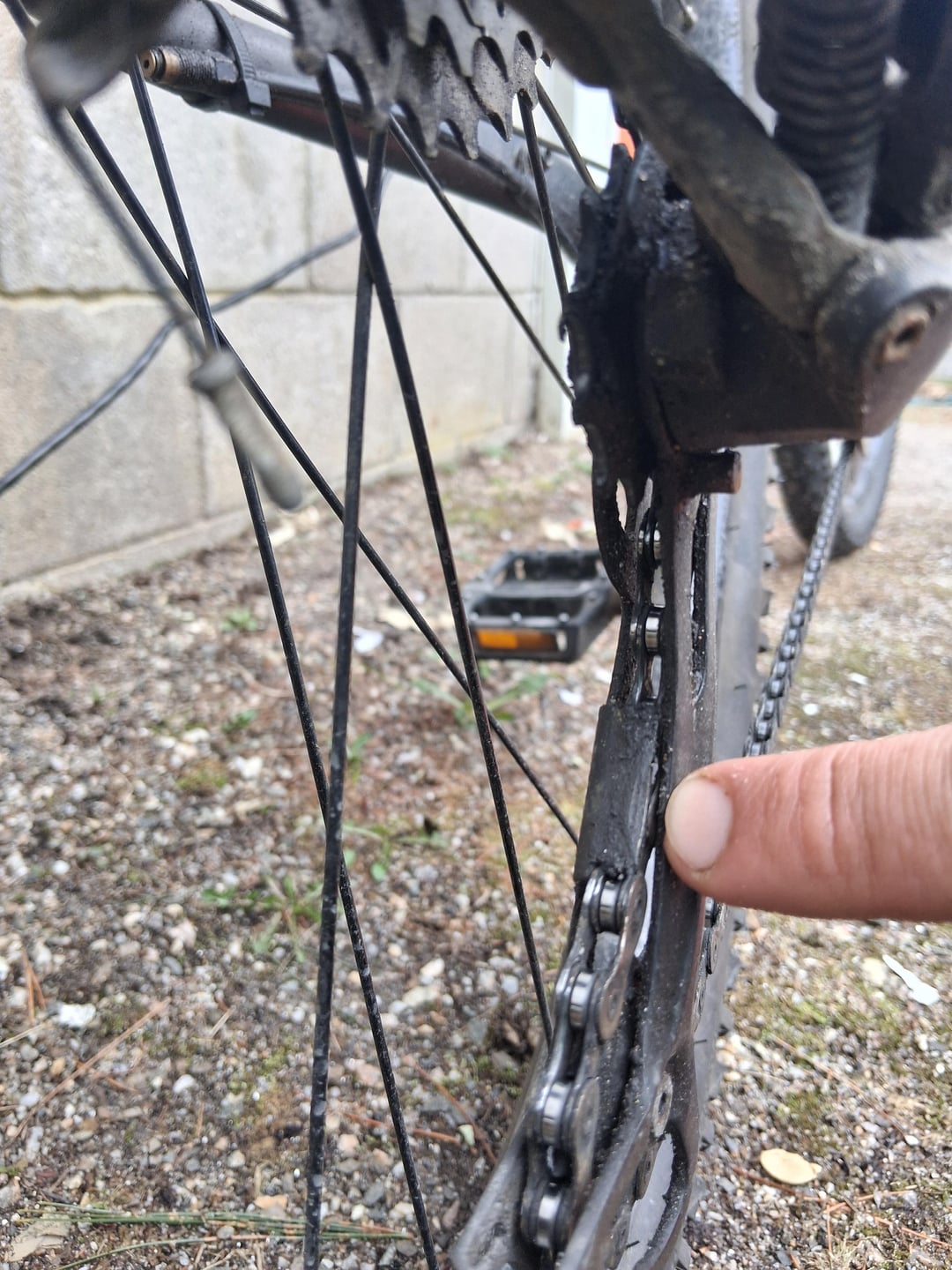

      WRONG! chain should be on the other side of the tab. chain should not be rubbing that tab. that lower jockey wheel is way overdue for replacement. check if your cogs and chainring are also worn.

    3. oldfrancis on

      The only thing that chain should touch on a rear derailleur is the jockey wheels.

    5. ClientOk4037 on

      >Is this routing correct?

      No, it’s not. It’s supposed to go over that plate, not under.

    6. RyuShev on

      if you wear the whole tab through it will become correct. looking at your tensioner it seems like that is your intention

    7. Polymox on

      That not plastic. Your chain has been incorrectly routed for so long that it is eating the metal tab between the jockey wheels.

    9. Agreeable_Golf_555 on

      The good news is I got a tip for you on how to save a few watts 🙂

    11. Wolfy35 on

      Trust me mate routing at the moment is the least of your worries those jockey wheels were toast long ago

    13. Sea_Working_6998 on

      Chain routing is incorrect…. But the way those jockey and pulley wheels look, I don’t want to know what the cassette or the chain rings look like, also the chain stretch…

    15. DannysMyNanny on

      That’s not a pulley wheel anymore that’s just a wheel! if the pulley wheels have that much wear on them and with that tab being eaten away, you’re gonna need a new rear mech.

      I’d honestly check with a LBS and have them inspect the drive train because I think you potentially have an expensive repair on your hands.

    18. JJ18O on

      At this rate we re gonna need a subreddit r/wrongsideofthetab similar to r/sandedthroughveneer

    19. Decent-Office-5431 on

      Good lord, you could kill someone with that pulley. How the fuck have you let it get that worn?
