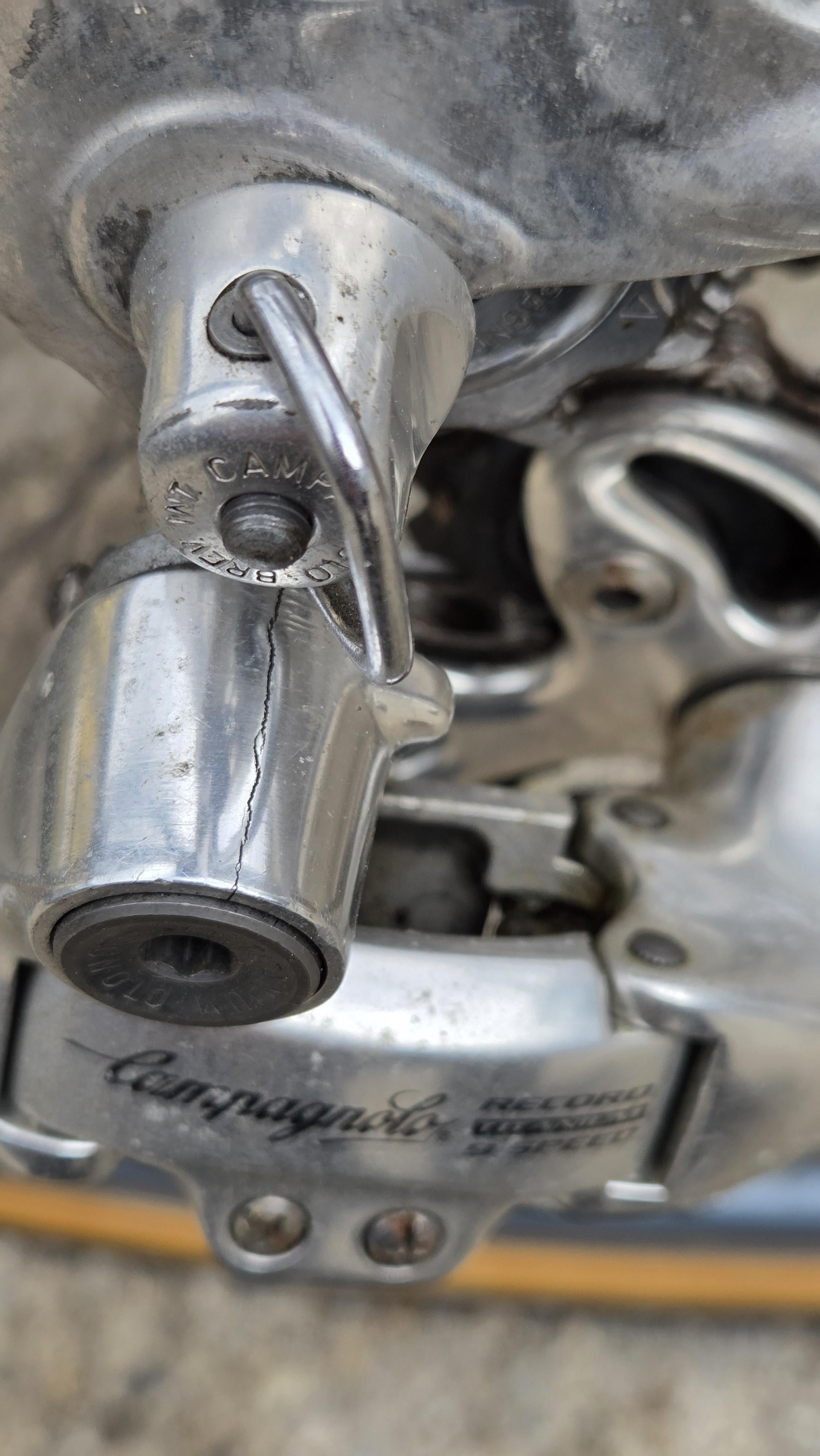

    This is toast right? Campag derailleur cracked – 9 speed titanium record

    Share.
    View 15 Comments

    15 Comments

    1. mux696969 on

      done for me !

      if you want to go single speed, use an old derailleur as a Chain Tensioner with a short cable đŸ˜‰
      cheap and effective

    2. Public-Wolverine2174 on

      Unfortunately this ones for the broken parts bin đŸ˜• ebay for a new one, maybe even NOS if your lucky!

    5. Sea_Entertainment438 on

      All done. I suppose you could get it welded which brings its own risks (uneven penetration and heat, etc), but a replacement would be easier and not too expensive.

    6. trykedog on

      I would say toast… but I don’t know about silver solder on TI. If you REALLY want to keep it you might research or try it.

    7. trykedog on

      I would say toast… but I don’t know about silver solder on TI. If you REALLY want to keep it you might research or try it.

    8. trykedog on

      I would say toast… but I don’t know about silver solder on TI. If you REALLY want to keep it you might research or try it.

    9. trykedog on

      I would say toast… but I don’t know about silver solder on TI. If you REALLY want to keep it you might research or try it.

    10. juanpablo58 on

      Find an experienced TIG welder; they can repair it, and then polish it to restore the surface to its original condition. However, it can only be welded with TIG or laser welding.

    11. Mistergardenbear on

      this generation campy derailleur is rebuildable to a point, you can find a donor body. And this is a known proble for this generation.

      Unfortunately there is no Shiftmate to run a Campy 9 speed Ergo with a shimano derailleur, so youre kinda stuck with tracking down a used Campy derailleur here, either for parts or just a whole one.

      If you go single speed you can gut the Ergo levers and they make great brake levers.

    12. stasigoreng on

      This is a common issue for this generation of derailleurs by Campa.

      This is done.

      Don’t throw it away though, it can be used/sold for parts.

    15. HGHW2008 on

      I used to work in a shop specialising in vintage road bikes and we had a whole box full of these, all broken in exactly the same way. I’ve never seen one break further or really stop working but we always removed them so I don’t really know what would happen if you kept riding. I would recommend swapping it for a different Campagnolo 9 speed derailleur, from what I remember it’s only the record titanium 9 speed that has this problem
