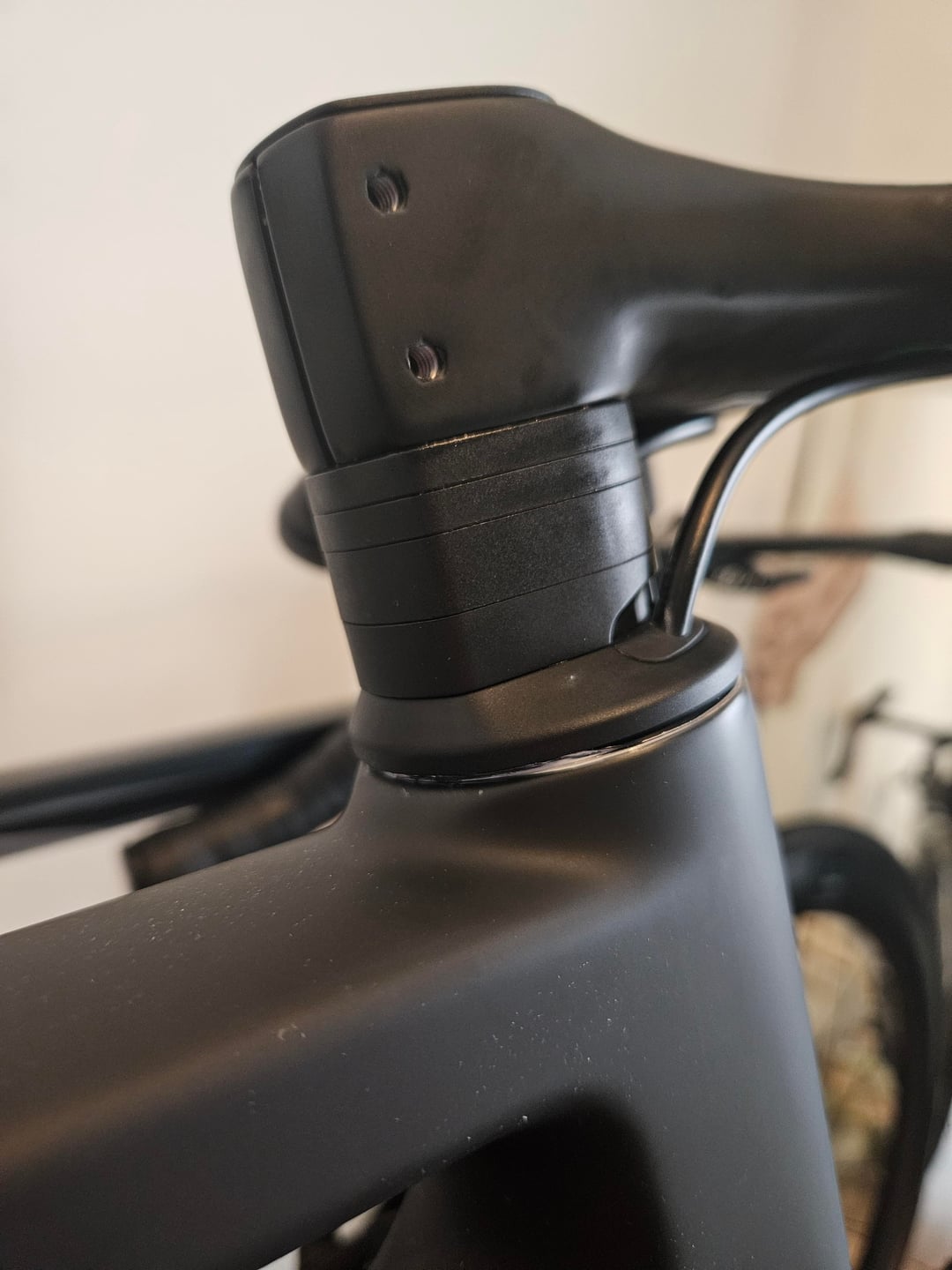

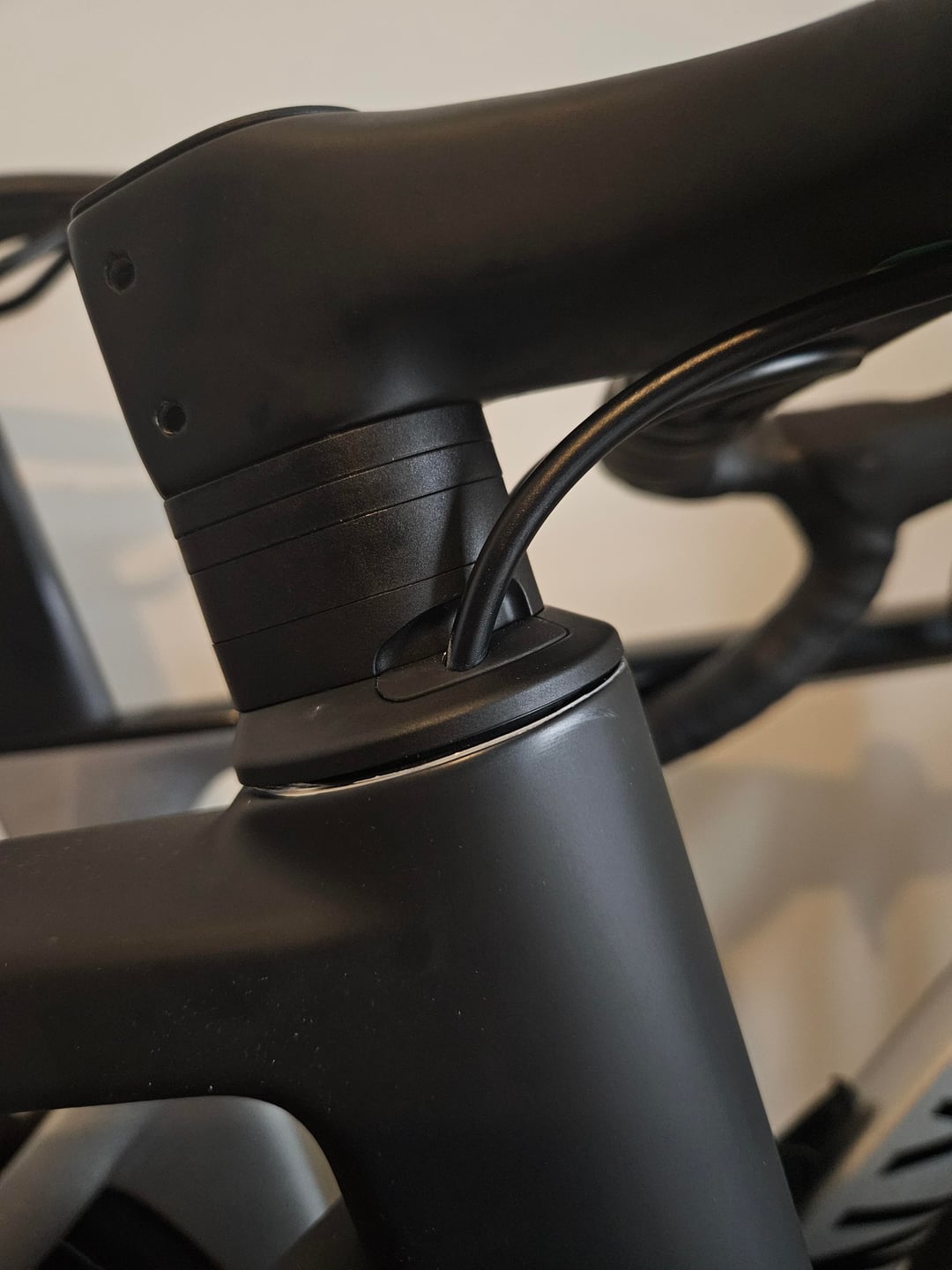

very happy to receive my Grail today. I am just a bit unsure of the space I have in between the cockpit and the frame, see pictures attached. Is this normal? thank you.
Sloppy assembly, you likely also have some play between the fork and the frame/headtube.
Are you familiar with the Ahead system. Otherwise look it up but in general you can correct it yourself within 10 minutes:
Loosen the two bolts at the stem, push all down (stem, spacers and cap with the cables), then on top of the stem gradually tighten the bolt until there is no play between the fork and head tube, next tighten down again the 2 bolts at the stem.
Check for play but pulling the front brake and move the bike back/forth.
2 Comments
TW or German engineering 😉
Sloppy assembly, you likely also have some play between the fork and the frame/headtube.
Are you familiar with the Ahead system. Otherwise look it up but in general you can correct it yourself within 10 minutes:
Loosen the two bolts at the stem, push all down (stem, spacers and cap with the cables), then on top of the stem gradually tighten the bolt until there is no play between the fork and head tube, next tighten down again the 2 bolts at the stem.
Check for play but pulling the front brake and move the bike back/forth.
