They are claiming it is the FC-5600 model with 50/34T yet I looked this model up and Google says it's usually 53/39T.
I'm after the FC-5650 compact which is 50/34T.

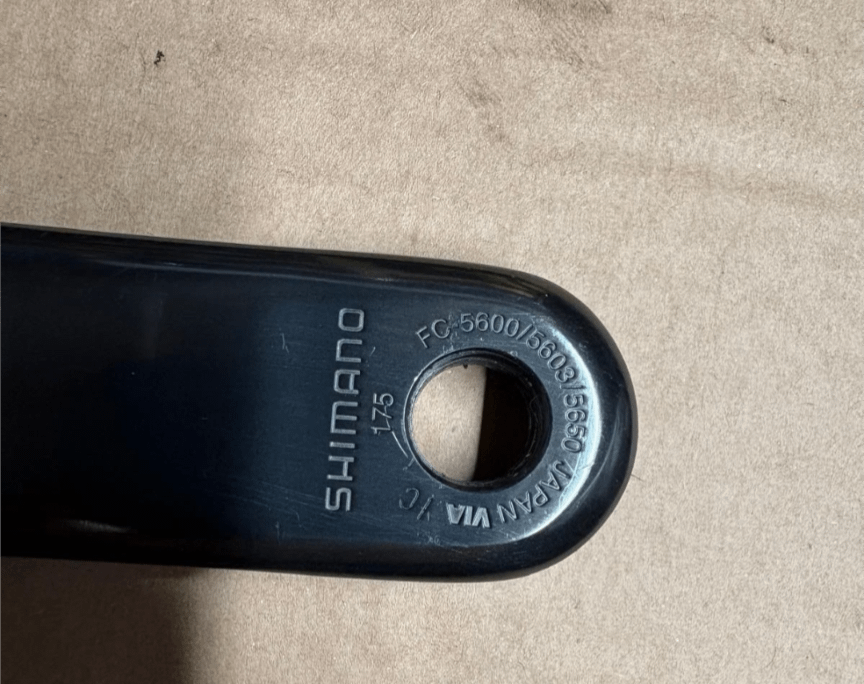

I also noticed there are x3 different model numbers on the crank…..Do you think they've simply listed it with the wrong model number ?
by Astronaut_Abort
3 Comments
Which side did you take the picture of? I assume the left one? Also, please see Shimano’s archives:
[https://si.shimano.com/en/pdfs/si/1GE0C/SI-1GE0C-002-ENG.pdf](https://si.shimano.com/en/pdfs/si/1GE0C/SI-1GE0C-002-ENG.pdf)
[https://si.shimano.com/en/manual/search?model=FC-5600](https://si.shimano.com/en/manual/search?model=FC-5600)
[https://si.shimano.com/](https://si.shimano.com/)
The crank arm is the same across all the three model numbers that you see.
The left (NDS) crank arm is more generic to a series the right hand one is the one that came fitted with rings that decide which model within the series it was.
All 5600 chainsets have the same crank arms its the rings fitted that are different
