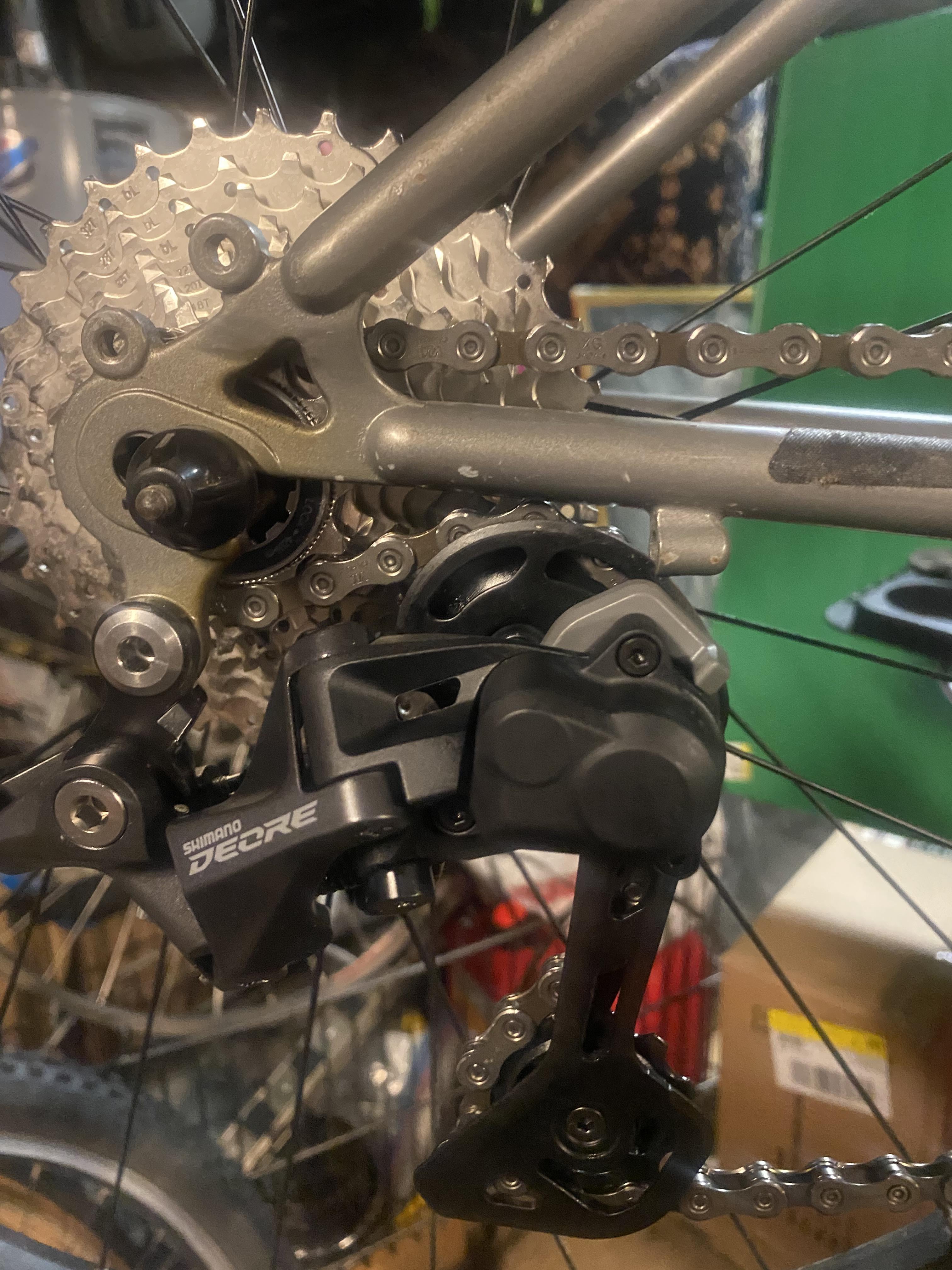

Probably not well put on the frame. You should have a screw hitting the hanger to help keeping it away from the chainstays.
Fearless_Camp5965 on
Looks like the wheel is not fully seated in dropouts
mmlow on
Lower tab on back of derailleur mount needs to sit on top of the lip on the hanger, is currently below.
BicycleMudStud on
Looks like you’ve got way to much chain on there. Review the procedure for chain sizing and shorten it.
pizzaman1995 on
There is a tab on your derailleur that holds it in place, and it is on the wrong side of the hanger. You have it toward the front of the bike. You want it on the backside of that hanger that it is mounted to.
Ok-Till2619 on
The upper joint off the derailleur should sit more horizontally backwards, is there another ‘blob’ sticking out that will sit on the hanger
