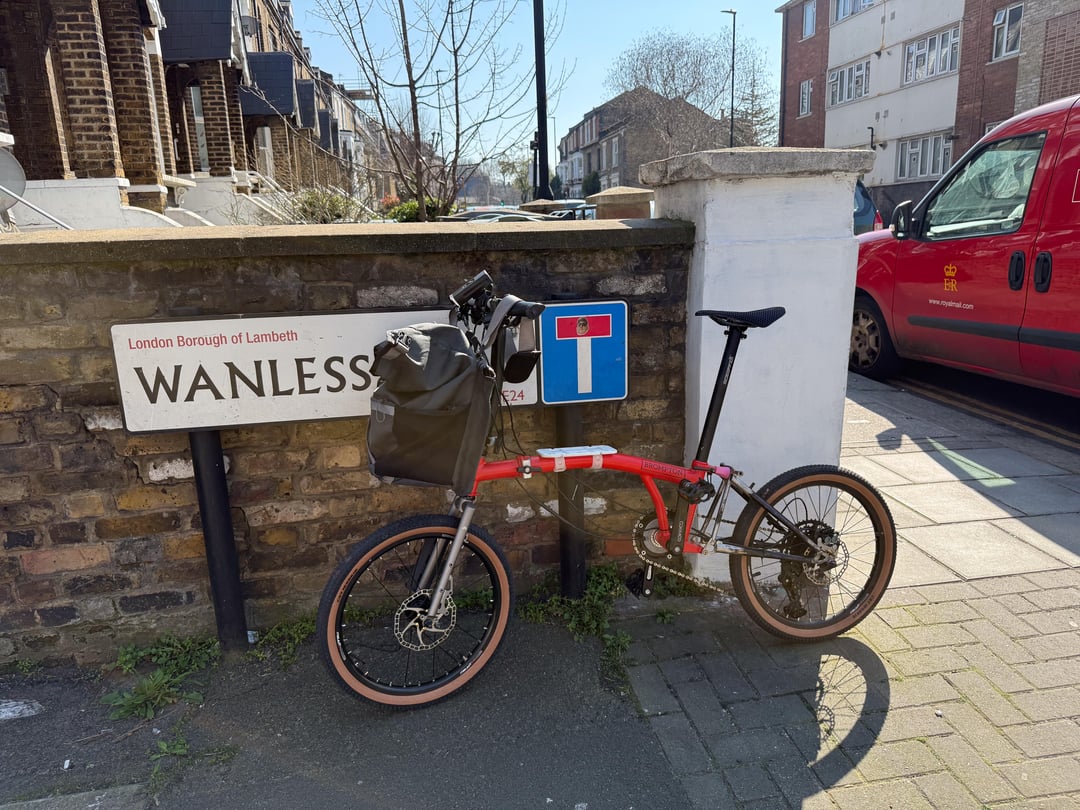

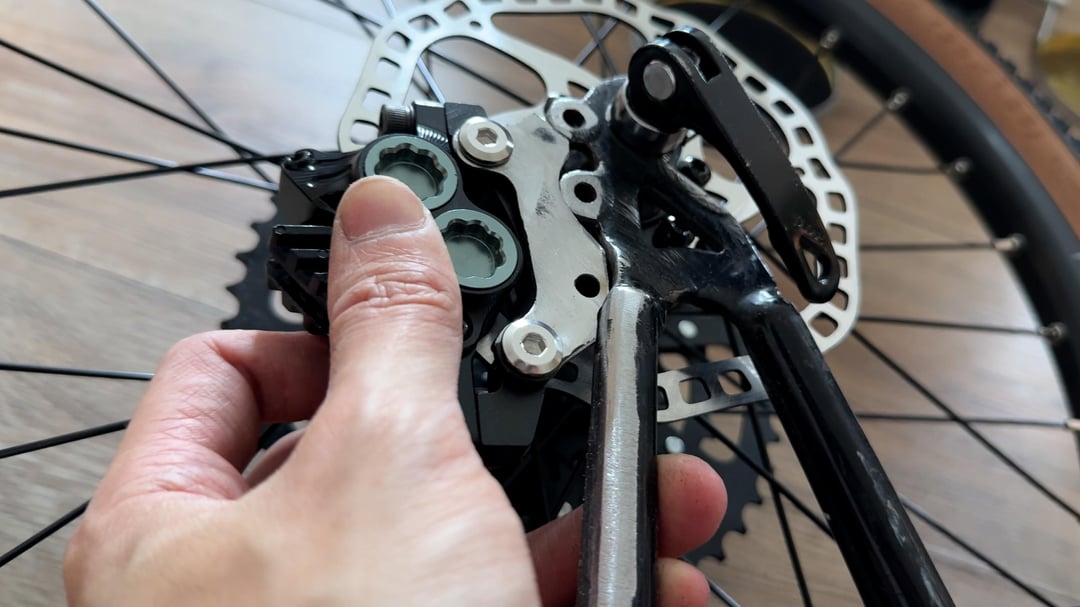

Ok so this was a year long project but it's finally done. I've already taken it on several rides despite only having only a rear brake because I am waiting for a disc brake adapter haha, I just couldn't wait.
Some stats:
– Around £450 including frame and all parts, other than the fancy G3ared crank which they sent me for free.
– 20" wheels up to 2.25" wide tyres

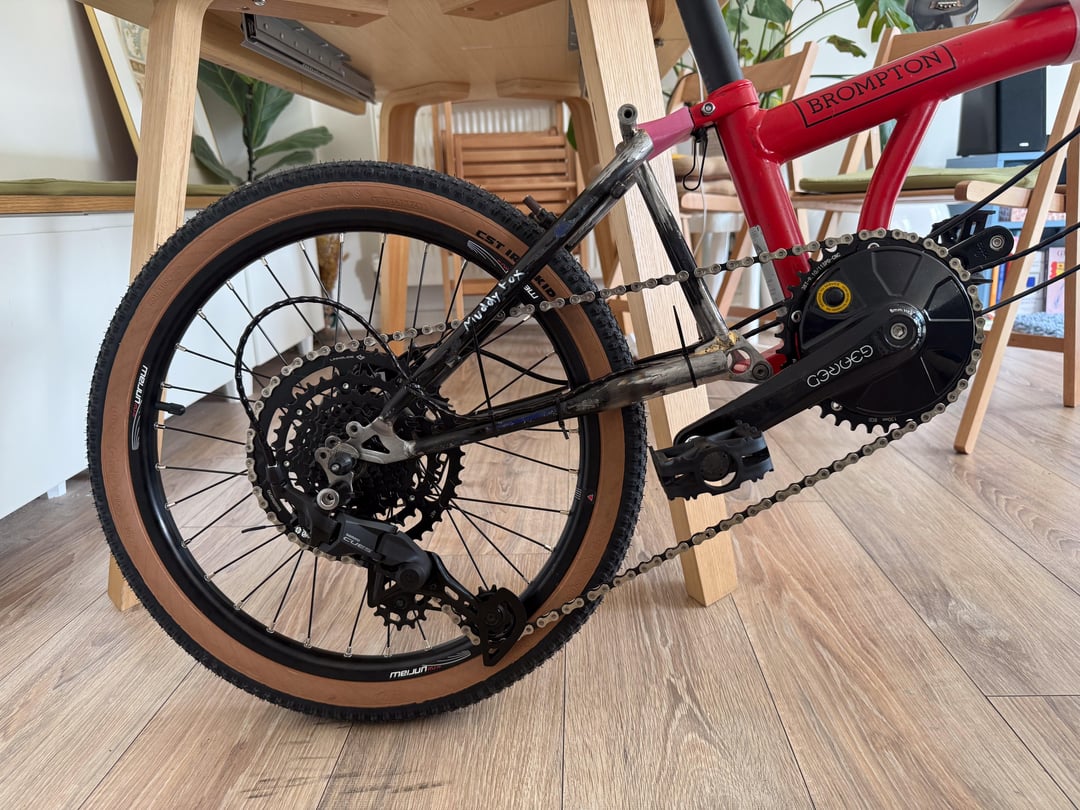

– 27 speeds. 11-46T 9 speed cassette and G3ared 3 speed crank that works like a sturmey archer internal gear hub. 750% gear range from 15.2" to 113.9"
– Will weigh less than 15kg with a rack
– Part list here.

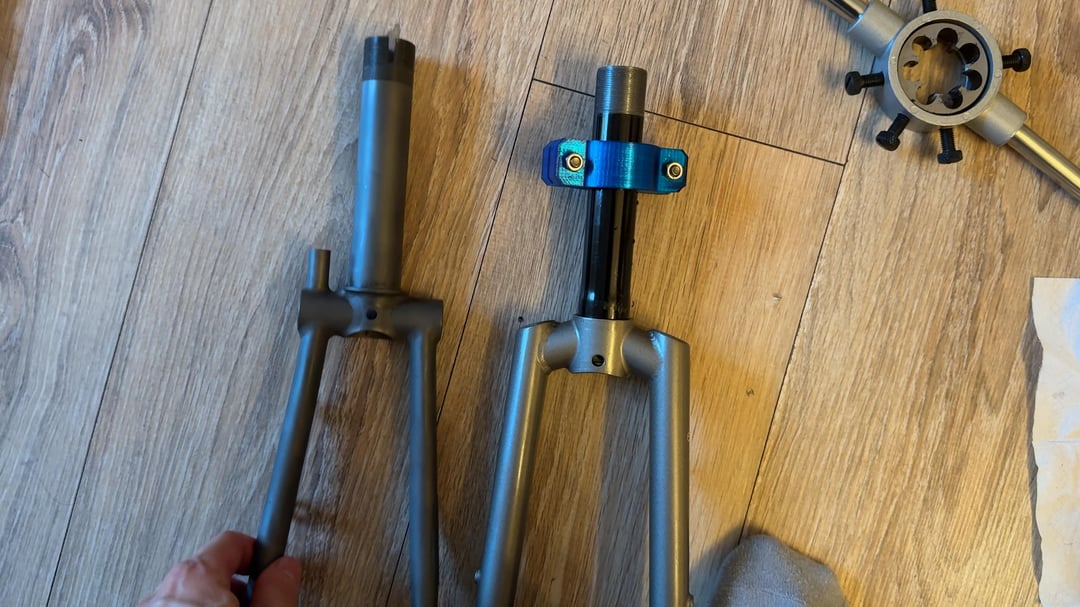

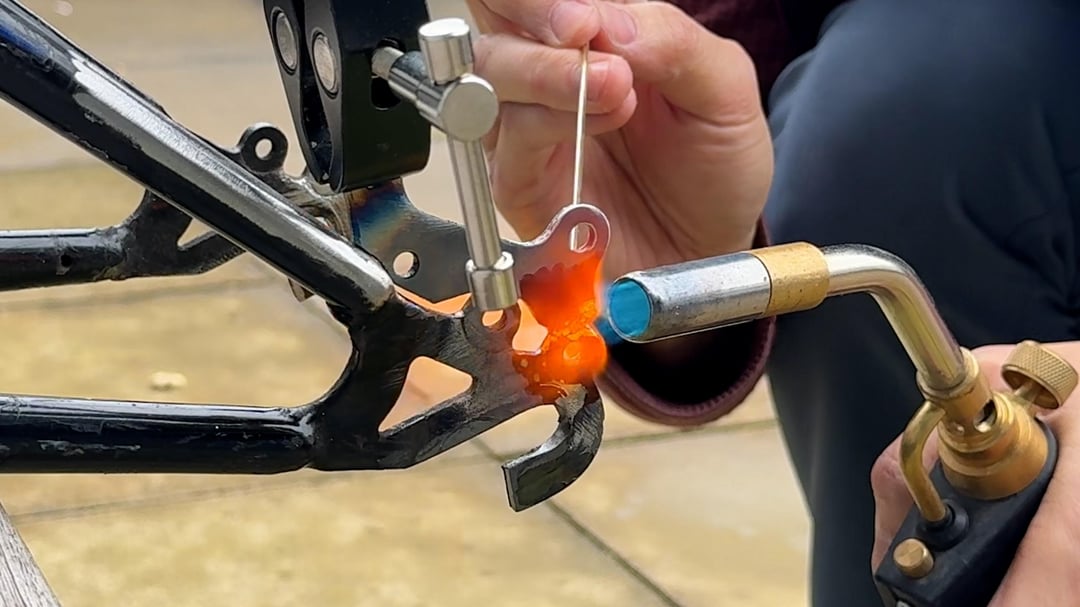

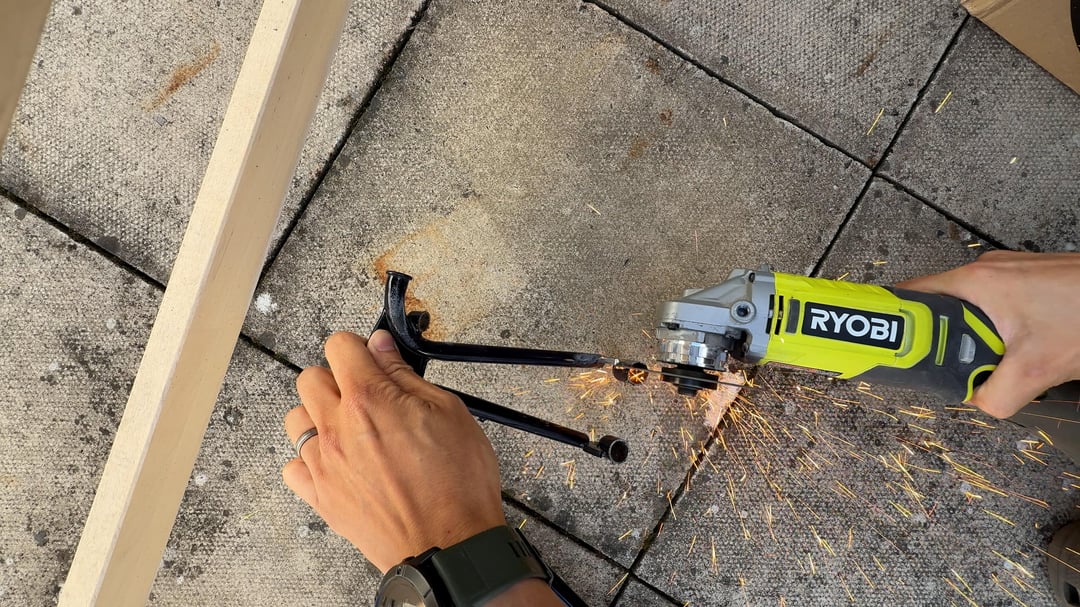

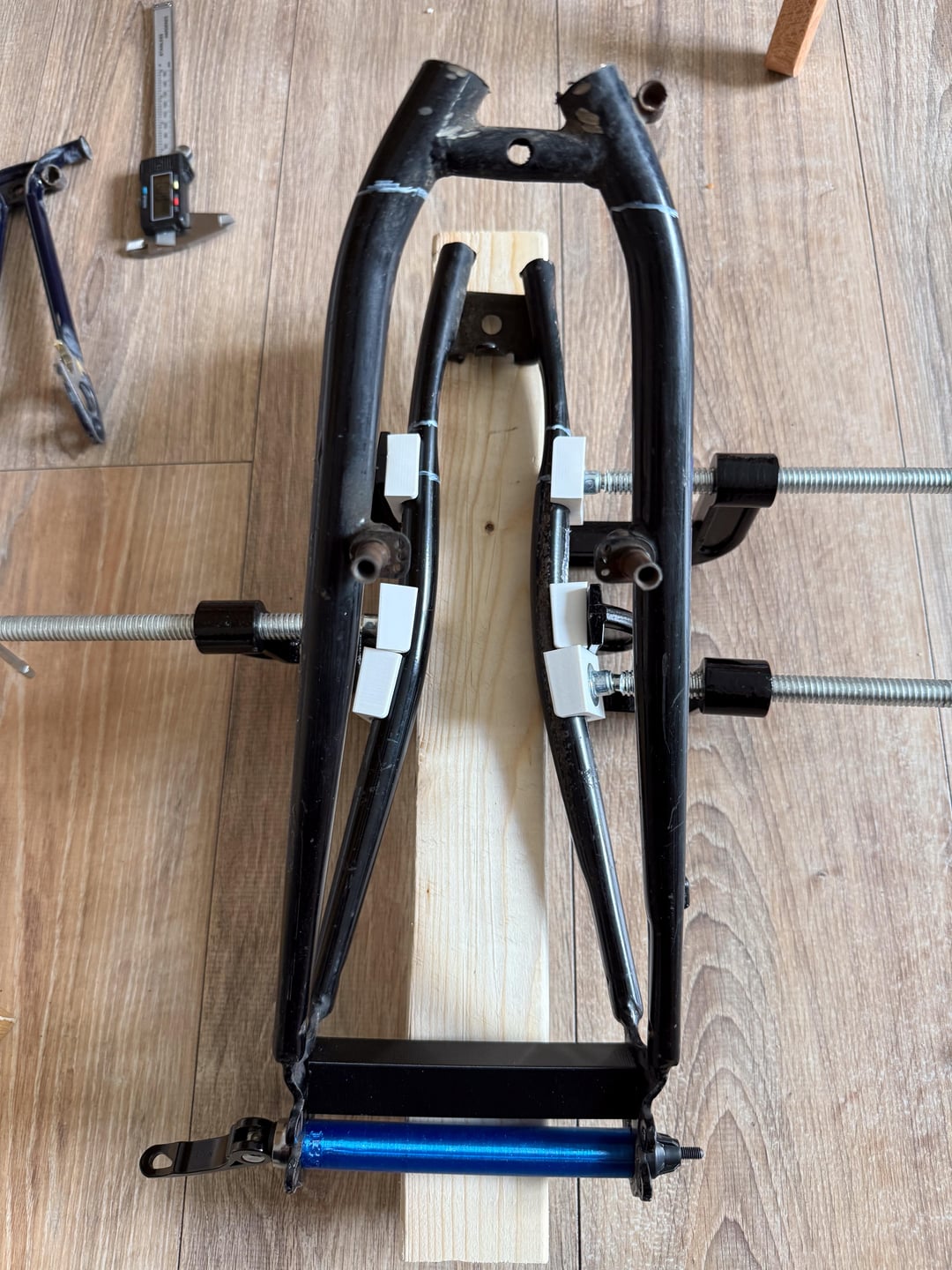

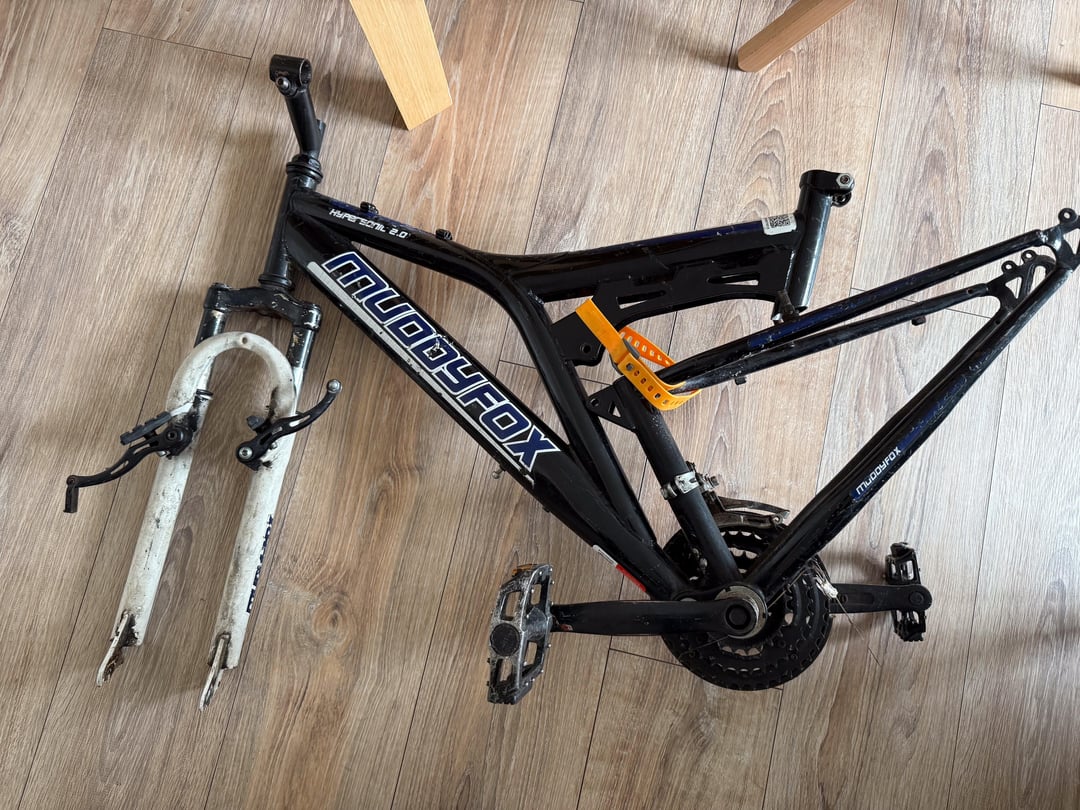

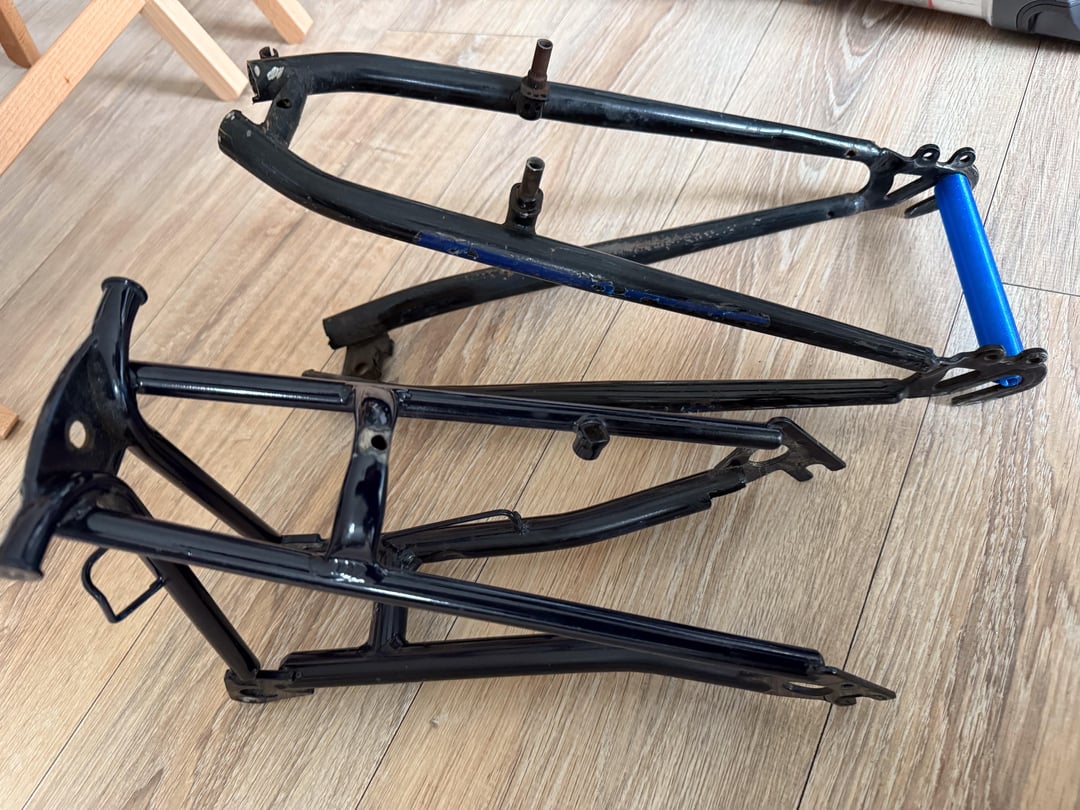

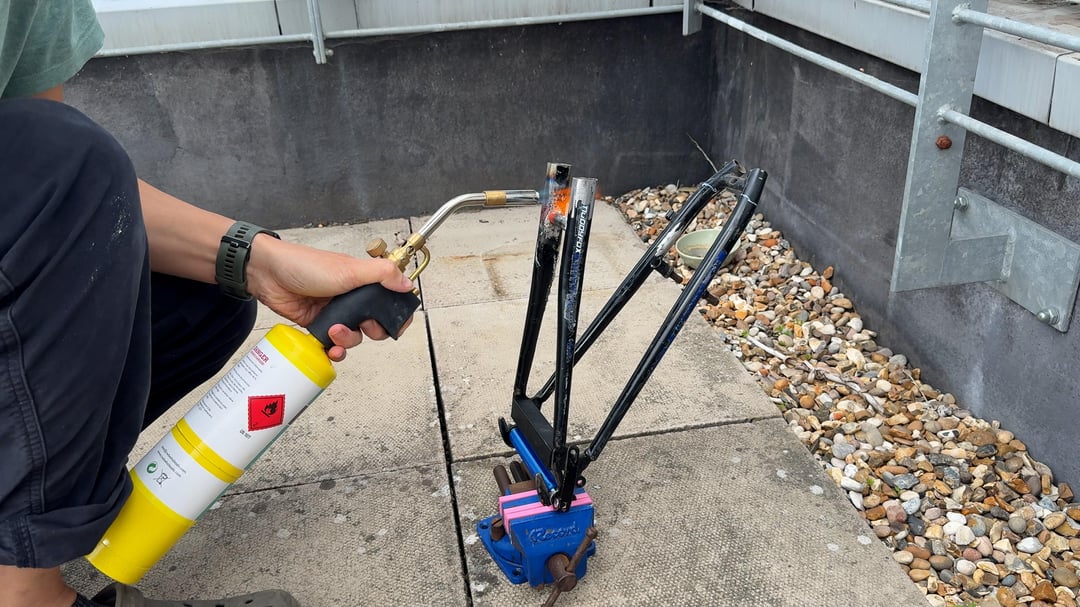

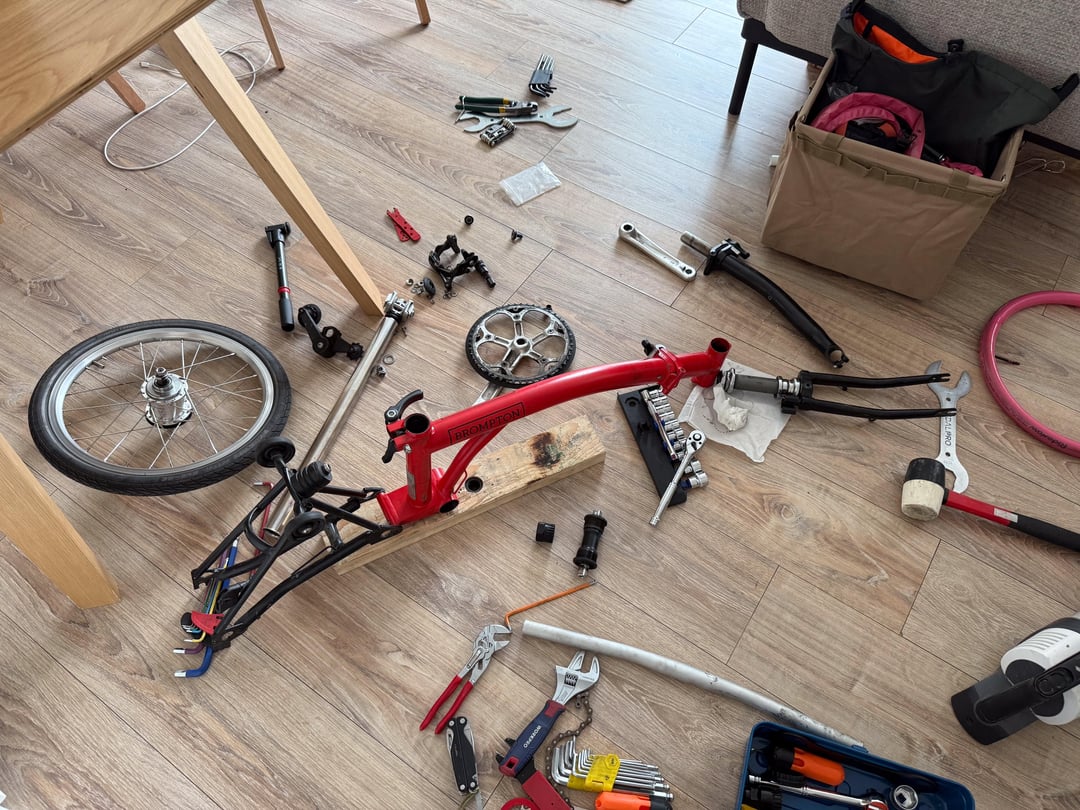

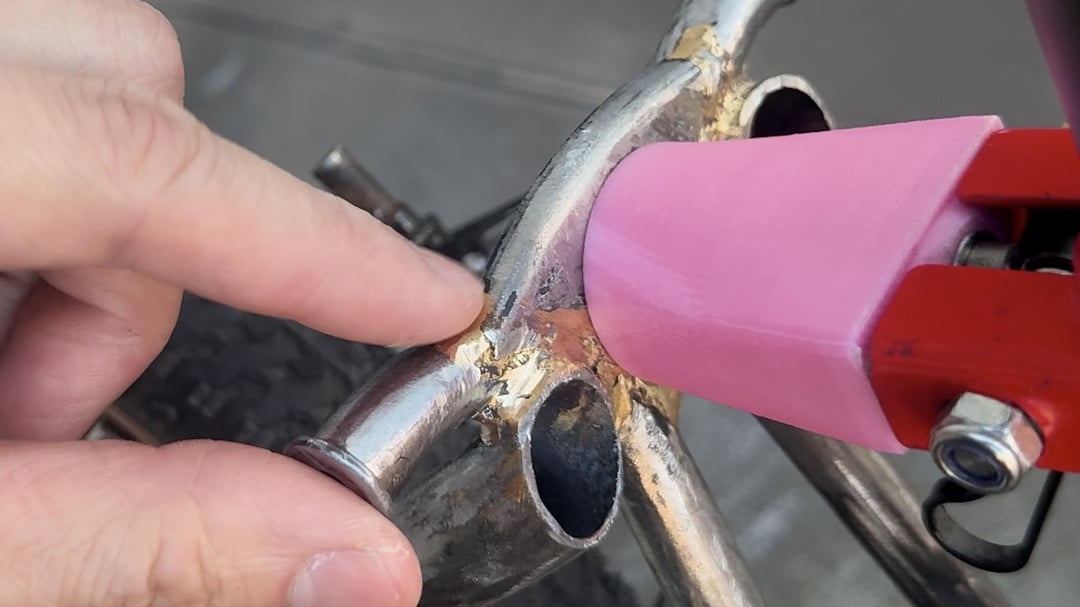

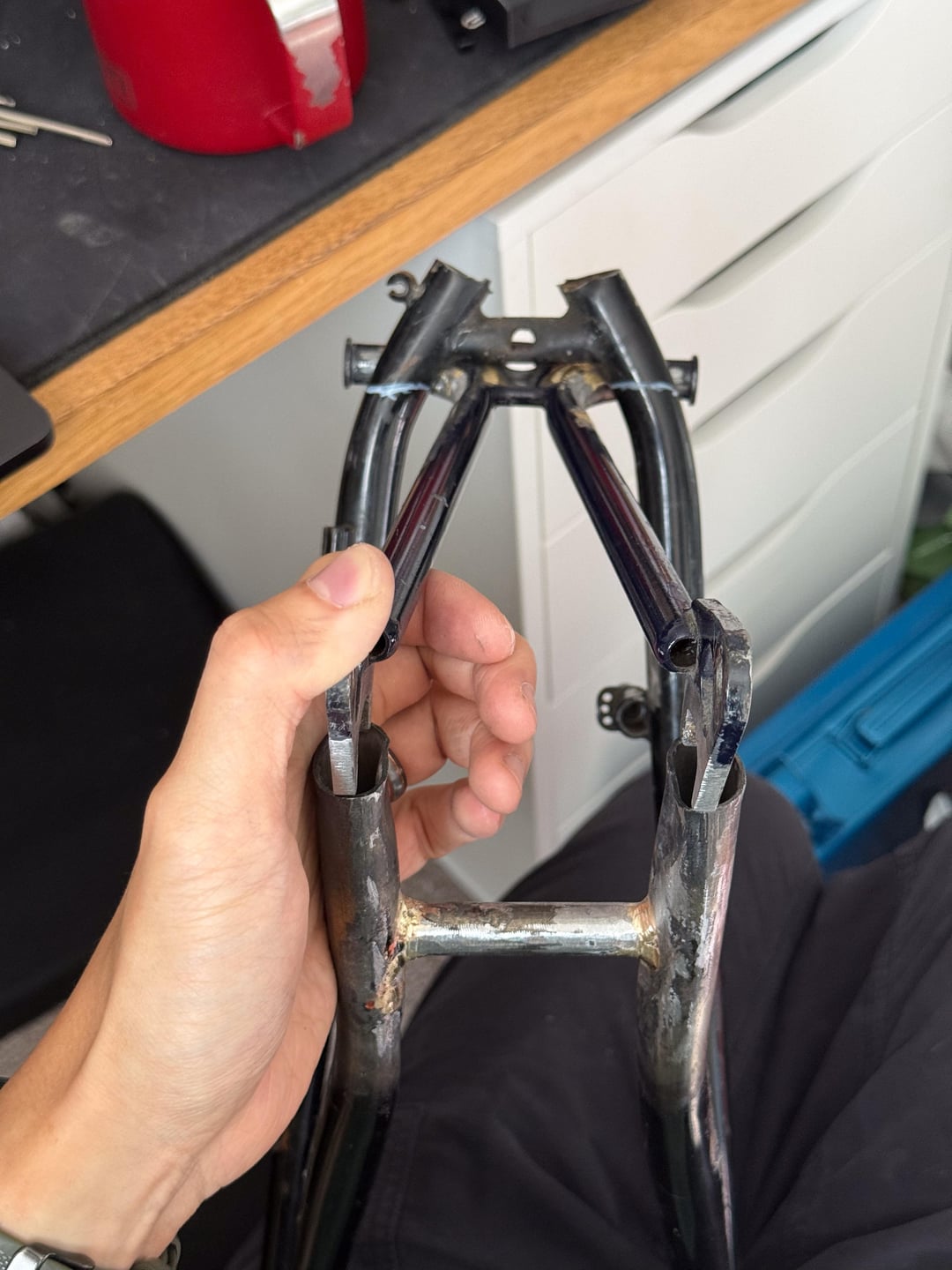

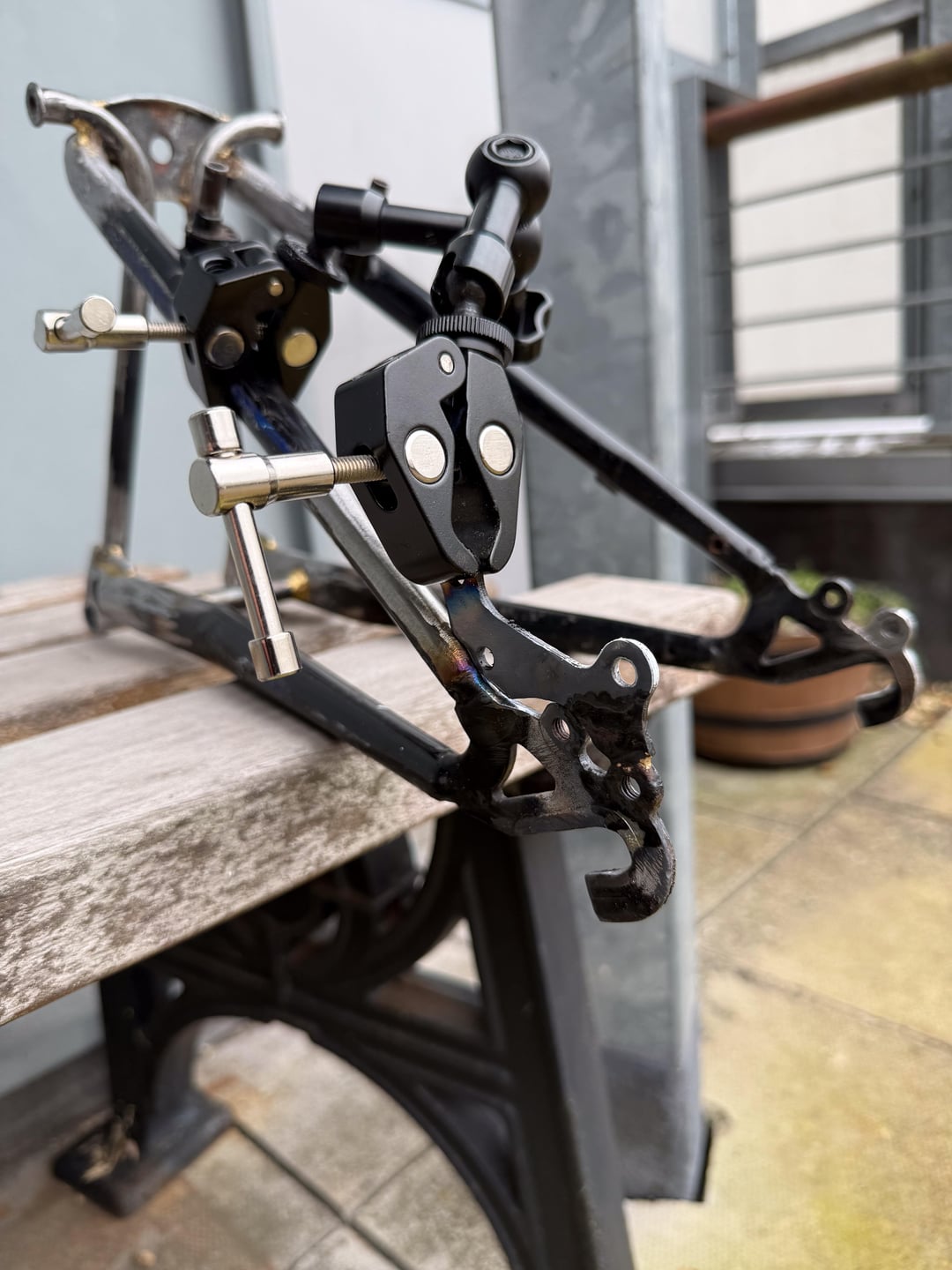

Check picture captions for more details but I essentially scavenged a steel mountain bike frame and brazed it onto the cut off section of a Brompton triangle. And I modified a 20" mini velo fork. To get the low price I bought a cheap Brompton and I parted it out, I actually made money off the frame and still have some spare parts!
I am building it as part of Bespoked's Apocalypse Build Off, you can read about it here. I love working within arbitrary constraints and this just tickles that part of my brain haha
If you want to see how it was done, I made a video here: https://www.youtube.com/watch?v=hU5H_IaYm_k
by edtse88
4 Comments
Very cool!
Oh also a couple other specs:
– the wheelbase is 113cm vs 105cm for C line and 110cm for G line
– the bottom bracket height is 36cm vs 28 and 29cm for the C and G line respectively.
I think the high BB will work in my favour for the type of riding I want to do on this bike so it’s not really a downside.
Looks wild. Love it
How cool is that? I love it! Thanks for sharing your build!
