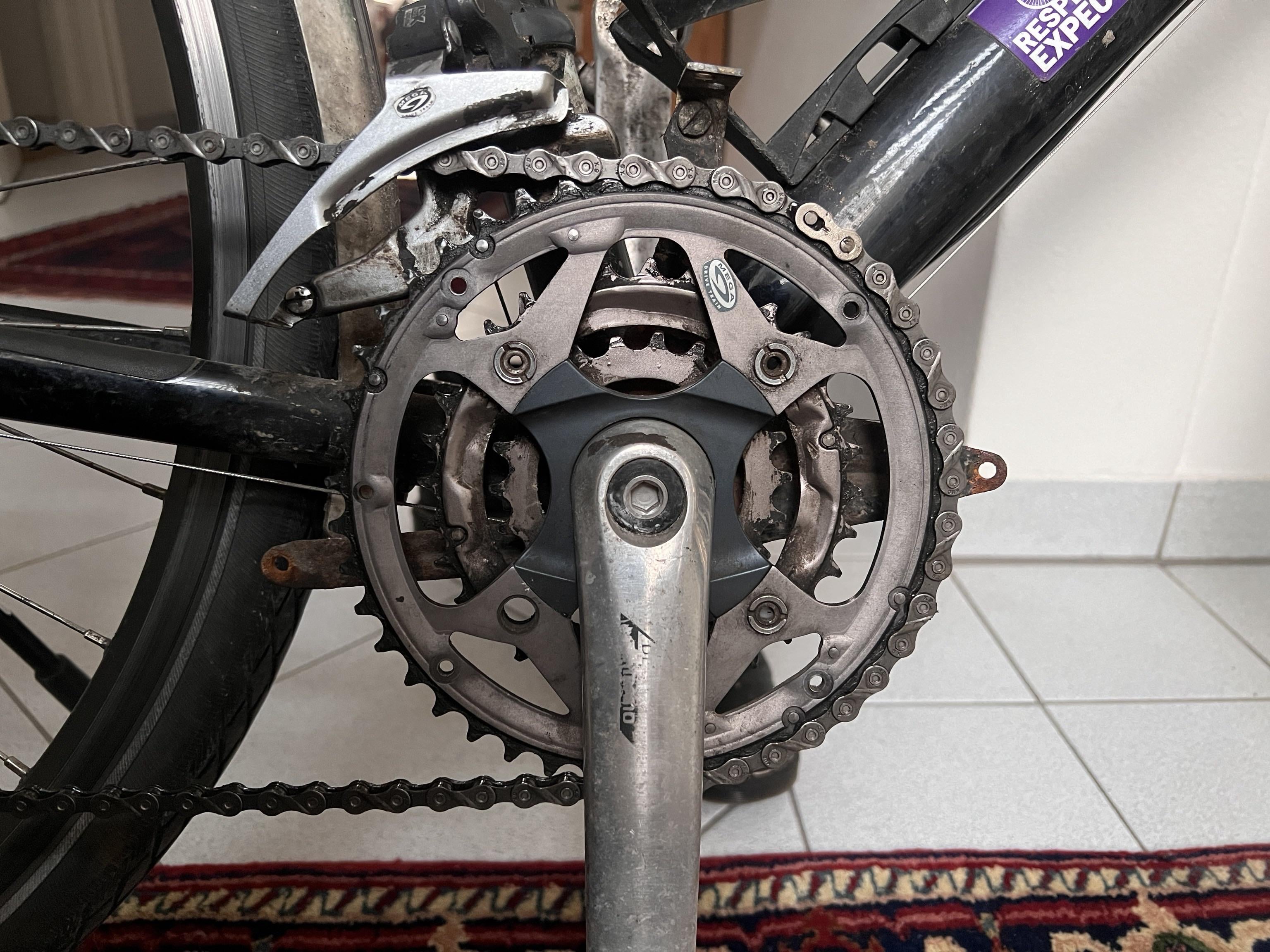

Facebook Twitter LinkedIn Pinterest Bluesky Threads It’s a friends bike that I’m helping them get a replacement crank for by -LetsTryAgain- Bicycling Bike Bike Repair Biking Cycling Repair
funkyish on March 19, 2026 1:24 pm I think that’s Octalink V2. You can probably verify by looking at the crank’s model number engraved on the backside of the crank.
BicyclesRuleTheWorld on March 19, 2026 1:24 pm This crank is right from the era when Shimano introduced Octalink to the various groupsets, so I’m not sure from the picture. You could check by looking from the side or by removing the crank bolt.
Z9Cubing on March 19, 2026 1:33 pm There is ussually a small gap betweenthe crank and the side of the BB. If there is a square spindle its a square taper crank.
Intrepid-Status-6724 on March 19, 2026 1:33 pm You are missing a chainring bolt as well. Yes take off the cranks and you can be certain if it’s a squaretaper or octaink.
9 Comments
Can also be an octalink
Remove the cap and look at it.
I think that’s Octalink V2. You can probably verify by looking at the crank’s model number engraved on the backside of the crank.
This crank is right from the era when Shimano introduced Octalink to the various groupsets, so I’m not sure from the picture.
You could check by looking from the side or by removing the crank bolt.
so much sexy clean metal
There is ussually a small gap betweenthe crank and the side of the BB. If there is a square spindle its a square taper crank.
You are missing a chainring bolt as well. Yes take off the cranks and you can be certain if it’s a squaretaper or octaink.
def octalink
Provide a picture from between the crank and the frame.
