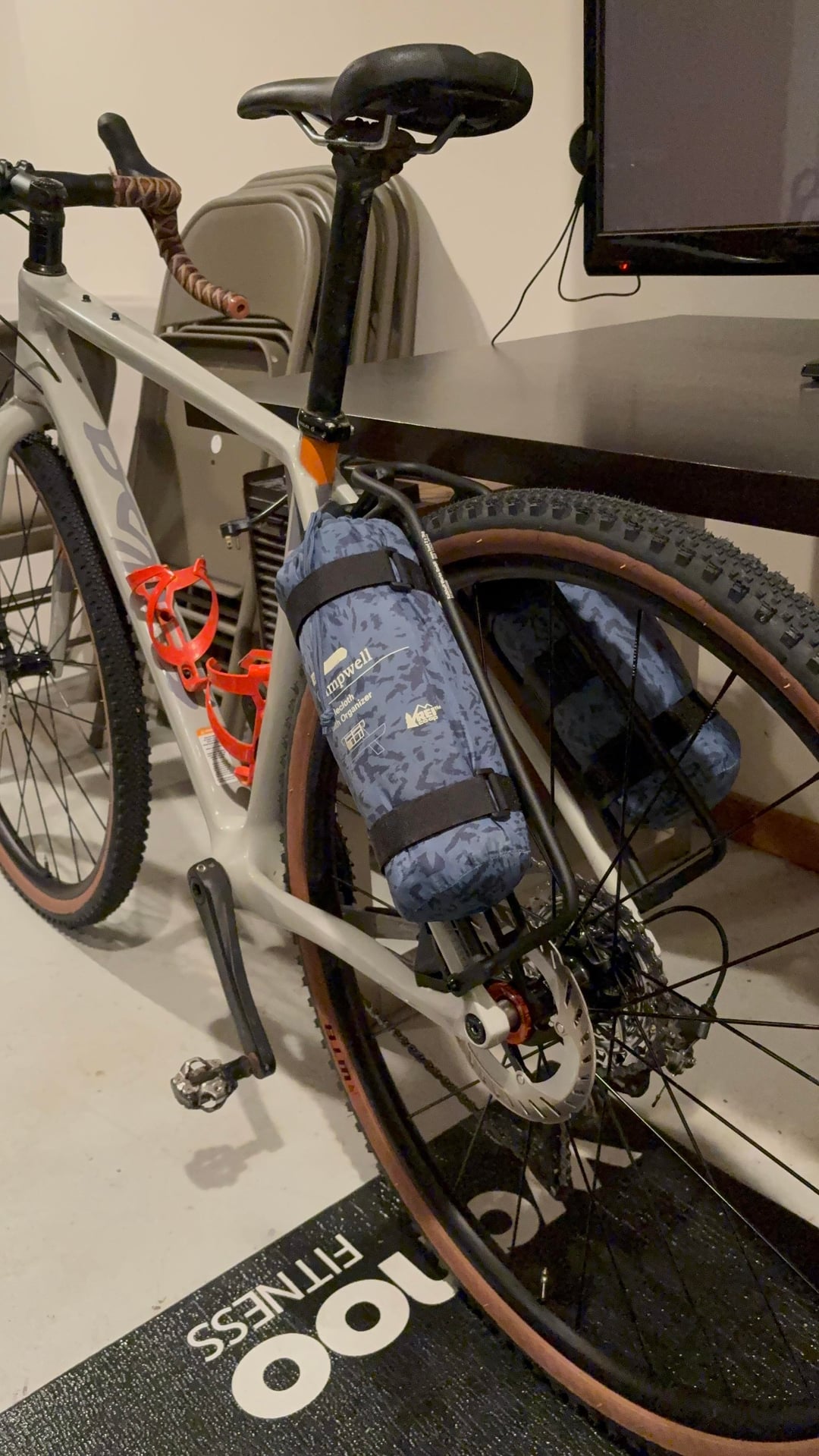

The Focus Adventure Rack mounts cleanly to my Warbird using Ortlieb hardware.

Let me know what you think of a seat stay rack option for go fast carbon bikes, with cargo cages for up to 5L dry bags!!!:))

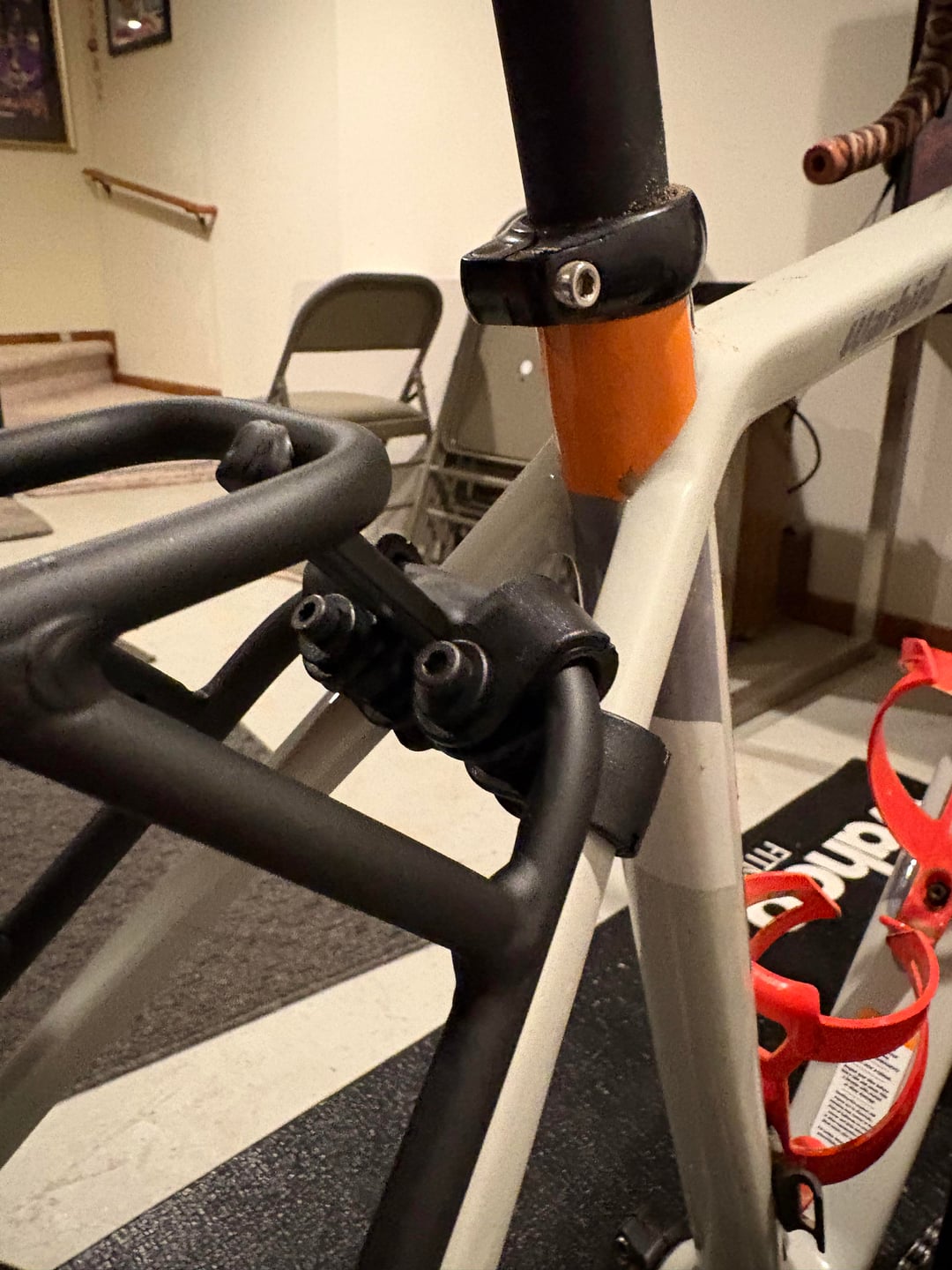

The Ortlieb QL3.1 clamps are available for both 11mm and 16mm tubing (two of each size). In my setup, I used:

One set of clamps to attach directly to the rack

One set of clamps to secure to the seatstays

I was able to connect the two Ortlieb tube clamps using a single 5mm × 60mm bolt (0.80 pitch), which tied the system together securely.

For reference, the clamps used were the Ortlieb QL3.1 Clamps.

(https://us.ortlieb.com/products/ql3-1-clamps-for-11-16-mm-tube-diameter?_pos=1&_sid=5ba168607&_ss=r)

When it was in stock, I ordered the rack with Bunnyhop and had it shipped to the United States.

(https://www.bunnyhop.de/ZUBEHOeR/GEPAeCKTRAeGER-KOeRBE/Focus-Adventure-Rack-fuer-Atlas.htm?a=article&ProdNr=FOC-890003900&p=103&srsltid=AfmBOoqsjH1yUXDnZgPb5ZETcf-zGQagh4g7wp_7Its67f9qFezahLjE)

P.S. Disregard the bike on the trainer (off-season setup).
