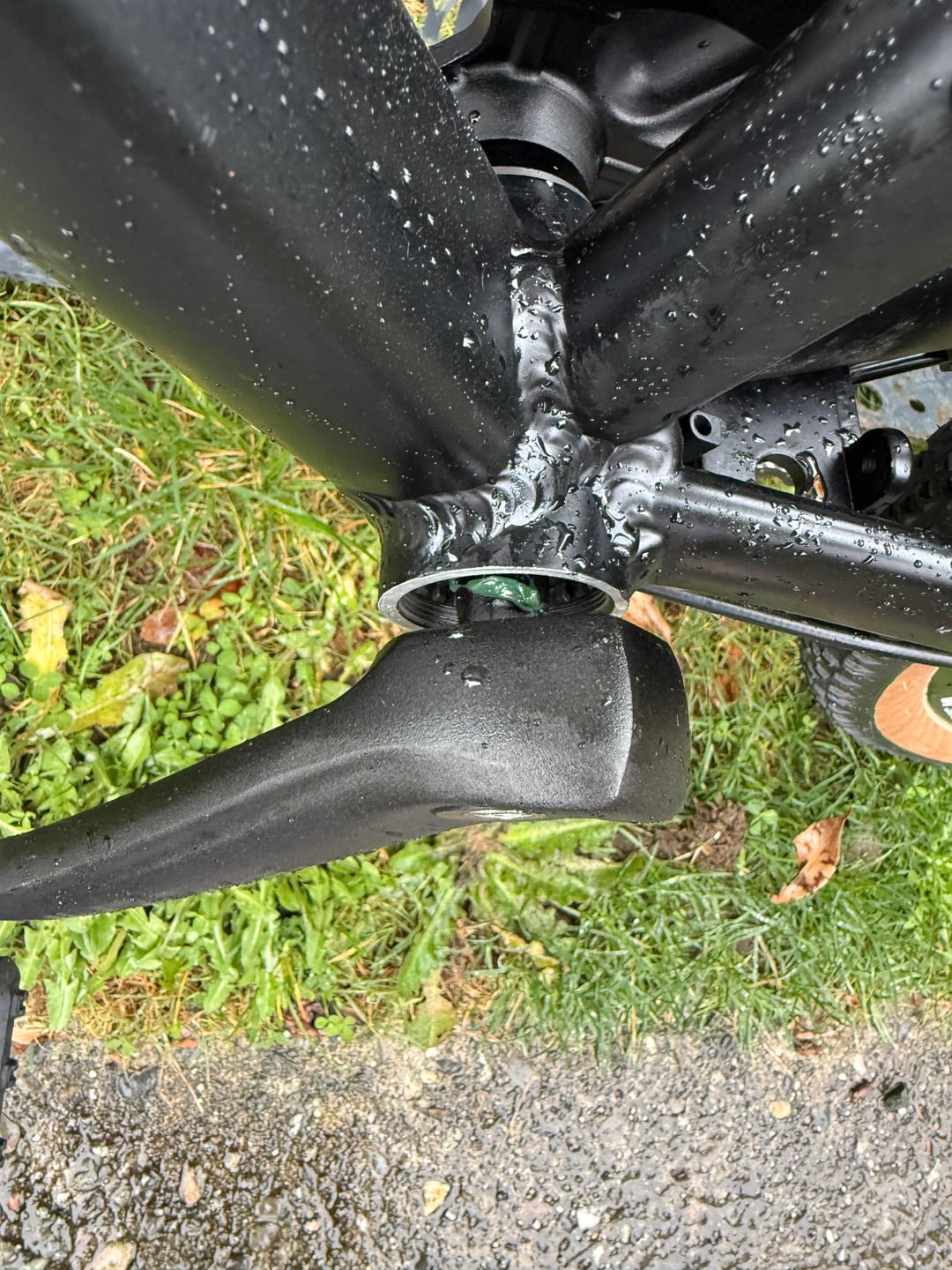

I don’t think the bottom bracket is supposed to be open like that even for a square taper. Look like you are missing an outside cup. There is nothing stopping dirt/grime into those ball bearings you can clearly see in the picture.
Active_Ad_5322 on
There IS a non drive side bb cup.
It is a little short, but it is doing its job of securing the bb .
The non drive side cup is for a 68mm bb shell, and your bike has a 73mm shell.
While it’s not ideal, it does not pose a safety concern nor will your bb under perform or wear out faster.
It just looks weird.
ADrenalinnjunky on
Normal for cheap cranks
GeraldvdS on
Normal. Although the cup is screwed in very far. Further than what I am used to.
LaCroixBoixx on
Thanks guys!!
millenialismistical on
I don’t know if it’s spec’ed like that from factory or what, but I would be inclined to get a new BB. Looks like a 68mm BB installed onto a 73mm BB shell.
7 Comments
Normal for a square taper bottom bracket
I don’t think the bottom bracket is supposed to be open like that even for a square taper. Look like you are missing an outside cup. There is nothing stopping dirt/grime into those ball bearings you can clearly see in the picture.
There IS a non drive side bb cup.
It is a little short, but it is doing its job of securing the bb .
The non drive side cup is for a 68mm bb shell, and your bike has a 73mm shell.
While it’s not ideal, it does not pose a safety concern nor will your bb under perform or wear out faster.
It just looks weird.
Normal for cheap cranks
Normal. Although the cup is screwed in very far. Further than what I am used to.
Thanks guys!!
I don’t know if it’s spec’ed like that from factory or what, but I would be inclined to get a new BB. Looks like a 68mm BB installed onto a 73mm BB shell.
