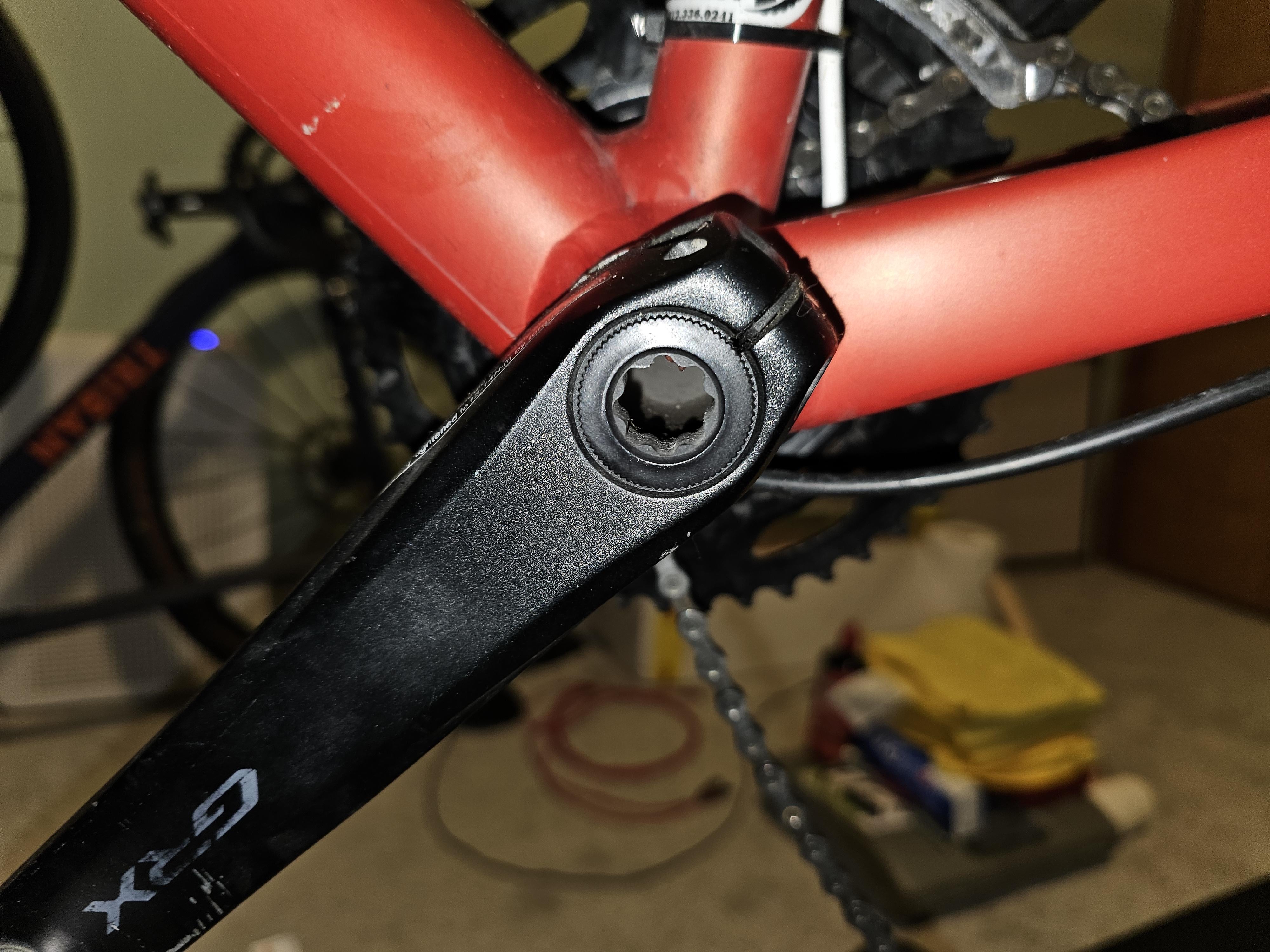

As the title says, I'm looking for name of the tool or socket bit used to remove my crank? Also, are there different sizes? I have no idea what the size of mine is, but it's part of my Specialized 2015 Elite E5 gravel bike. Groupset is a 10-speed GRX400, if that helps. I was planning on cleaning the BB and regreasing.
by edafade
12 Comments
There’s a large star type plastic tool that you can order, I’m sure you just need to type in external crank bolt tool, it should be one size fits most. Let me know if you can get it.
Shimano Hollowtech crank arm tensioner tool and an Allen key.. Tl fc16. Heaps of off brand ones around. In a pinch you can just use a coin.
Standard size for all Hollowtech cranks. Shimano bb bearings aren’t really serviceable.
https://preview.redd.it/oy6deuz7xsgg1.jpeg?width=1170&format=pjpg&auto=webp&s=48de6746e8712f4253a6568c7a27d3ef5d2d7985
You need a hollow tech 2 tool
https://www.competitivecyclist.com/b/park-tool-bbt-10-crank-adjusting-cap-tool?skid=PAR002I-ONECOL-ONESIZ&CMP_SKU=PAR002I&mr:referralID=NA&mr:device=m&mr:adType=plaonline&mr:ad=718266670965&mr:keyword=&mr:match=&mr:tid=pla-2377696555170&mr:ploc=9053130&mr:iloc=&mr:store=&mr:filter=2377696555170&utm_source=google&utm_medium=pla&utm_campaign=21832946841__p:G%7Cs:CC%7Cct:Shopping%7Cct2:xx%7Cg:xx%7Cc1:Villain%7Cc2:xx%7Cb:xx%7Cmt:xx&utm_content=169776051056&utm_id=go_cmp-21832946841_adg-169776051056_ad-718266670965_pla-2377696555170_dev-m_ext-_prd-PAR002I-ONECOL-ONESIZ_mca-4768825_sig-Cj0KCQiA7fbLBhDJARIsAOAqhsex9o7N_5pvRi6ej_QTgx4pGpBQUp87HNRWaB-sknKxNRp4L4axadQaAsZrEALw_wcB&gclsrc=aw.ds&gad_source=1&gad_campaignid=21832946841&gbraid=0AAAAAD_Jw0ZSErVOWC1TJnxeHbY1DyUZy&gclid=Cj0KCQiA7fbLBhDJARIsAOAqhsex9o7N_5pvRi6ej_QTgx4pGpBQUp87HNRWaB-sknKxNRp4L4axadQaAsZrEALw_wcB
I think some cranksets have a little tool that’s that weird star shape that loosens it, and some other brands make them too. Idk specifically but try looking up your cranksets name GRX and crank removal tool
You can just jam a plastic tire lever in there in a pinch…
But use the right tool
https://preview.redd.it/upmu9d0sysgg1.jpeg?width=1170&format=pjpg&auto=webp&s=52131c0ea3605aa88b46aa65711b004a0a26ccb1
This it – the small pin on the end is to wedge in and unclip the locking spacer.
[https://www.printables.com/model/207848-tool-for-shimano-hollowtech-crank](https://www.printables.com/model/207848-tool-for-shimano-hollowtech-crank)
A coin would just work fine.
I just use my fingers.
The handle of a butter knife is what I used haha
I used to use the back end/handle of a spoon as a makeshift wide screwdriver and it worked fine
Just remember to loosen the bolts before you do
