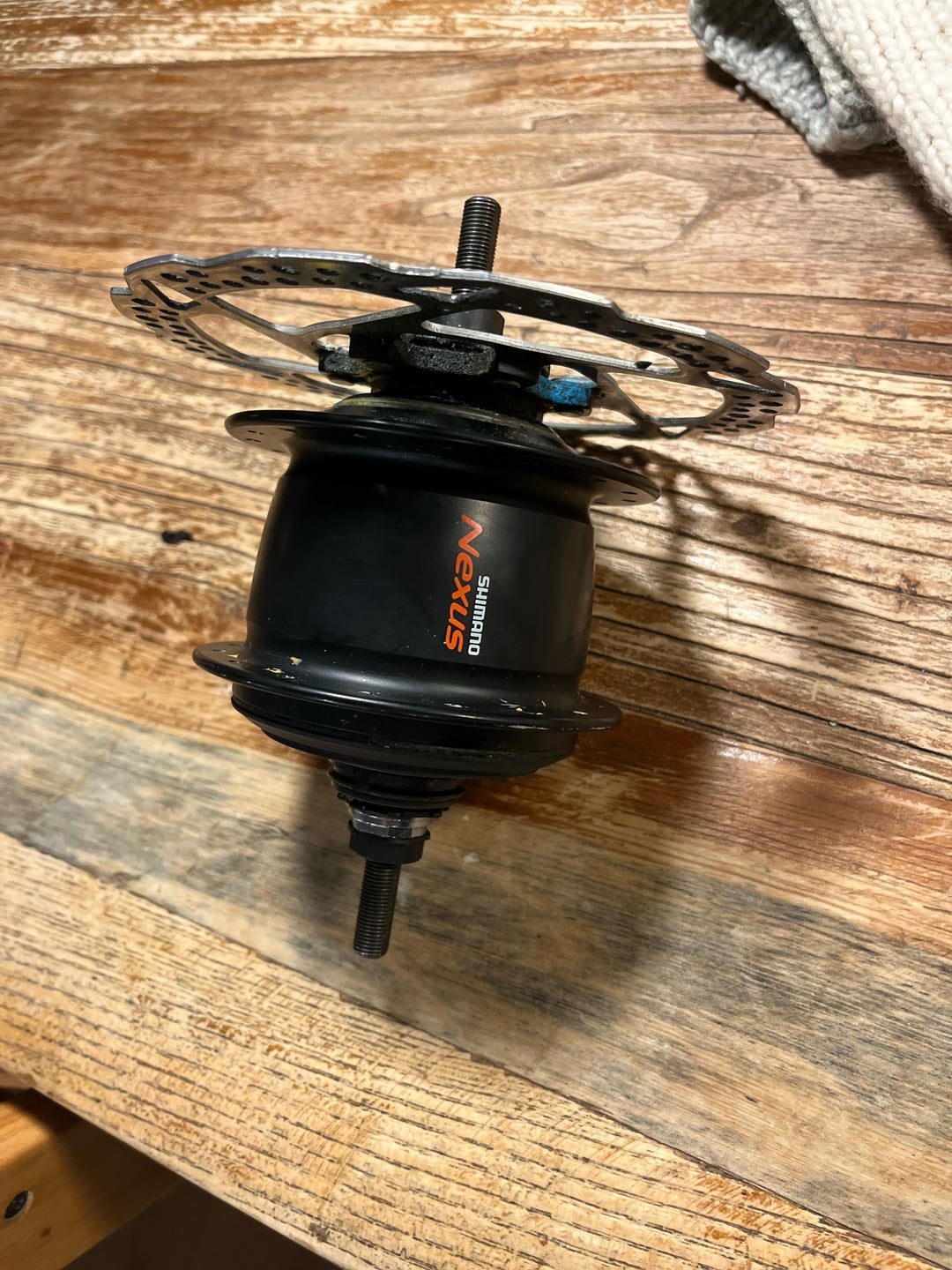

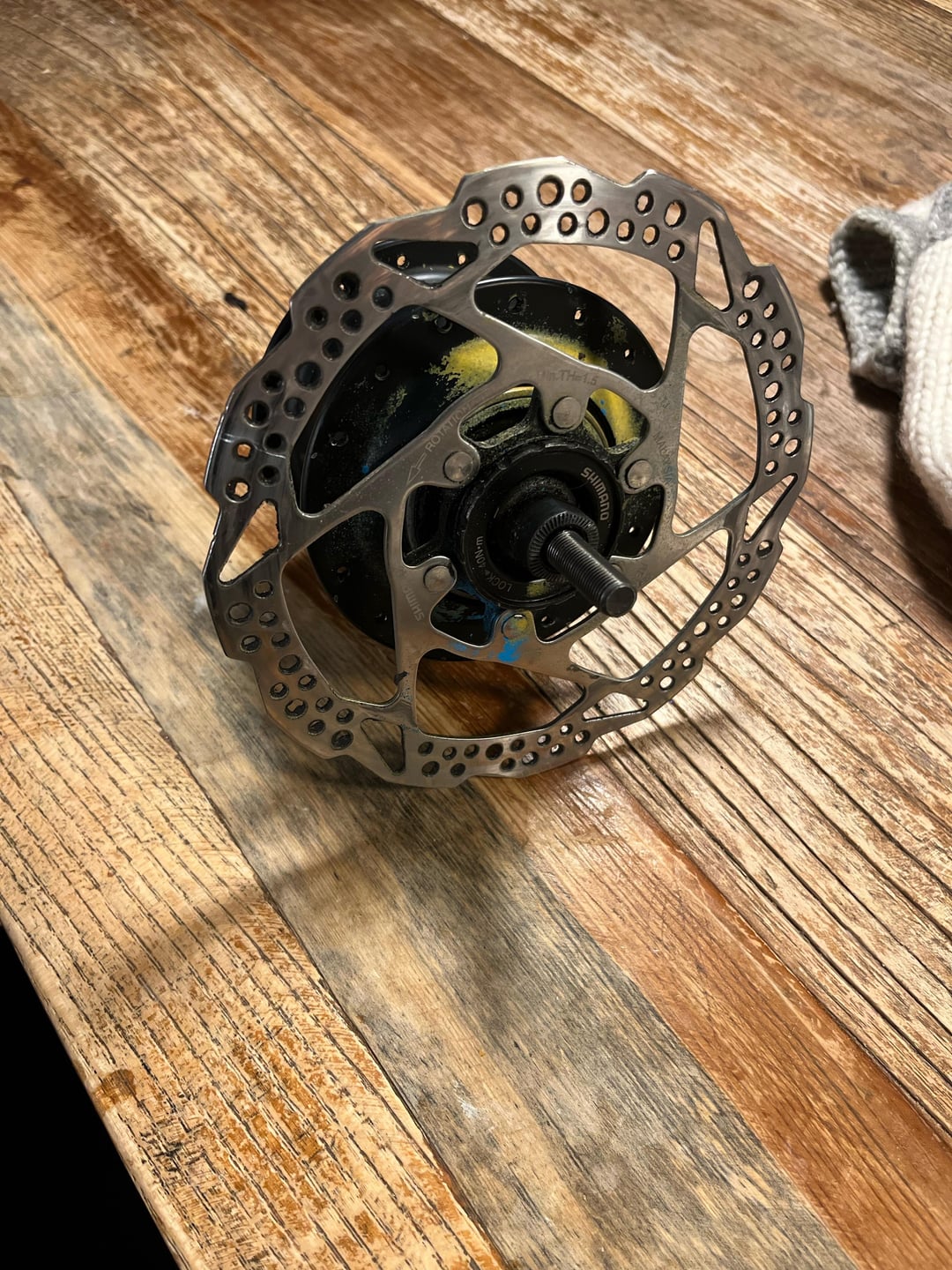

How do i remove this rotor from the hub, after spokes and rim has been removed? I can’t get any leverage, but can’t lace wheel before it’s removed.
I don’t have a bike i can install it in yet
by Trekstenenen
How do i remove this rotor from the hub, after spokes and rim has been removed? I can’t get any leverage, but can’t lace wheel before it’s removed.
I don’t have a bike i can install it in yet
by Trekstenenen
13 Comments
Looks like a center lock rotor. That whole big black thing will screw off. You may need a specific tool though.
Clamp the rotor (RIP) into a bench vise.
Maybe wrap the threads and put it in a vice?
Can you put 2 nuts on the other side of the axle and lock them to use a wrench?
Its a center lock rotor. You need the same tool that fit a standard shimano hollowtech II bottom bracket cup.
Use a strap wrench around the hub shell.
Strap wrench around the hub body.
I’avoid everything that puts force in the motor or the axle. Getting that you do not have a vice (first best option), you should try to clamp down, tying maybe the tool and try to rotate the disc, as it was a steering wheel. Worst case scenario, you try to make the center lock nut rotate by hitting it with a screwdriver and an hammer. It will mangle it but usually discs come with new nuts.
Last resort, you go to someone who has a vice, clamp the nut and un do it.
You will have to lace the other half of the hub to a rim.
You need a centerlock toolto remove, the disc self won’t turn
Do you have a hole saw? Make a hole in some wood big enough for the opposite spoke flange (is the the right word?) to rest on the surface. Mark the surface of the wood through each spoke hole. Get some wire nails that are small enough for the head to fit through the spoke holes. Knock a nail into each of the marks you made on the wood. Put hub onto nails.
That should be strong enough to hold it while you apply the required force without damaging anything.
Center lock tool
I’ll vouch for the strap wrench ‘boa’ method with the rubber strap around the hub shell and then use some Knipex Pliers-wrench type on the lockring tool/bit. Good luck!
