Hi all. I am trying to install disc brakes and not sure what I'm missing. I am putting state brand hydraulic disc brakes on a 2021 Kona rove.

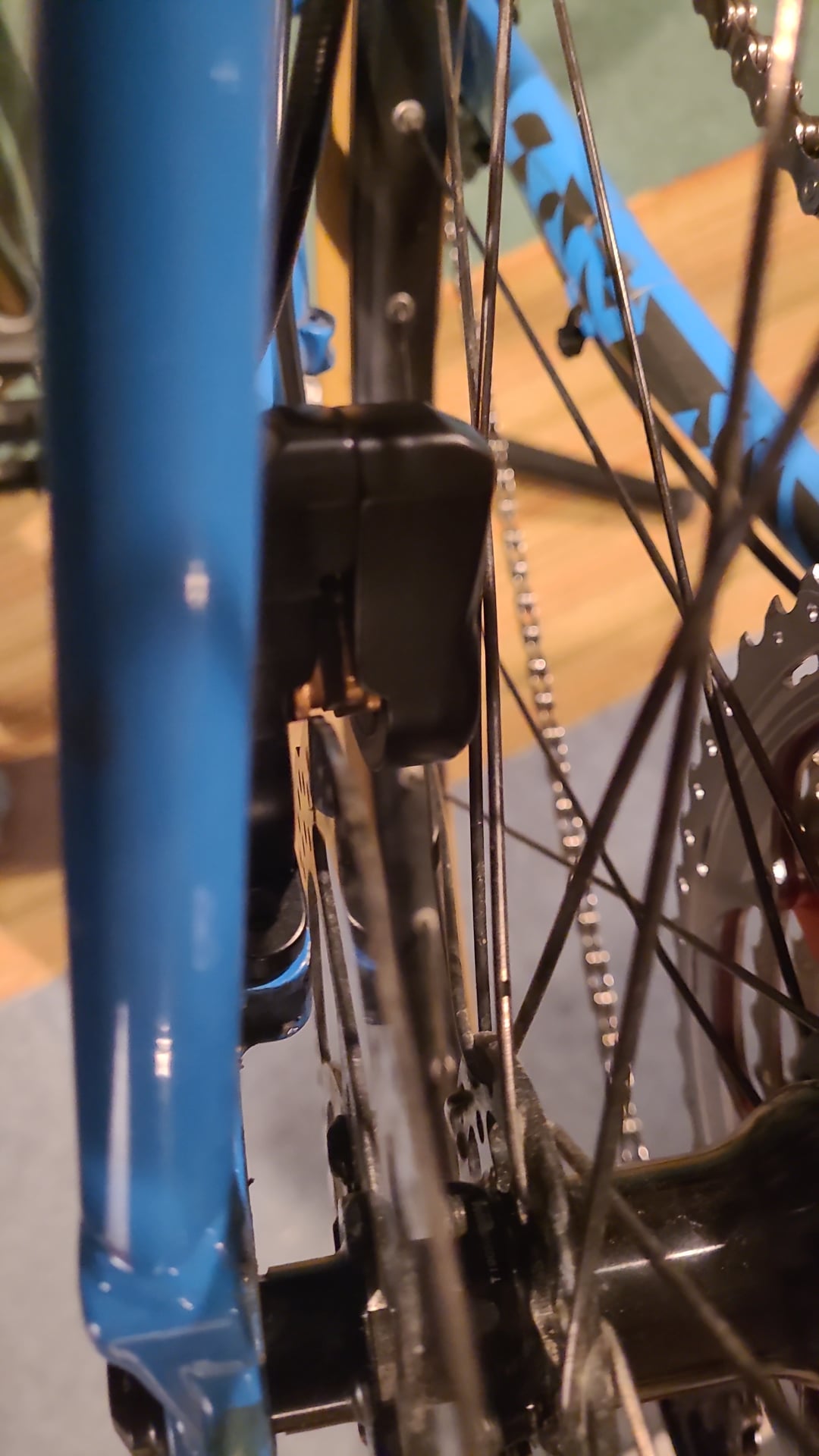

The front seems to fit fine but the back caliper when screwed in gets nowhere near the rotor. Both rotors are 160mm and just not sure what I'm missing. Is there and adaptor I can buy to just move the rear caliper back a little bit?
by Turbulent-Fudge-1445
4 Comments
larger disc
What size rotor is that?

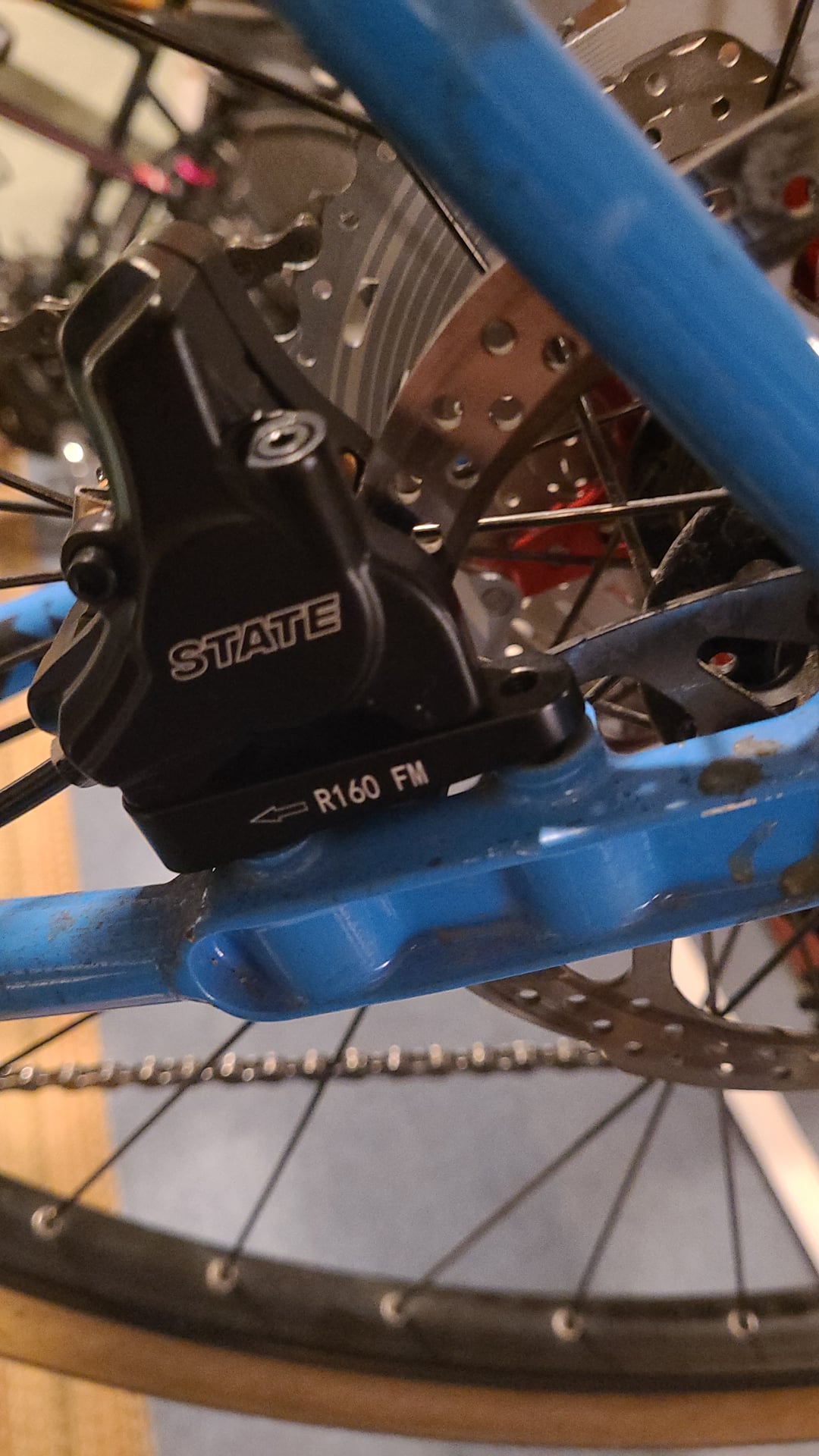

Just a guess as I suspect that bolt position is for a larger rotor but can you flip the base plate so the arrow points to the rear and see if that moves the caliper into position?
The base plate on your rear caliper may be unnecessary. Try removing that and seeing if your pads make good contact with the rear tote
