They just got lucky with chain length. There’s calculators online for what gearing will work with no tensioner, just input your chain stay length.
Supper_Champion on

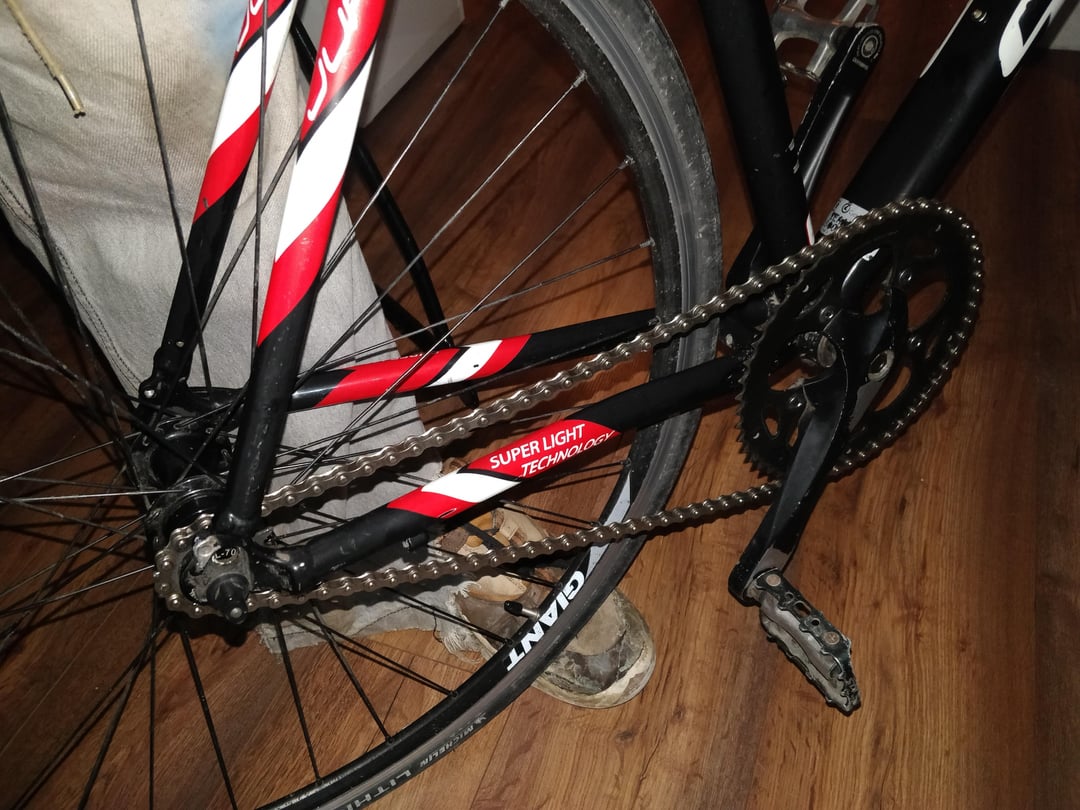

“Magic ratio”. They found a combo of chainring and cog that allowed the chain to have little to no slack.
gearlegs4ever on
Magic ratio. Sometimes it works, sometimes it doesn’t. It’s like playing the lottery but with frames. Some frames are excellent for converting but others are a super pain in the ass.
Super_Job1100 on
looks like some sort of cam washer against a shoulder on the frame ..
pretty cool idea👌
incunabula001 on

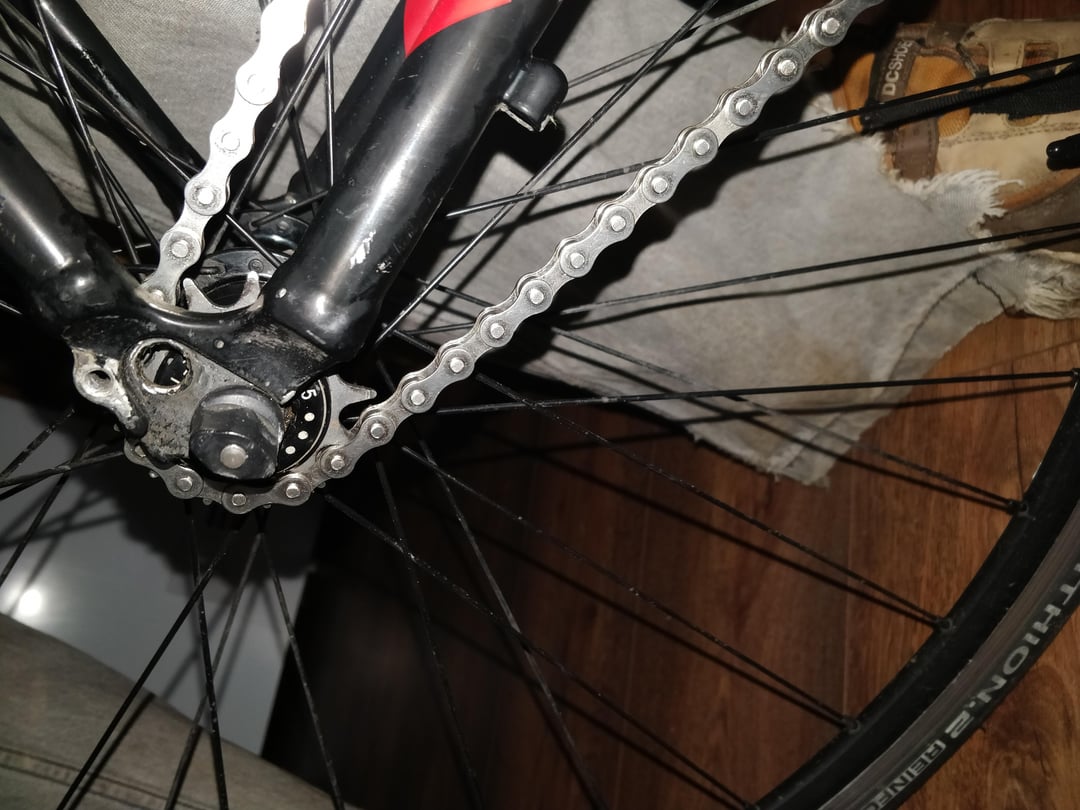

That rear cog looks pretty sharked toothed, I would replace
Mugochap on
I doubt it, but maybe an eccentric bottom bracket?
Dynamic_Ninja_ on
The perfect fit
reed12321 on

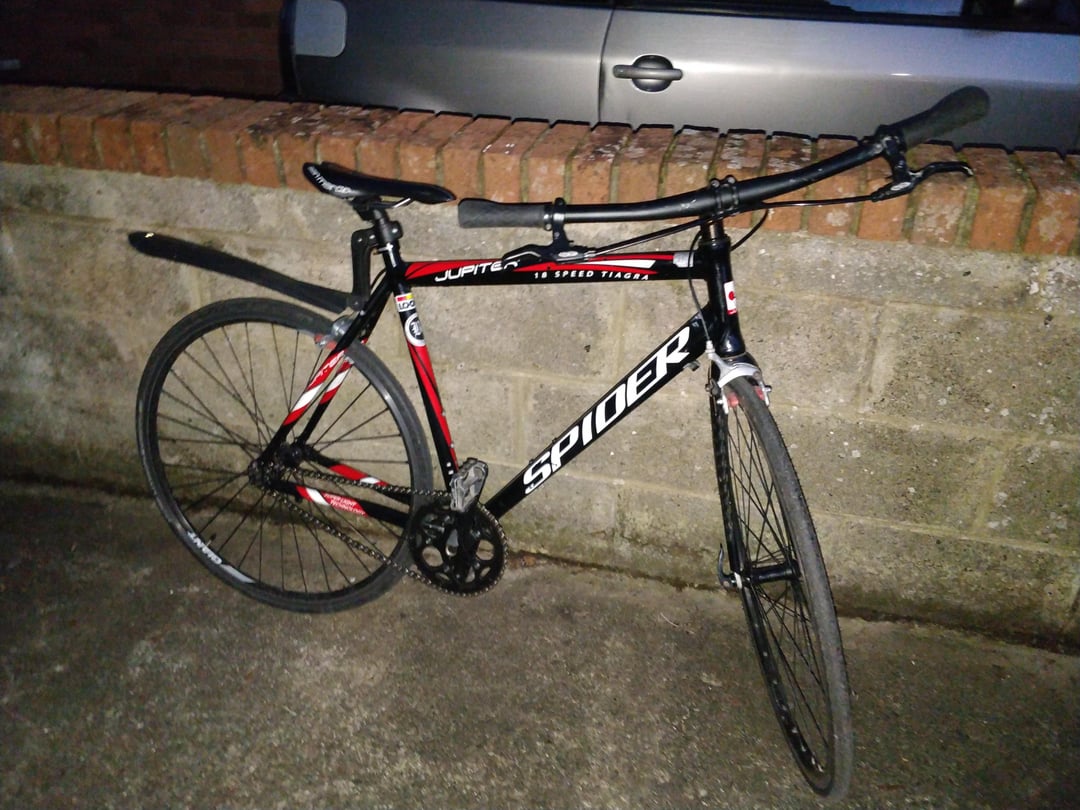

There’s a small chance it’s a tensioner bb/eccentric bb but at least the frame is a BSO from a department store and it’s very unlikely it has an eccentric bb because of that. The big tell is when the frame has decals for the components. “18 speed tiagra” right on the top tube is very common for BSO’s from Walmart/target/other department stores.

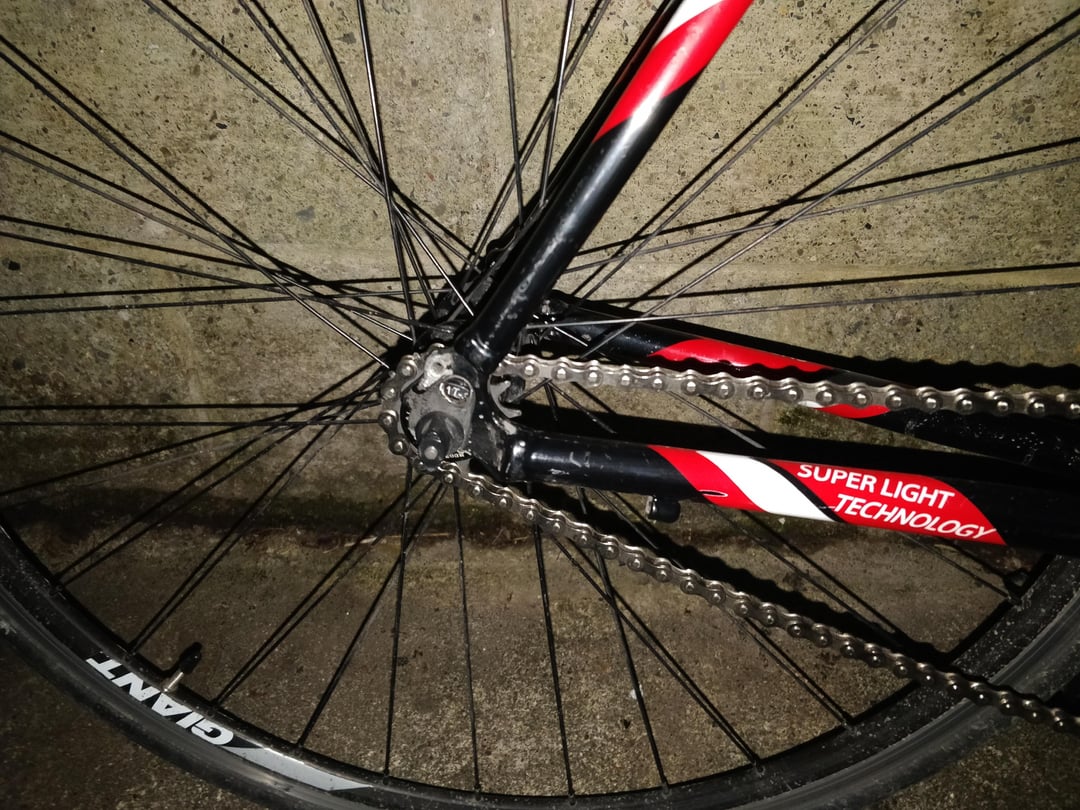

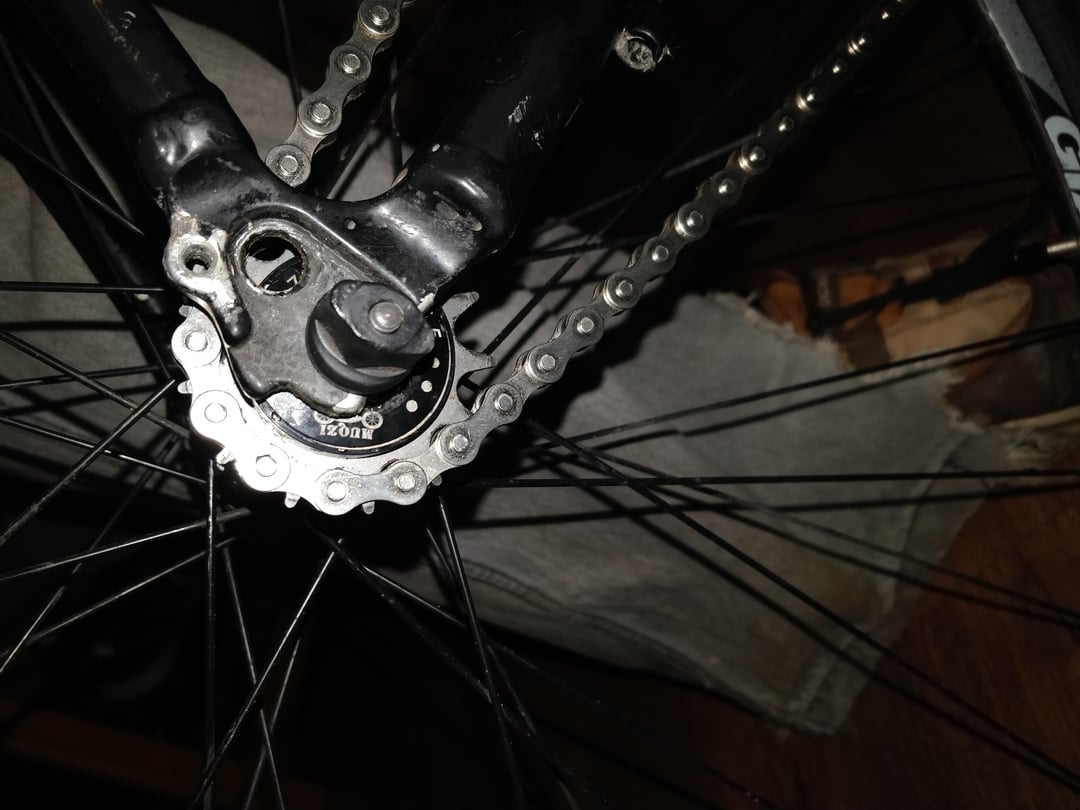

Odd thing is they removed the derailleur hanger so the rear wheel likely isn’t clamped very well. The rear skewer bites into the hanger and with it removed, it’s likely the end of the skewer is bottoming out on the axle.
SolarSalsa on
Same as my old BMX bike. Pure magic.
Active_Ad_5322 on
this bike has got “track slack”
lakeviper on
Good question. Lots of pics. Quizzing sub?
Surotu_Robins on
get a halflink chain
elessar007 on
EBB but thats not likely because anyone knowledgeable enough to make use of an eccentric bottom bracketikely wouldn’t have compromised the ability to clamp the wheel by chopping the hanger off like that.
Most likely is they hit the magic ratio. Combination of chainring size, freewheel teeth and frame geometry (specifically chainstay length) can yield a setup that requires no tensioner on vertical dropouts. I can run my Wicked Lite as a SS without having to use a tensioner. It isn’t the perfect gear ratio but I’d rather ride that than use a tensioner.
Shock_Hazzard on
Magic ratio
Inevitable-Passage21 on
Get a new derailleur hanger and get a chains tensioner
