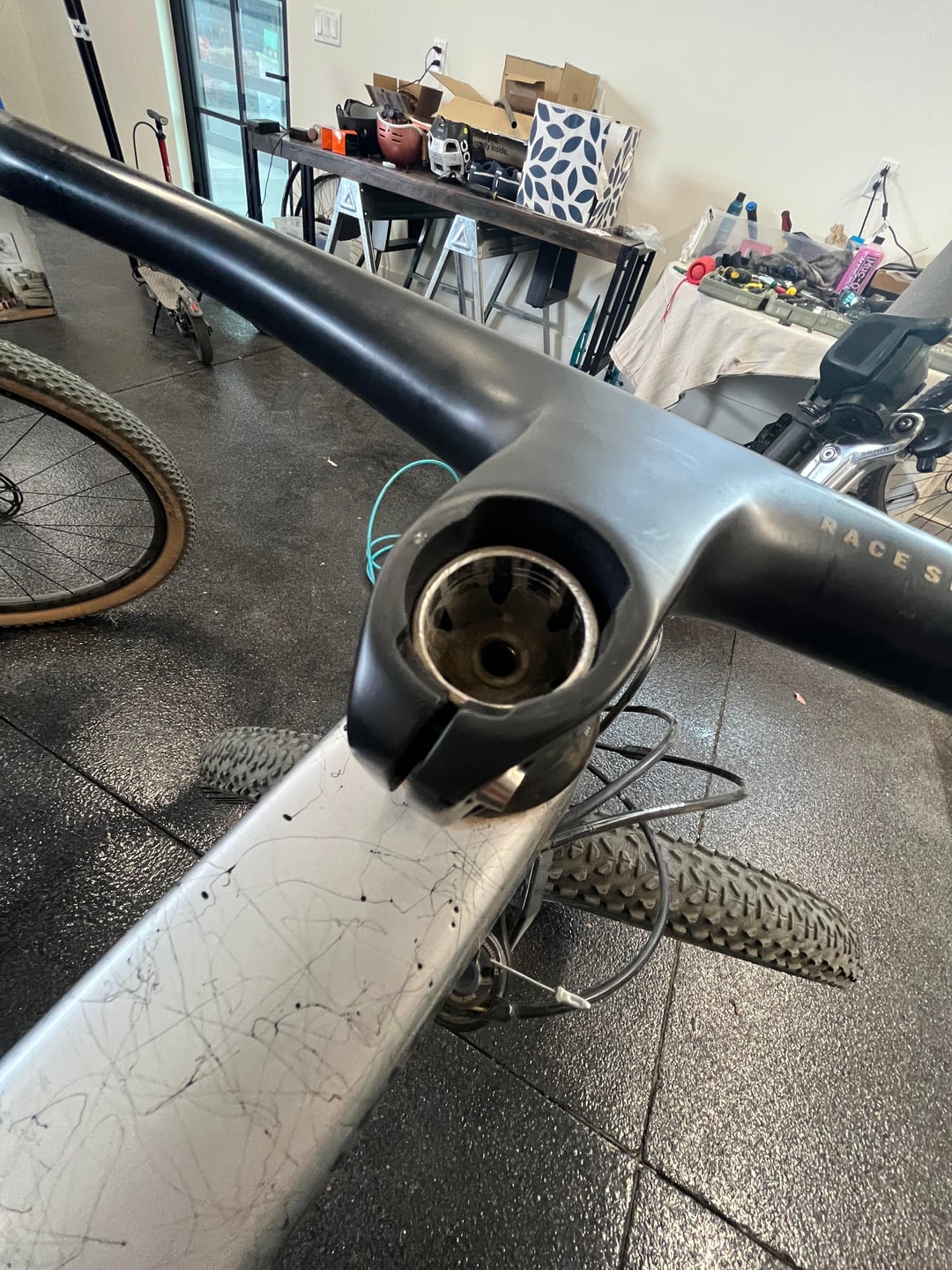

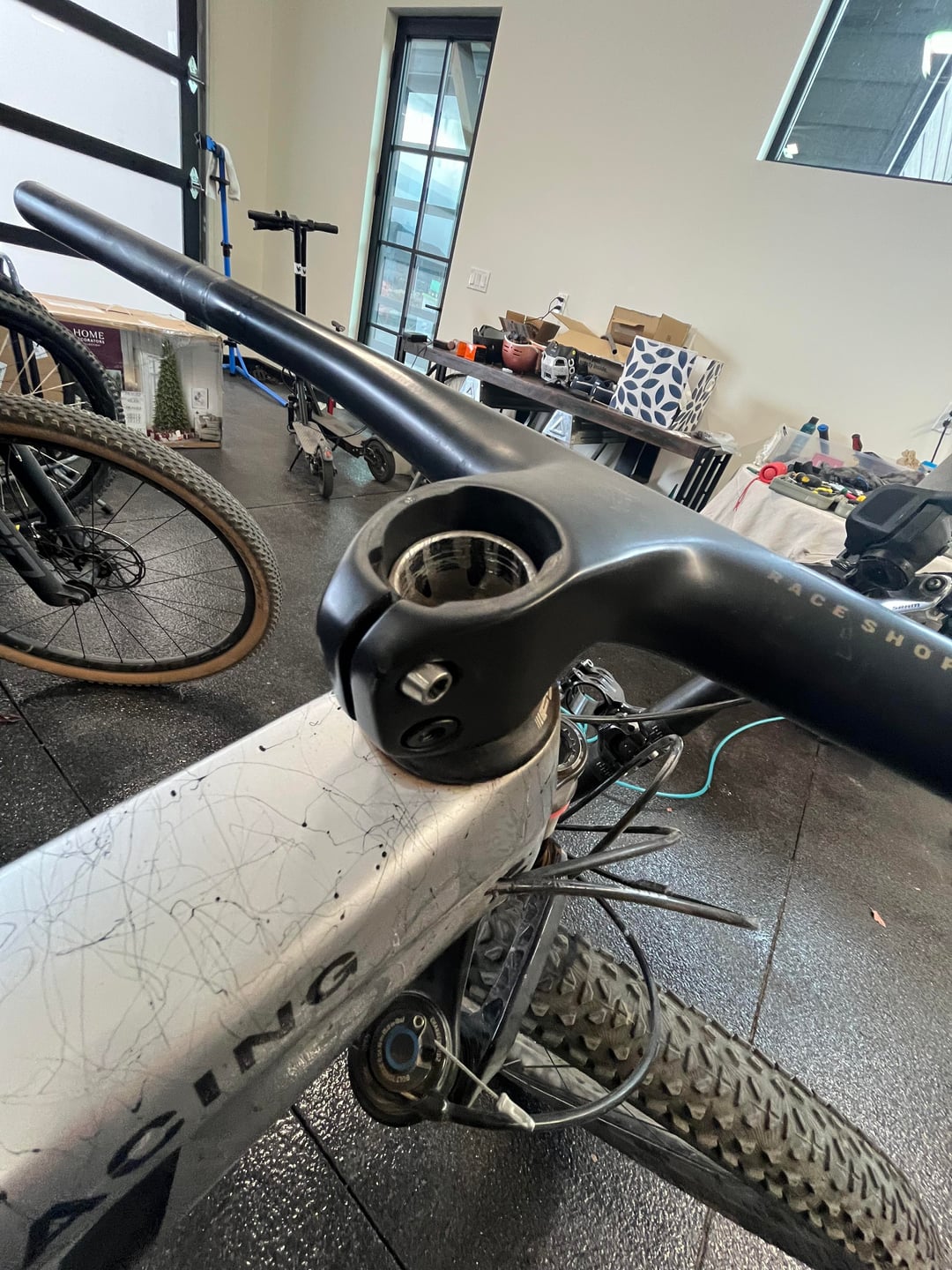

Lots of people just saying yes, but without a proper look at it that’s hard to say. For sure it looks to short from what we can see. But have a look down the gap at the back of the stem. If the steerer sits above the top bolt your all gravy, if it’s below your gonna need to spend some money on either a new fork or a non integrated bar set up with a low stem, something like the DMR defy35.
chopchopgoodbye on
the key thing is to have the top of the steerer tube above the middle of the upper stem bolt
NewSuperSecretName on
It depends— how much do you value your teeth, and do you have good dental insurance?
Personally, I’d prefer to see less of a gap.
BBMTH on
Does the bar/stem have a manual? I think you probably wanna be pretty close to flush with the area i circled. Metal stem with metal steer tube you just wanna get to the top of the top bolt.
1, thinner headset,
2,thinner stem.
3, replace a steerer tube, press out old one and press in new one, some bike shop do this
lingueenee on
The arrangement as it is won’t do. But it’s not strictly a case of the steerer being too short, a lower profile (integrated) stem or headset can also bring the top of the steerer up to the top binder bolt level. I’d explore those options first.
Karkfrommars on
Yes. A cane creek Slamset will resolve this i think.
Hard to tell the stack up on that fsa headset but they are usually pretty tall. The Slamset should buy you about 3mm.
Other options are change the stem/bar for a low stack height stem like a deity copperhead.
Or, both the Slamset and stem. Even doing both is cheaper than a fork
textures2 on
Yes
Responsible_Prompt58 on
How about a side view also? How tall is the stem?
ramensospicy on
might be able to use a low stack headset spacer ( and a different stem and bar if you need it)
15 Comments
Yes
Yes you want around 2-3mm from the edge
Yep.
You might be able to get a lower profile headset bearing cover
You can probably find a lower profile stem that will work, but the fact you have integrated bars is going to add cost.
Maybe something like – [https://www.amazon.com/Funn-Equalizer-Bike-Stem-Zero/dp/B0CD1ZX46X?th=1](https://www.amazon.com/Funn-Equalizer-Bike-Stem-Zero/dp/B0CD1ZX46X?th=1)
Lots of people just saying yes, but without a proper look at it that’s hard to say. For sure it looks to short from what we can see. But have a look down the gap at the back of the stem. If the steerer sits above the top bolt your all gravy, if it’s below your gonna need to spend some money on either a new fork or a non integrated bar set up with a low stem, something like the DMR defy35.
the key thing is to have the top of the steerer tube above the middle of the upper stem bolt
It depends— how much do you value your teeth, and do you have good dental insurance?
Personally, I’d prefer to see less of a gap.
Does the bar/stem have a manual? I think you probably wanna be pretty close to flush with the area i circled. Metal stem with metal steer tube you just wanna get to the top of the top bolt.
https://preview.redd.it/cchwruh6va1g1.jpeg?width=471&format=pjpg&auto=webp&s=b4e4afccfa14c2c669334352ecef9395d807dfe3
1, thinner headset,
2,thinner stem.
3, replace a steerer tube, press out old one and press in new one, some bike shop do this
The arrangement as it is won’t do. But it’s not strictly a case of the steerer being too short, a lower profile (integrated) stem or headset can also bring the top of the steerer up to the top binder bolt level. I’d explore those options first.
Yes. A cane creek Slamset will resolve this i think.
Hard to tell the stack up on that fsa headset but they are usually pretty tall. The Slamset should buy you about 3mm.
Other options are change the stem/bar for a low stack height stem like a deity copperhead.
Or, both the Slamset and stem. Even doing both is cheaper than a fork
Yes
How about a side view also? How tall is the stem?
might be able to use a low stack headset spacer ( and a different stem and bar if you need it)
