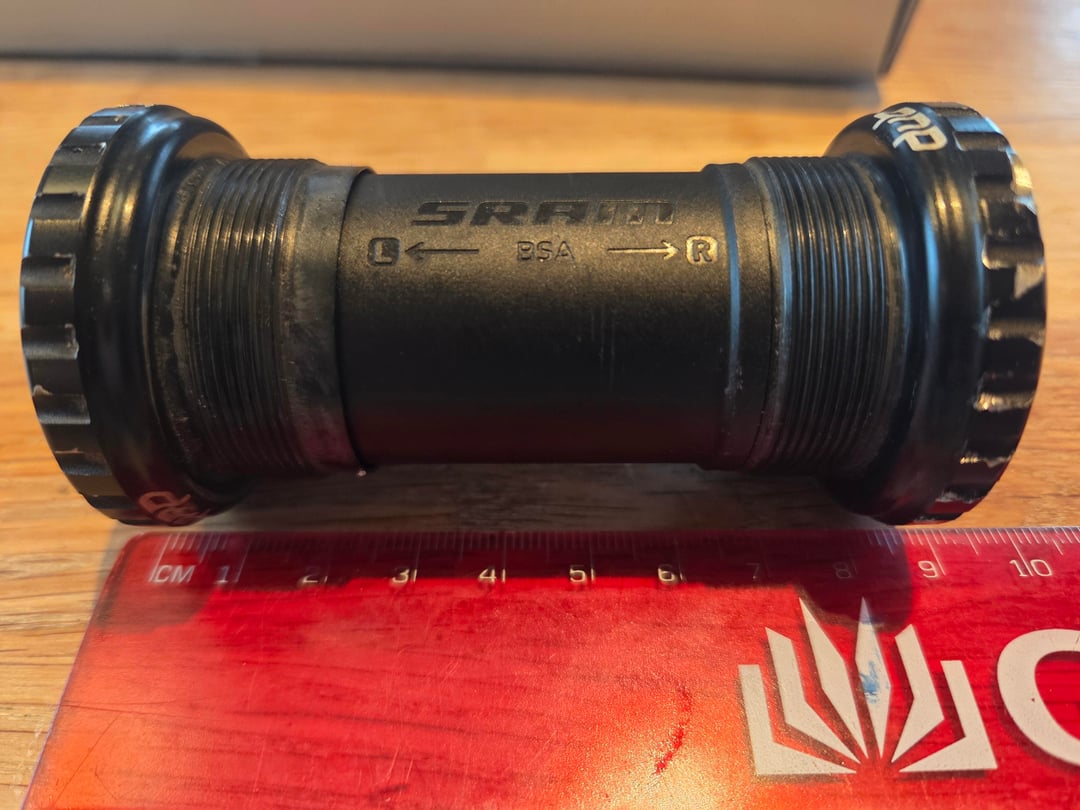

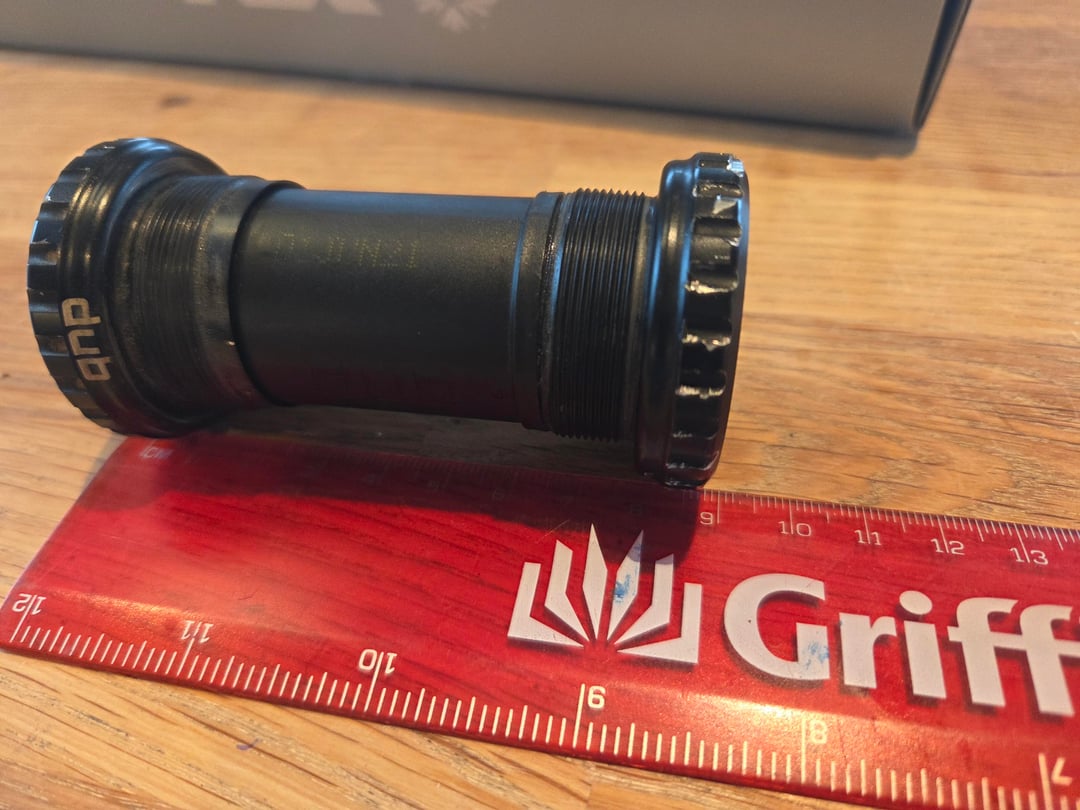

Title. The BB is marked SRAM DUB BSA and the shell only width is 55mm. The width with both ends installed is about 88/89mm.

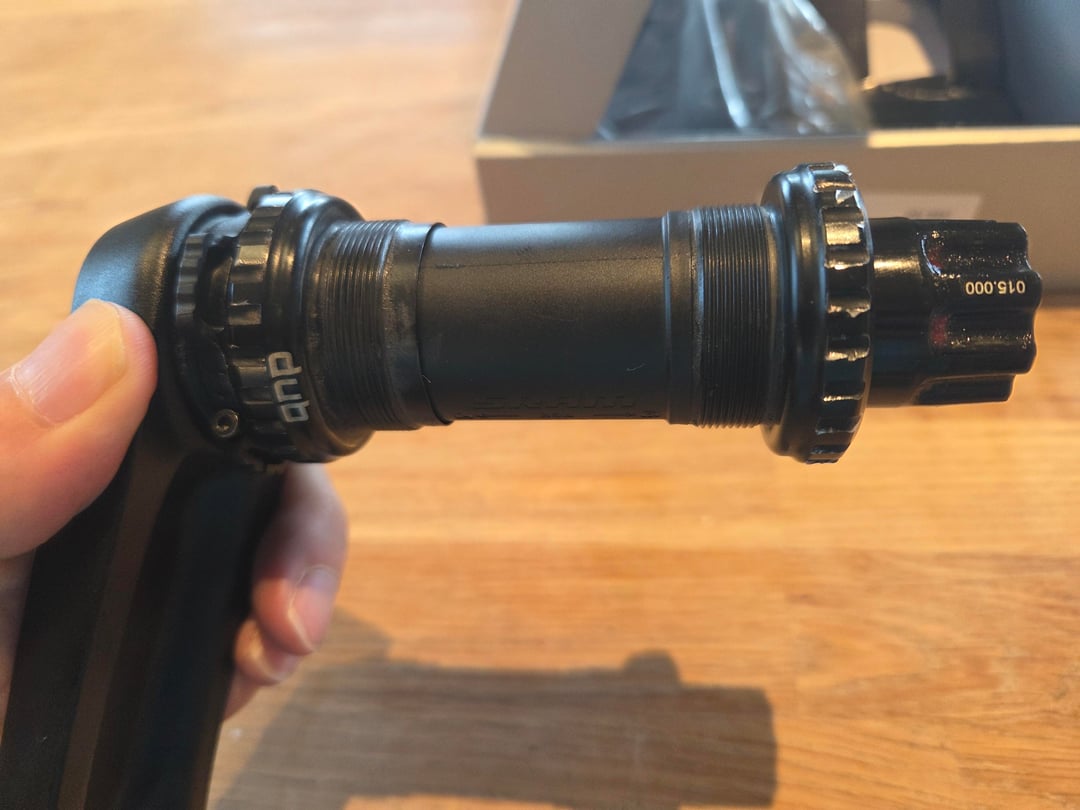

I bought a SRAM NX Eagle DUB, 32T, 1×12 crankset, but it is too wide for the bottom bracket (by almost 1cm!).
Can someone please help me to identify the bottom bracket?
Can someone please help me to select a compatible SRAM crankset for a single speed dirtjumper?
by Squirrito
1 Comment
You got all the information right, you’re just missing the spacers.
There is a page somewhere on SRAM doc with all the combinations of frame/cranks/bb and spacers needed
They come in inner and outer sets. I’ve mostly had to use both at the same time on anything but big modern MTBs
