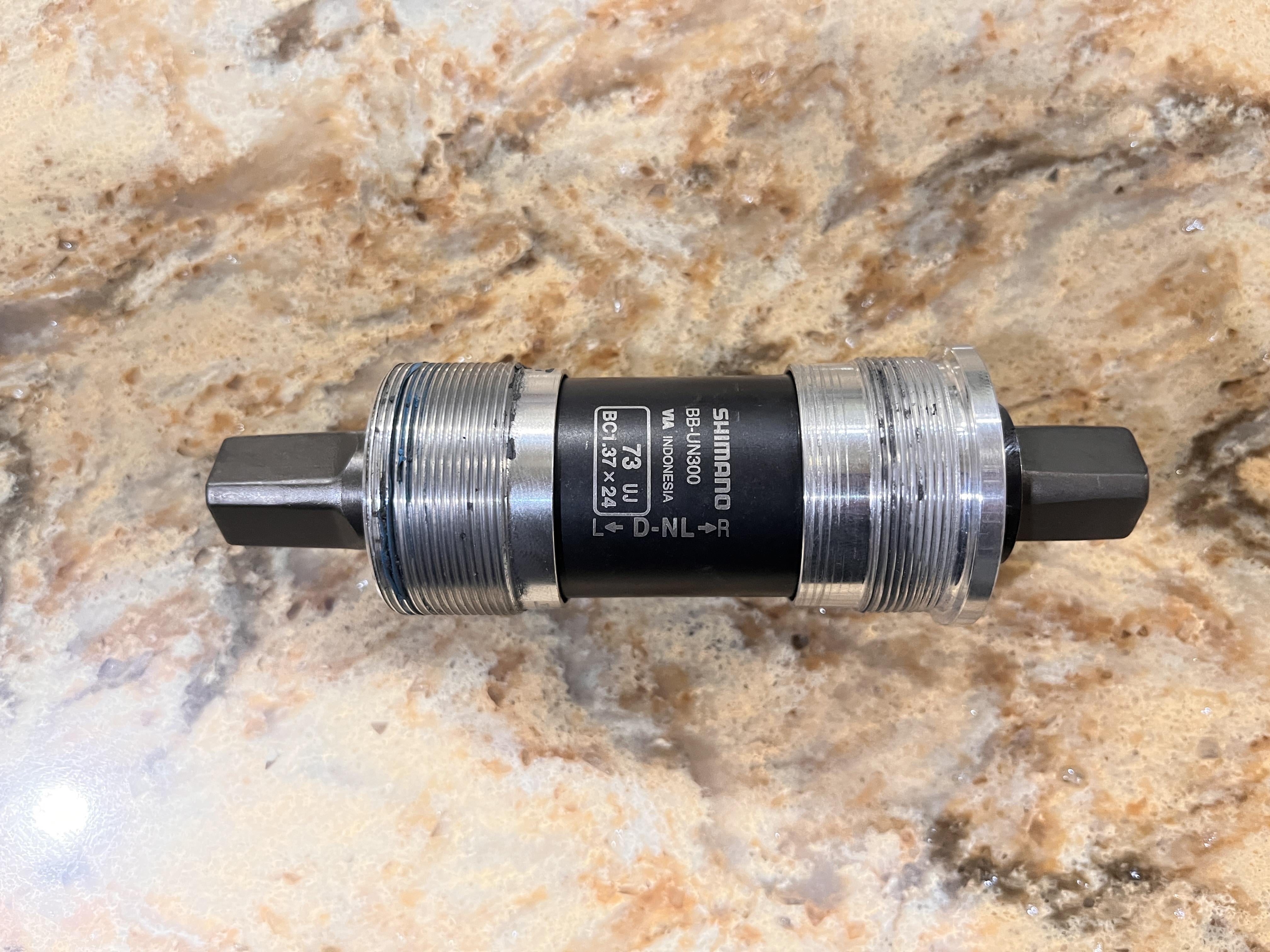

I can’t interpret which side is meant to be drive side. I would go with the R and L marks but the D-NL is throwing me off.
by MavidStaples
I can’t interpret which side is meant to be drive side. I would go with the R and L marks but the D-NL is throwing me off.
by MavidStaples
3 Comments
The side with the shoulder is the drive side. It’s on the right side of this image.
The D-NL is Shimano’s code for 122.5mm wide symmetric spindle.
I really don’t know how much clearer Shimano could have made this.
`L<-` means “left”
`->R` means “right”
Edit: I wrote the wrong side initially.
The threads are different. The right side has left hand threading, so it will only fit one way.
