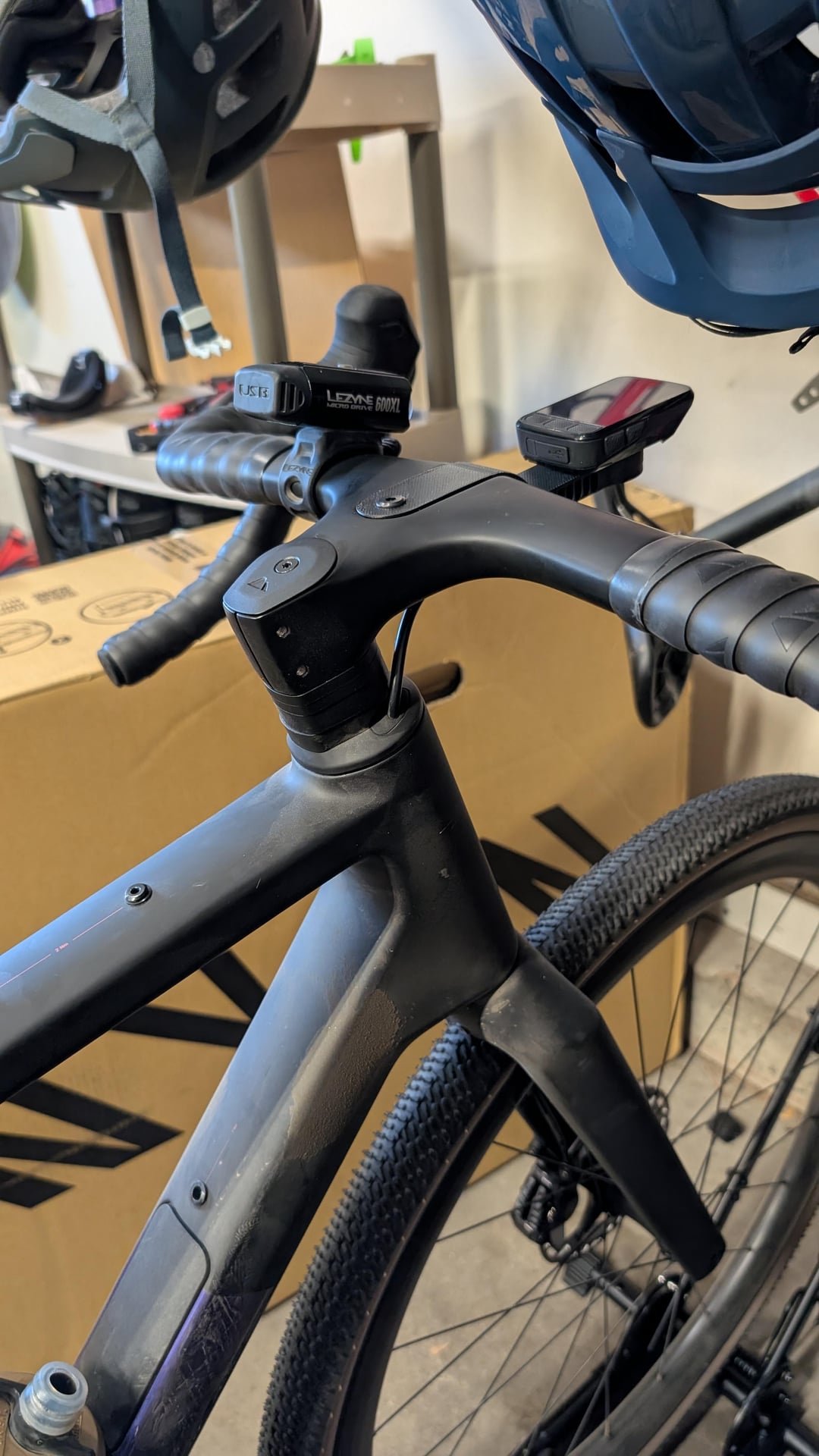

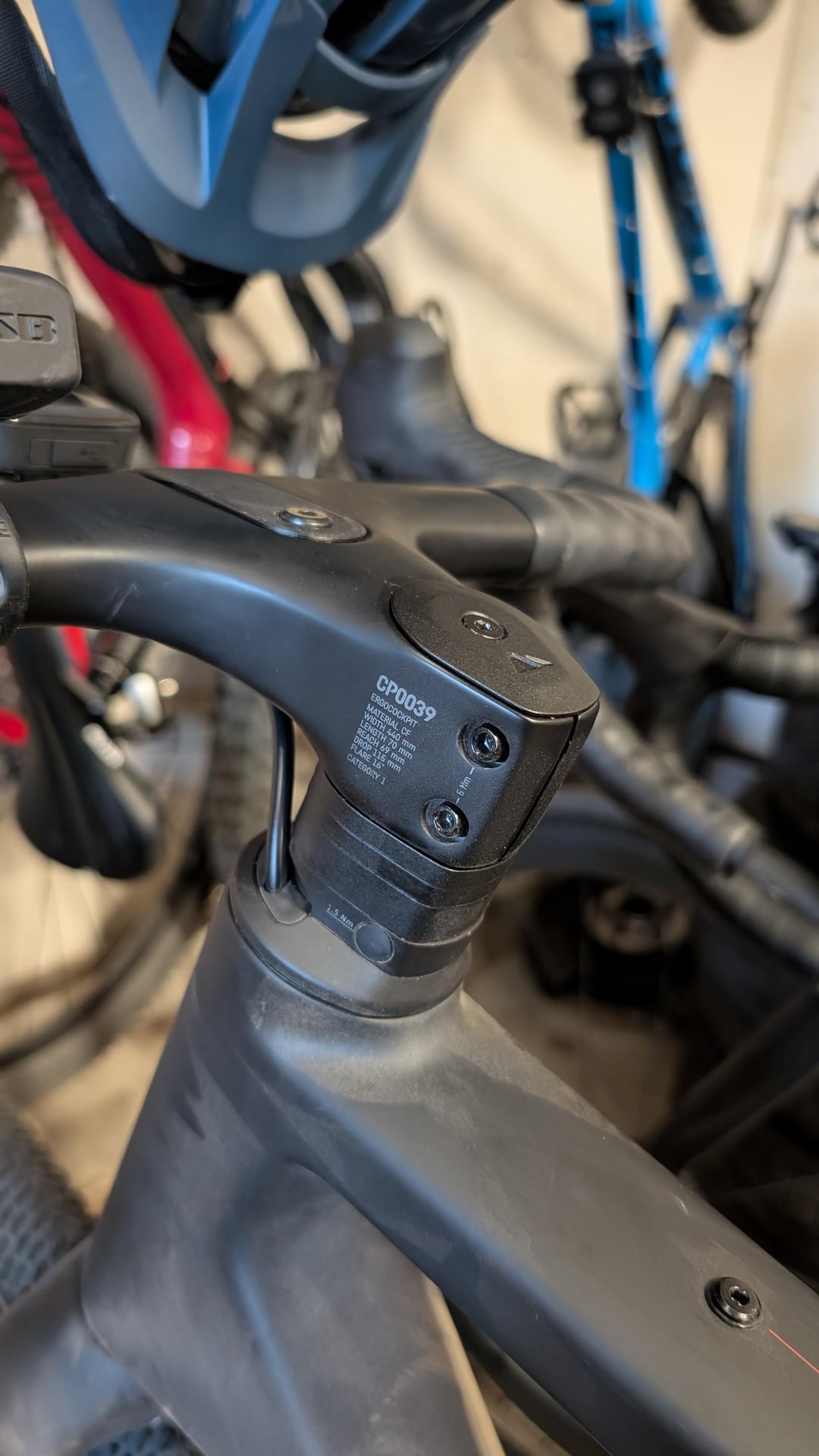

I recently got a Canyon Grail 8 CF SLX. I've been loving the bike so far, but I run into lower back pain issues. I've lowered my seat to the extent which I can while still having a normal riding position. Does anyone know if there's any way to increase the stack / raise the cockpit height? I believe I'm at max height and don't want to go the route of looking at a new cockpit yet
by Equal-Ant9425
8 Comments
Did you ever use the saddle properly fitted? With max stack height and the right set-up you shouldn’t feel back pain (at least not due to the stack height)
No options with the stock cockpit.
Only option would be to get a separate bar and a stem with a positive rise. Could also look at a riser handlebar.
Besides getting a new stem and riser bars, try first tilting the seat way forward. I have low back pain as well and forward tilted seat allows me to not bend as much in my back since my hips are at more of a right angle, rather than obtuse with a more level seat causing you to fold back. This brings its own problems, like extra hand pressure, but that can be combatted by core strength. It’s been working well for me on my Fuji superstiff and my seat is high with a slammed stem. (Not sure I explained the hip angles correctly but try it)
I simply can’t understand why Canyon insists on equipping their stock bikes with integrated cockpits. That might make sense for full blown aero race bikes, but for a Grail, Endurace or similar, I’d rather have the adjustability instead of the tiny aero benefit of an integrated system.
Cannot raise those bars, would need either, a new stem and new bars (+bar tape) or new fork with longer steerer.
I just had to make this very same change.
Bought the Enve High Rise Stem (80mm) and a 38 CM bar to replace the stock cockpit that came with my 2026 Canyon Grail
Sucks but I just flat out did not fit on that cockpit
You could move the hoods up a little higher.
What seatpost do you have? Is the clamp reversible?
