You can remove it destructively, remove the outer bearing cone with the two divots, dump out the bearings, paws, outer part with the teeth and then use a vise or pipe wrench remove the inner part from the wheel hub.
waxoffwagon on

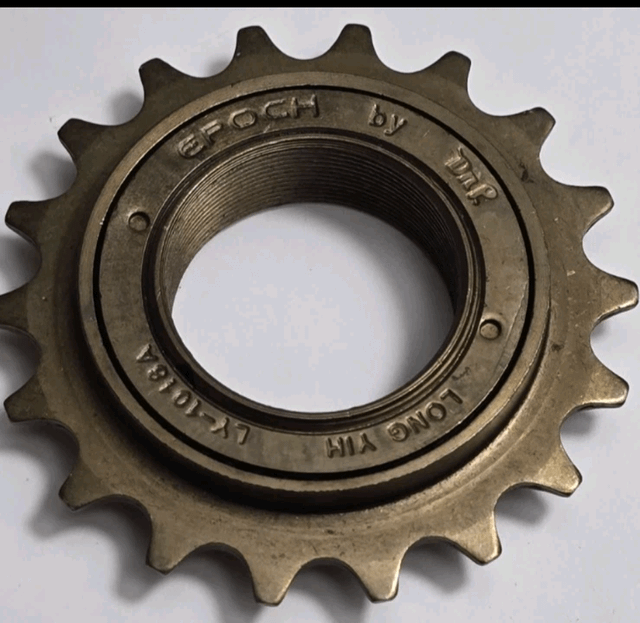

See those two little holes? Put a nail or punch in one and hammer clockwise. You’ll see bearings. Put them in a cup. You can remove the part that threads on to the hub counter clockwise. Do it carefully.
4 Comments
Those two dots are for a pin spanner.
https://www.parktool.com/en-us/product/adjustable-spanner-spa-6
Pin spanner. For decades they were all we had.
You can remove it destructively, remove the outer bearing cone with the two divots, dump out the bearings, paws, outer part with the teeth and then use a vise or pipe wrench remove the inner part from the wheel hub.
See those two little holes? Put a nail or punch in one and hammer clockwise. You’ll see bearings. Put them in a cup. You can remove the part that threads on to the hub counter clockwise. Do it carefully.
