I’m working on a new-to-me Moots Vamoots that I think is from 2014. I’ve never owned a titanium bike before and this is also my first time working with a carbon fork. It pretty much needs everything and it’s a little more than a frame set and wheels.

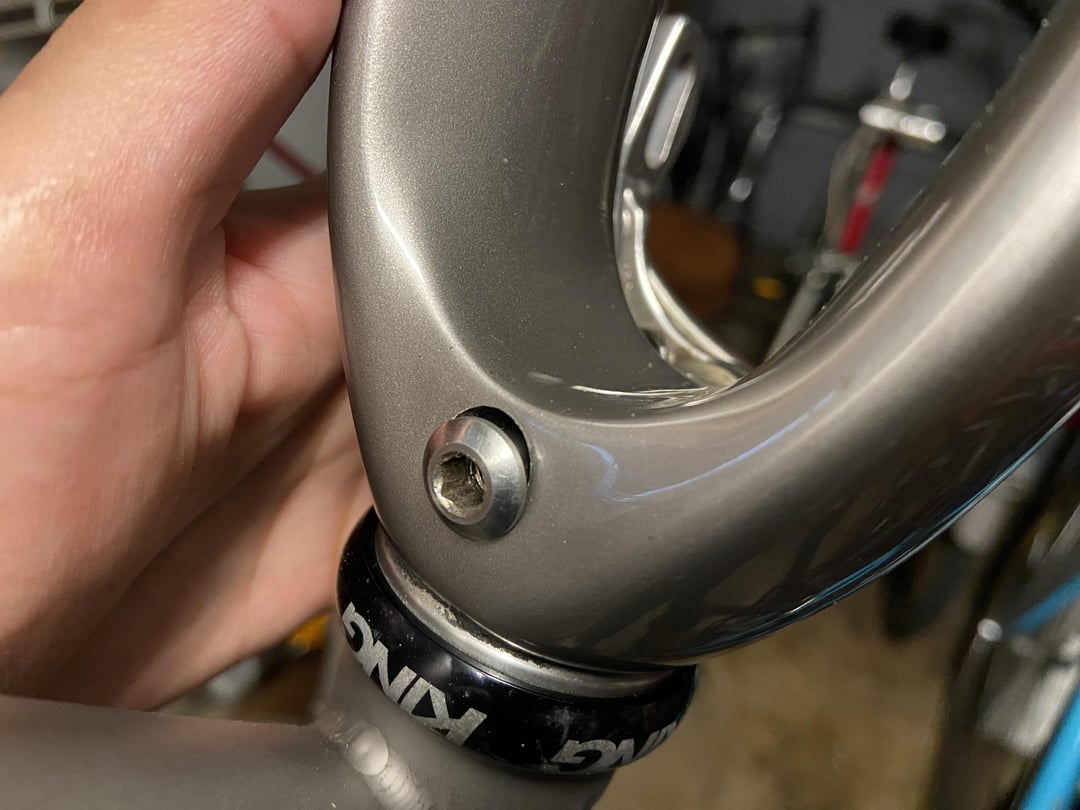

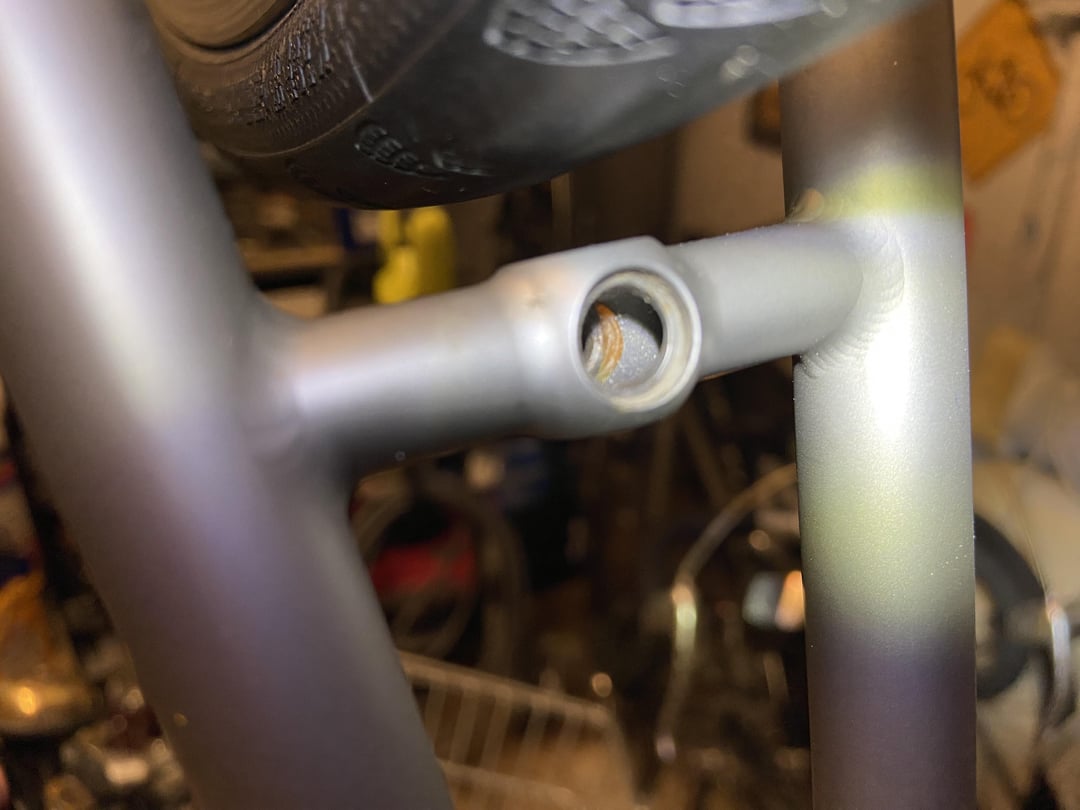

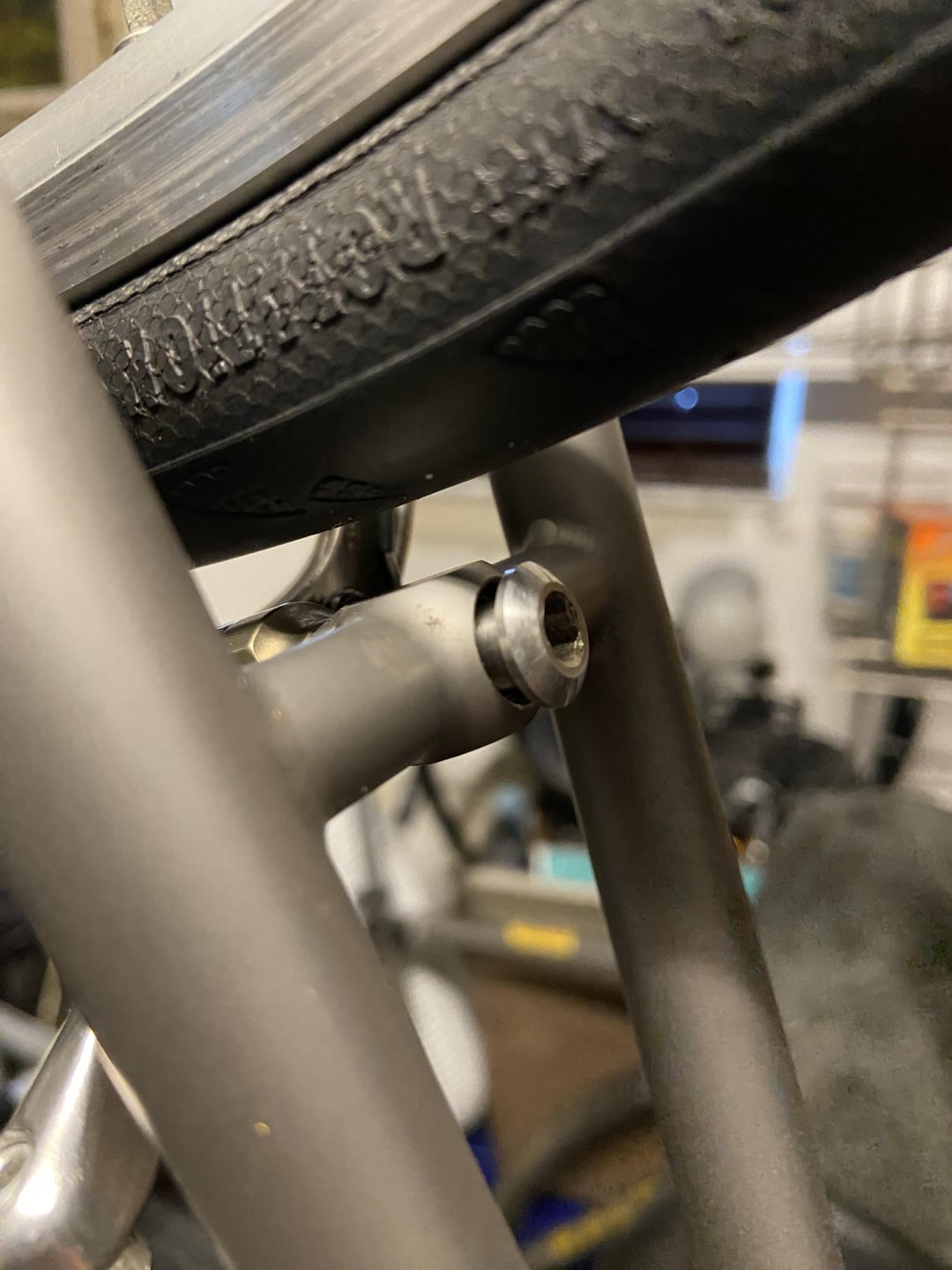

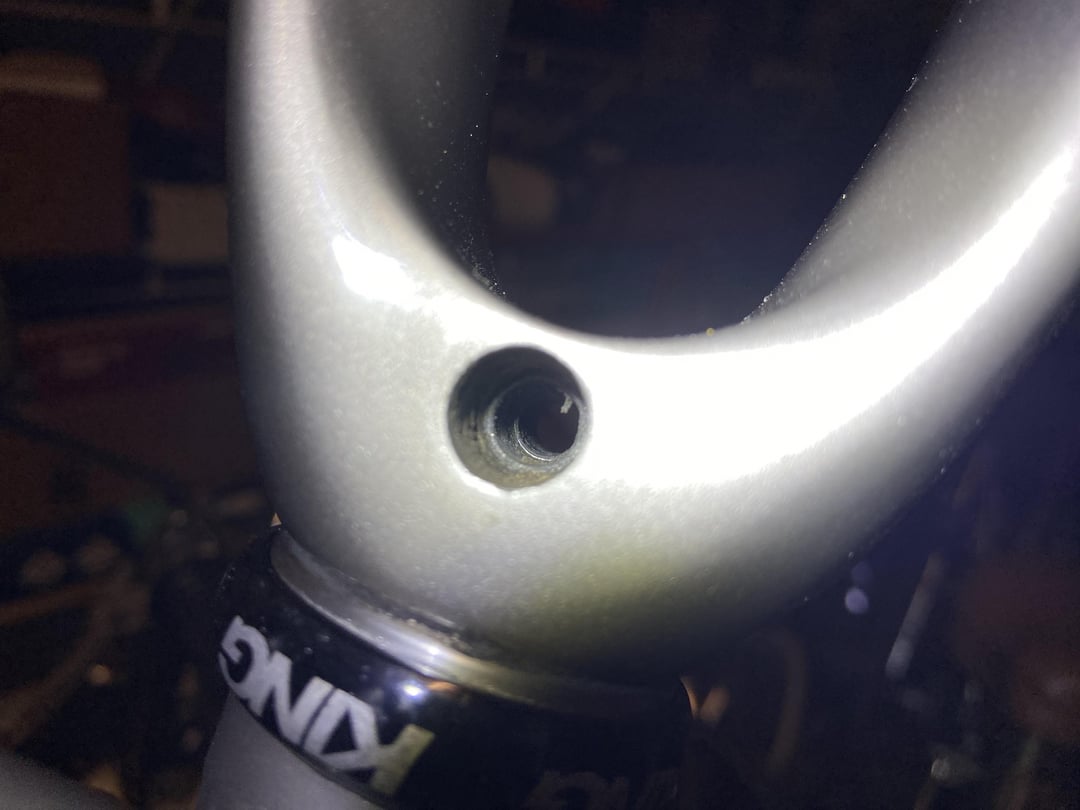

Does Moots use different recessed brake nuts? I’m trying to install a set of Cane Creek 200sl brake calipers but the nuts don’t fit. The nut in the front is too narrow, and the nut in the back is too long.

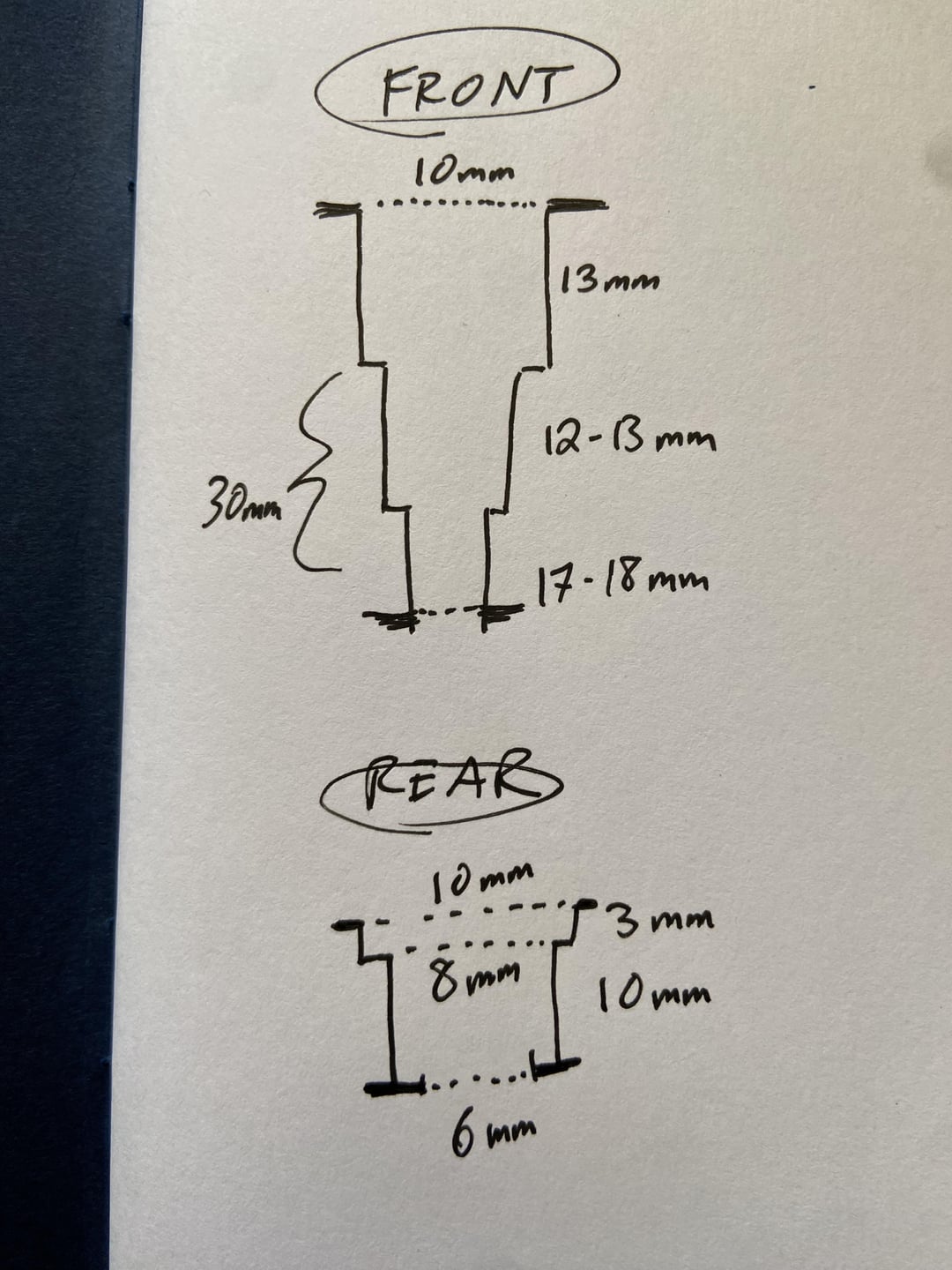

I took some measurements (drawing shown in that last pic) and hopefully you all can shed some light here! Much appreciated!
by no_place_like_gnome
4 Comments
It’s Cane Creek which is using the oddly shaped nuts, with oversized heads. Everything about the bike is normal, and any bike shop will have a bin of the correct nuts for you to choose from.
Is that from for a 8x30mm Recessed Caliper Pivot Nut?
Any bike I’ve worked on, the ‘nut’ was slim enough to drop into the recess. I’d suggest a different fixing.
What is up with your nuts dude?
