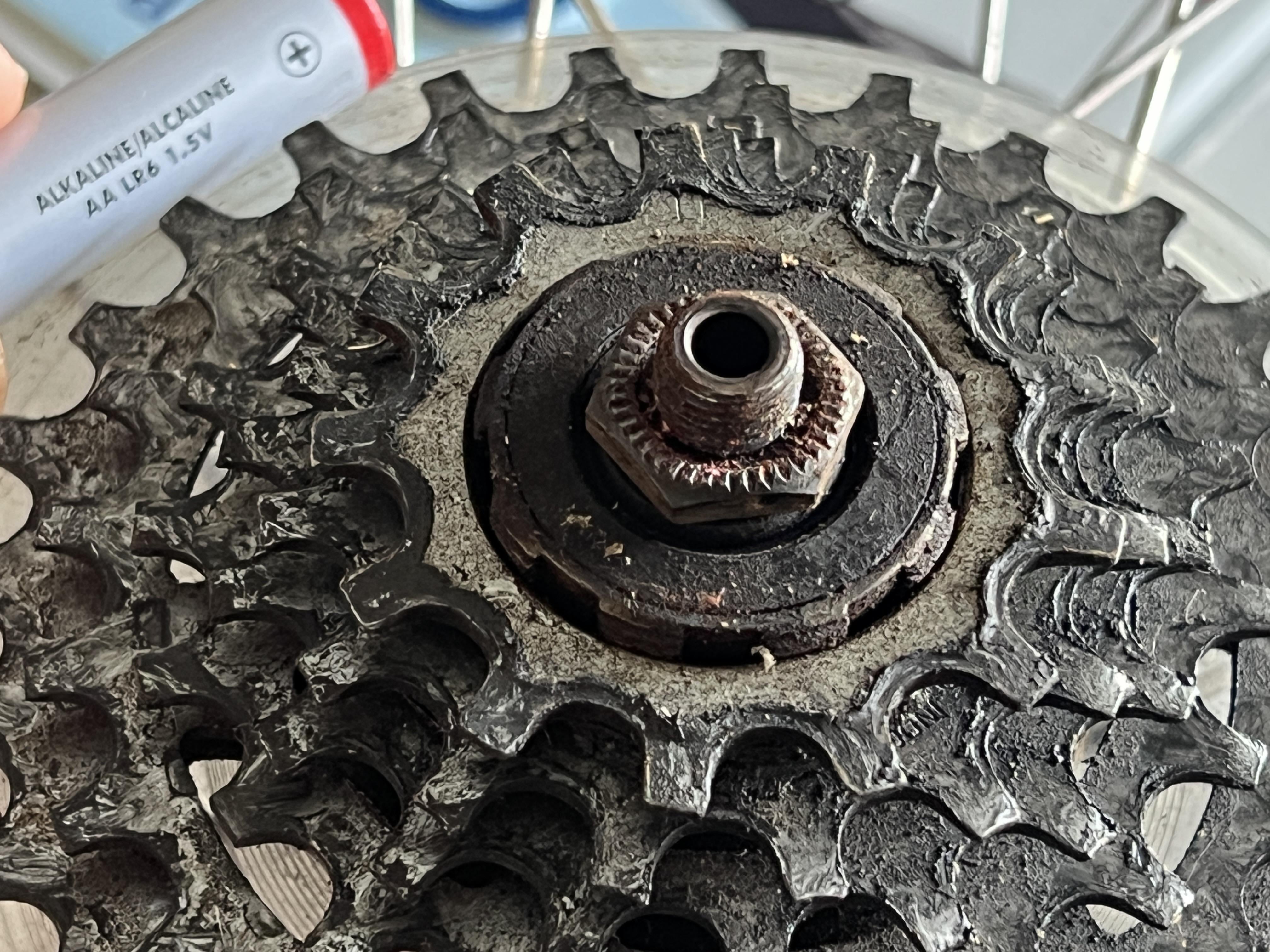

Facebook Twitter LinkedIn Pinterest Bluesky Threads What tool to remove this rear freewheel? by radio_AT Bicycling Biking Cycling
samquam on July 29, 2025 10:53 pm That looks like it might be a Shimano Uniglide cassette/freehub If that is the case, the last cog is the lockring, so you just need two chain whips to get it off. I believe it loosens the same direction as a standard cassette lockring.
gcerullo on July 29, 2025 10:53 pm Try this. https://www.parktool.com/en-int/blog/repair-help/determining-cassette-freewheel-type https://youtu.be/iTJ3taJHOn8?si=w08wPX2MzYjvgiv8
jeffbell on July 29, 2025 10:58 pm It’s probably the splined type, but there is not enough light to see. I would remove the cogs to really clean them, then take off the locknut and the spacer under it to count the splines.
5 Comments
That looks like it might be a Shimano Uniglide cassette/freehub
If that is the case, the last cog is the lockring, so you just need two chain whips to get it off. I believe it loosens the same direction as a standard cassette lockring.
Try this.
https://www.parktool.com/en-int/blog/repair-help/determining-cassette-freewheel-type
https://youtu.be/iTJ3taJHOn8?si=w08wPX2MzYjvgiv8
It’s probably the splined type, but there is not enough light to see.
I would remove the cogs to really clean them, then take off the locknut and the spacer under it to count the splines.
I agree with samquam.
2 chain whips
