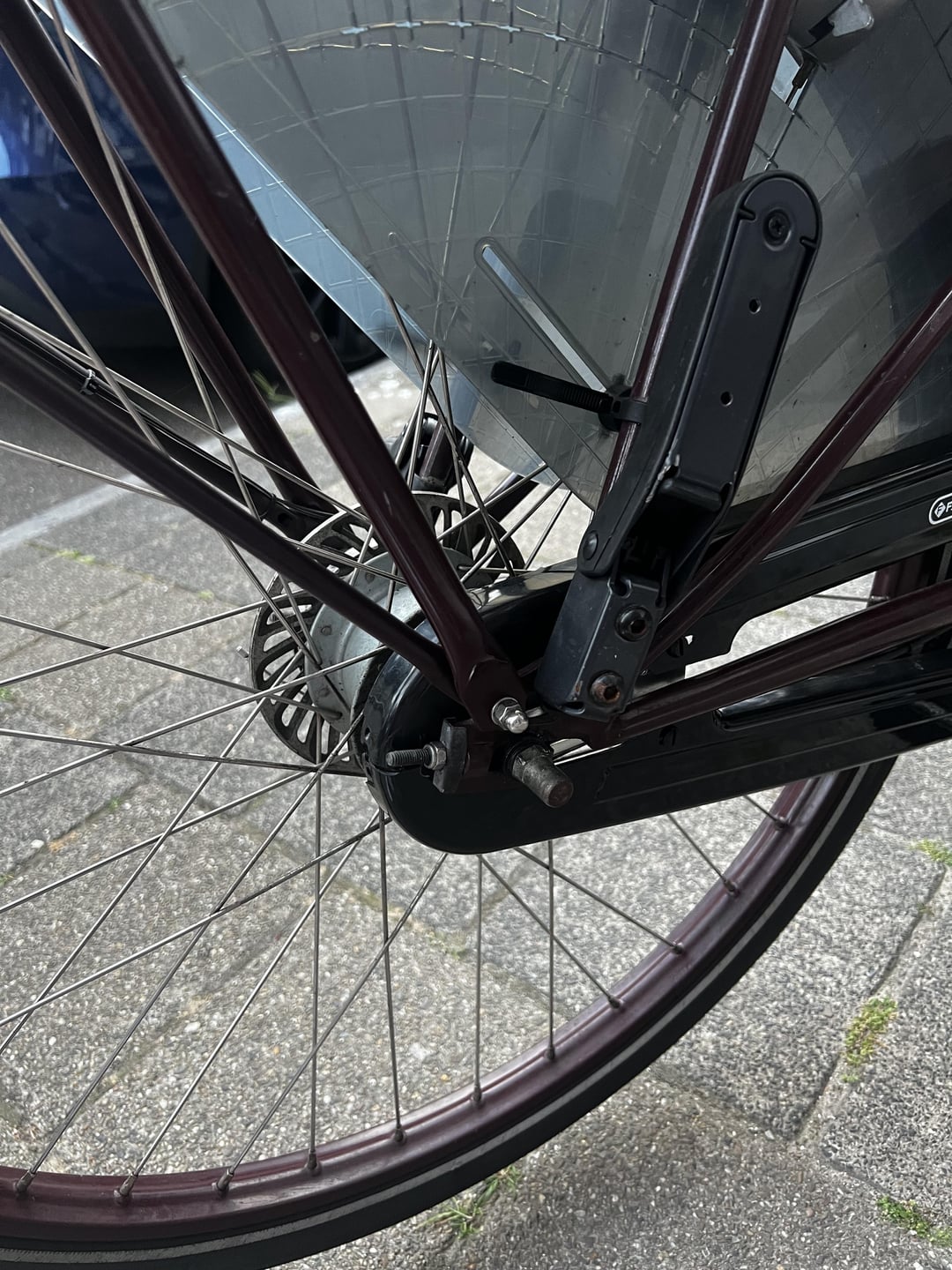

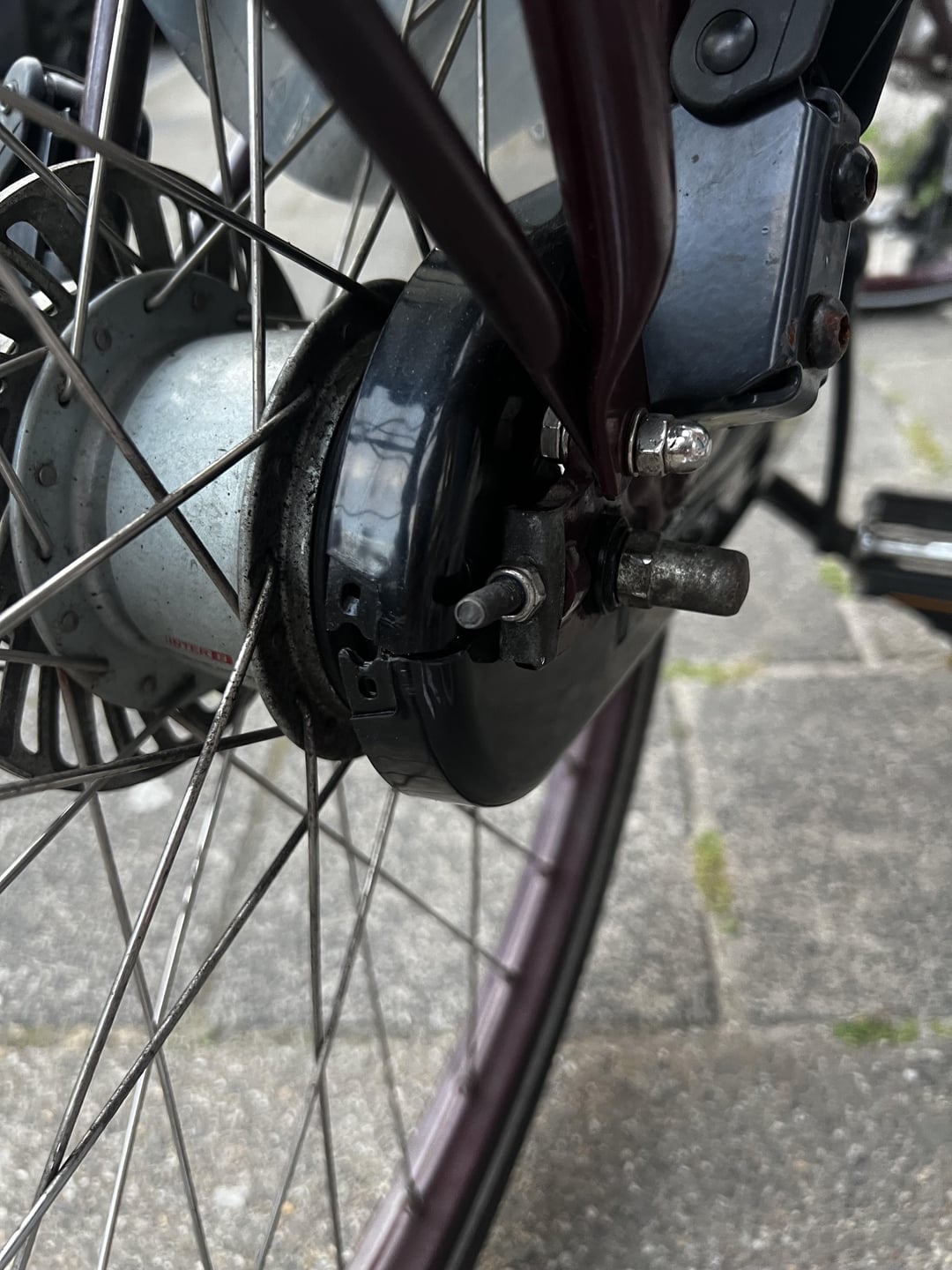

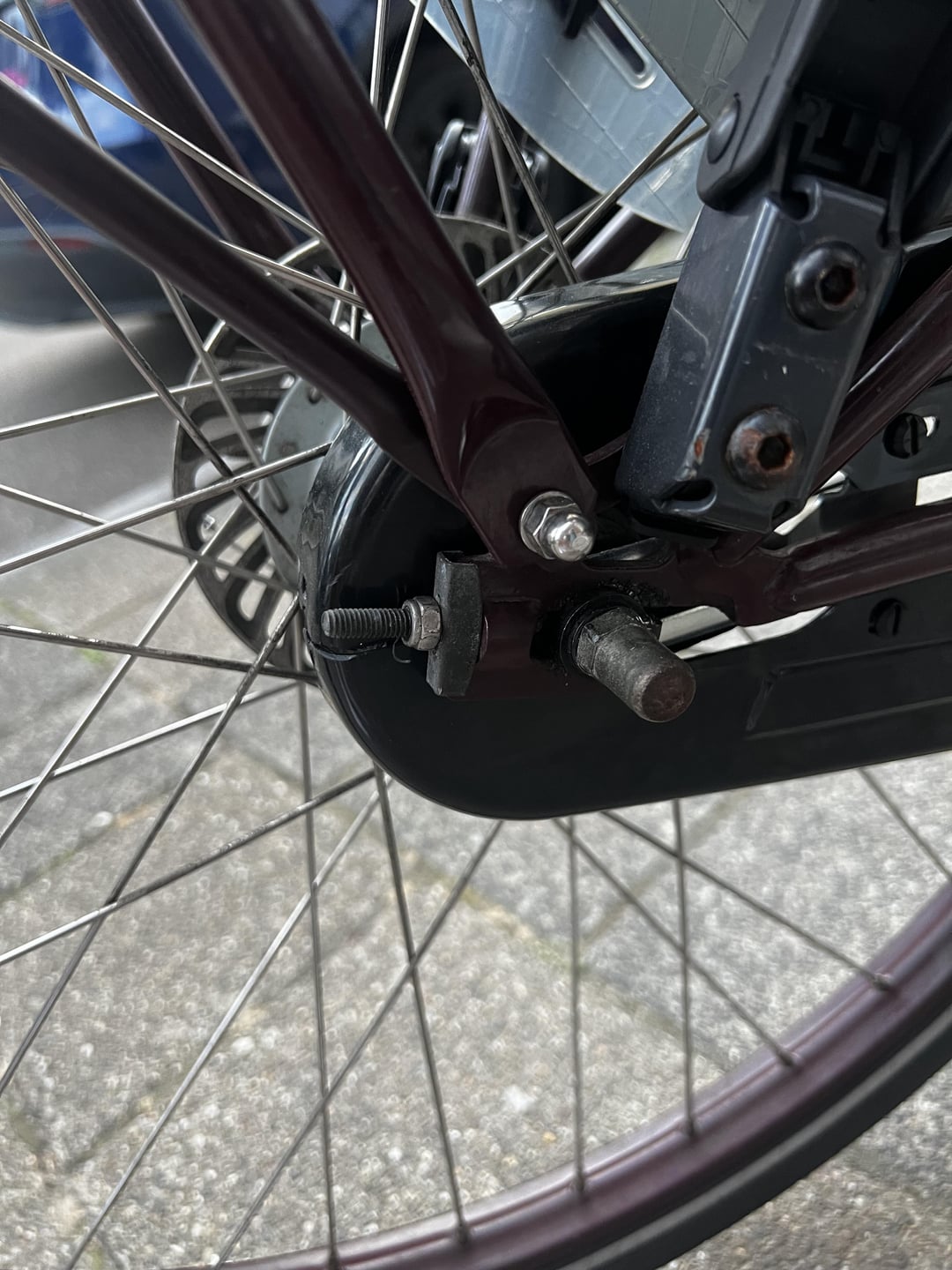

Bought this bike second hand and the chain is too tight. I think there are adjustment bolts that I can turn to do this but can’t find anything similar videos or info on this style of gear and chain. Any help would be great.
by leechild4
Bought this bike second hand and the chain is too tight. I think there are adjustment bolts that I can turn to do this but can’t find anything similar videos or info on this style of gear and chain. Any help would be great.
by leechild4
3 Comments
Loosen the wheel nuts, then loosen the chain tug (loosen the silver nut in the image). Finally, push the wheel forward and tighten the wheel nuts.
Need to remove the screws and then the chain guard and all the videos are fine
https://preview.redd.it/ba5f5zcz17df1.png?width=748&format=png&auto=webp&s=22c46c8cf2ac891c74e0775fce63859a78138b75
First loosen the bolts (1) on each side, then turn the nut (2) clockwise evenly on each side until the chain is the desired slackness, then retighten (1)
