This is on high end cranks that have a preload ring on the non drive side.
HelioSeven on

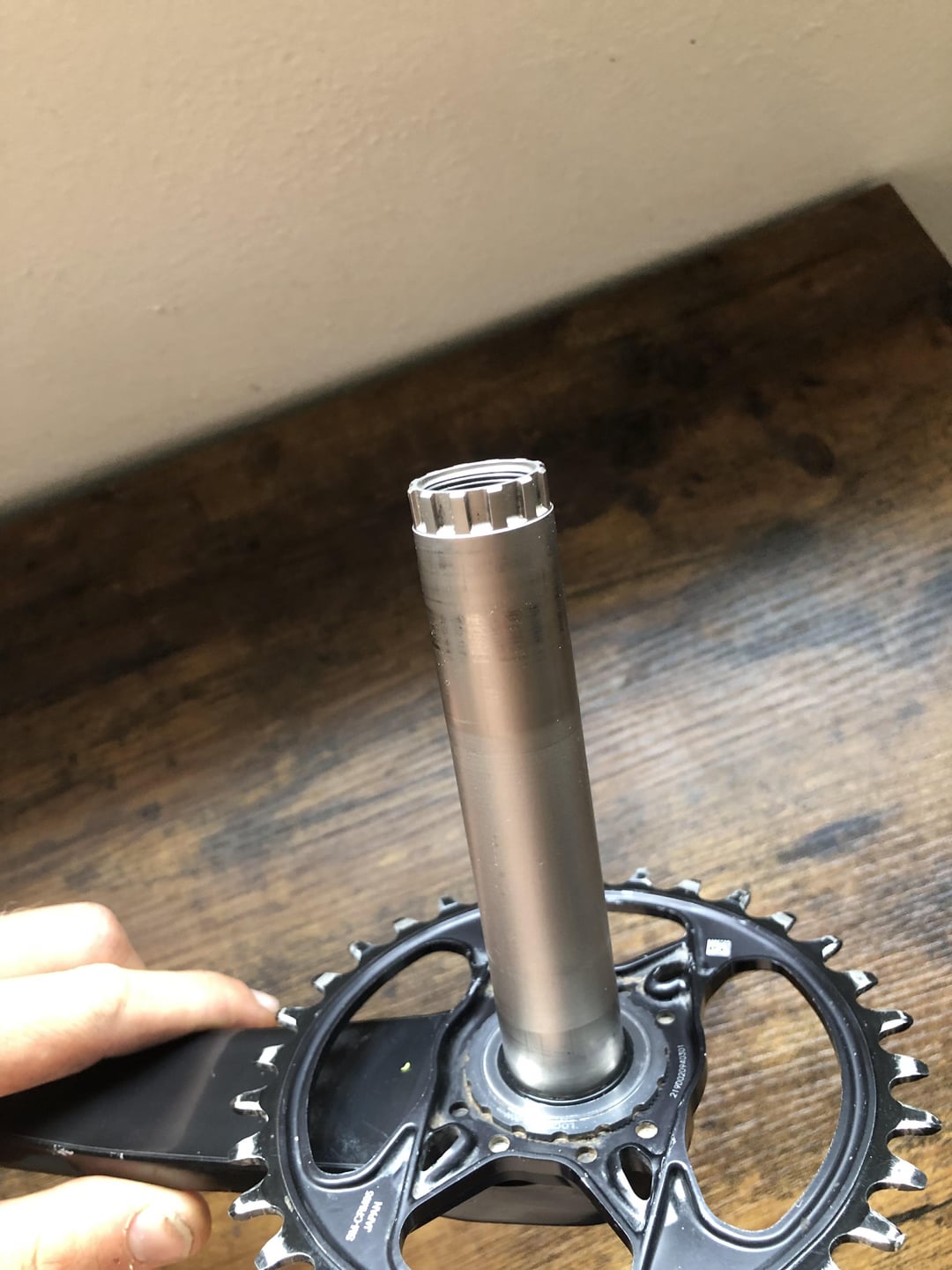

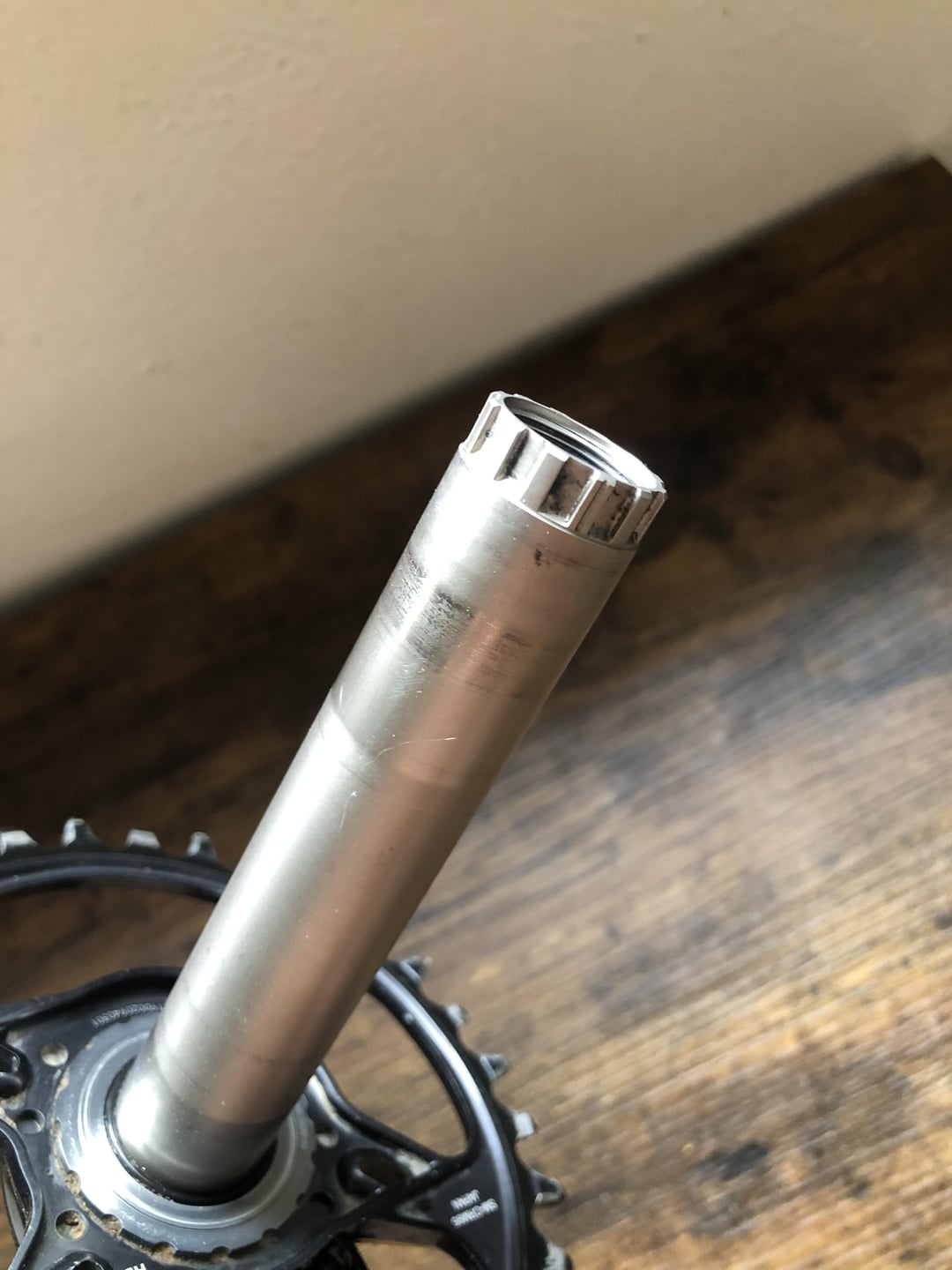

Would really help to get the part number (should be on the inside of the crank arm, near the pedal threads; something like FC-####). Looks like Octolink V1 splines, but I’ve never seen an Octolink interface on a two-piece crank before.
IntoxicatingVapors on
I guess Shimano still considers this a Hollowtech II crankset because of the integral 24mm spindle, however the mounting is a little different. [The manual](https://si.shimano.com/en/dm/MAFC002/Crank) shows how the system bolts together and preload is adjusted.
Feisty_Park1424 on
Very similar to Cues FC-U6000 but looks like a different spline
5 Comments
[deleted]

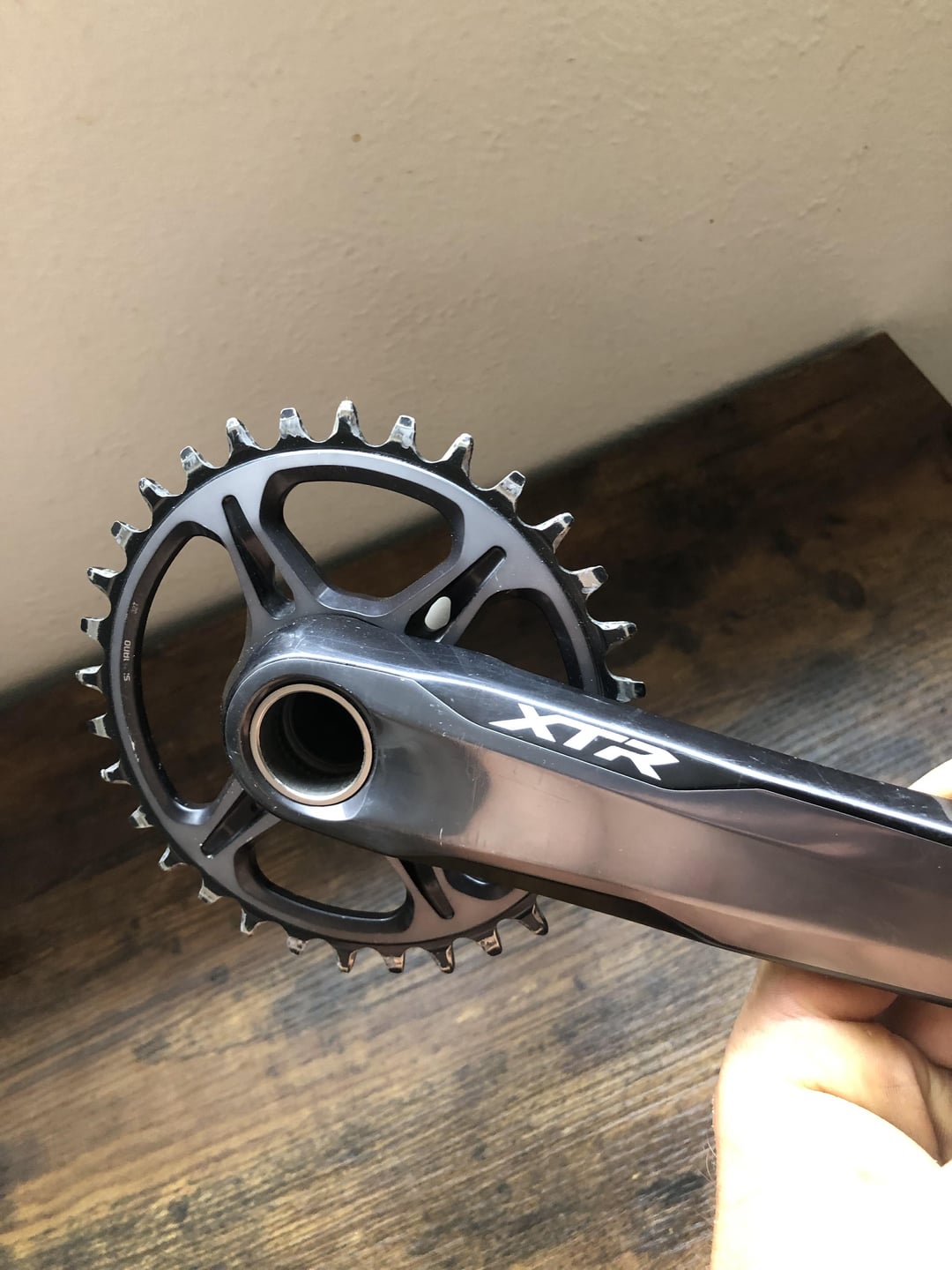

So apparently this is XTR/Dura Ace mounting system.
Afaik Shimano only makes HT2 spindles. So 24mm.
[XTR 9100](https://si.shimano.com/en/ev/FC-M9100-4378)
This is on high end cranks that have a preload ring on the non drive side.
Would really help to get the part number (should be on the inside of the crank arm, near the pedal threads; something like FC-####). Looks like Octolink V1 splines, but I’ve never seen an Octolink interface on a two-piece crank before.
I guess Shimano still considers this a Hollowtech II crankset because of the integral 24mm spindle, however the mounting is a little different. [The manual](https://si.shimano.com/en/dm/MAFC002/Crank) shows how the system bolts together and preload is adjusted.
Very similar to Cues FC-U6000 but looks like a different spline
