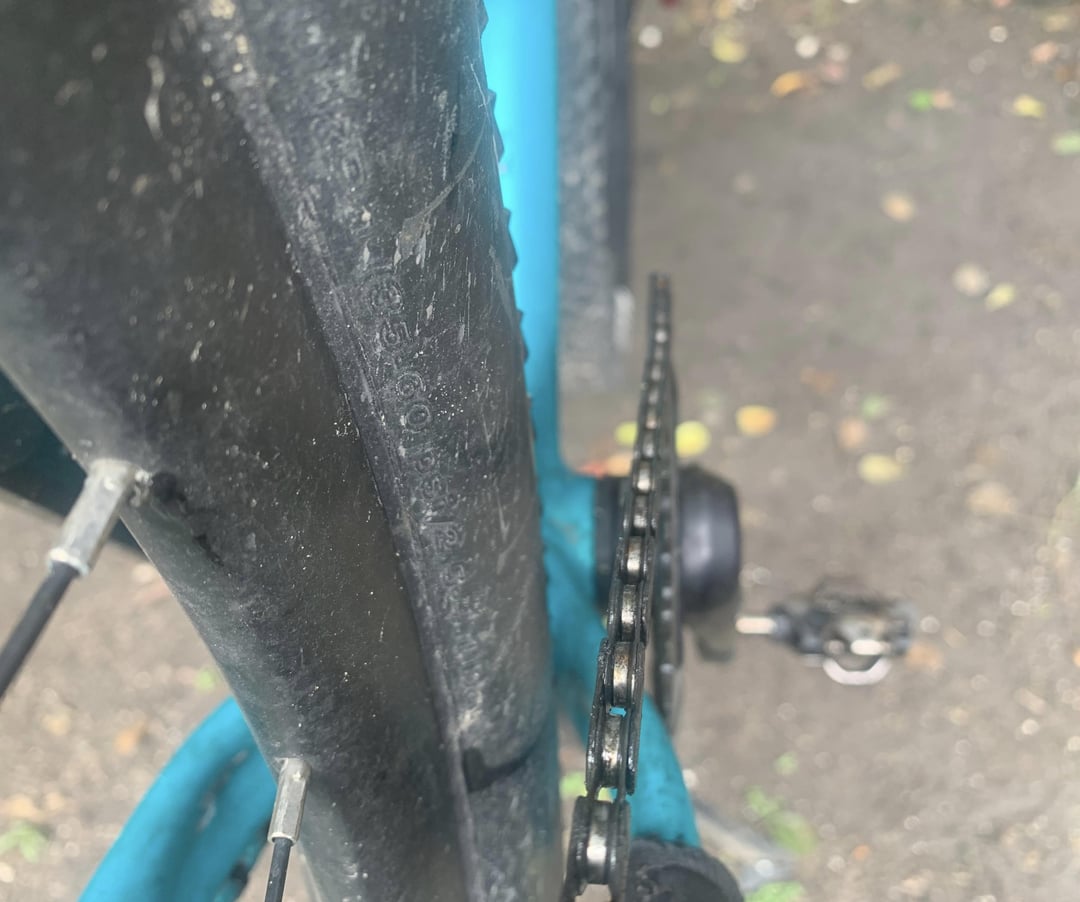

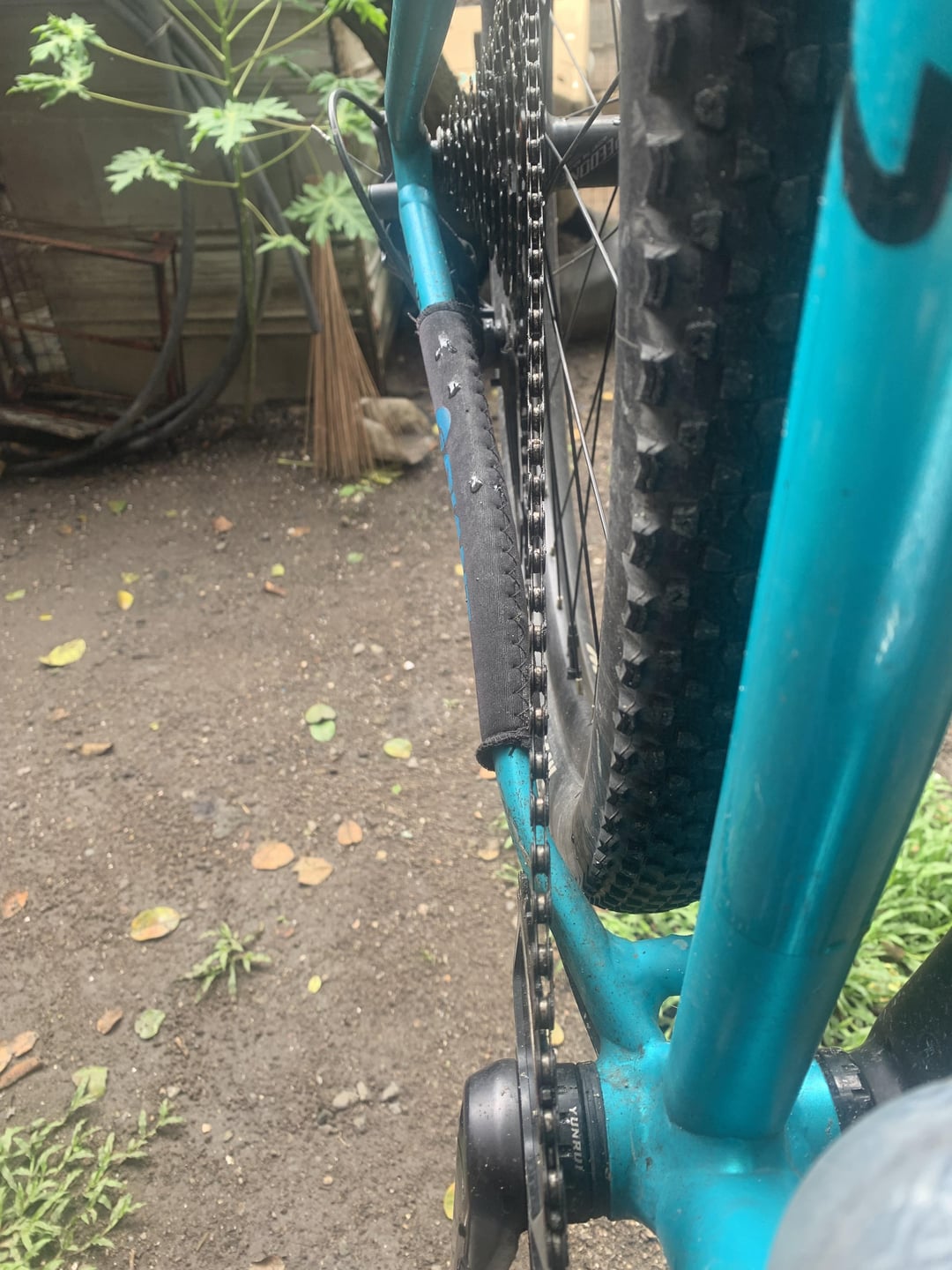

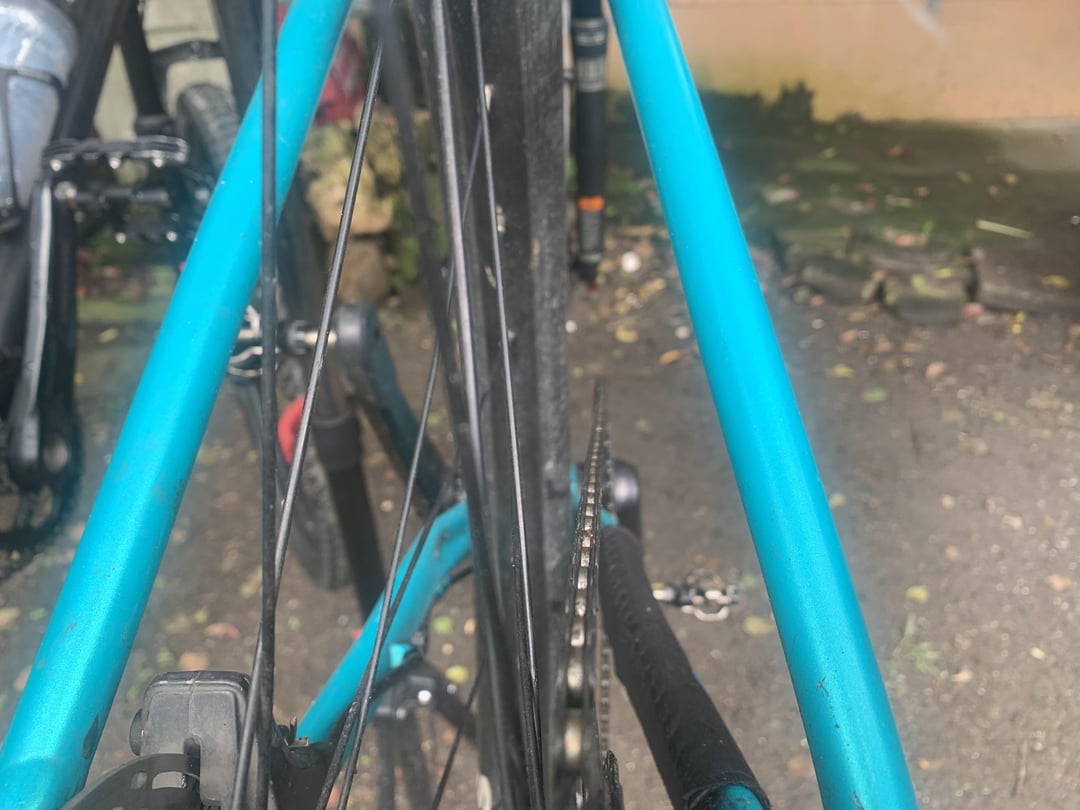

The chain has to bend a little to go to the low and high gears. It is only straight on the middle of the cassette. This doesn’t look wrong at all.
Holiday-Phase-8353 on
Why are you using a 38t chainring?
Frosty_Chicken7264 on
Chain line is measured in the middle of the cassette so there being a slight bend is totally normal. Respect for the 38 ring
Ok_Ease_240 on
You can also move one of your BB spacers to the other side this should have a positive effect on chainline. Additionally, you can get a front chainring with an offset inside such as Raceface 🙂
patski99 on
38t? U stud.
53180083211 on
What BB do you have?
Are you sure about the spacer on the BB drive side?
Is it a boost frame?
