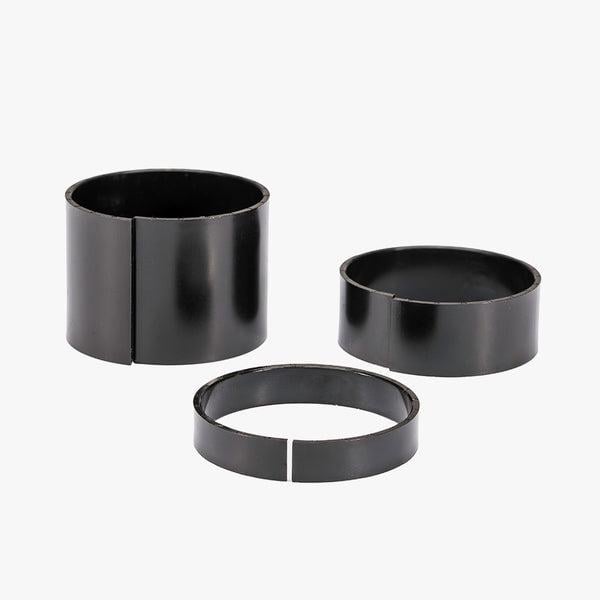

This is SDG Tellis V2 shim kit or travel reducer. https://sdgcomponents.com/products/tellis-v2-shims?variant=45233518149855
Does anybody knows what is the dimension of these shims? I think it has 26mm of inner diameter since the stanchion of the v2 tellis is 26mm. But how thick is it? 2mm? 3mm?
I'm planning to 3D print it since I can't get it locally. It looks like it is just a flexible plastic some sort of ABS.
TIA
by AmbitionExtreme3576
1 Comment
My bike came with the YT Postman dropper, which AFAIK is a rebranded Tellis V2. According to my caliper, the shims are 1.5 mm thick.
This is the 34.9 mm diameter version though, and I don’t know if there’s any difference in thickness. The stanchion itself measures 28.5 mm instead of 26 mm.
