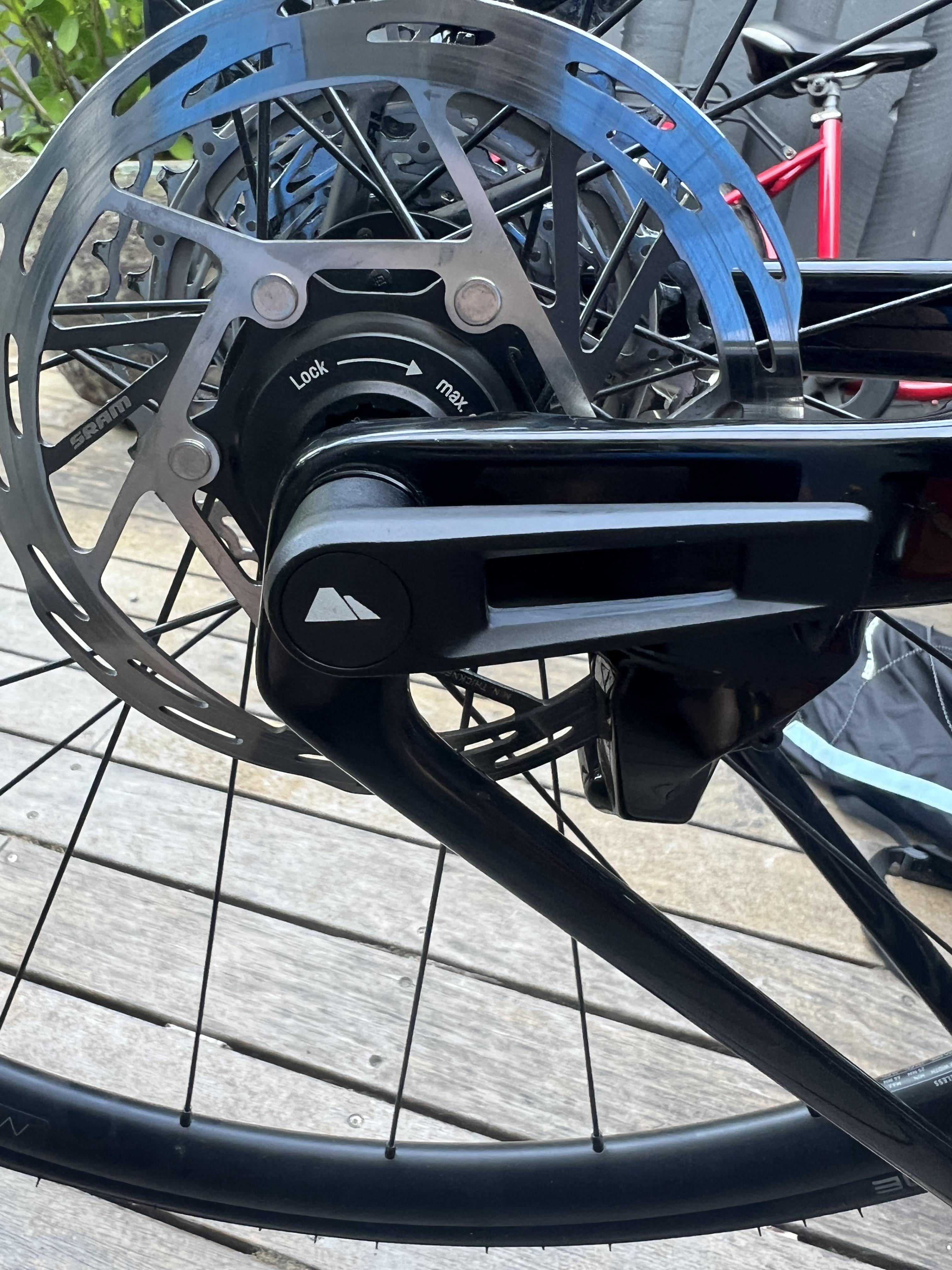

Is this picture flipped somehow? Drive train is on the left?
Separate-Rough-8083 on
Don’t pull the lever out. Turn the handle anticlockwise and eventually the thru Axlle can be slided out.
The reason the lever pops out and has a spring/magnetic catch is so you can reposition the angle of the lever after tightening, usually to align with the fork/frame.
11 Comments
It works like a normal threaded bolt. Unscrew it by turning it anti clockwise.
You turn it any clockwise
Nothing happens when I screw. Do I need to do anything else?
Turn it anti clockwise
https://preview.redd.it/h3xm6xbsg17f1.jpeg?width=3024&format=pjpg&auto=webp&s=f88ecc8d18460409ae79dc8271c291f571683afa
I do like this but nothing happens when I screw
Sidenote your brake disc looks like its mounted backwards
Do not PULL the lever. You just reposition the arm when pulling it. Just turn it anti clockwise. You can do it!!
First make sure to go to the highest gear. Then don’t pull the lever, make sure it’s fully pushed in and then turn it counterclockwise.Â
https://preview.redd.it/glk11esbi17f1.jpeg?width=3024&format=pjpg&auto=webp&s=0ed2df2f1bca67842b7b09c0b06644b14f9d7017
Juhuuu thanks!!!
