I've somewhat dismantled my bike and these are the only parts I have left to secure. It's all rear wheel stuff. I'd assume the parts are all to do with fixing the Shimano Nexus sl-3s42e revo shift lever to the bike. Only problem is I didn't take enough notes on how all the parts came off in order to put them bacl together again. Does anyone know how to do this? Any help would be greatly appreciated.
by MNightsLegendOfAaung
3 Comments
You need to bring everything to a bike shop. There are things missing in your pics. For the long term you need to do a little googling before you get into a project.
r/bikewrench

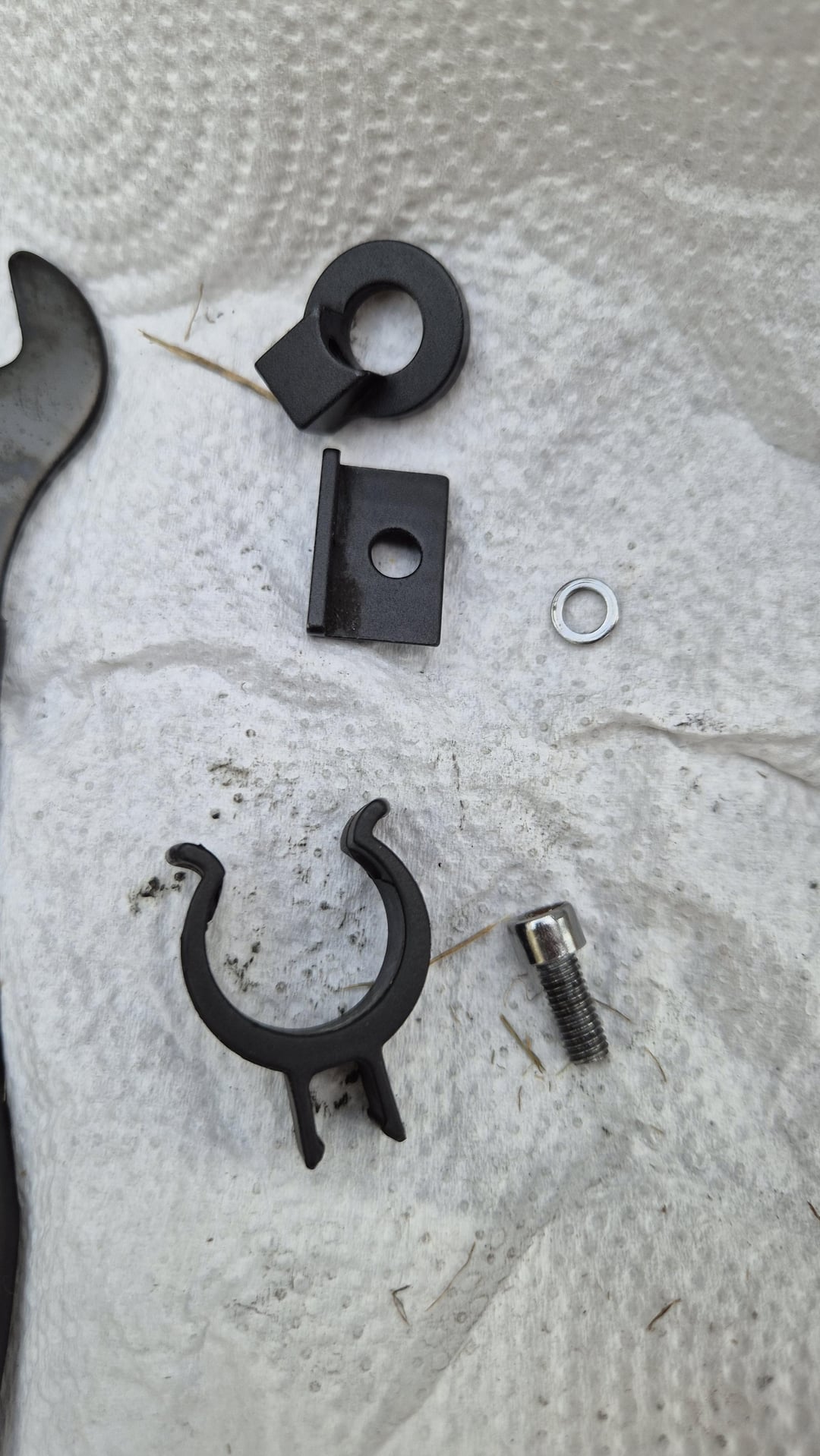

**Google search Nexus 3 speed** (or what ever speed combination you have) **exploded view**. This will give you a detail diagram of the order in which all the small parts are assembled. The aluminum black pieces are missing a bolt and nut and is a tensioner. The plastic half moon is part of the assembly to install the cable housing to the arm of the hub. The washer and allen bolt likely go together and probably go to attaching a rack/fender strut or something like that. In the second photo, the part pictured is the housing and shifter that engages the rod (shifts the gears). It has a screw or bolt on the underside that releases the cover and allows you to attach the cable. This all can be found if you also do a youtube search on how to install a nexus 3 speed shifter, and if you are patient you can find a video that walks you through the process of installing and adjusting these parts.
