Are you actually having shifting problems, or just looking at your bike?
SoggyBreadSplurt on

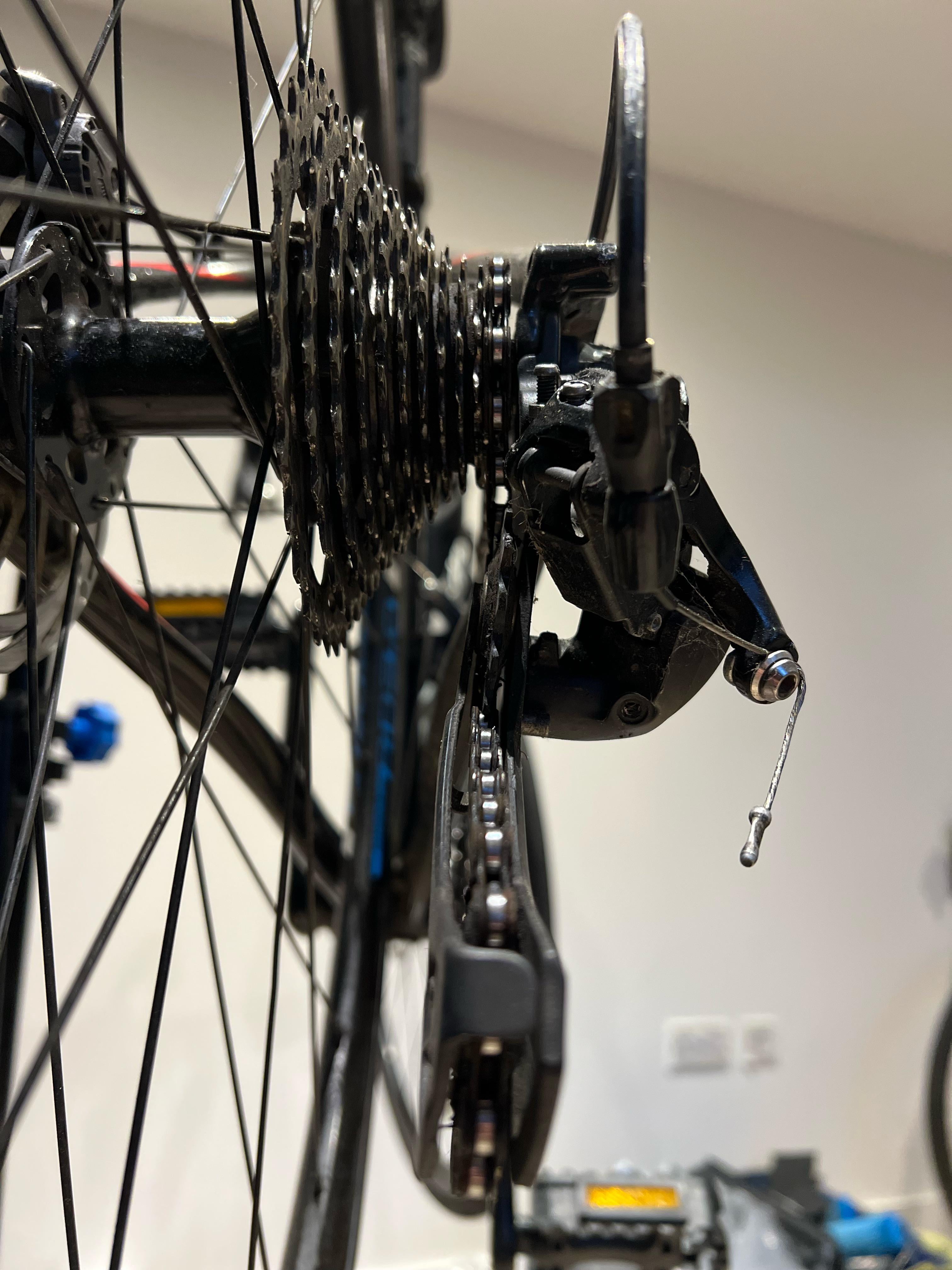

Your hanger is deffinitely tweaked. The top jockey wheel should be in line with the cassette cogs. 95% conviction on this one.
hashpot666 on
Did you crash, certainly seems like maybe the hanger got bent.
Illustrious_Way_9787 on
Looks like something happened to the upper pulley. Maybe you can bend it back with a wrench but I think you might need a new derailleur. Good news is that they are kind of cheap depending on their tier of course
Fun-Description-9985 on
That looks like you’ve shifted gear but not pedalled to move the chain, you’re applying sideways movement on the mech.
PobBrobert on
The angle of the upper jockey wheel indicates that either the hanger bent or the mech is fucked.
Either way, the cage isn’t bent.
Skindiddler on
That derailleur is chewed up, replace it.
The hanger will need a simple re alignment, it’s worth doing weather you think it looks bent or not. any bike shop can do this or you can buy the alignment tool.
oldfrancis on
The nice thing about those being made out of steel is that they can be carefully bent back.
NuancedFlow on
Top pulley should be aligned with the cassette. Your hanger looks bent.
