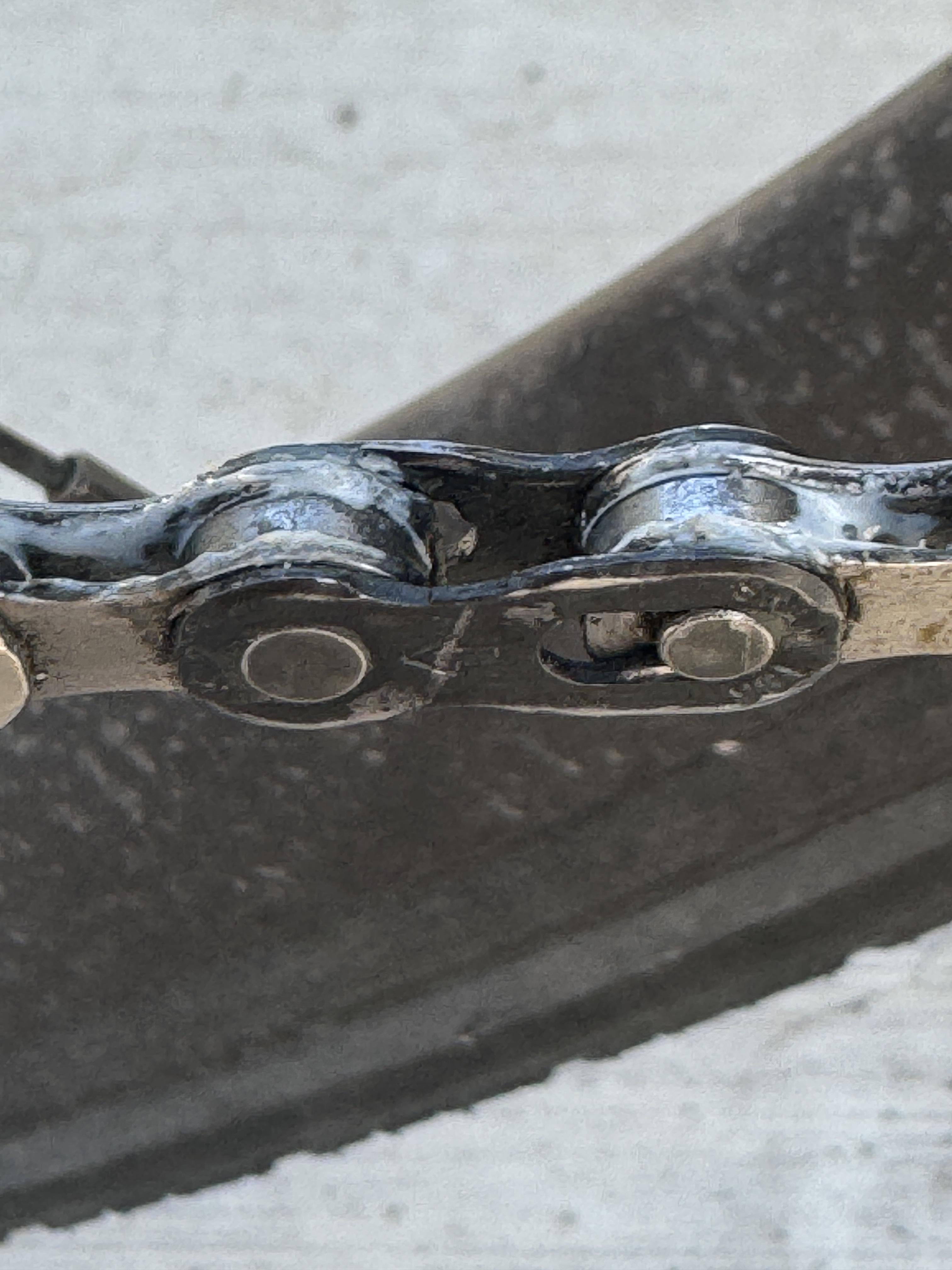

The arrow will always be backwards on one side. The important thing is that the arrow is on the correct side when looking at it from the drive side, which appears correct from the photo.
FlaminBollocks on
Oh, im going to check mine now
UnfortunateDesk on
What did you lube your chain with? Butter?
Tirglo on
The outside arrow should follow the direction of the chain. If that is on the bottom of the rotation, which it looks like it is, that is correct.
Whatsmyinterest on
Is that the front wheel? If so yes!
frankjames2781 on
I hear waxing is better than oiling ?
MiloCestino on
What? There’s an arrow!
I’m riding around 5K miles a year my wife 3K on multiple bikes over multiple years and never realised there’s an arrow 🤣
So for probably 50% of the time the arrow was facing the wrong way and we’ve not had any problems.
weemankai on
You can’t make both arrows go the same way
GISDennis on
The arrow tells you which way to pull to lock the link. I guess in case it wasn’t obvious
MylesHSG on
I think only Shimano quick links are one directional only so you’re fine.
obaananana on
i use a drip wax from squirt. just use cloth to get excess of the chain and a cutter for the cassette an chaincogs
ggblah on
You installed it correctly. Arrow has to point in a right direction on the outer side, inner side will be “wrong”
ferdiazgonzalez on
That same arrow will be pointing forward when you turn the crank until the link is on the upper part, rather than the bottom
