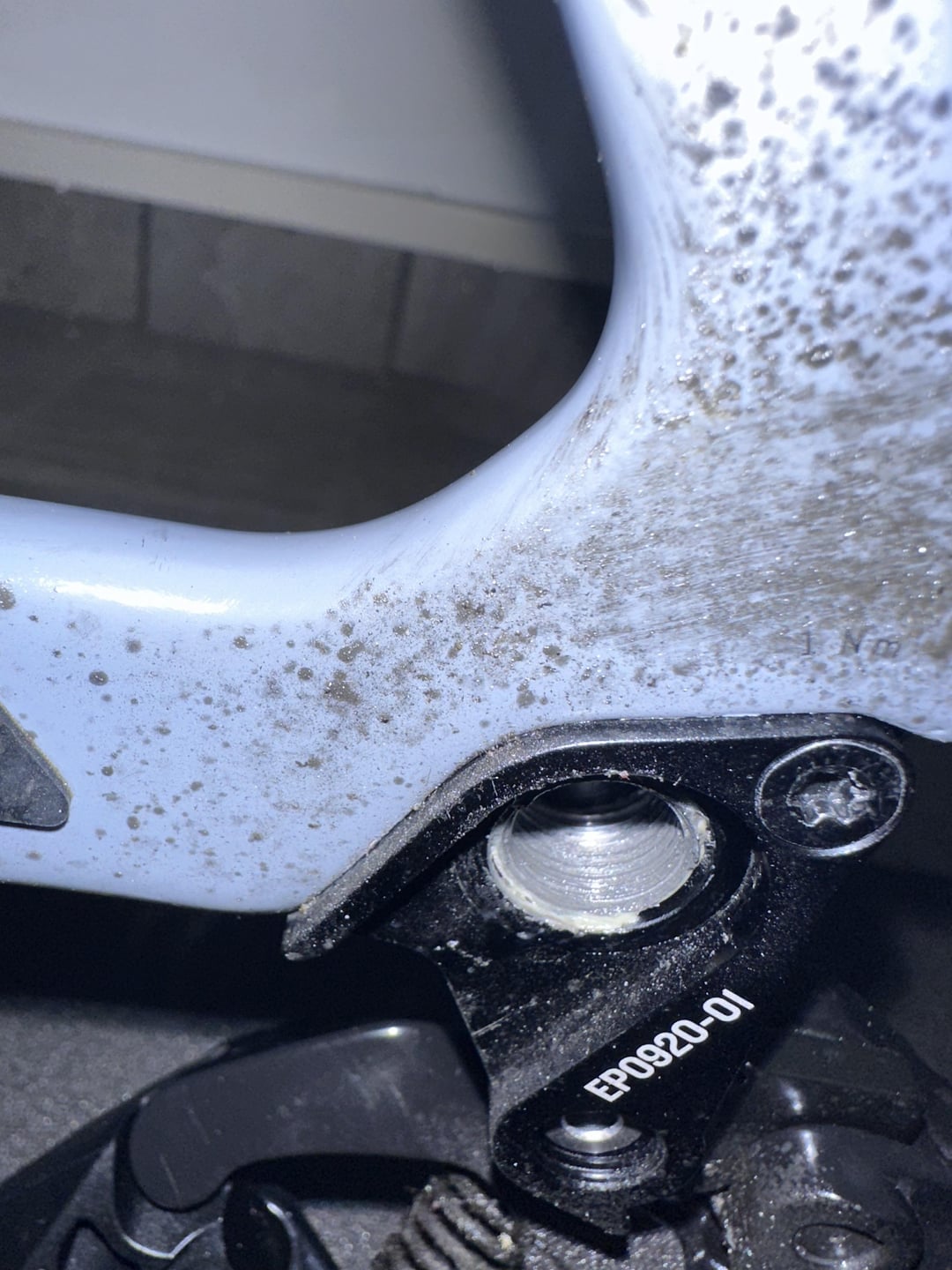

I accidentally tightened the thru axle too much (with my hand), I heard a strong click and I stopped, could I have done some carbon damage?
by Reasonable-Tip2882
I accidentally tightened the thru axle too much (with my hand), I heard a strong click and I stopped, could I have done some carbon damage?
by Reasonable-Tip2882
2 Comments

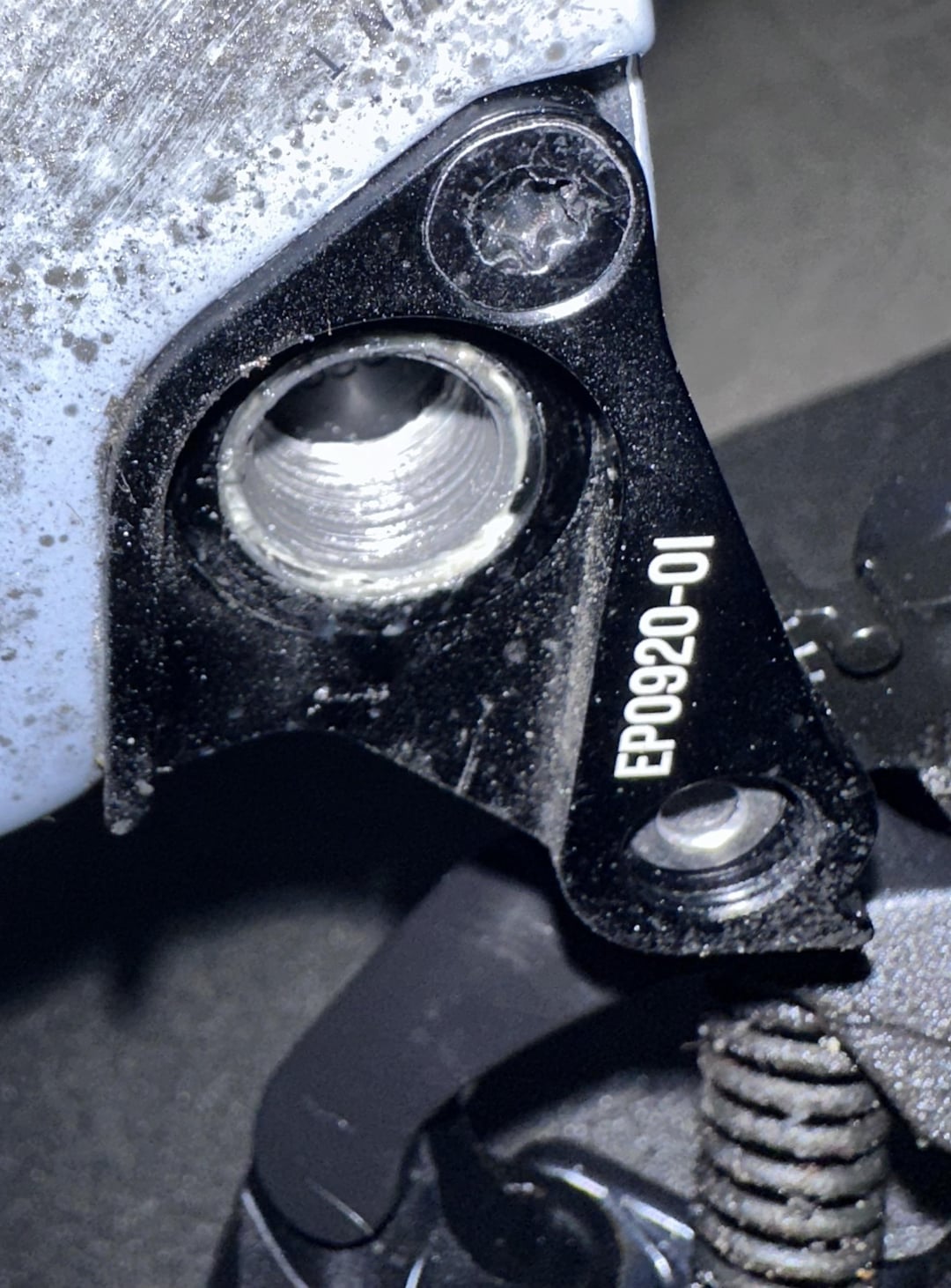

Thread looks damaged… Sadly this means your frame is done
The threading is in the metal derailleur hanger which is easily replaced if damaged. It’s designed that way. If threads are in fact damaged, just order a new hanger from Canyon and swap it out. Just one bolt as you can see in your pic. Put a dab of grease between the hanger and frame when you install the new one as they can develop a creak.
There’s a chance you can save the existing one. Find a steel bolt with exact same threads as the thru axle and run it in and out a few times to clean up the damage threads in the soft alloy hanger. Inspect the threads on the thru axle also to see if they are damaged.
