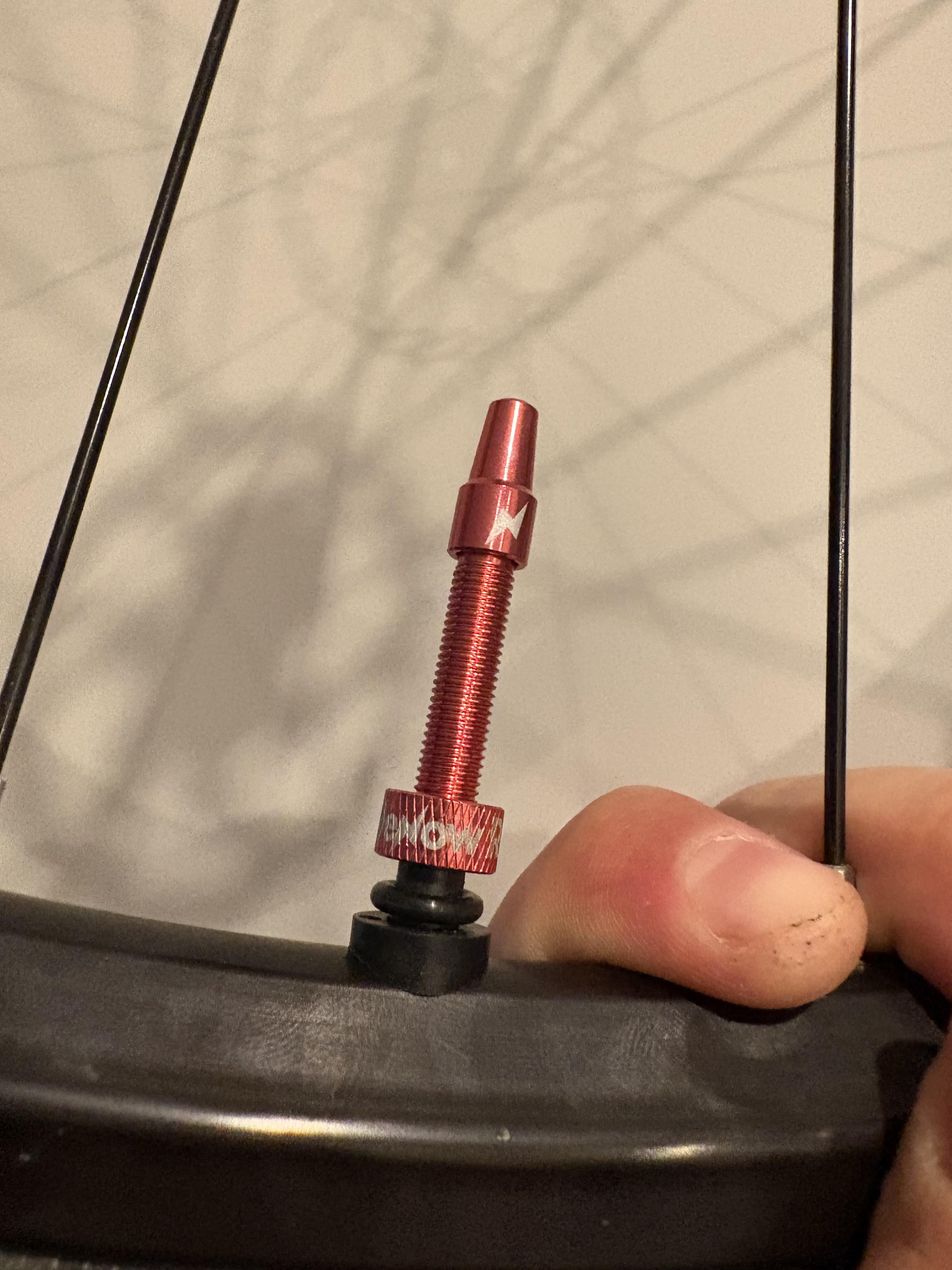

You might have it the wrong way. That black part might be the rubber seal supposed to be inside.
traumapatient on
What’s on the inside of your rim holding that stem in? You should have pressed the stem in from the inside, through the rim tape, then the rubber washer and nut(?) holds the stem air tight to the wheel
hike2climb on
JFC
skierdud89 on
I have more questions than answers unfortunately.
bikehikepunk on
I think this rim may have a Schrader size hole.
littlecogBigcog on
That’s a tubeless presta valve stem in what looks like a schrader sized hole in the rim.
SunshineInDetroit on
just seeing this is making me question life. are you sure you mounted that valve right
MariusBreuer on
It’s not a functional problem, the TPU tube is airtight. However as it is set up now, the nut and seals on the valve stem as well as the valve stem itself might rattle and cause noise while riding. There are stickers that you can glue to the rim with an inner diameter barely smaller than the valve, so they keep it in place.
In the future make sure to buy tubes with the correct length valve. If there’s no guidance from the manufacturer, the typical rule is the valve should be the shortest one possible, that is still 15~20mm longer than the rim is deep.
The other commenters assume this is a tubeless setup. If it were a tubeless valve, having the nut pull on the valve is absolutely necessary to get the tubeless setup airtight.
wiggywiggywiggy on
This is tubeless
The valve inserts from inside the rim
You have it mounted on outside
TerranRepublic on
I don’t even know what I’m looking at right now but I know the answer to your question is “yes” lol.
bretthn18 on
It’s one of the new ridenow tpu tubes and they sell them for different rim depths with varying valve stem lengths. Your rim is not deep enough for them but you will be fine to use it. Plenty of old tubes never had a nut to lock them in place.
nevermind_007 on
Should have mentioned this is a RideNow TPU inner tube. Not a tubeless setup
_Think_Differently on
Your rim is not deep enough for the stem length you ordered. It will be Okay but next time order a shorter stem length. For now remove the spacer, O ring and threaded ring
dockdockgoos on
It’s amazing how easily you can get an answer to your question when you post relevant information.
