Rotate quick link to top position. Push down on the drive pedal while pulling the wheel backwards. Should lock up that quick link. If you’re too weak, take bike off stand and stand on the drive pedal, should also lock the link.
Top_Dot_8150 on

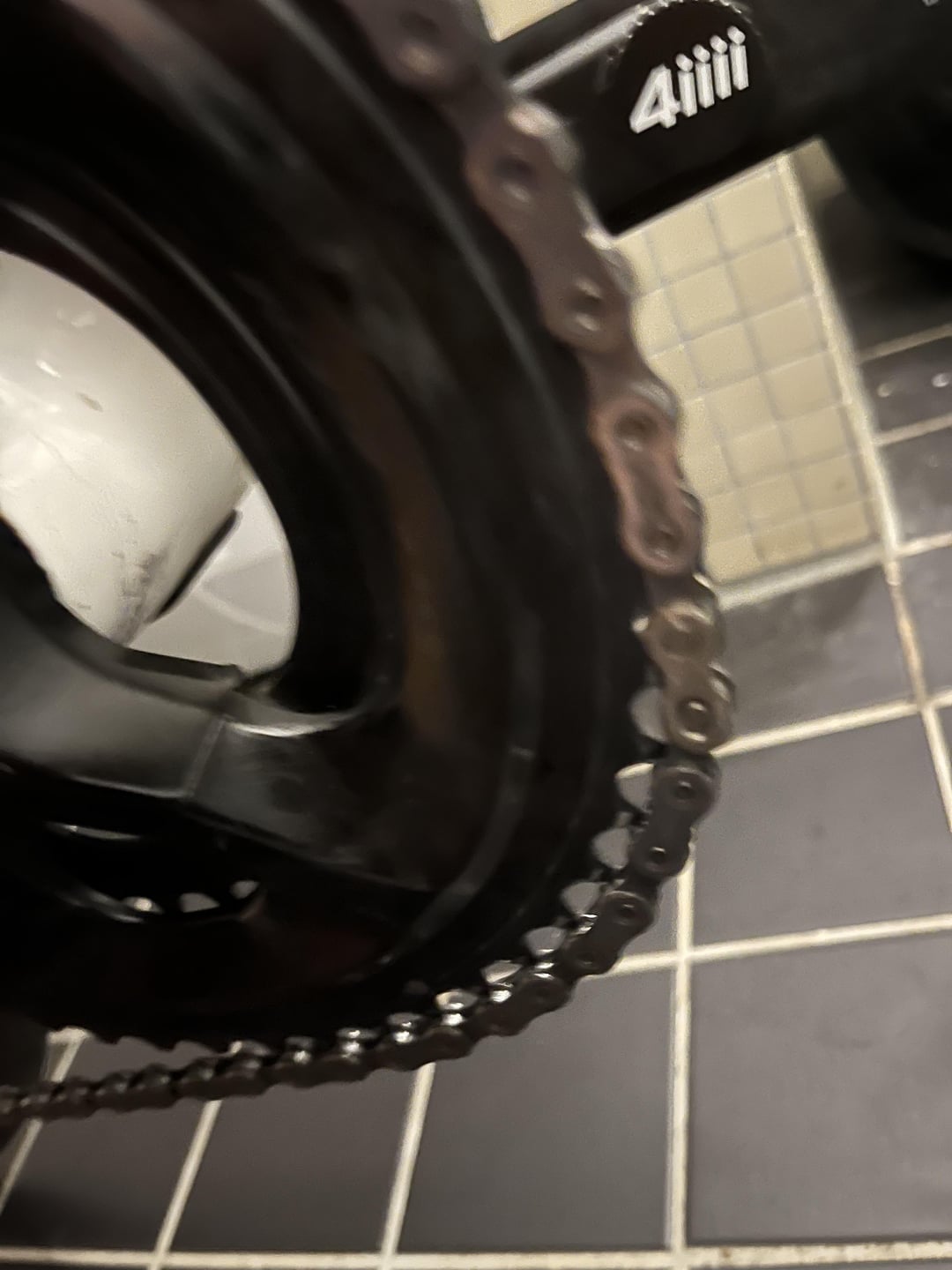

The quick link isn’t fastened and is facing the wrong way. The chain isn’t directional but the quick link is. Arrow needs to point direction of the chain when pedaling
LuckyKey2278 on
Continue installing. Place the quicklink on top between the cassette and the chainring. Squeeze the brakes. Stand on the near pedal until you hear a pop.
5 Comments

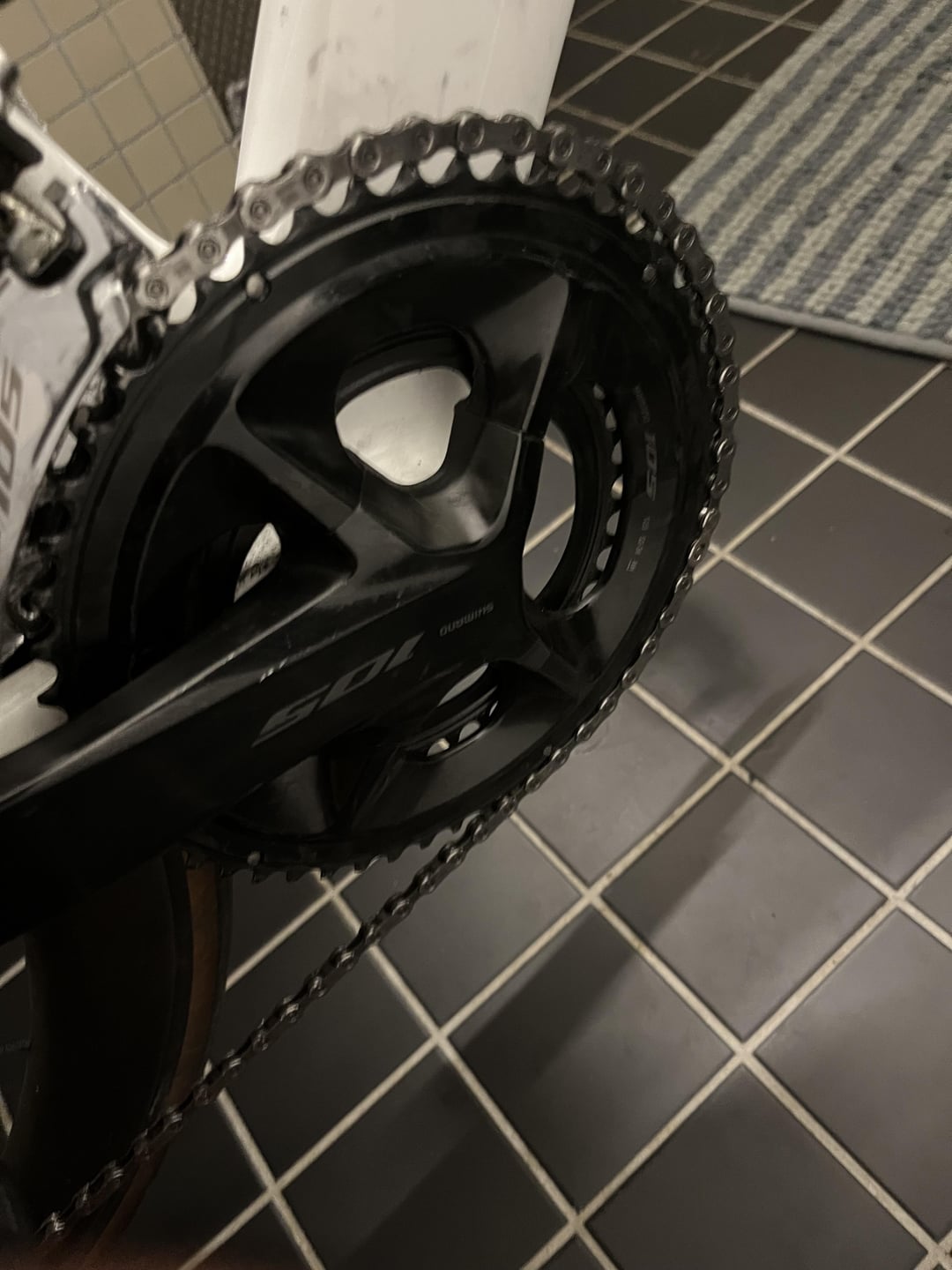

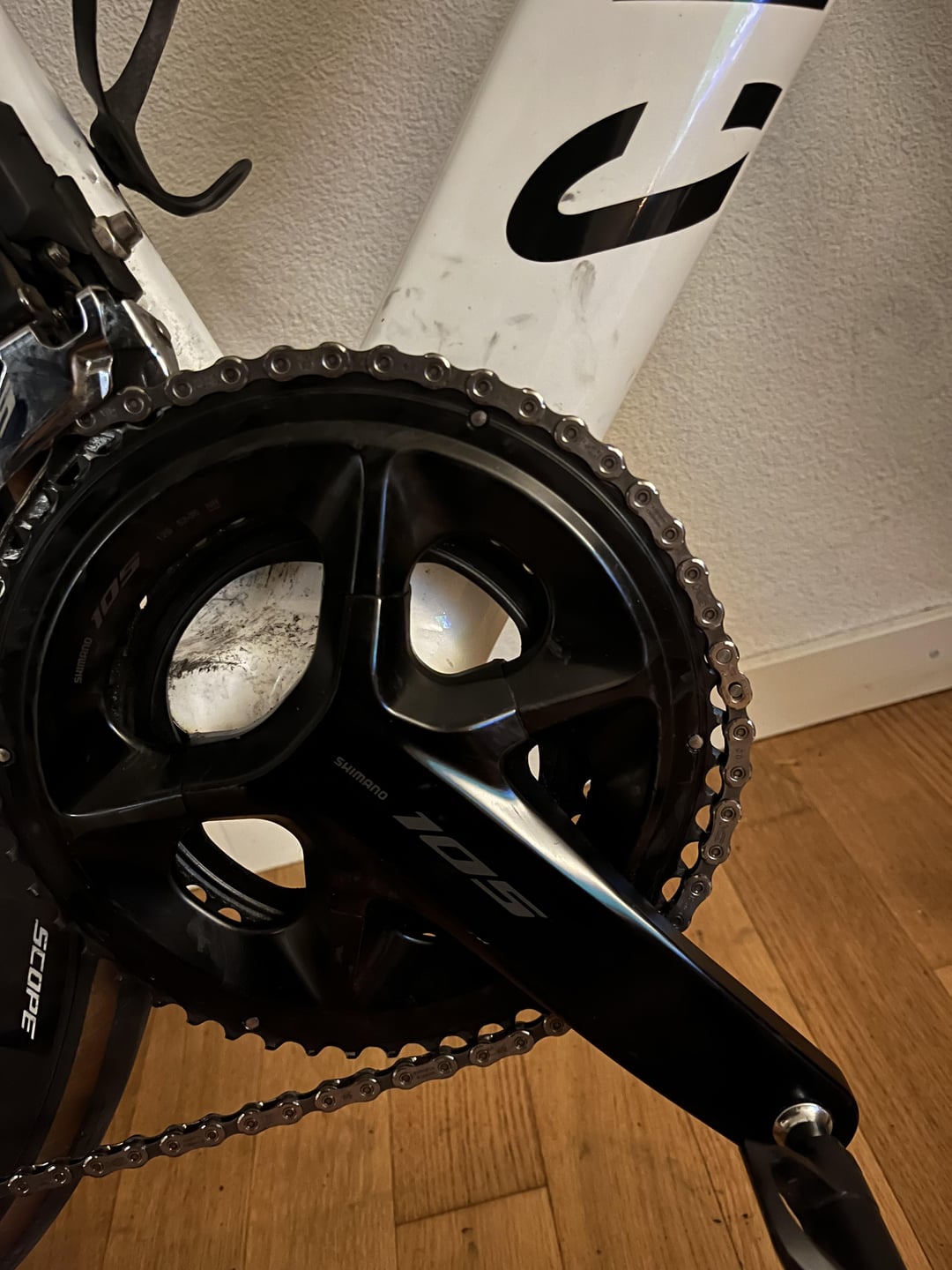

Your quicklink isn’t fastened properly/not locked in place.
https://preview.redd.it/194vmuiw4ote1.jpeg?width=837&format=pjpg&auto=webp&s=bf81075d70409d085247d068f1d22c5abd99694a
Rotate quick link to top position. Push down on the drive pedal while pulling the wheel backwards. Should lock up that quick link. If you’re too weak, take bike off stand and stand on the drive pedal, should also lock the link.
The quick link isn’t fastened and is facing the wrong way. The chain isn’t directional but the quick link is. Arrow needs to point direction of the chain when pedaling
Continue installing. Place the quicklink on top between the cassette and the chainring. Squeeze the brakes. Stand on the near pedal until you hear a pop.
