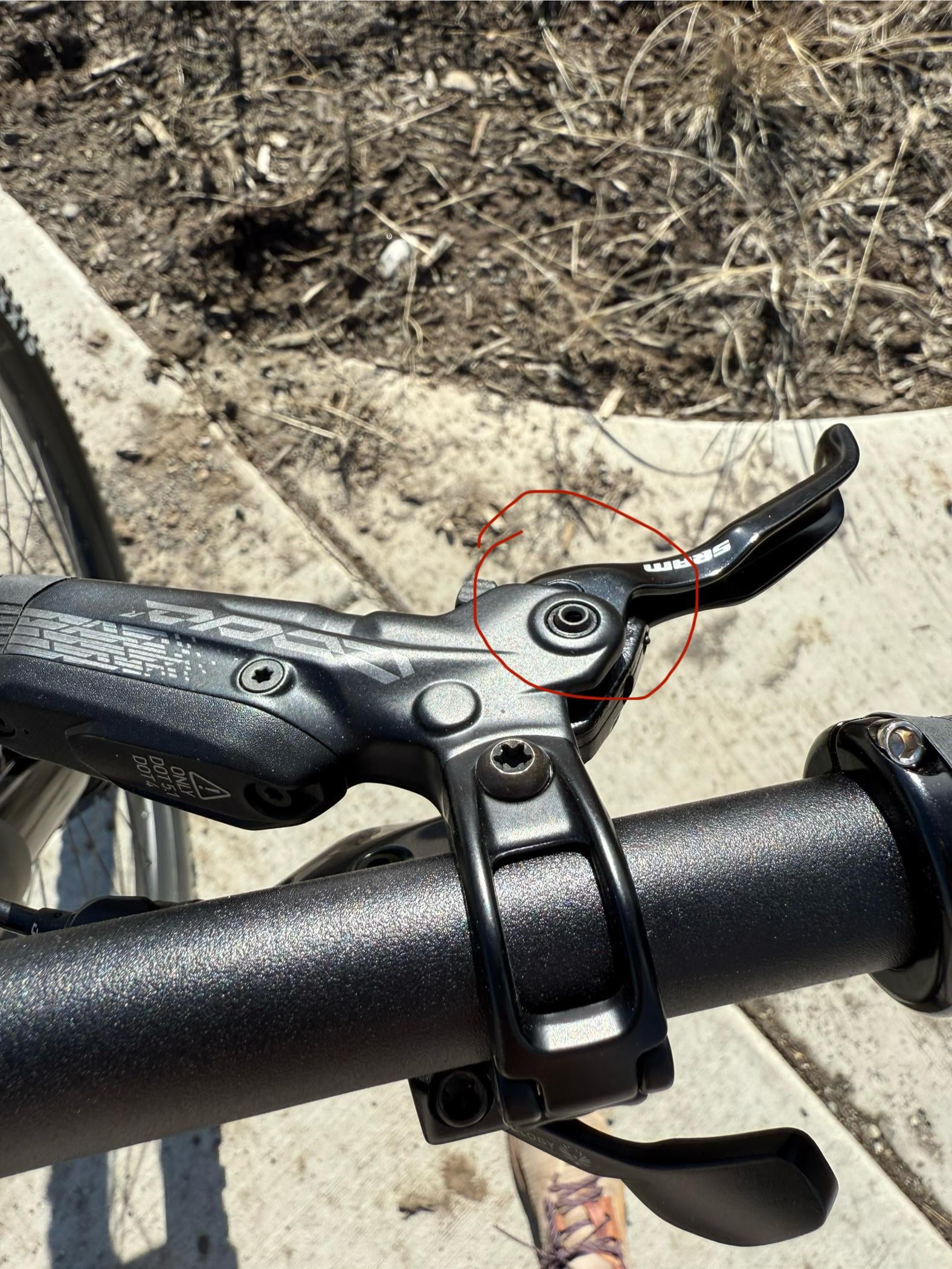

I just got a new bike (so stoked about it!) but when I was messing around in the parking lot this part of my brake slid downward and when it almost fell out I lost all braking power. I was able to slide it back in but after some rough jostling around it slid back out of the bottom again.
Is there a way to stop it from moving around and coming out of the bottom? I would hate for it to come out 10 miles into a ride and not be able to find it on the ground.
by need-to-sneeze
2 Comments
Lever pivot pin. It’s held in place by a little pinch bolt. If your pin is sliding out, your pinch bolt is loose or missing.
https://preview.redd.it/ltr5phhspxre1.jpeg?width=1245&format=pjpg&auto=webp&s=3feb3db27d19f6dbf171e7fc0c00902650a5378e
See picture for the bolt location. You will need to add some blue loctite and there is supposed to be a rubber plug to prevent it from backing out
This
