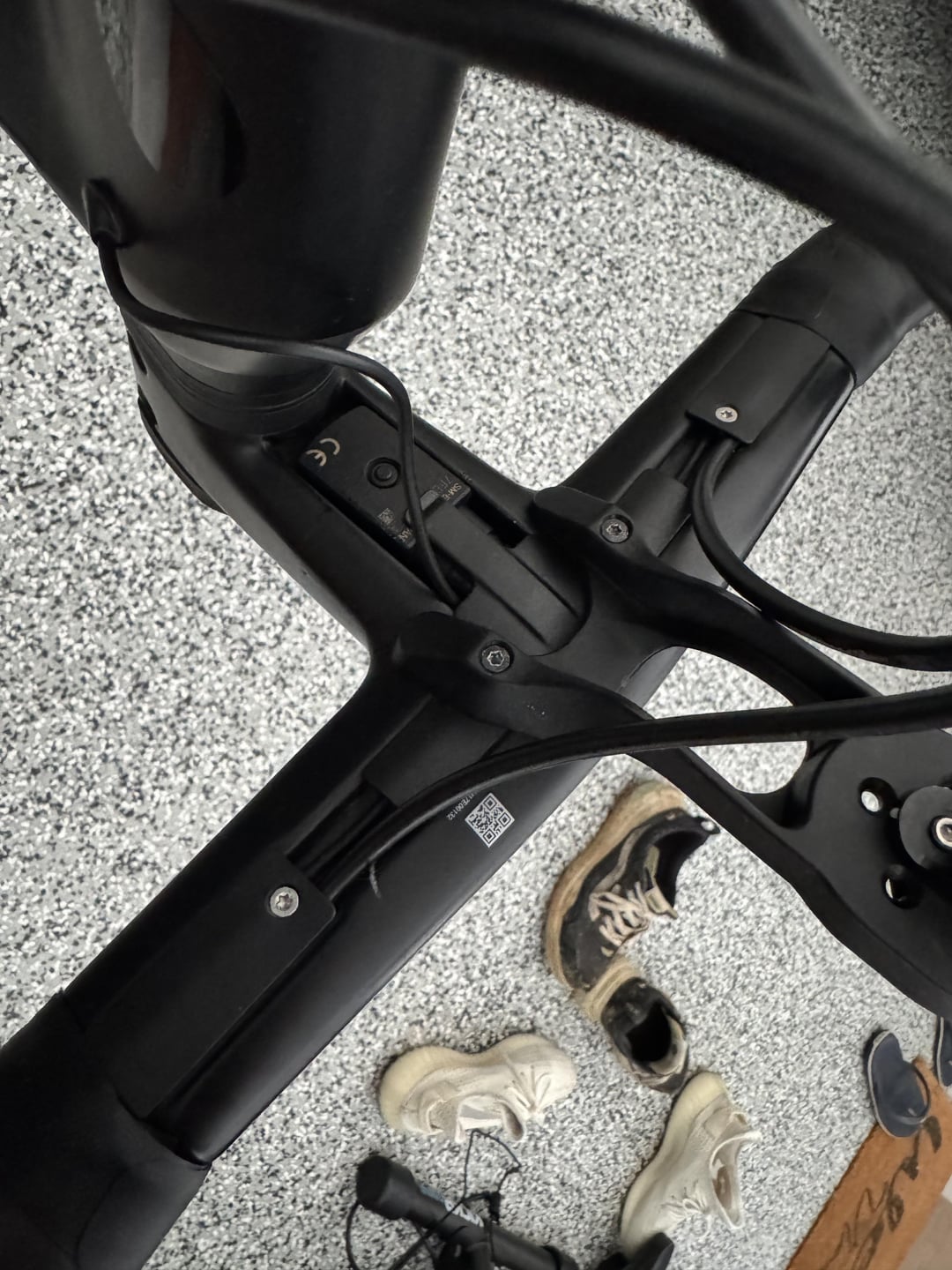

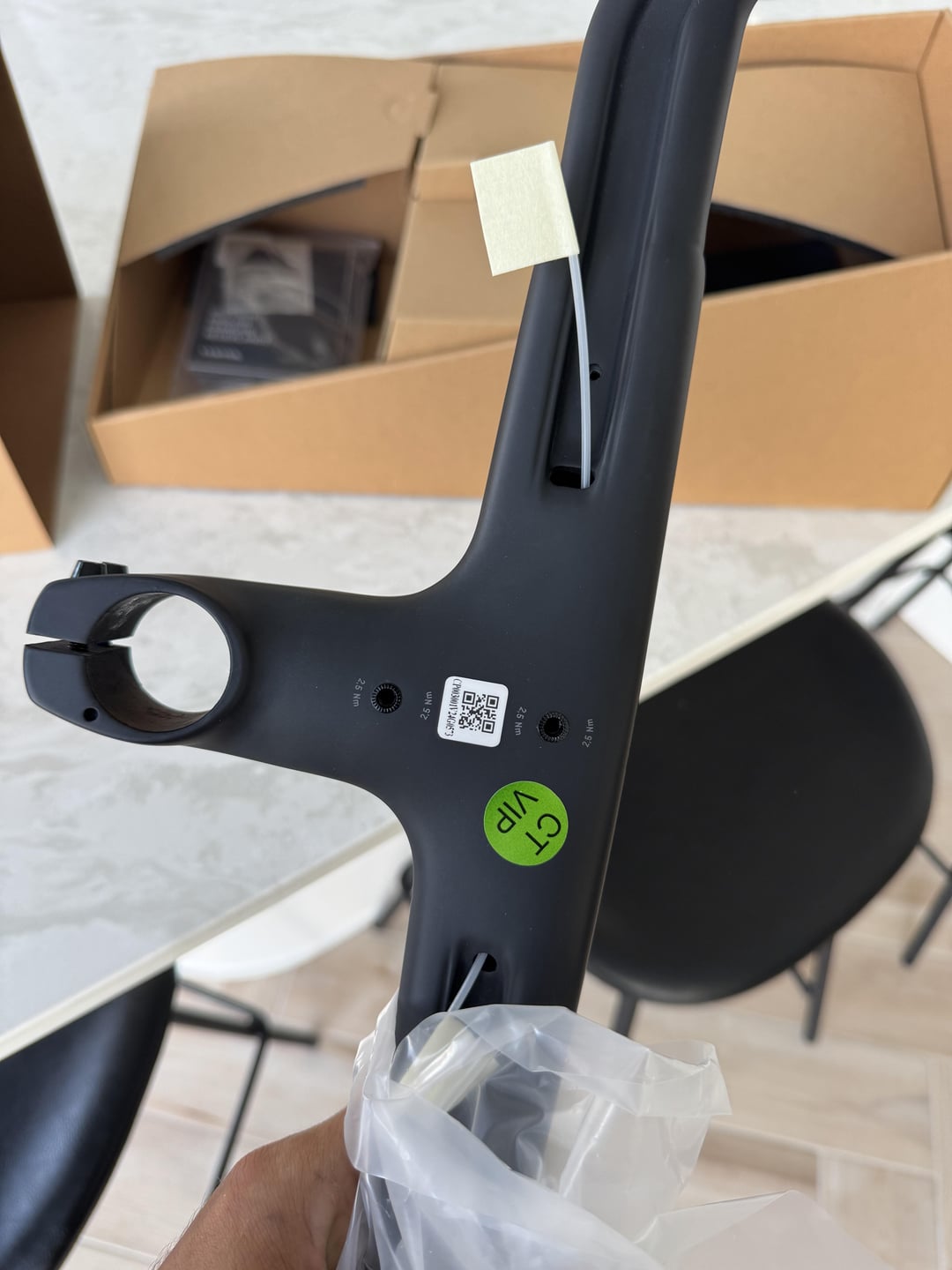

Just received my new CP30 cockpit as i had a crack in my previous H11 cockpit. A Canyon employee told me it was compatible with my bike, and even in the description on the website it says “The design is fully integrated, even housing the Shimano Di2 junction box.” But it doesnt have the Di2 junction box, therefore it wont work, does anyone know how i can go about this? Ive contacted canyon but im not sure what to do. Any help would be greatly appreciated
by dtv689
2 Comments
The choices are:
1. Get a different cockpit
2. Replace your EW90 junction box with an EW-RS910 bar-end junction box
3. Find somewhere else to hide the EW90 junction
I’d probably spend a few bucks and do the EW-RS910. It’s a cleaner option.
Edit to add: maybe check out this option from DIY Carbon Bikes. I had these bars on a bike for several years with no issues, and it includes the hole for the EW90 junction box. Mine came with an aluminum insert to adapt it to a standard 1-1/8” steerer. I suspect it would fit a 1-1/4” Canyon steerer if you remove the insert. Price is right.
https://www.diycarbonbikes.com/products/dcb-i420-syncross-rr1-0-style-carbon-aero-integrated-bar-stem-handlebars?currency=USD&stkn=c3a3fe1424fb&utm_campaign=gs-2019-08-01&utm_source=google&utm_medium=smart_campaign&gad_source=1&gclid=Cj0KCQjwhYS_BhD2ARIsAJTMMQb_bKdeL8BPwzVj3sL5Od2brRwnospk3E32ULCScA0D7vjOyX7P8ywaAtEhEALw_wcB
You can buy [this ](https://www.canyon.com/en-us/canyon-holder-for-di2-junction-box/106475.html)little plastic holder to fit your junction box to the handlebar. You will also need a different Garmin mount on this new cockpit.
