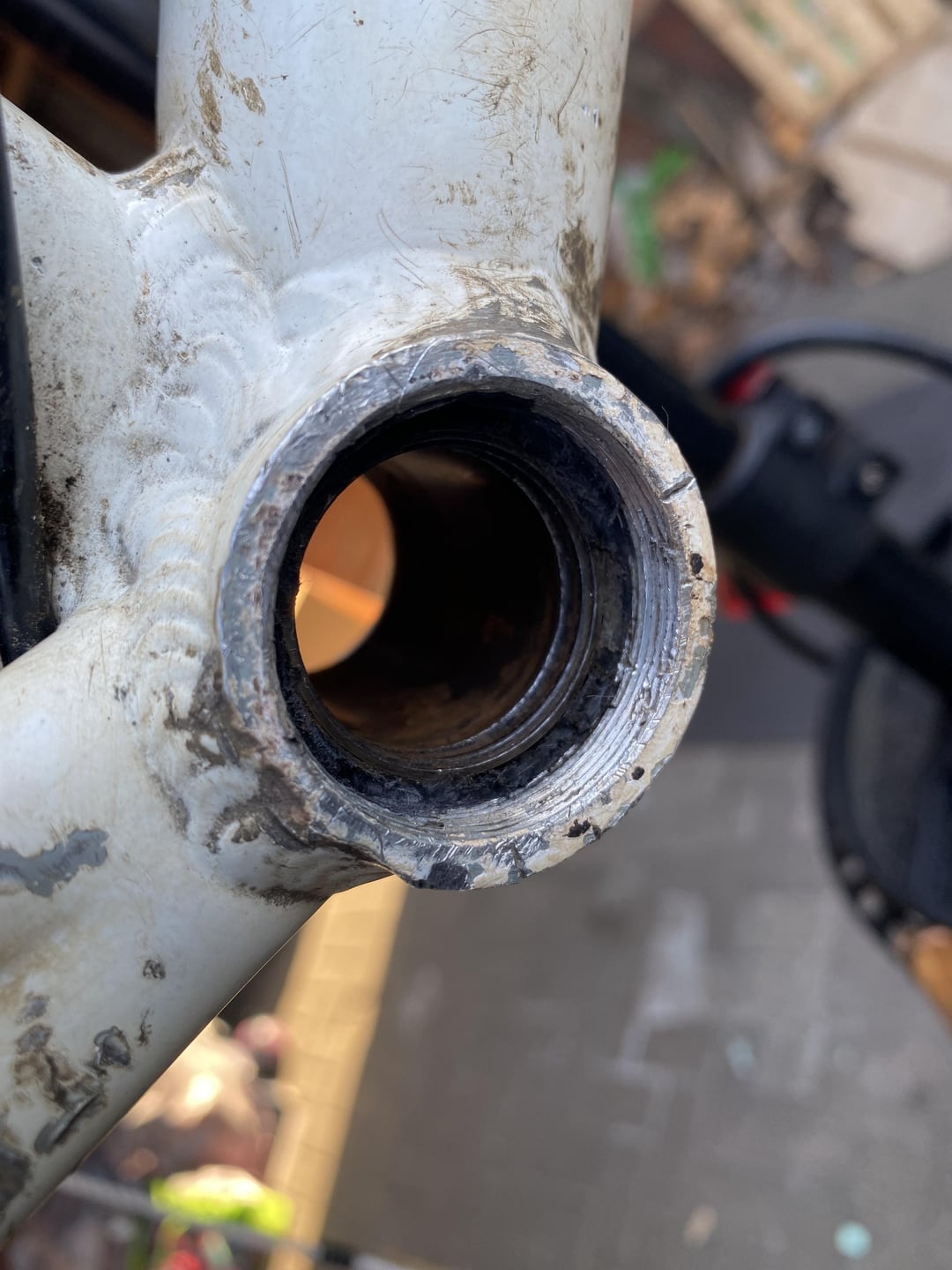

    Do I have to remove this middle part?

    Share.
    View 9 Comments

    9 Comments

    1. JasperJ on

      That is part of it and most likely wouldn’t allow the new cartridge to fit inside, corrrct.

    2. IntoxicatingVapors on

      I’d try using a headset cup removal tool and hammering it out. Just go slow and be careful of gouging up the threads in the bb shell. That’s a lot of crud cementing it in there where there shouldn’t be. You might want to try picking some of it out from around the sleeve and spraying some kind of penetrating oil in there too. Afterwards clean it out real good and chase those threads if you can.

    3. Any-Act2440 on

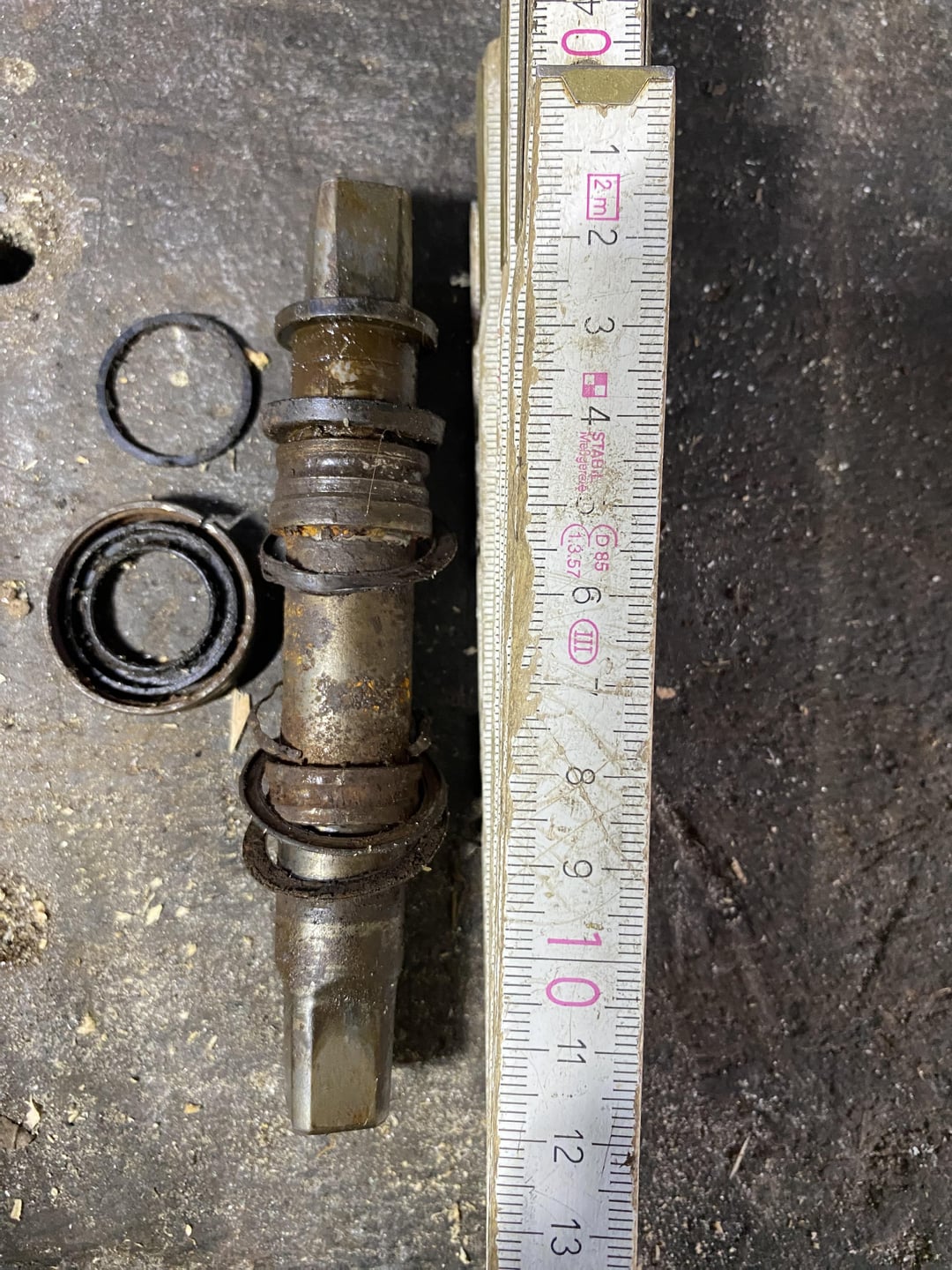

      This could also be a post asking which item is older? That ruler or that dinosaur BB

    4. Prestigious-Fig-5513 on

      I’d wait til the part arrives to see what is included.

      To remove it, I’d apply penetrating oil, clean it, more oil, patience!, and go slow AND EVEN with screw type or hammer/shaft/exact right size pusher end.

      Edit. If you can, find the manufacturer ‘s instructions

    5. SuperMariole on

      Hammer it out, ideally with a socket that’s just the right size, to avoid gouging the threads

    7. Mental_Contest_3687 on

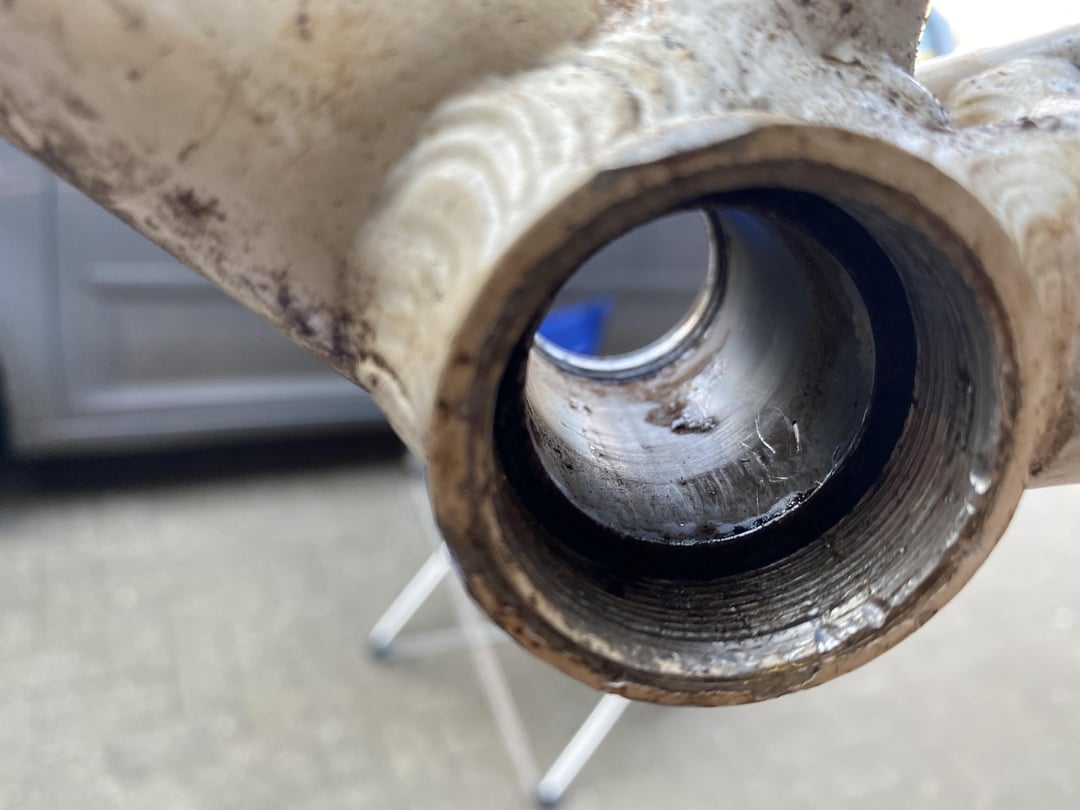

      Yep: that sleeve shown in photo 2 will block the install of a new bottom bracket. Should be able to punch it out (careful not to damage the threads in your aluminum frame!) after soaking with penetrating oil.

      I’d suggest finding a socket wrench that fits inside the BB shell that you could use as a punch to transfer some hammer blows to that sleeve.

      Worst case, I’ve also known of folks who have cut this sleeve with a hacksaw being very careful not to cut into the frame. Not recommended, but I know it’s been done.

    9. Specialist_Editor119 on

      You mean the washers? I have same problem I just use wd-40 and hammer 20 minutes of bored work and all ready
