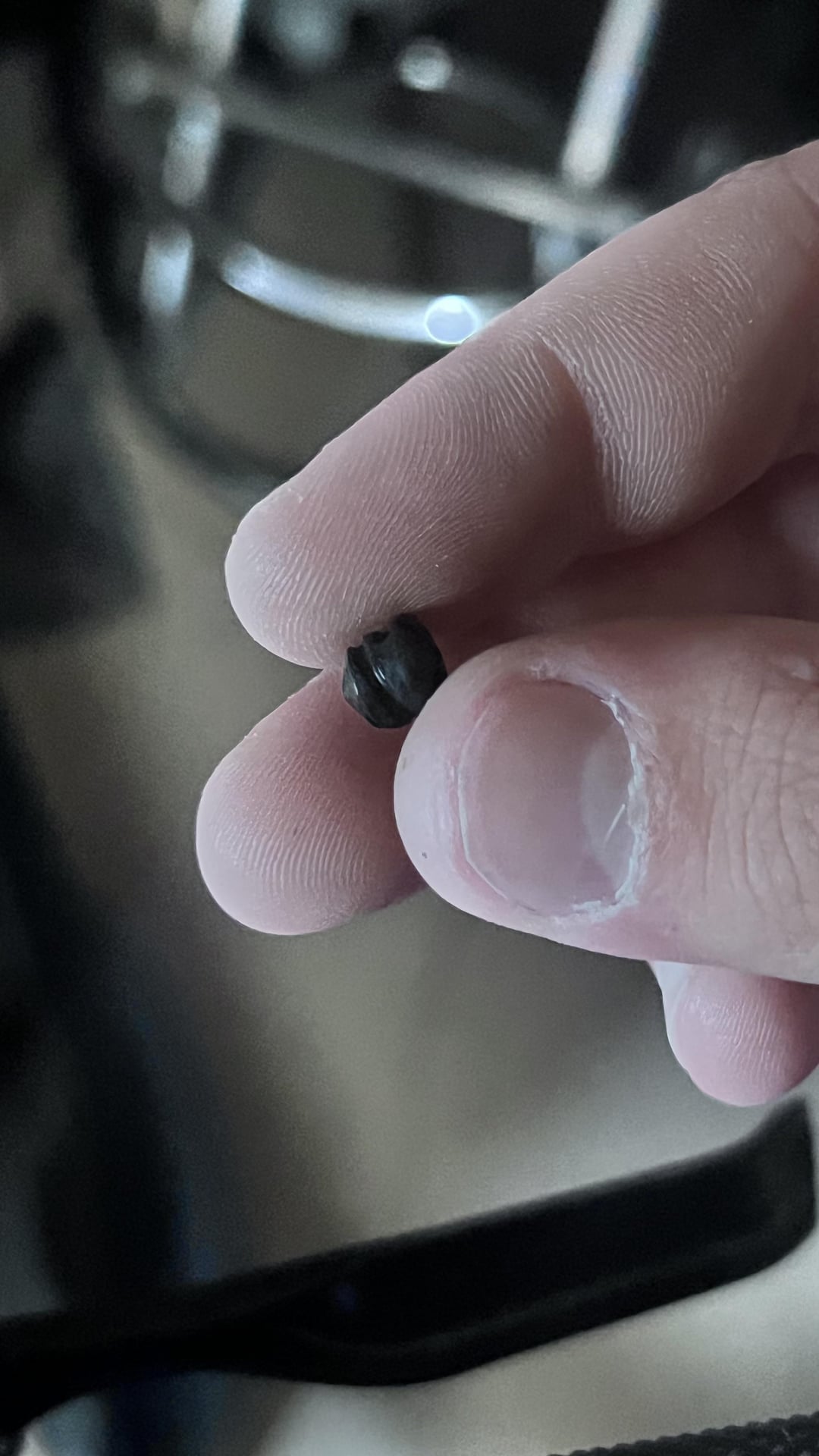

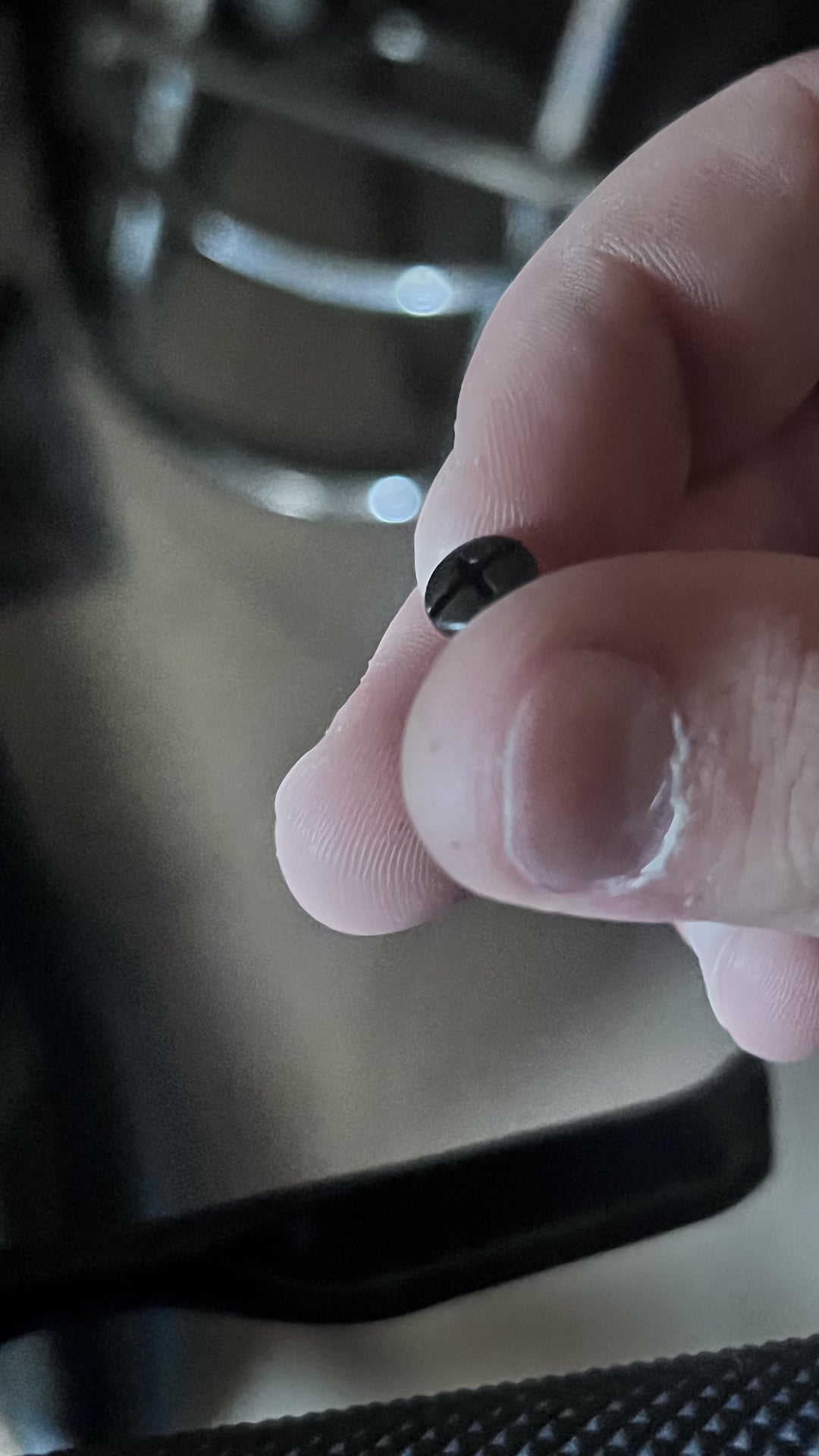

It’s a cover on the shifter where the shift cable goes in. You screw it in from the outside
slowbike on
Plugs the hole in the shifter that you fed the cable through. Not 100% necessary.
PsychologicalLog4179 on
Man I just had to buy one of these cause I lost mine. Definitely install it, otherwise dirt is going to get into the shifter.
hutchism on

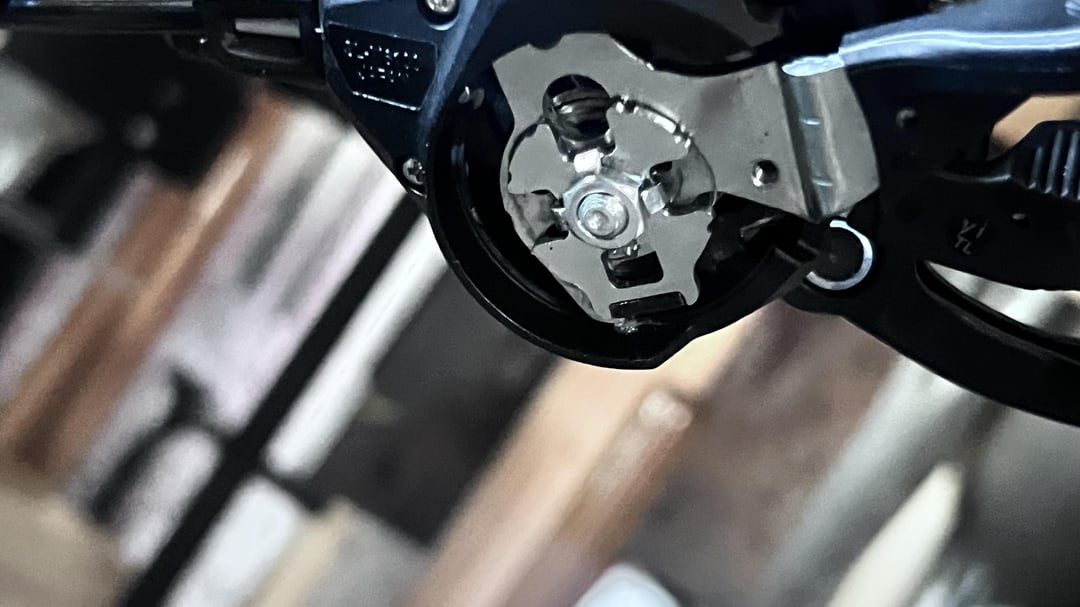

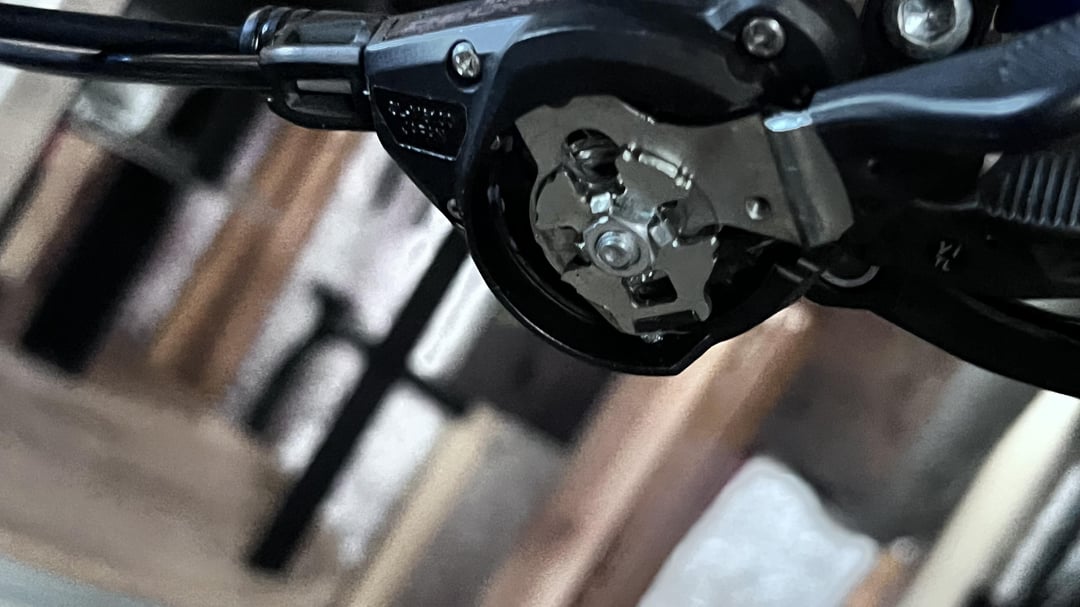

Looks like you disassembled the shifter when you could have just undone this one tiny screw to thread the cable through
GenericName187 on

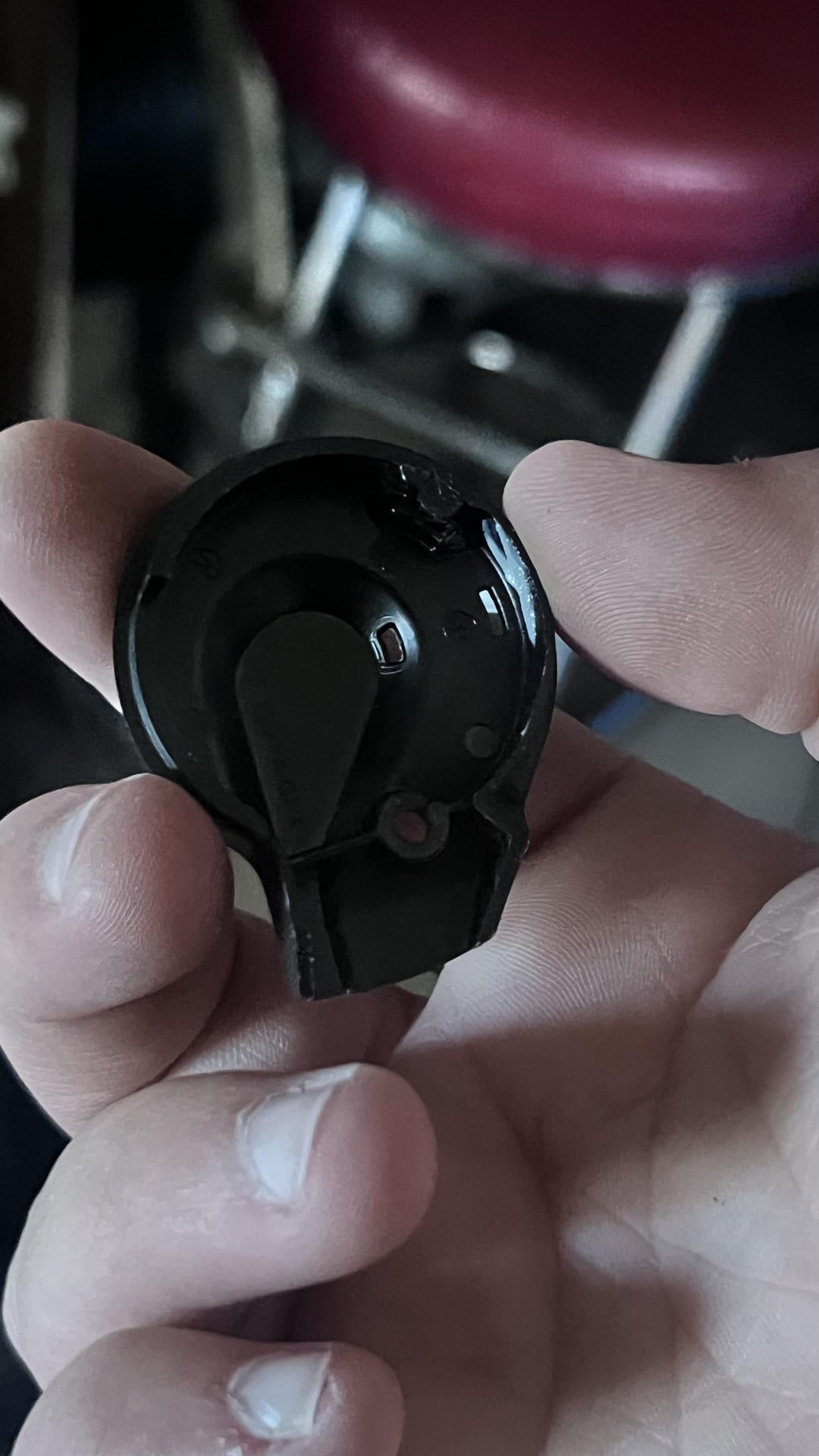

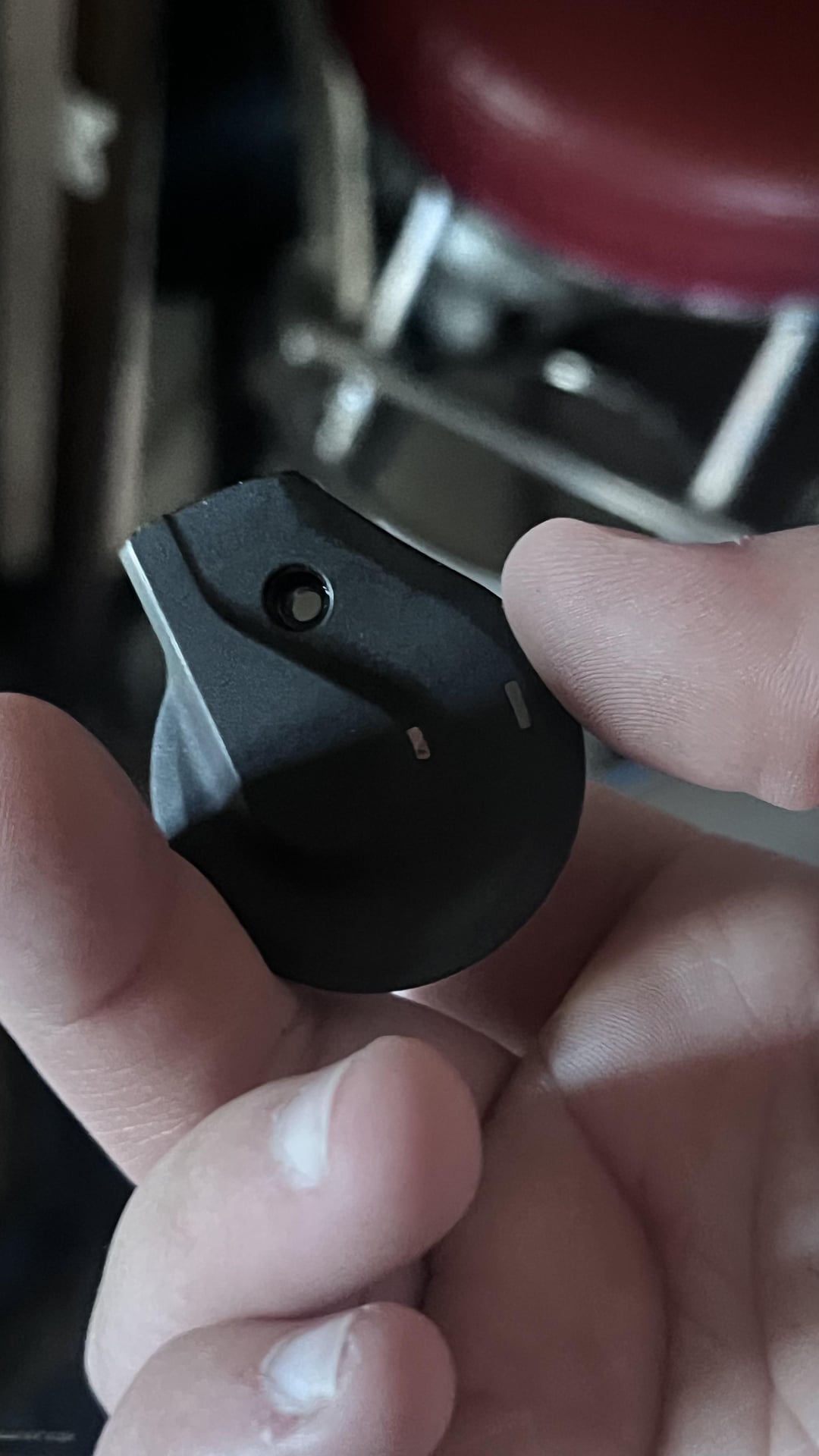

You did not need to remove the bottom cover to replace the cable. You unthread the plastic screw to install the cable, the shifter has to be clicked all the way to the highest gear (for the rear shifter)
6 Comments
It’s a cover on the shifter where the shift cable goes in. You screw it in from the outside
Plugs the hole in the shifter that you fed the cable through. Not 100% necessary.
Man I just had to buy one of these cause I lost mine. Definitely install it, otherwise dirt is going to get into the shifter.
Looks like you disassembled the shifter when you could have just undone this one tiny screw to thread the cable through
You did not need to remove the bottom cover to replace the cable. You unthread the plastic screw to install the cable, the shifter has to be clicked all the way to the highest gear (for the rear shifter)
[https://si.shimano.com/en/pdfs/ev/SL-M590-2904/EV-SL-M590-2904A.pdf](https://si.shimano.com/en/pdfs/ev/SL-M590-2904/EV-SL-M590-2904A.pdf)
https://preview.redd.it/1xvyfeg2kjne1.jpeg?width=1960&format=pjpg&auto=webp&s=24d52fb2430d9bac89b240ee4743e471dc9f72f9
The same happened to me yesterday. Fucked up some screws of the housing only to find out that there is a screw to put the cable through…
