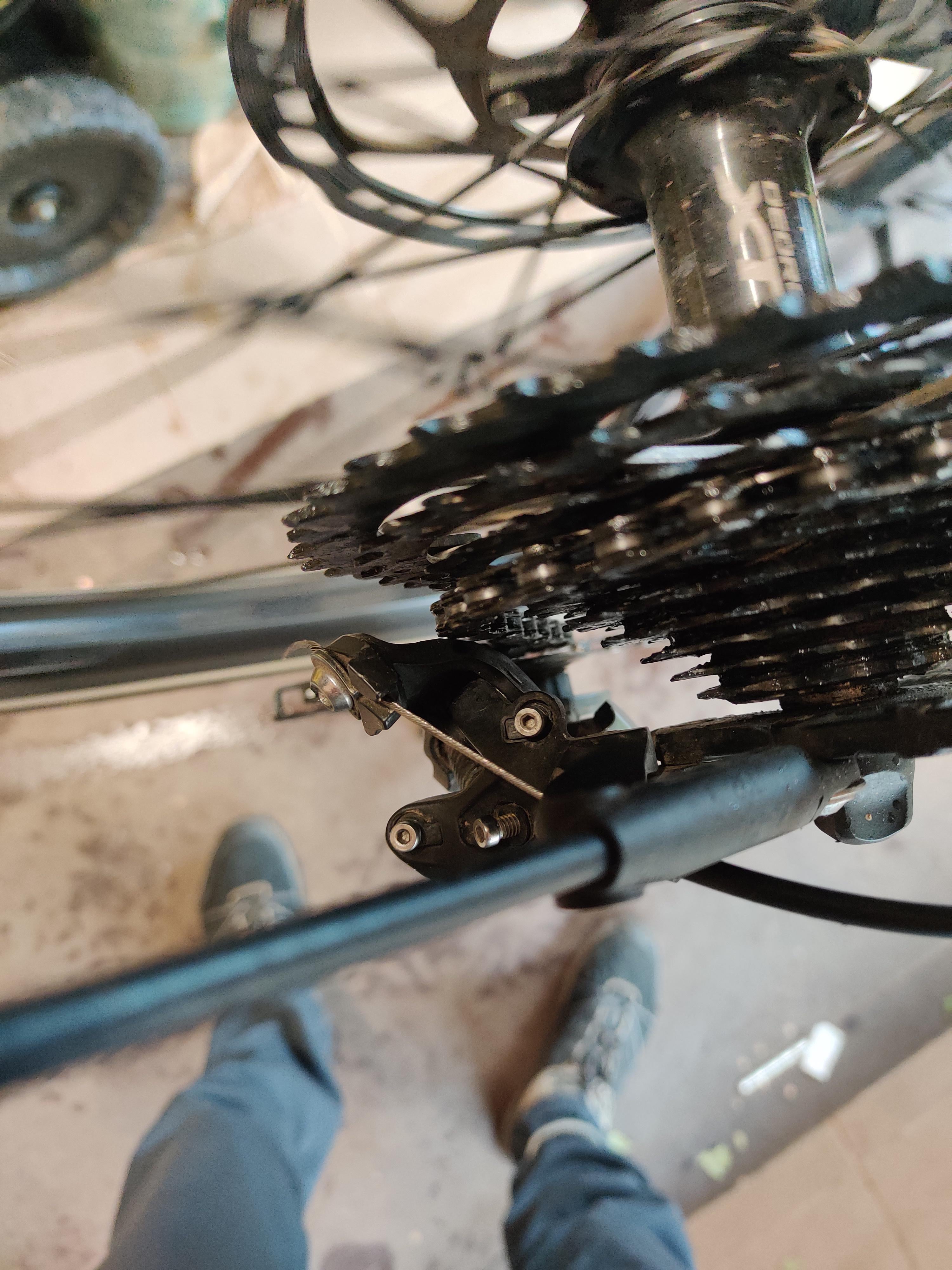

When shifting down from 8 to 7th gear,chain is rubbing slightly on the cable arm. What could be the cause?
Hanger is straight, indexing is fine. Rear derailleur Rd-M6000 GS with 11-42 casette.
by Kepas9
When shifting down from 8 to 7th gear,chain is rubbing slightly on the cable arm. What could be the cause?
Hanger is straight, indexing is fine. Rear derailleur Rd-M6000 GS with 11-42 casette.
by Kepas9
4 Comments
https://preview.redd.it/sbmo476nj9me1.jpeg?width=828&format=pjpg&auto=webp&s=3a33410c4dcd510bd7177ac9be8a01e9afb98b4f
What’s going on here? It looks like something is broken but hard to tell by photo.
mostly, when i See this in the Workshop, the rear DR is bend in direction of the wheel.
or: the “Umschlingungswinkel” is wrong.
sorry, dont know the word in english. it is the Wrap angle of the DR. is “Wrap angle” correct? i dont know.
Pic from the side when it’s in the second to largest gear? I’m initially thinking your B-screw is off or your chain is the wrong length
Post a photo from the side as well looks like the derailleur might be rotated a bit too clockwise and not butting up properly on the mech hanger tab.
