But, if that gauge is accurate, you should replace the chain.
beachbum818 on

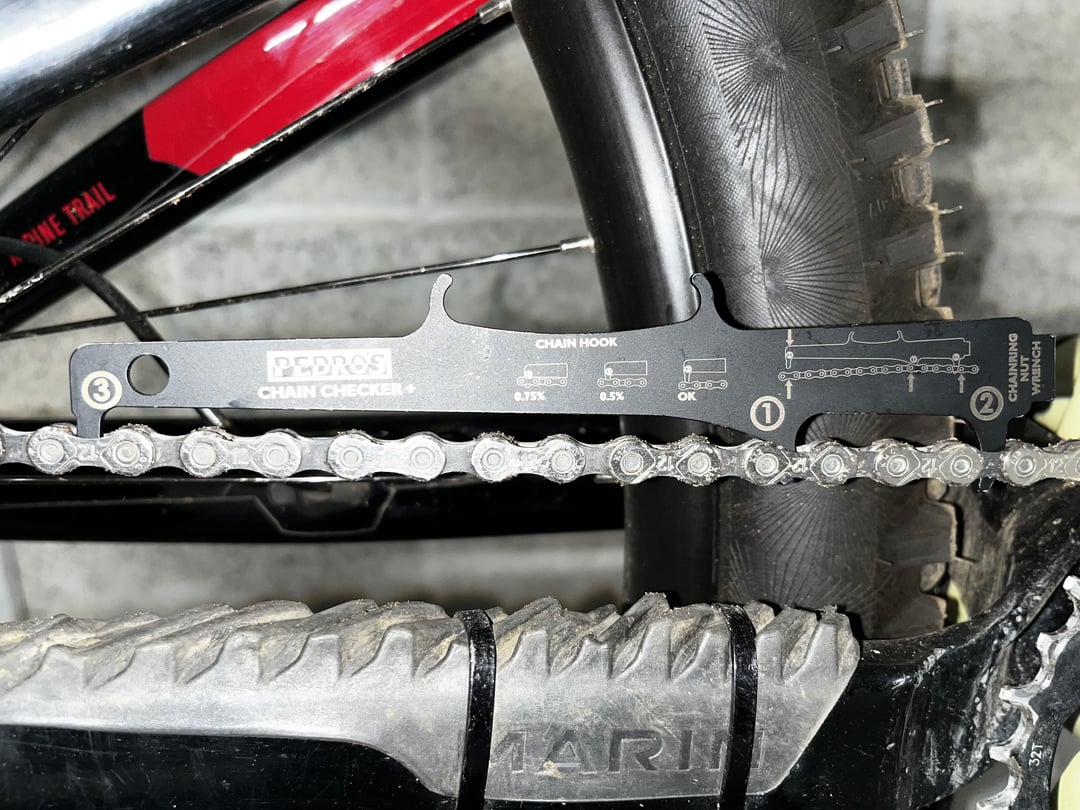

I mean can’t you compare it to the diagram on the tool? Of the body of the tool touched the chain it’s 0.75. If there is a gap between the tool and the chain it’s 0.5 or lower… there is a gap between the chain and tool
Mech0_0Engineer on

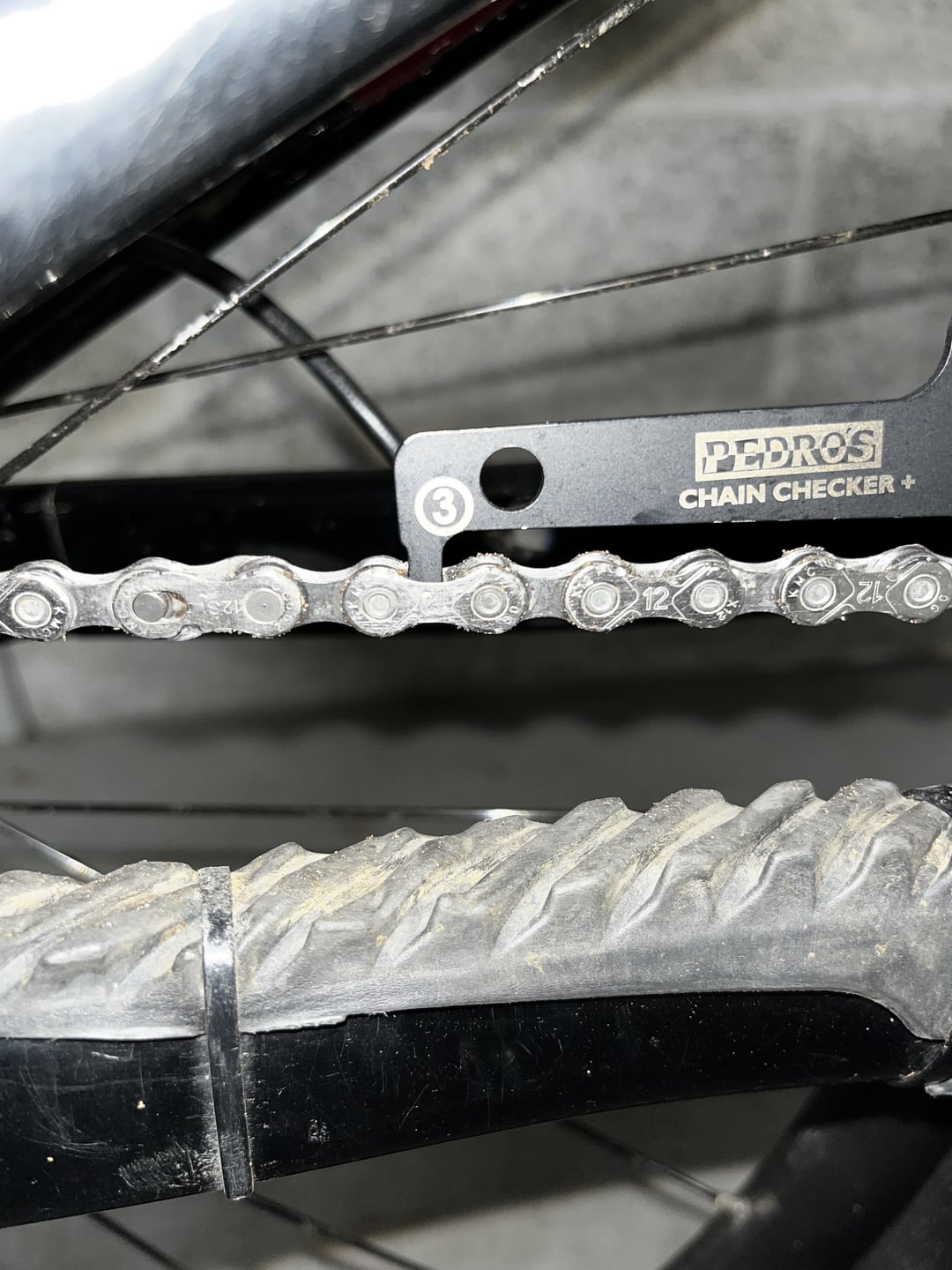

There are tiny steps at the tip of the gauge, from the bottom (shallowest/narrowest/lowest) step to the top, they are ok, .50 and .75
More stretch is needed for the thicker part to fit thus indicating a worn chain
Melodic_coala101 on
This is dead
TheDaysComeAndGone on
Does this work slightly differently from Park Tool CC-4? With the CC-4 you are supposed to press the chain against the tool between the two hooks which are closer together.
fuzzybunnies1 on
.625, time to toss it. Can’t say I like the design of that checker. Really like my 30yo park with the dial, but the newer 2 sided one is decent and easier to figure out.
9 Comments
Per the diagram, 0.75 would be flush which this isn’t. This is closer to 0.5 but maybe even less than that imo.
0.4 to 0.5 I would say.
Either way its a replace on a 1x with 10+ gears
There is some controversy around chain gauges. Some people (like me) prefer to measure the chain directly. There’s a discussion here: https://www.reddit.com/r/bikewrench/s/dfg3ldY21N
