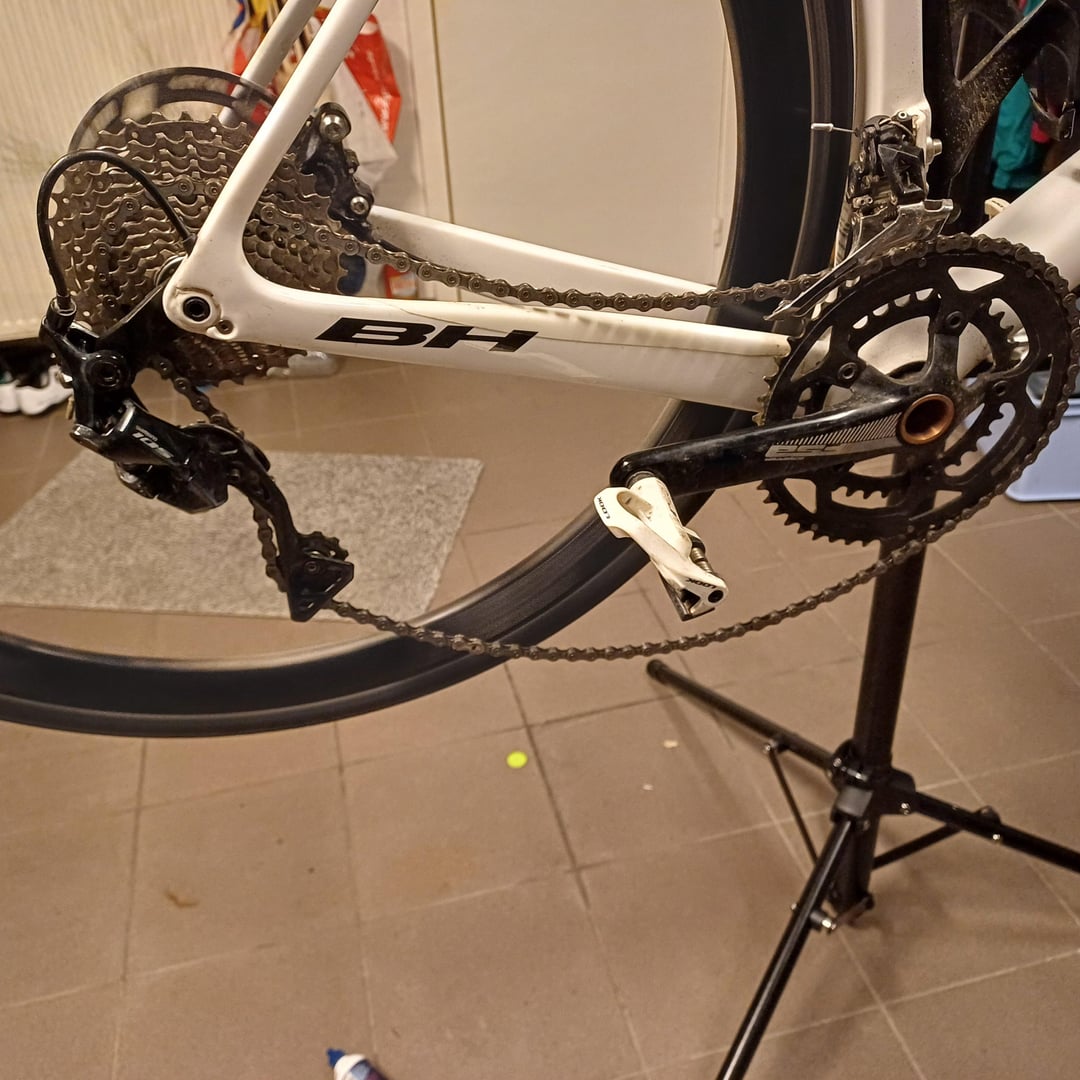

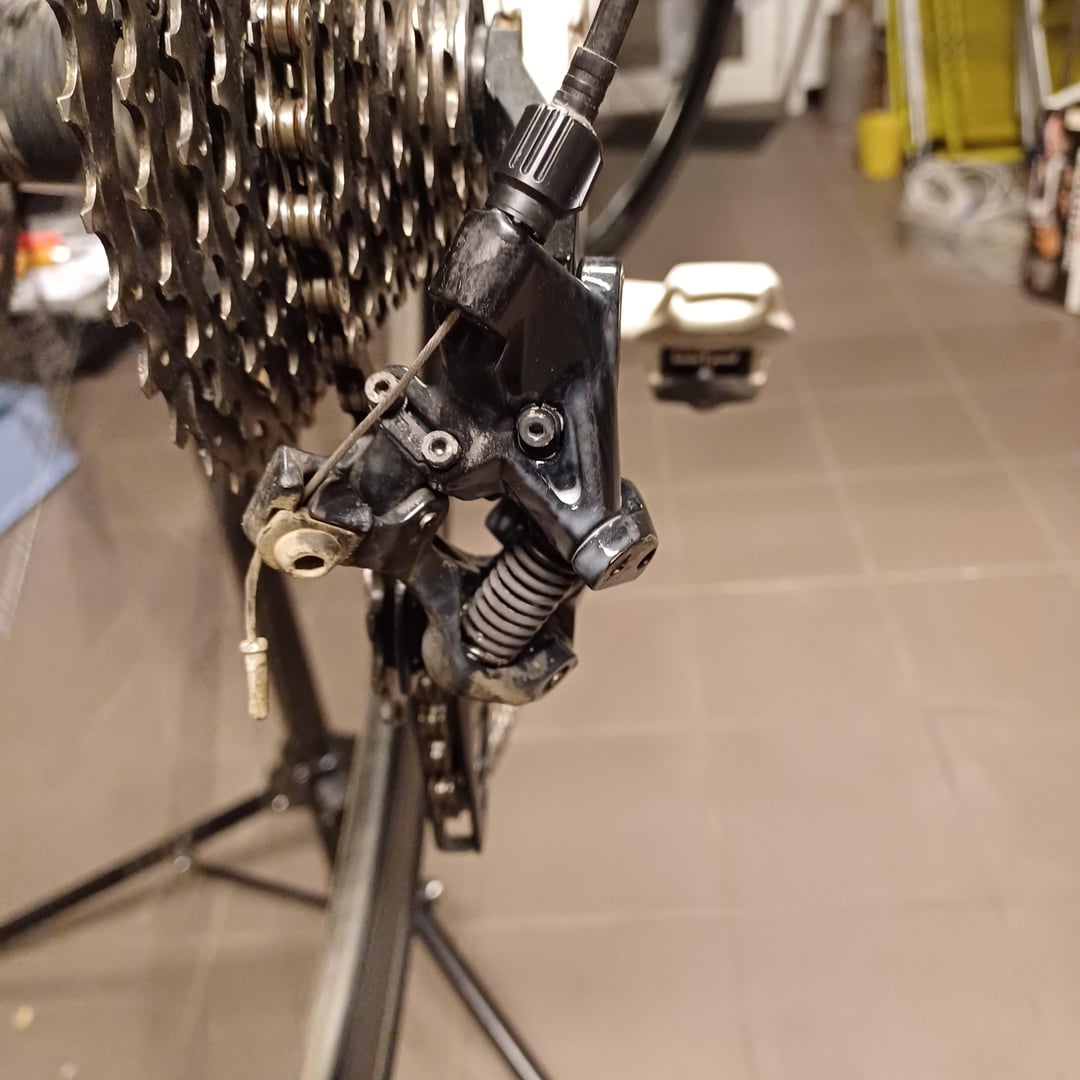

Facebook Twitter LinkedIn Pinterest Bluesky Threads My rear derailleur no longer tightens my chain. How do I fix this? by hoempaloempa Bicycling Bike Bike Repair Biking Cycling Repair
ChickenTendies0 on February 14, 2025 7:36 pm Your deraileur spring might be broken or became unwind. You will need to take off the derailleur cage and inspect it.
AndyTheEngr on February 14, 2025 7:49 pm Try pulling the bottom of the cage forward, and pressing this button. https://preview.redd.it/ijy3951ns5je1.png?width=192&format=png&auto=webp&s=7b867252e2fc966e03d30646e905396b606376c5
Grandmaster_Shu on February 14, 2025 8:17 pm I suspect the inner spring of the RD has lost tension (popped out of place for whatever reason). You’d need to remove the derailleur and inspect the internals. https://si.shimano.com/en/pdfs/dm/RARD001/DM-RARD001-04-ENG.pdf page 23 illustrates how to do this. If you’re not confident in your mechanic abilities, you’ll have to take it to a local bike shop.
InspectionOk7926 on February 14, 2025 8:18 pm Make sure you the derailleur stopper plate is correctly touching the b stopper of your hanger. https://preview.redd.it/kljmkjsyx5je1.png?width=1388&format=png&auto=webp&s=756808131f851182fc6e3d542a97626de08af7f4
weemankai on February 14, 2025 8:31 pm Do these have a clutch? If so it’s cooked. Take it apart and give it a good once over
6 Comments
Your deraileur spring might be broken or became unwind.
You will need to take off the derailleur cage and inspect it.
Try pulling the bottom of the cage forward, and pressing this button.
https://preview.redd.it/ijy3951ns5je1.png?width=192&format=png&auto=webp&s=7b867252e2fc966e03d30646e905396b606376c5
I suspect the inner spring of the RD has lost tension (popped out of place for whatever reason). You’d need to remove the derailleur and inspect the internals.
https://si.shimano.com/en/pdfs/dm/RARD001/DM-RARD001-04-ENG.pdf page 23 illustrates how to do this.
If you’re not confident in your mechanic abilities, you’ll have to take it to a local bike shop.
Make sure you the derailleur stopper plate is correctly touching the b stopper of your hanger.
https://preview.redd.it/kljmkjsyx5je1.png?width=1388&format=png&auto=webp&s=756808131f851182fc6e3d542a97626de08af7f4
Do these have a clutch? If so it’s cooked. Take it apart and give it a good once over
Probably new RD time.
