will my standard square taper crank removal tool work? if so, should I attach the small or the big nub at the end? thanks 🙂
AnyBarnacle9287 on

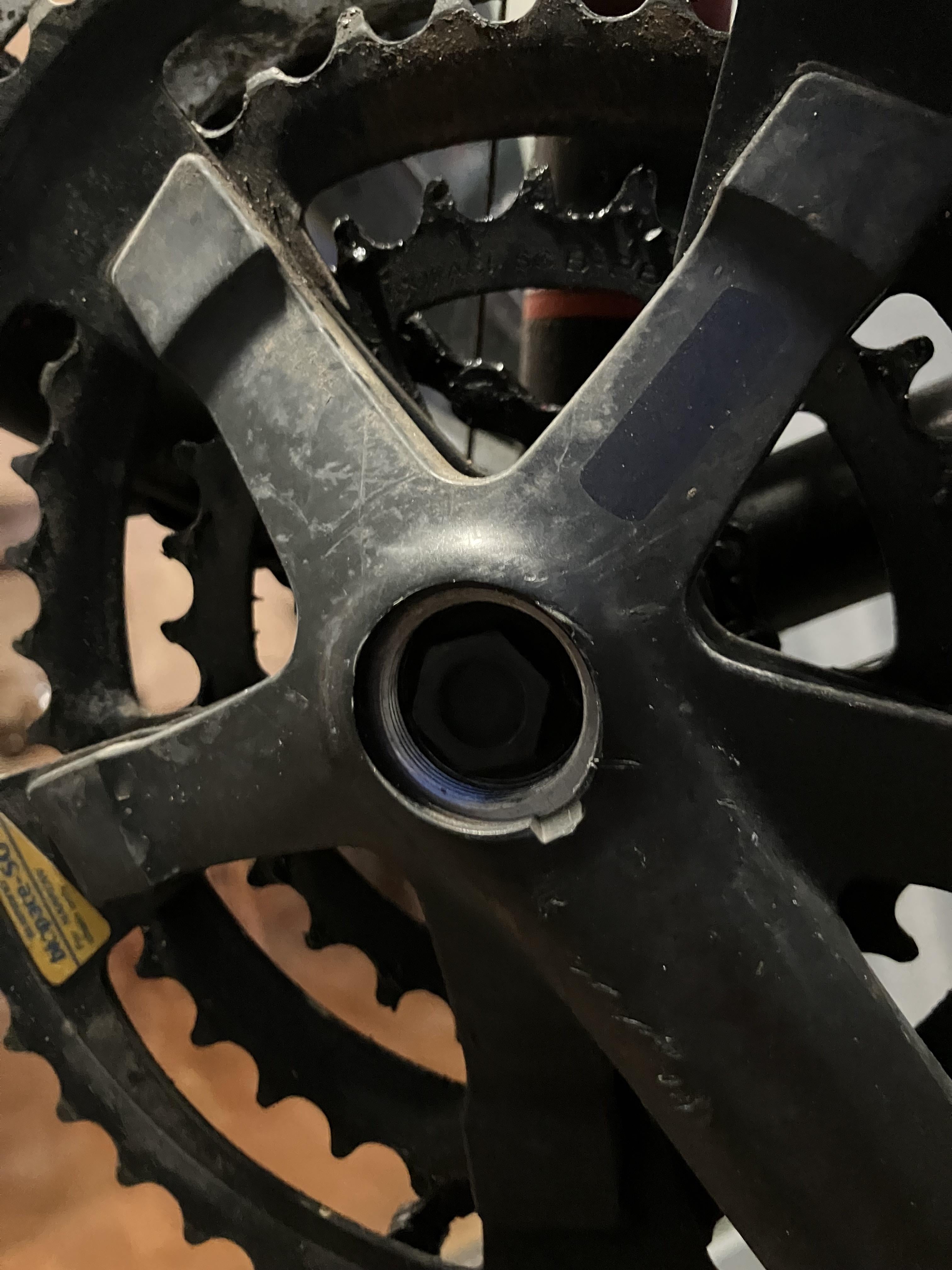

sorry for the bad photo …. but the bolt inside the threaded area has a flat head to it (not like other crank I have seen before where there is a bigger gap inside with the sloping walls)
rdthebk on
A 14mm socket for the crank bolt, and it should be just a normal square taper crank extractor should do it.
Kruk01 on
Remove that bolt, you will reveal the end of the square taper bb spindle. Thread in your Crank removal tool.
HippieCowboyy on
Take the nut out of there. A crank puller would be best but you could also watch this for other ideas on how to get it off. Good luck be patient.
6 Comments
will my standard square taper crank removal tool work? if so, should I attach the small or the big nub at the end? thanks 🙂
sorry for the bad photo …. but the bolt inside the threaded area has a flat head to it (not like other crank I have seen before where there is a bigger gap inside with the sloping walls)
A 14mm socket for the crank bolt, and it should be just a normal square taper crank extractor should do it.
Remove that bolt, you will reveal the end of the square taper bb spindle. Thread in your Crank removal tool.
Take the nut out of there. A crank puller would be best but you could also watch this for other ideas on how to get it off. Good luck be patient.
https://youtu.be/9n1z2kwmL8o?si=soqgOe-bTeSLqmfD
