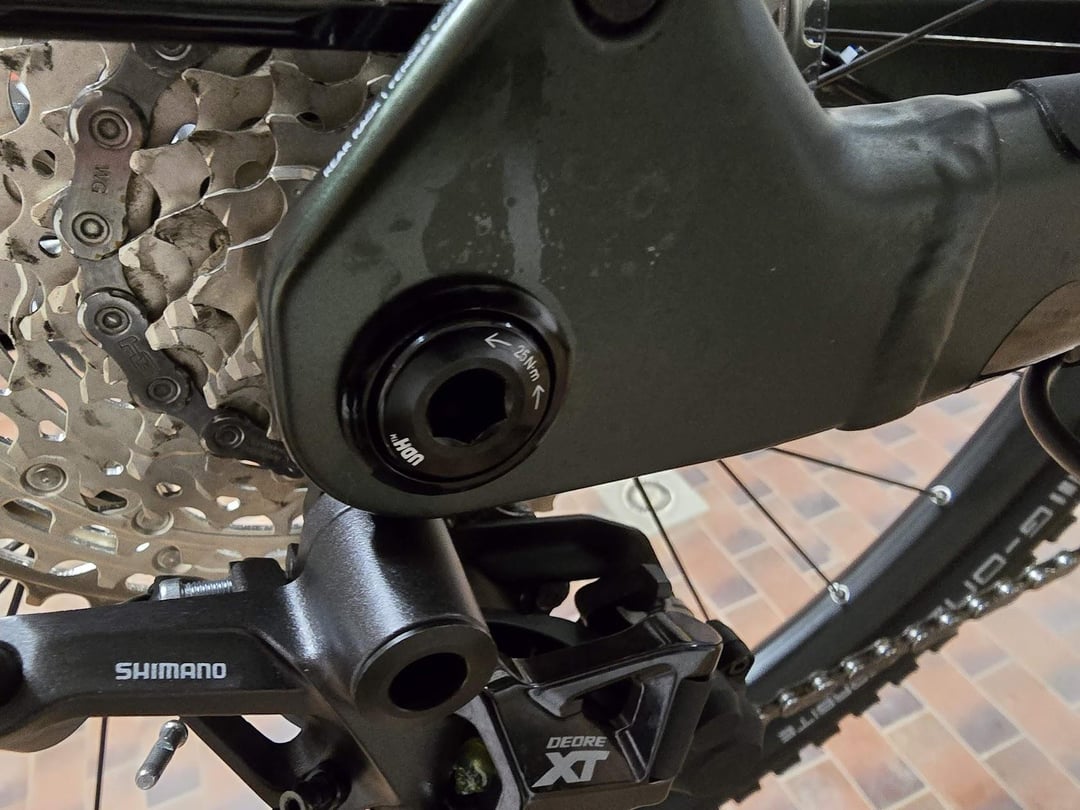

I’m super confused, there’s no mention in the manual how to remove the rear axle, only how to attach a trailer. In order to install a bike lock I have to remove the rear wheel. The left side has a plastic cap over it, and this is where you can attach a trailer. The right (drive) side fits a 6mm allen key, but it doesn’t budge in any direction. Also there seems to be a nut over it, which says UAH and 25 Nm.
Anyone know how to remove this without breaking the bike? 😀
Thanks!
HG1998 on

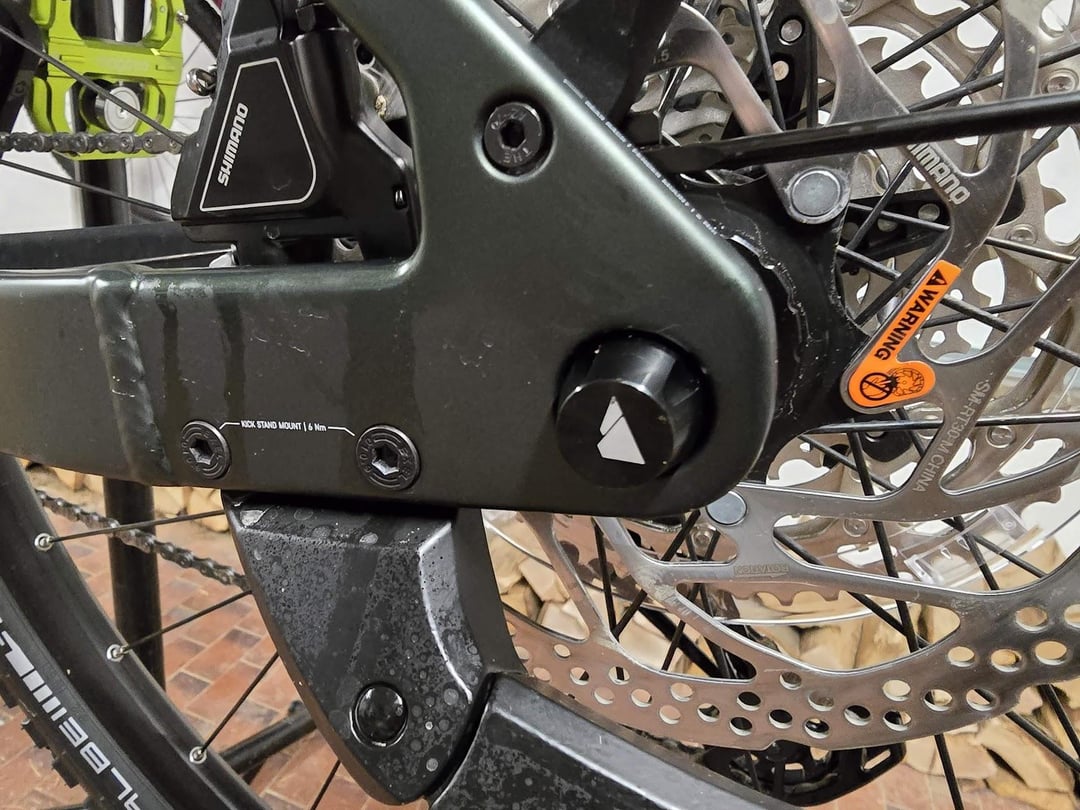

Take the cap off on the left side. The picture here shows the screw for the Universal Derailleur Hanger.
SneezeBucket on
It should just unscrew to the right. Not righty tighty, which got me. Mine was on tighter than all holy hell. It took a lot of effort for it to budge.
3 Comments
No idea why the text is gone, let’s try again:
Hi folks,
I’m super confused, there’s no mention in the manual how to remove the rear axle, only how to attach a trailer. In order to install a bike lock I have to remove the rear wheel. The left side has a plastic cap over it, and this is where you can attach a trailer. The right (drive) side fits a 6mm allen key, but it doesn’t budge in any direction. Also there seems to be a nut over it, which says UAH and 25 Nm.
Anyone know how to remove this without breaking the bike? 😀
Thanks!
Take the cap off on the left side. The picture here shows the screw for the Universal Derailleur Hanger.
It should just unscrew to the right. Not righty tighty, which got me. Mine was on tighter than all holy hell. It took a lot of effort for it to budge.
