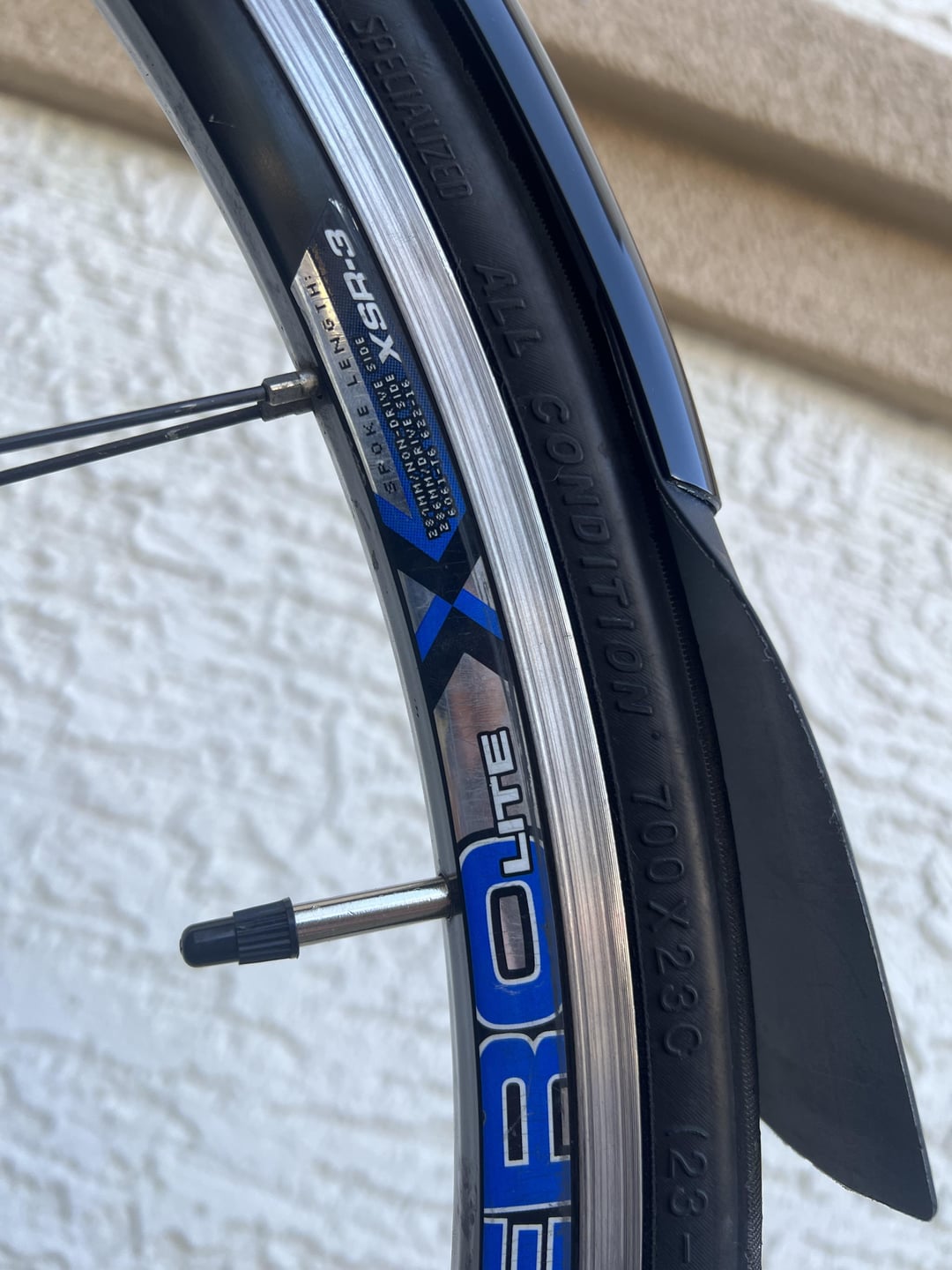

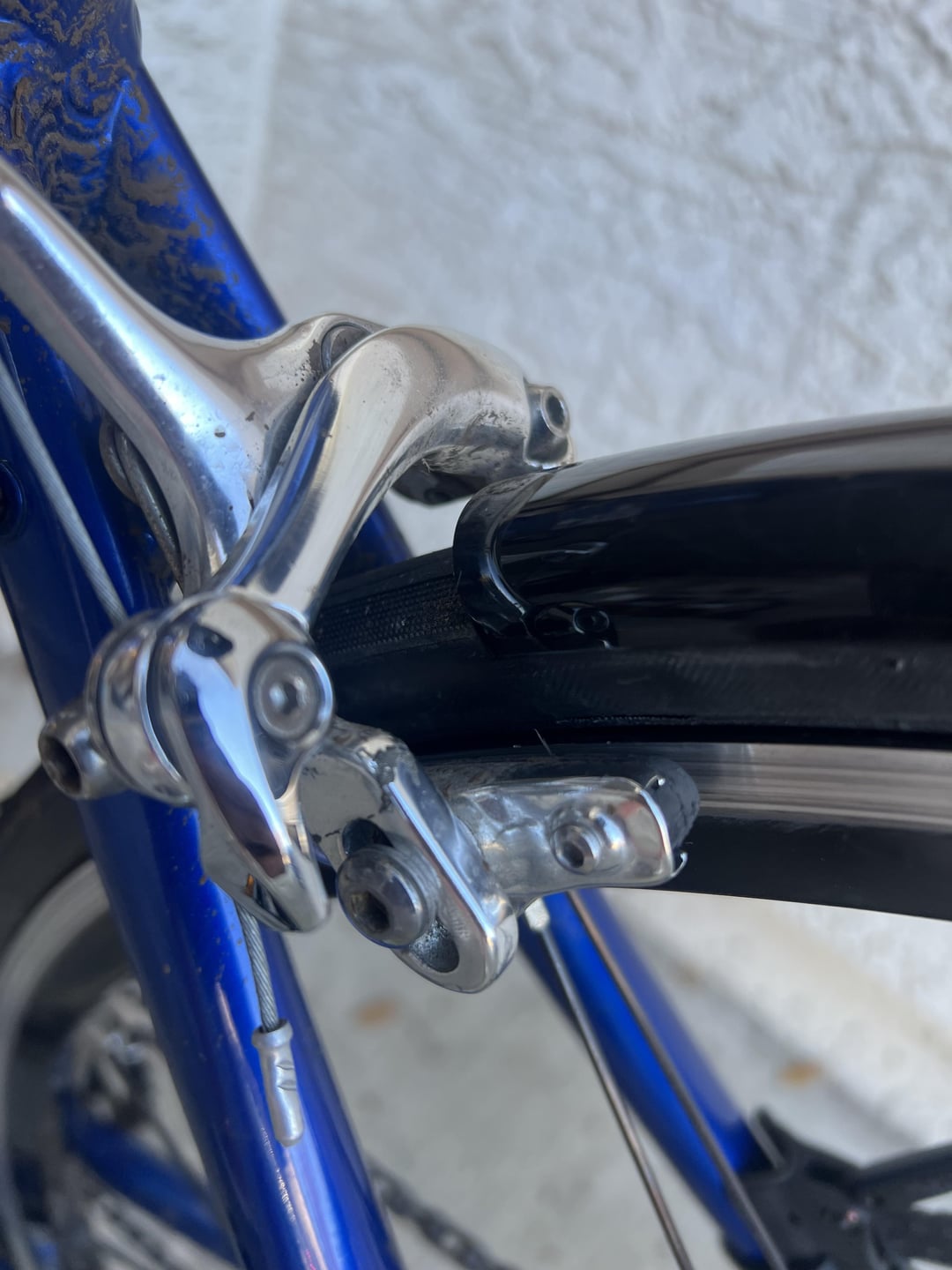

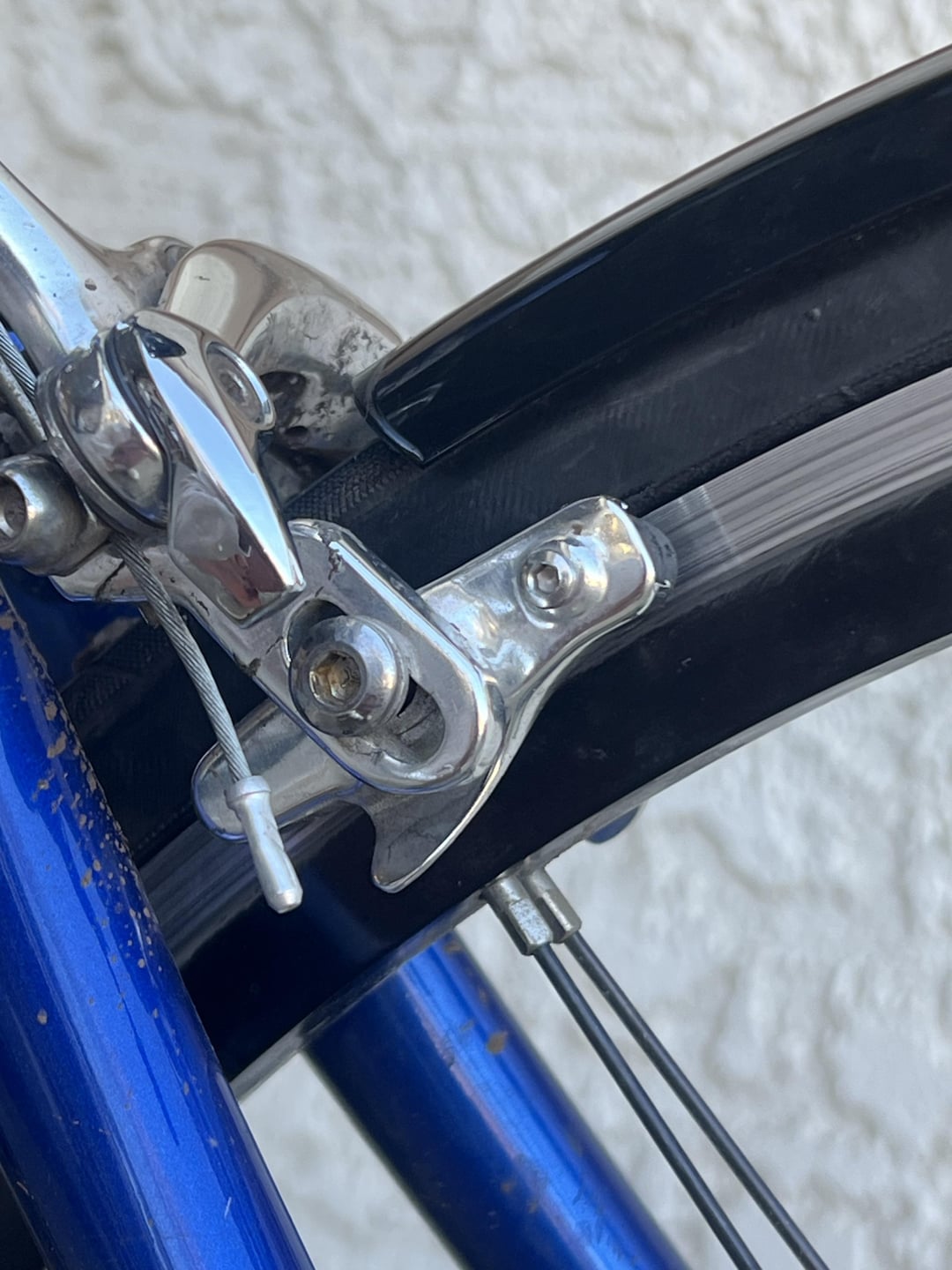

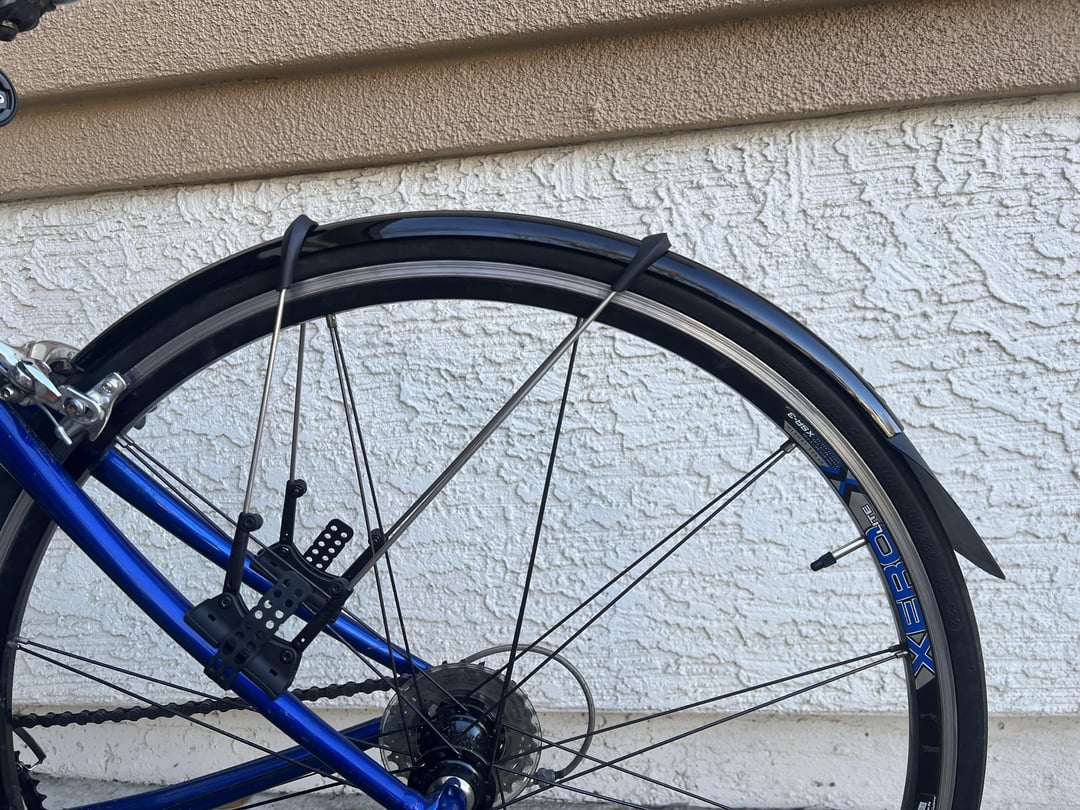

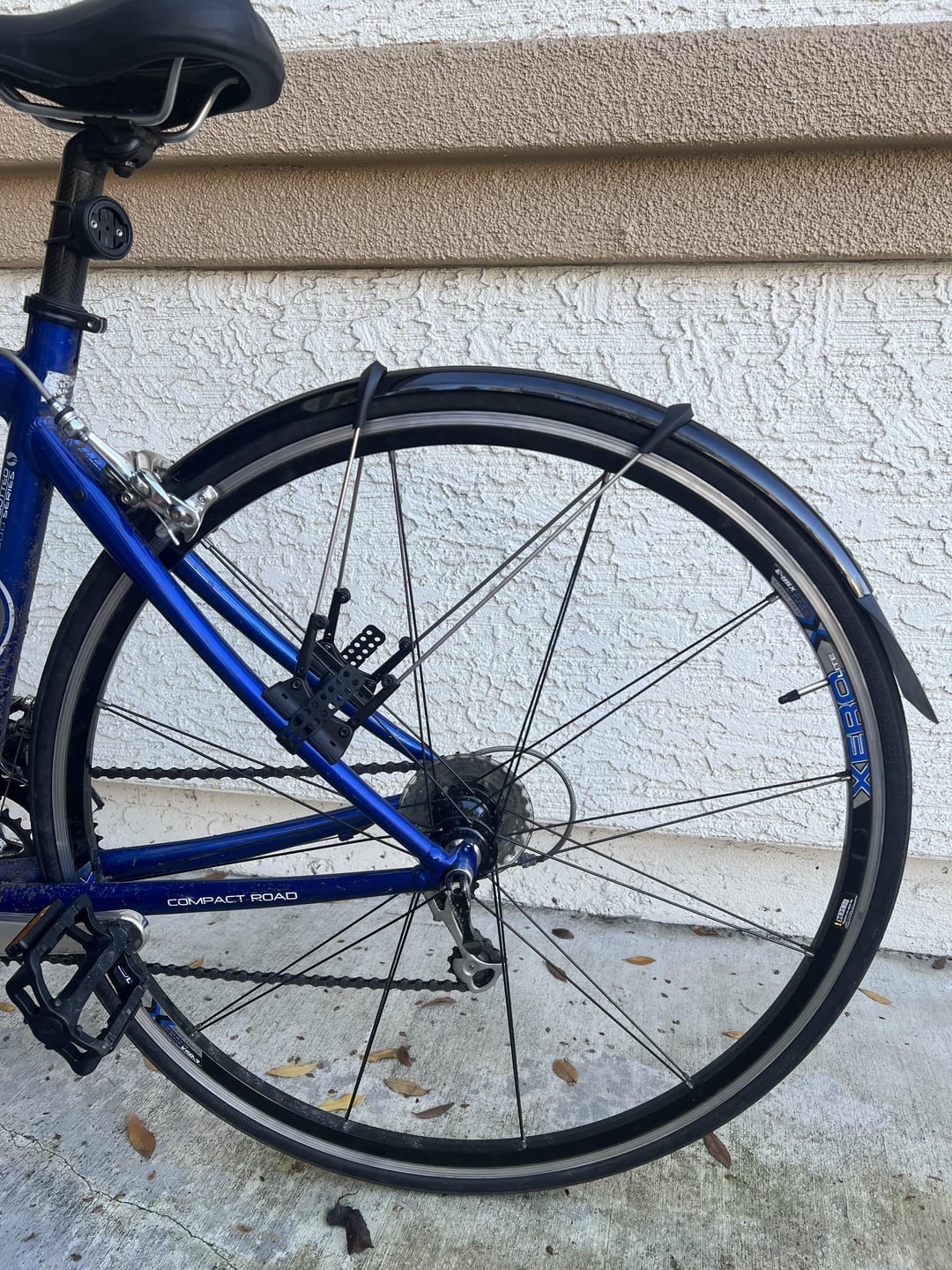

How much space should be in between the fender and tire? I just installed this SKS Raceblade Pro. Is it too close to the tire? It seems to ride fine, but there is some flex when I push on the fender, so I’m wondering if it will rub against the tire on large bumps. Also, should I place the fender further back to optimize splash reduction? What do you all recommend? Thank you!
by hwy9
8 Comments
You want it as close to the tire as you can get without rubbing and catching debris. That looks great
The fender will not flex. Looks perfect.
Looks fine to me. Putting it further back would be nice for people riding behind you but will also mean more crap ends up on you and your frame. When I used those fenders the part that would rub most often from bumps is the end by your brakes but I had mine a lot closer to them then you do so I think you’ll be fine.
I’ve had those fenders for like 10 years at this point, and they’ve always been like that. My original set broke the rear one, for some reason now I can’t remember why, a couple years ago. I replaced them with another set of the same, and was pleasantly surprised that the mud-flap pieces had been redesigned to be longer and more effective. They’re a great option for road bike commuters.
As long as they’re not touching, you’re OK. Those fenders may displace a little if you hit a bump, but you can knock them back into place.
I like mine nice and close. Funny you post this, I’ve seen many bikes in just the past few days where the fenders are seriously 3/4″ (2 cm) or MORE from the tire. Fenders are less effective (and look dopey) when they’re that far from the tire.
I have my fenders setup so there’s about 3/8″ gap as the debris would enter between the tire and the fender (the “front” of the tire) and about 1/8″ at the rear, where the debris would exit. They’re metal so it’s common to hear gravel and schmoo traveling along and rattling in there. It’s fine.
Snow and ice clog the tire solidly..
That’s aero! Tight install.
