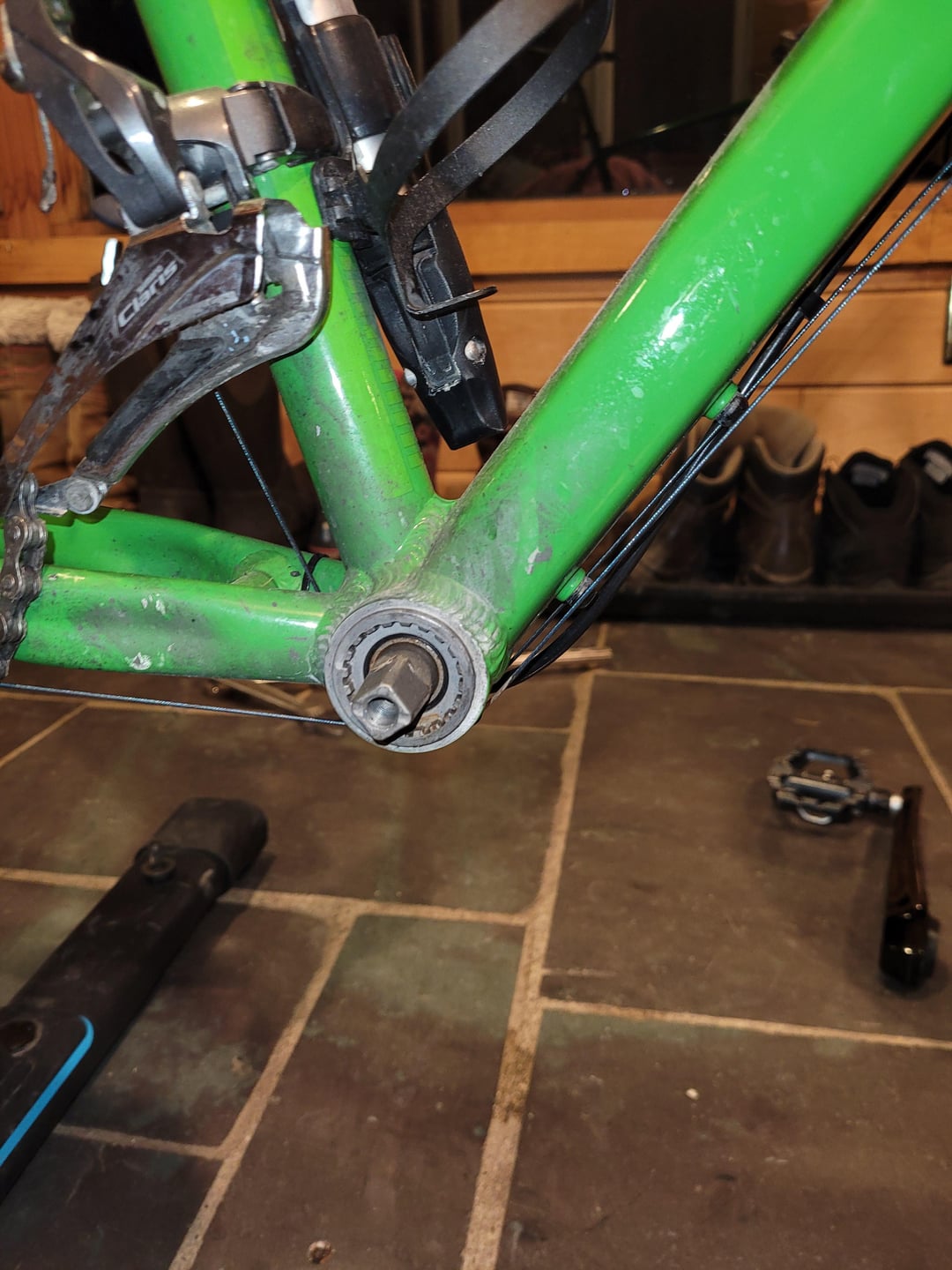

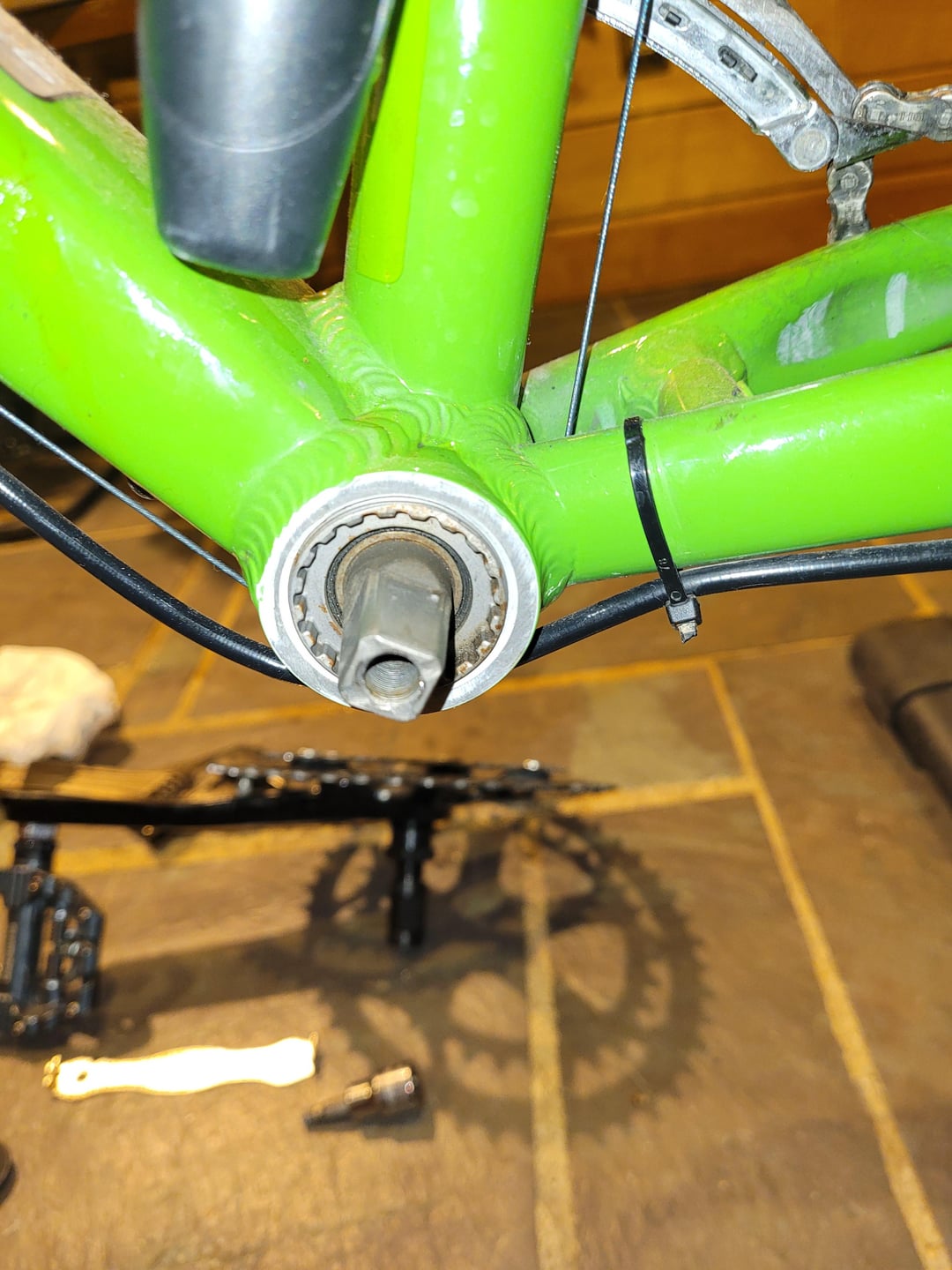

Was hoping for some help identifying this bottom bracket off a Diamondback Haanjo 2. Need to replace the bearings. I'm assuming this is a cartridge unit?
by Lucky_Marzipan_8032
Was hoping for some help identifying this bottom bracket off a Diamondback Haanjo 2. Need to replace the bearings. I'm assuming this is a cartridge unit?
by Lucky_Marzipan_8032
5 Comments
standard
Square taper crank.
Square taper, need a specific tool to remove it.
Square taper. Probably a cartridge. Measure the width of the frame (most likely 73mm) and spindle to determine your replacement.
You need a 20 spline tool to remove the cartridge bottom bracket. Park Tool BBT-22 or BBT-32, or any other reputable brand will do.
When you remove the bottom bracket hopefully the shell width (68 or 73 mm) and spindle length (between 103 and 127 mm, probably around 122.5 mm).
The drive side cup is reverse threaded, you will turn clockwise to loosen.
https://www.parktool.com/en-us/blog/repair-help/bottom-bracket-removal-installation-threaded
https://www.parktool.com/en-us/blog/repair-help/bottom-bracket-tool-selection-threaded-and-thread-together
