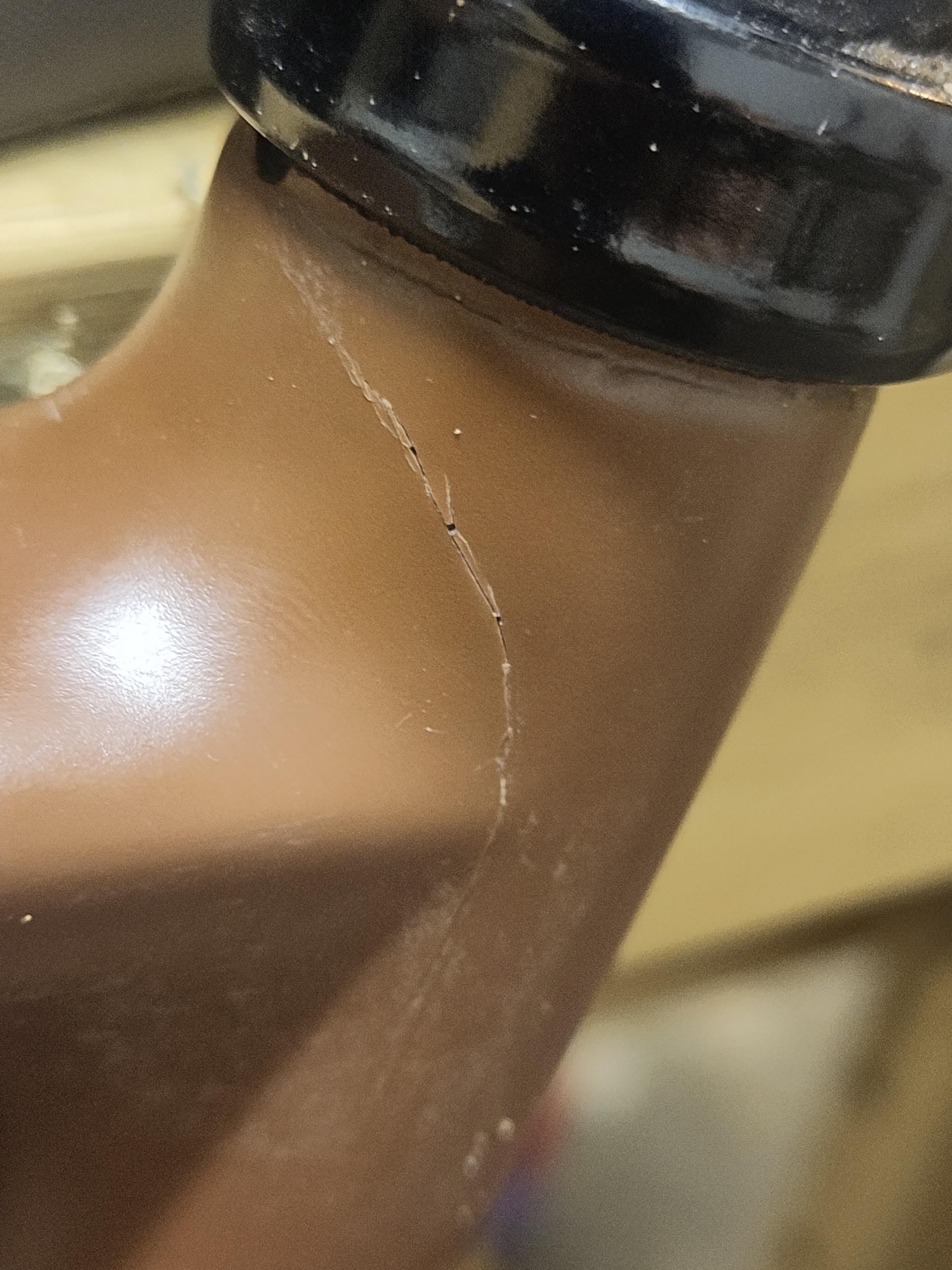

I think I managed to crack my frame, but don't know how it happened (too clamped saddletubeclamp (or how you call it) seems unlikely, because the crack starts underneath…
I'm not sure it's cracked yet or if it's just the paint, but it sounds a bit more dull in the possible cracked area when "hit" with a coin. Any advise in how to proceed? I bought the bike a few months back from a local frame builder here in Germany (definitely gonna ask him for advise), but I doubt it's covered by warranty.
by Taffelfalaffel
25 Comments
**Thanks for posting to /r/gravelcycling! It looks like you’ve submitted an image.**
This community encourages additional context about image submissions. You can include details about your post in a comment below. Some suggestions for good comments:
* Bike details (make, model, accessories, and gear)
* Location (specific or general is fine)
You can also use **post flair** to give additional context about your post.
*I am a bot, and this action was performed automatically. Please [contact the moderators of this subreddit](/message/compose/?to=/r/gravelcycling) if you have any questions or concerns.*
it’s cracked
Yup, that’s cracked, do not ride.
RIP anonymous German frame
Relax, all right? My old man is a television repairman, he’s got this ultimate set of tools. I can fix it.
FUBAR sadly, do not use it. Dunno if repairable but contacting frame builder seems like the right choice.
Most definitely cracked. Buy a Santa Cruz next time
Frame shouldn’t randomly crack..
either hidden user error or frame builder should replace IMO!!!
If it’s not under warranty, I’d be surprised if a carbon specialist couldn’t repair that.
I think that’s broken…
The beauty of having a cracked carbon fiber frame. You can just easily replace it with a new one.
Nobody can be certain from just this exterior picture. Take it to the bike shop or manufacturer so they can investigate it. It could be any number of things: just an odd looking scratch in the top layer of the paint, an over-tightened seat clamp or under-inserted seat post leading to a crack.
This is the problem with chain stays that connect lower on the seat tube, the seat tube connection to the top tube has to be super strong otherwise this happens. This is not the first time this has happened.
Was it worth it for the low weight or are you gonna go for steel next time?
Fuck carbon if you’re not a pro!!!
Couple thing here, I assume this is a steel bike, that’s fillet brazed? That very short slot in the front of the tube is not helping, neither are those fillets that are cut back within an inch of their life.
If this bike was built by a frame builder that has a business and is actually good, this is absolutely a warranty in any normal case.
If the fillet did crack, I don’t think I’d trust the rest of the bike, they don’t need to be very good to hold up so it’s pretty unsettling.
“Probably”
There are other ways to get a new frame…then to destroy the one you have.
It’s ded Jim.
Probably??
Perfect timing for Black Friday weekend
Shitty factory bond, the joint delaminated. Thats my opinion. The crack is at the juncture of the tubes. I would say its defective.
It is definitely cracked. What makes you think it’s probably cracked? It is visible by naked human eyes. You don’t need a microscope to see that
If it’s from a proper frame builder and not someone drop shipping Chinese carbon then they’d be interested in seeing this.
Most likely cause is insufficient seat post insertion.
If you didn’t crash it is almost certainly a manufacturing error.
The guy who made it should stand behind it. This is obviously his issue.
