Facebook Twitter LinkedIn Pinterest Bluesky Threads Removed spacers but not fork/or headset does not fit by freiren Bicycle Bicycling Bike Biking Canyon Bicycles Canyon Bikes Cycling
Redditlan on October 4, 2024 12:45 pm Loosen the stem bolts and loosen the top cap. Can you then press it together?
RazrHazeTV on October 4, 2024 1:04 pm If you remove spacers, your fork is now too long. Either put the spacer back but on top of the stem, or cut your fork down.
alinosaur on October 4, 2024 1:11 pm Can you take a photo of all the elements that you removed? At least on the old Aeroad there was one that you were supposed to leave in.
Specialist-Time-3435 on October 4, 2024 1:25 pm You have to sort of rotate the cockpit a bit as you push it down on the fork. See from about 50 seconds in this YouTube video from Canyon. https://youtu.be/Y8yV4sP7a-M?si=OryzH2v5UIDd1X-E

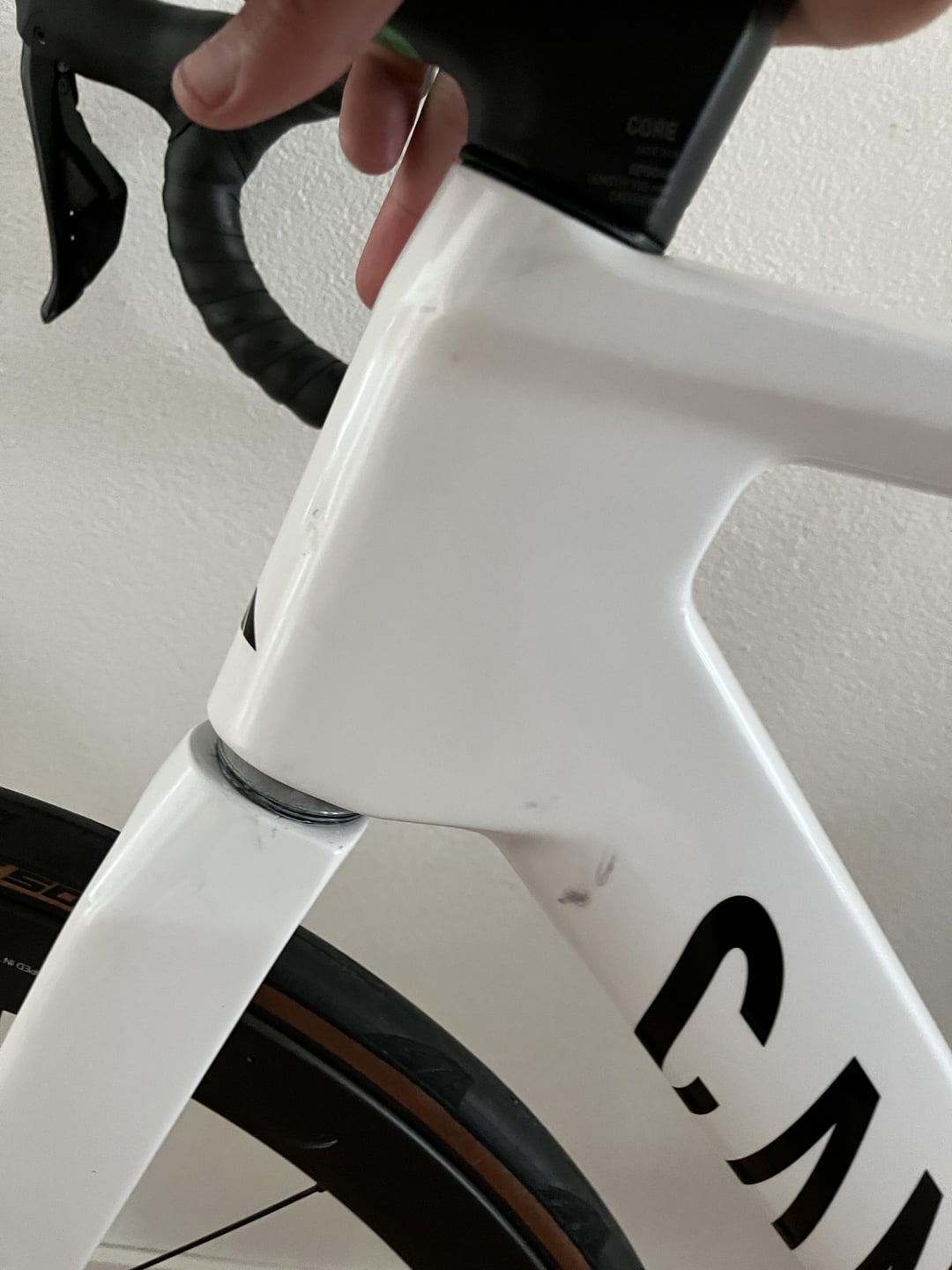

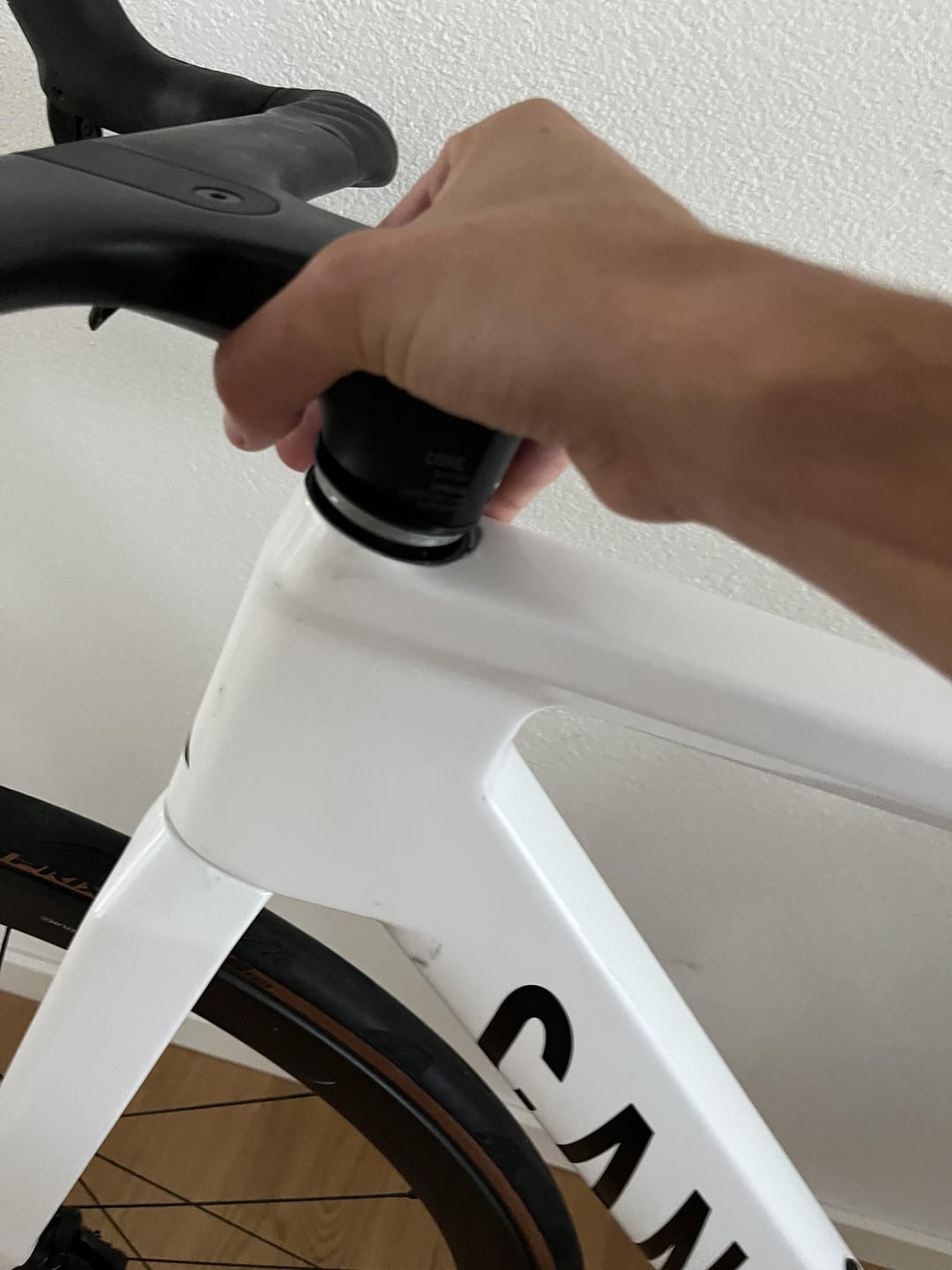

freiren on October 4, 2024 1:30 pm I was able to put it back but there is still a small gap. Not sure if this is dangerous/not recommended.
5 Comments
Loosen the stem bolts and loosen the top cap. Can you then press it together?
If you remove spacers, your fork is now too long. Either put the spacer back but on top of the stem, or cut your fork down.
Can you take a photo of all the elements that you removed? At least on the old Aeroad there was one that you were supposed to leave in.
You have to sort of rotate the cockpit a bit as you push it down on the fork. See from about 50 seconds in this YouTube video from Canyon. https://youtu.be/Y8yV4sP7a-M?si=OryzH2v5UIDd1X-E
I was able to put it back but there is still a small gap. Not sure if this is dangerous/not recommended.
